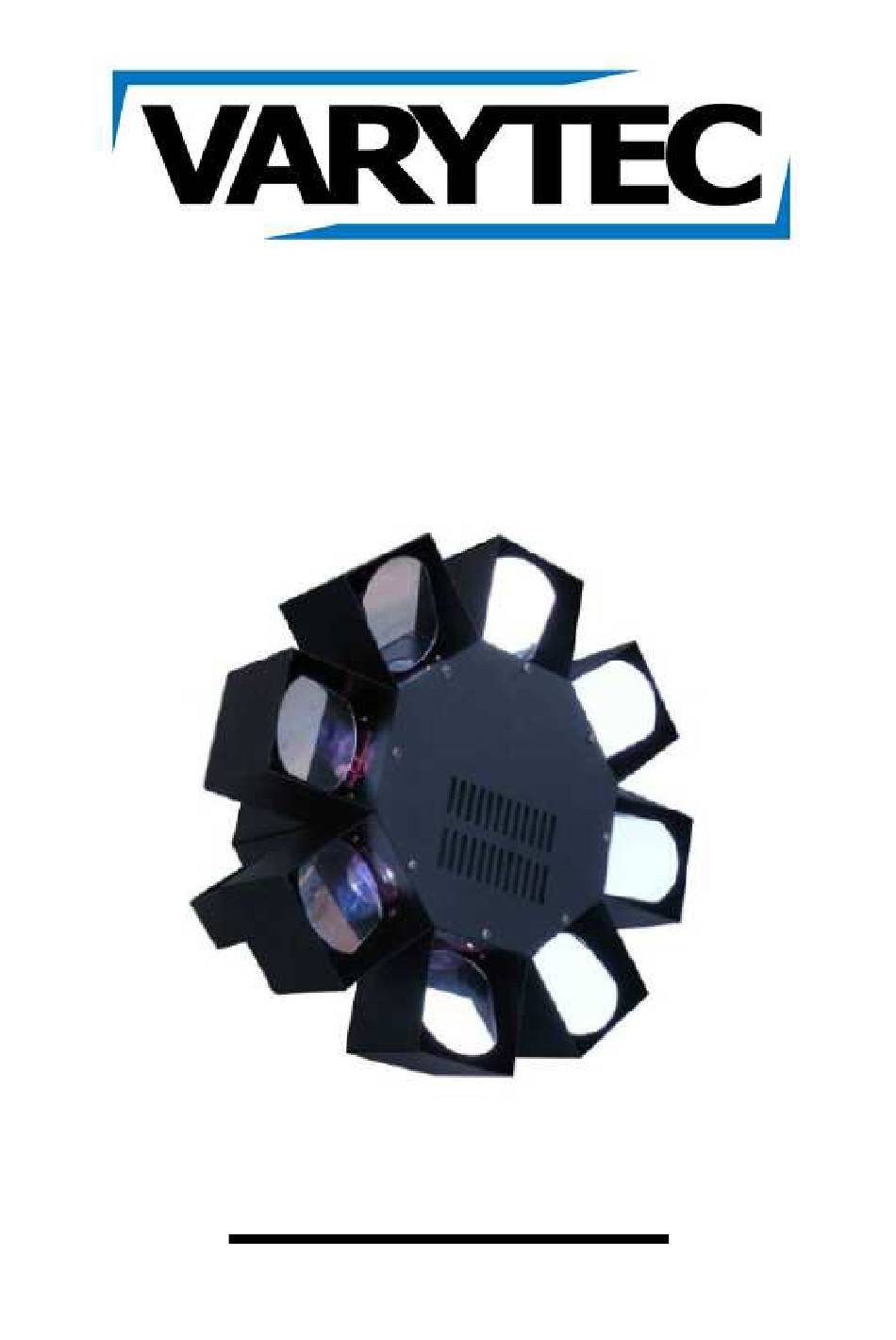

- Page 1 User manual Arana LED...
-
Page 2: Table Of Contents
Table of content Safety instructions ........................... 3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Unpacking ............................4 Introduction ............................4 3.1. Pros ............................4 Operating ............................5 4.1. Menu ............................5 DMX Mode ............................6 5.1. Channel table........................... 6 Technical Data .......................... -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Unpacking
In this case do not put the device into operation. 3. Introduction Arana LED is an 11 channel DMX controllable LED effect. The device can be operated in two different ways, either by a DMX controller or via Master-Slave mode. -
Page 5: Operating
4. Operating 4.1. Menu Arana LED has a simple menu which will be explained in the following. Please read this chapter carefully. Addr DMX address entry Press the Mode button until you see Addr on the display. Then press the ENTER button to confirm the DMX address as well as the DMX mode. -
Page 6: Dmx Mode
5. DMX Mode In this function you can operate the device with a standard DMX controller. Arana LED needs 11 DMX channels. 5.1. Channel table Channel Value Control 0 – 255 Motor 1 / 0 – 57 steps 0 – 255 Motor 2 / 0 –... - Page 7 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 7 / 7...
