Intel R2000WF Configuration Manual page 70

Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
CV CR
CV CR
CV CR
CV CR
Order Information
iPC – AXXCBL650HDHRT
MM – 958254
UPC – 00735858346115
EAN – 5032037106399
MOQ – 1
iPC – AXXCBL850HDHRS
MM – 958255
UPC – 00735858346122
EAN – 5032037106405
MOQ – 1
iPC – AXXCBL850HDHRT
MM – 958257
UPC – 00735858346139
EAN – 5032037106412
MOQ – 1
iPC – AXXCBL470CVCR
MM – 958258
UPC – 00735858346146
EAN – 5032037106429
MOQ – 1
iPC – AXXCBL530CVCR
MM – 958260
UPC – 00735858346153
EAN – 5032037106436
MOQ – 1
iPC – AXXCBL600CVCR
MM – 959345
UPC – 00735858346160
EAN – 5032037106443
MOQ – 1
iPC – AXXCBL700CVCR
MM – 958261
UPC – 00735858346177
EAN – 5032037106450
MOQ – 1

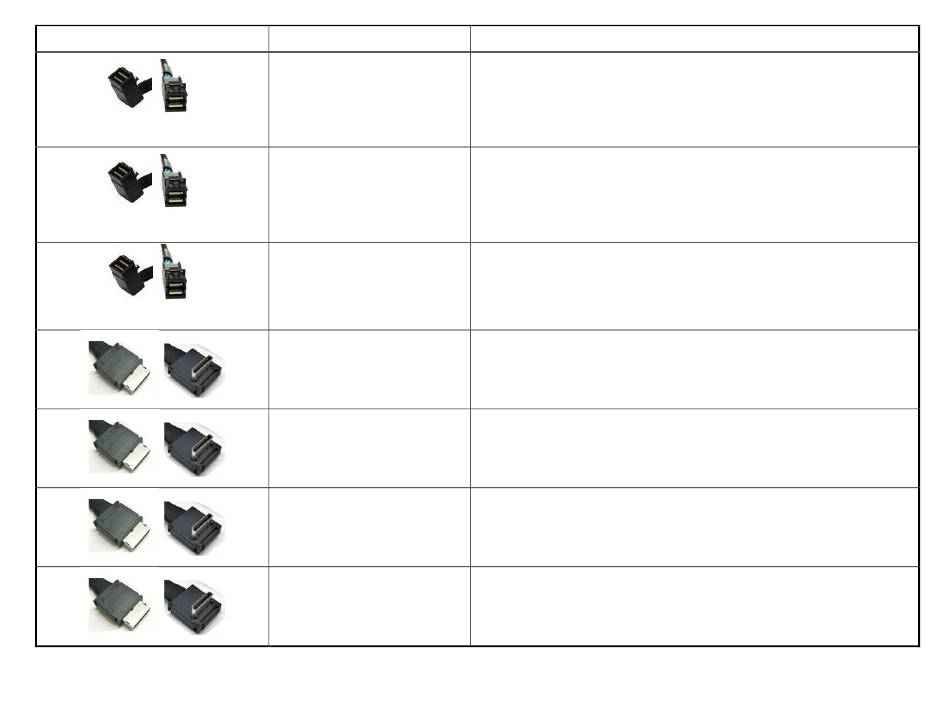

650 mm long, spare/accessory cable kit (2 cables included), straight HD Mini SAS
SFF8643 connector to right angle HD Mini SAS SFF8643 connector
Used in a R1208 as a spare and/or accessory to connect on-board mSAS-HD
connectors to the HSBP connector for drives 0-3
Not compatible with SAS ROC Modules with vertical connectors in 1U systems
850 mm long, spare/accessory cable kit (2 cables included), straight HD Mini SAS
SFF8643 connector to right angle HD Mini SAS SFF8643 connector
Used in a R1208 as a spare and/or accessory:
• to connect on-board mSAS-HD connectors to the HSBP drives 4-7
• Required cable to support SAS ROC Modules with vertical connectors to the HSBP
drives 0-3 connectors in 1U based systems
850 mm long, cable kit (2 cables included), straight HD Mini SAS SFF8643 connector
to right angle HD Mini SAS SFF8643 connector
Used in a R1304 as a spare and/or accessory to connect mSAS-HD connectors on the
server board to the HSBP to support drives 0-3
Not compatible with SAS ROC Modules with vertical connectors in 1U systems
470 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect a server board
OCuLink SSD connector to a HSBP SSD connector
530 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect the server board
OCuLink SSD connector to a HSBP SSD connector
600 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used to connect a server board OCuLink connector SSD#3 to HSBP drive 11 of the
R2312 system SKUs
700 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect the server board
OCuLink SSD connector to a HSBP SSD connector
