Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List

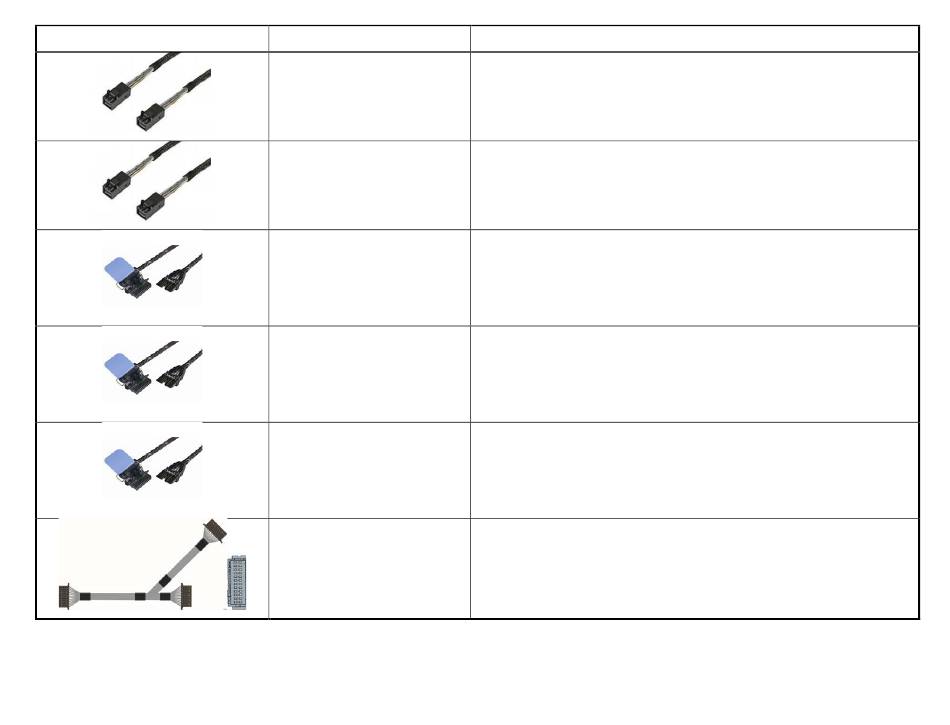

Image Order Information
iPC – AXXCBL730HDHD
MM – 936178
UPC – 00735858284745
EAN – 5032037065030
MOQ – 1
iPC – AXXCBL650HDHD
MM – 937129
UPC – 00735858284752
EAN – 5032037065047
MOQ – 1
iPC – AXXCBL235IFPR1
MM – 958250
UPC – 00735858346078
EAN – 5032037106351
MOQ – 1
iPC – AXXCBL235IFPL1
MM – 958252
UPC – 00735858346092
EAN – 5032037106375
MOQ – 1
iPC – AXXCBL370IFPS1
MM – 958251
UPC – 00735858346085
EAN – 5032037106368
MOQ – 1
iPC – AXXCBL430IFTSBY
MM – 958253
UPC – 00735858346108
EAN – 5032037106382
MOQ – 1
730 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
Used in multiple systems as spare and/or accessory (R1208, R2208, R2308)
650 mm long, cable kit (2 cables included) straight SFF8643 to straight SFF8643
Used as accessory when installing 12G ROC module in R1208 for optimal cabling.
(longer cable may be used)
Accessory/Spare cable kit – 235 mm long (iPN H79272-xxx), 1 cable included
• This is an accessory cable for IFT Carrier Kit AWF1PFABKITP. A required cable to
connect fabric processor #2 to the PCIe add-in IFT Carrier card installed to Riser #2
• This is a replacement cable for IFT Carrier kit AWF1PFABKITM.
Spare cable kit – 235 mm long (iPN H79267-xxx), 1 cable included
This is a replacement cable for IFT Carrier kit AWF1PFABKITP.
Updated 10/19
Accessory cable kit - 370 mm long (iPN H79275-xxx), 1 cable included
This is an accessory cable for IFT Carrier Kit AWF1PFABKITM. A required cable to
connect fabric processor #2 to the Mezzanine IFT Carrier card.
Update 10/19
430 mm long, spare cable kit (1 cable included), bundled straight 430mm, 2x12 HFI
Sideband Y Cable, Single Omni-Path Sideband IFT Carrier to dual Omni-Path CPU
connectors
Used to connect SB OmniPath IFT Carrier board or Mezzaine to the server board in
support of fabric processors
