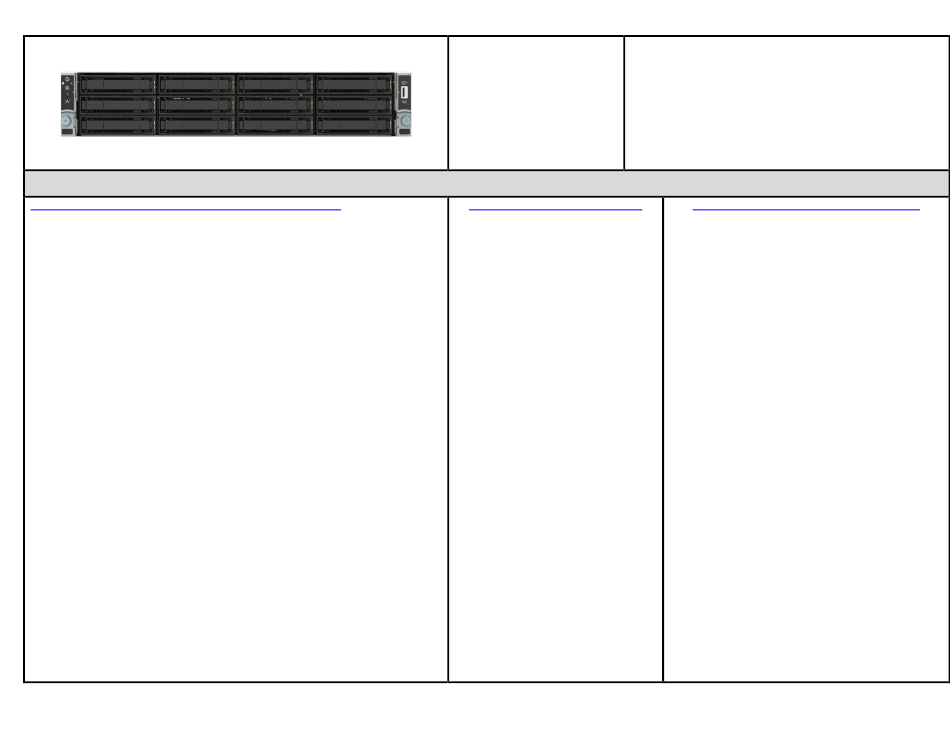

Intel R2000WF Configuration Manual page 60

Intel Product Code (iPC): LFRB2312WFTF601
2U – Intel® Server Board S2600WFTF, 12 x 3.5" HDD or 12 x 2.5" SSD
SATA/SAS front mount drives (support for up to 2 NVMe drives)
Intel product code LFRB2312WFTF601 includes the following:
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFT (Dual 10GbE LAN) – iPC S2600WFTF
(2) – Intel® Xeon® Gold 6130H
(2) - 16GB, RDIMM, DDR4, 2666 memory module – iPN J26609-002
(1) – Remote Management Module 4 Lite 2 – iPC AXXRMM4LITE2
(2) – PCIe Riser card brackets
• Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
• Includes (1) 2-slot low profile PCIe* riser cards – iPC A2UX8X4RISER
(12) – 3.5" Hot-swap drive bays with drive carriers and drive blanks
Includes (1) SAS/NVMe Combo backplane – iPC F2U12X35S3PH
•
• Includes (12) 3.5" hot swap drive tool less carriers – iPC FXX35HSCAR2
(1) – Storage Rack Handles (set - iPN H98453-001
(1) - Mini-Front panel (board only – iPN G28538-xxx)
(1)- 410mm FP Cable – iPN H26893-xxx
(1)- 640mm Front Panel USB 2.0 Cable iPN H20005-xxx
(1) – RFID Antenna – iPN H69567-00x
(1) – 175mm Backplane I2C Cable – iPN H91172-xxx
(1) – 800mm Mini SAS HD Cable iPC AXXCBL800HDHD
(1) – 875mm Mini SAS HD Cable iPC AXXCBL875HDHD
(1) – 950mm Mini SAS HD Cable iPC AXXCBL950HDHD
(1) – 525/675mm Backplane power cable – iPN H82097-xxx
(1) – Standard 2U Air duct iPN H90554-xxx
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(2) – 1300W AC Power Supply Module – iPC AXX1300TCRPS
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – Standard CPU Carrier – iPN H72851-xxx
(2) – Chassis handle (1 set) installed – iPN H98453-001
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(1) – 250mm Fixed Mount SSD Power Cable – iPN J29245-xxx
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Product Type: L9 Integrated System
Order Code Information:
Chassis Form Factor: 2U rack mount
MM# – 974990
Chassis dimensions: L=712mm, W=439mm, H=89mm
UPC – 00735858388771 Packaged Gross Weight: 24.95 Kgs, 55.0 Lbs
Un-packaged Net Weight: 17.90 Kgs, 39.46 Lbs
EAN – 5032037137324
Outer Box Dimensions: L=983mm, W=577mm,
MOQ – 1
H=260mm
Required Items – Sold Separately:
• Rack Mount Kit – See Chapter 5.8 for
available options
• DDR4 memory (RDIMM or LRDIMM)
• Power Cord(s) – See Chapter 2.3
Optional Intel Accessories – Sold Separately
Note: By default the front drive bays are cabled
to Onboard SATA only ports. An add-in SAS card
or Module is needed to support SAS devices.
• Intel® OCP Module - See Chapter 5.5 for available
options
• Intel® 12G SAS RAID module + RMFBU - See
Chapter 5.7 for available options
• SAS Data cables – Depending on the location of the
SAS Data controller, new data cables may be
necessary. See Chapter 4
• PCIe OCuLink Data cables (1 per NVMe drive) - See
Chapter 4
• iPC RKSATA4R5 – Embedded SATA ESRT2 SW
RAID-5 support key
• iPC A2UREARHSDK2 - Rear Mount Hot Swap Drive
Bay Accessory Kit
See Chapter 6 for all available accessory options.
