Intel R2000WF Configuration Manual page 62

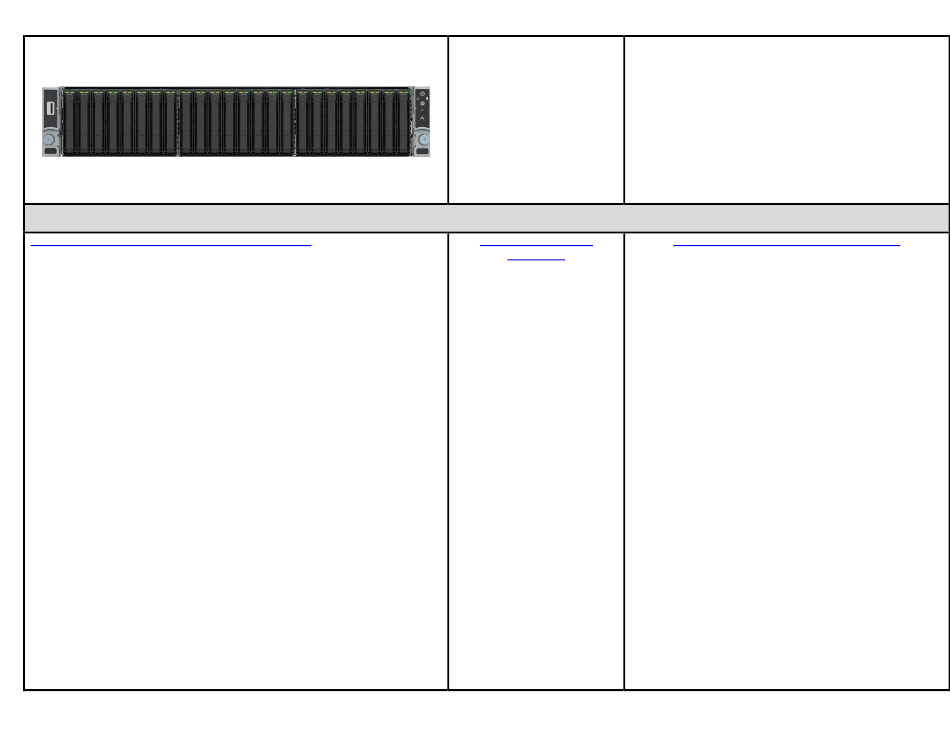

Intel Product Code (iPC): R2224WFQZS
2U – Intel® Server Board S2600WFQ, 24 x 2.5" SATA/SAS/NVMe front
mount drives
Intel product code R2224WFQZS includes the following:
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFQ (QAT Support) – iPC S2600WFQ
(2) – PCIe Riser card brackets
• Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
• Includes (1) 2-slot low profile PCIe* riser cards – iPC A2UX8X4RISER
(24) – 2.5" Hot-swap drive bays with drive carriers and drive blanks
• Includes (3) SAS/NVMe Combo backplane – iPC F2U8X25S3PHS
• Includes (24) 2.5" hot swap drive tool less carriers – iPC FXX25HSCAR3
(1) – Storage Rack Handle Assembly – iPC A2UHANDLKIT
• 1 set Storage Rack Handles
• Mini-Front panel (board only – iPC G28538-xxx)
410mm FP Cable – iPN H26893-xxx
•
• 640mm Front Panel USB 2.0 Cable iPN H20005-xxx
(1) – 250mm Backplane I2C cable – iPN H91166-xxx
(2) – 100mm Backplane to Backplane I2C Jumper cable – iPN H91163-xxx
(4) – 875mm Mini SAS HD VT-VT cable – iPC AXXCBL875HDHD
(1) – 400/525/675mm Backplane power cable – iPN H82108-xxx
(1) – 290mm QAT Cable – iPN J61138-xxx
(1) – Standard 2U Air duct – iPN H90554-xxx
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(1) – 1300W AC Power Supply Module – iPC AXX1300TCRPS
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink "NO CPU" mylar spacer insert – iPN J16115-XXX
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(1) – 250mm Fixed Mount SSD Power Cable – iPN J29245-xxx
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Product Type: L6 Integrated System
Order Code Information:
Chassis Form Factor: 2U rack mount
MM# – 955875
Chassis dimensions: L=712mm, W=439mm, H=89mm
UPC – 00735858344760
Packaged Gross Weight: 24.13 Kgs, 53.09 Lbs
Un-packaged Net Weight: 17.57 Kgs, 38.64 Lbs
EAN – 5032037105477
Outer Box Dimensions: L=983mm, W=577mm,
MOQ – 1
H=260mm
Required Items – Sold
Separately:
Note: By default the front drive bays are cabled to
• Rack Mount Kit – See Chapter
Onboard SATA only ports. An add-in SAS card or
5.8 for available options
Module is needed to support SAS devices.
• 1 or 2 Intel® Xeon® processor
•
Scalable family
• DDR4 memory (RDIMM or
•
LRDIMM)
•
• Power Cord(s) – See Chapter
2.3
•
•
•
•
•
•
See Chapter 6 for all available accessory options.
Optional Intel Accessories – Sold Separately
iPC AXX1300TCRPS – 1300W AC Power Supply Module –
to support power redundancy
Intel® OCP Module - See Chapter 5.5 for available options
Intel® 12G SAS RAID module + RMFBU - See Chapter 5.6
for available options
SAS Data cables – Depending on the location of the SAS
Data controller, new data cables may be necessary. See
Chapter 4
PCIe OCuLink Data cables (1 per NVMe drive) - See
Chapter 4
iPC RKSATA4R5 – Embedded SATA ESRT2 SW RAID-5
support key
iPC A2UREARHSDK2 - Rear Mount Hot Swap Drive Bay
Accessory Kit
iPC AXXP3SWX08040 - 4-Port PCIe Gen3 x8 Switch AIC
iPC AXXP3SWX08080 - -Port PCIe Gen3 x8 Switch AIC
