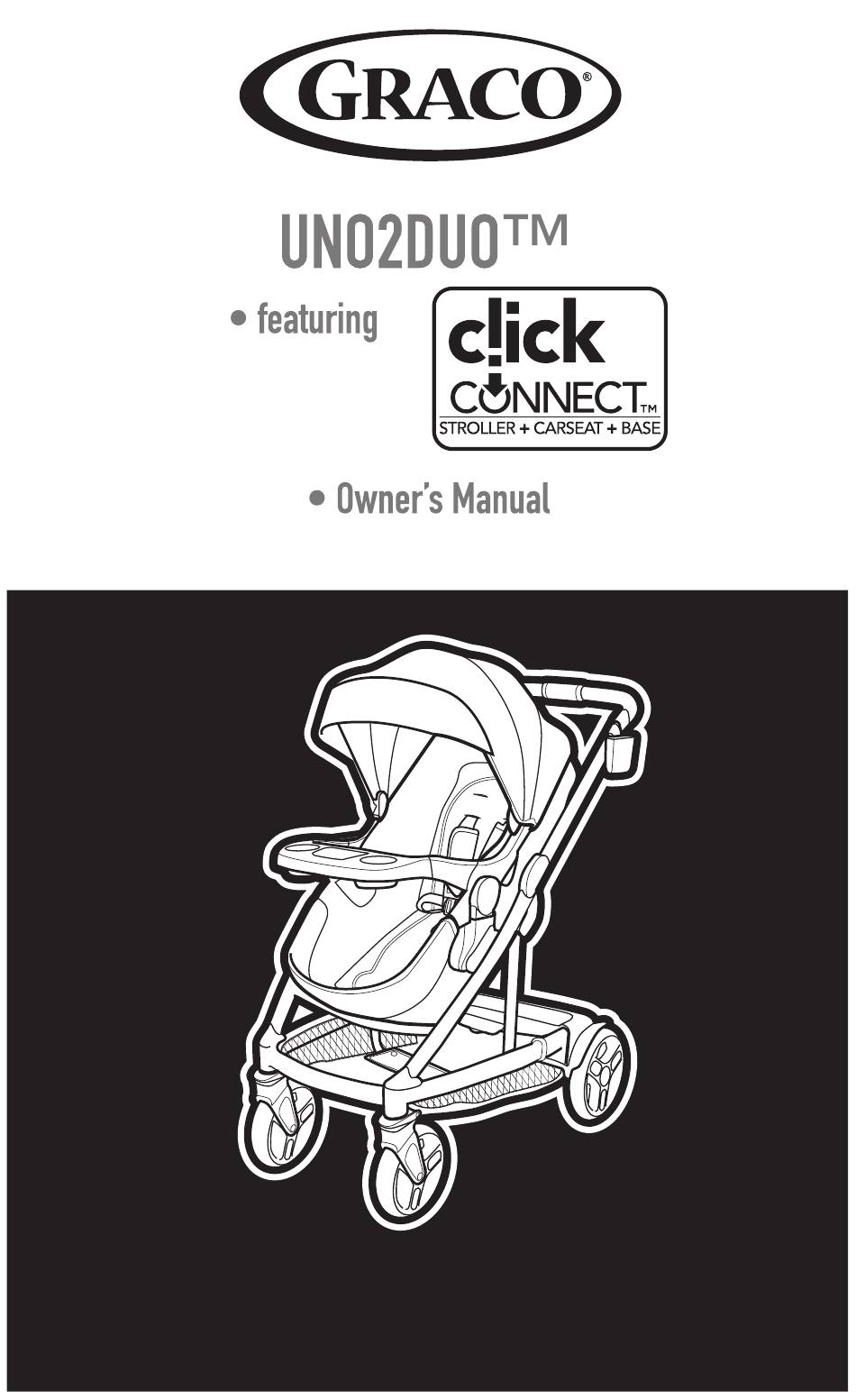

UNO2DUO™
• featuring
• Owner's Manual
©2018 Graco NWL0000742780B

Advertisement

Table of Contents
loading

Related Manuals for Graco UNO2DUO

Summary of Contents for Graco UNO2DUO

  • Page 1 UNO2DUO™ • featuring • Owner’s Manual ©2018 Graco NWL0000742780B...
  • Page 2 1 WARNING 2 Features UNO2DUO™ Use Positions Parts List 3 Assembly To Open Stroller Rear Wheels Front Wheels 3-D Cup holder and Phone holder Assemble Seat(s)
  • Page 3 Attachment 4-D To Secure Child To Recline Brakes 4-G Swivel Wheels To Attach Graco® Infant Car Seat to Stroller Frame in Front Position To Attach Graco® Infant Car Seat to Toddler Seat in Front Position To Fold Stroller Frame Harness Covers...
  • Page 4 Failure to follow these warnings and the assembly instructions could result in serious injury or death. Only use product as instructed. PLEASE SAVE OWNER’S USE OF THE FRONT SEAT, REAR MANUAL FOR FUTURE USE. SEAT, OR STANDING PLATFORM with a child weighing more than ADULT ASSEMBLY REQUIRED.
  • Page 5 • READ THE MANUAL provided with your Graco car seat before using it with your stroller. • ALWAYS SECURE your child with the car seat harness when using the car seat in the stroller.
  • Page 6 UNO2DUO™ Use Positions WARNING DO NOT allow child to stand on platform facing backwards. To avoid falling, child must hold onto frame. One Child Infant car seat on certain models or sold separately) Extra Storage - Frame can be extended in any of the 8...
  • Page 7 Two Children Second Seat (on certain models or sold separately)
  • Page 8 2-B Parts List This model may not include some features shown below. Check that you have all the parts for this model. Tools required: Phillips Screwdriver All models On certain models...
  • Page 9 To Open Stroller WARNING • Remove and IMMEDIATELY discard the zip ties. Zip ties Be sure to place stroller on top of a piece of cardboard or some other protective cover to prevent any damage to floor. 1. Open stroller lock.
  • Page 10 2. Lift handle of stroller up. 3. CHECK that the stroller is completely latched open every SNAP! time you open the stroller and before continuing with the rest of the assembly steps.
  • Page 11 Rear Wheels Fenders Extension 1. Attach fender with extension facing the rear of stroller. Insert tabs into stroller frame and slide to secure. Extension 2. Secure with screw. Repeat on other fender.
  • Page 12 Rear Axle 1. Remove protective end cap from each axle end. 2. Insert axle through axle opening.

  • Page 13: Rear Wheels

    Rear Wheels 3. Place wheel on axle. 4. Place washer on axle.
  • Page 14 5. Push straight side of pin through axle hole. Pin will separate around the axle. Curved end of pin MUST face up as shown. Repeat steps 3-5 on other side. 6. Snap hubcap over pin as shown. Repeat with other hubcap. SNAP!
  • Page 15 Front Wheels 1. Attach front wheels to front leg tubes as shown. SNAP! 2. CHECK that wheels are securely attached by pulling on wheel assembly.
  • Page 16 Cup holder and Phone holder 1. Line up opening in cup holder or phone holder with mount on stroller and press onto stroller tube. 2. Make sure cup holder or phone holder is snapped securely into mount.
  • Page 17 Assemble Seat(s) 1. Seat wire should be inserted as shown. DO NOT insert with wire facing head end of seat. 2. Insert seat wire into openings marked with an arrow on sides of toddler seat. SNAP! CHECK that seat wire is securely attached to toddler seat by pulling on it.
  • Page 18 3. Secure flap around wire with 3 snaps. Repeat on other toddler seat (on certain models). Canopy Toddler Seat - 3 panels with visor Second Seat (on certain models) - 2 panels with visor 1. Slide canopy pivots onto mounts on each side of the toddler seat as shown.
  • Page 19 2. Fasten hook and loop tape on the rear of canopy as shown. MAKE SURE canopy is always fastened with the hook and loop tape when toddler seat is in use. (on certain models) Repeat steps on second seat.
  • Page 20 Child’s Tray WARNING Always secure your child with the seat belt. The tray is not a restraint device. DO NOT lift the stroller by the child’s tray. Use care when snapping the tray on the stroller with a child in the stroller. 1.
  • Page 21 2. Attach child’s tray to side armrests. 3. To open, press button on bottom and rotate child’s tray up.
  • Page 22 4. To remove child’s tray, (a) press buttons on bottom on both ends and (b) lift off. 5. (a) Press release buttons on underside of side armrests and (b) pull away from stroller.
  • Page 23 To Use Toddler Seat WARNING • ONLY USE toddler seat on the stroller and do not remove, reverse, or carry the toddler seat while child is in it. See warnings for additional information. To Attach Toddler Seat 1. NOTE: Seat can be placed forward or rear facing on the front mounts.
  • Page 24 2. To attach seat, place seat on mounts as shown until they lock into place on both sides of the stroller. 3. MAKE SURE seat mounts are securely attached to the stroller on both sides as shown. SNAP! ¡CRAC! 4. CHECK that toddler seat is securely attached to the stroller by pulling up on toddler seat.
  • Page 25 To Remove Toddler Seat 1. Squeeze buttons on both sides of the seat and pull up as shown.
  • Page 26 Canopy 1. Pull forward to open canopy. 2. Push backwards to close canopy. 3. Pull flap forward to open and backwards to close canopy window. 4. To open or close canopy visor.
  • Page 27 To Use Toddler Seat in Bassinet Position WARNING • Child may slip into leg openings and strangle. • NEVER use in full recline position unless footrest is in the bassinet position. • Never use any head support in the reclined bassinet position. •...
  • Page 28 1. Remove side armrests and child’s tray. Press buttons on bottom on both sides and pull off of the stroller. ALWAYS remove the child’s tray and side armrests when using in bassinet position.
  • Page 29 2. Remove front toddler seat if it is attached. Squeeze buttons on both sides of the seat and pull up as shown. 3. Flip toddler seat over and disconnect buckle on foot end. ALWAYS release the webbing strap buckle to lower the foot end of the toddler seat before placing child in the bassinet.
  • Page 30 4. To attach seat, place seat on mounts as shown until they lock into place on both sides of the stroller. Bassinet can only be used in front seat position. Bassinet can be attached forward or rear facing. MAKE SURE buckles do not interfere with seat and mounts.
  • Page 31 6. To recline seat back, push button down and pull seat towards the rear. 7. To put in bassinet position, pull handle on top of seat and rotate seat flat. DO NOT adjust with child in seat. 8. CHECK seat is secured in bassinet position as shown.
  • Page 32 To Extend Platform for Child Use, Extra storage or Rear Seat Attachment WARNING • DO NOT adjust mounts with child on the platform or allow child to play with mounts. • DO NOT use bassinet, or car seat in rear position. •...
  • Page 33 Rear Position Mounts 1. To extend frame and to access rear toddler seat mounts: a. pull extension handle under rear of platform, b. pull platform rearward. 2. CHECK that frame locks fully open and mounts are visible. WHEN ADJUSTING THE LOWER FRAME, be sure it locks into the fully extended or fully retracted position and only use in one of...
  • Page 34 3. To attach toddler seat in rear position, place attachment mounts in upright position by: a. rotating up, b. snapping into place. SNAP! Reverse steps to shorten frame.
  • Page 35 To Attach Second Seat For models that do not come with a second seat one may be purchased separately. 1. To attach second seat, be sure attachment mounts are in the vertical position as shown. Place seat on mounts as shown until they lock into place on both sides of the stroller.
  • Page 36 2. MAKE SURE seat mounts are securely attached to the stroller on both sides as shown. SNAP! 3. CHECK that toddler seat is securely attached to the stroller by pulling up on toddler seat.
  • Page 37 To Remove Second Seat 1. Squeeze buttons on both sides of the seat and pull up as shown.
  • Page 38 Canopy 1. Pull forward to open canopy. 2. Push backwards to close canopy. 3. Pull flap forward to open and backwards to close canopy window. 4. To open or close canopy visor. Second seat visor should be retracted when front seat is reclined.

  • Page 39: Point Harness

    To Secure Child WARNING Falling Hazard: Always use the seat belt. 5 Point Harness 1. To open, press button on buckle to release the waist straps. 2. To close, slide shoulder strap connectors onto waist straps and insert into buckle.
  • Page 40 3. Use slide adjuster at shoulder and waist for tighter adjustment. To Use slide adjuster change shoulder harness slots, waist for further a see page 46. Repeat on other s Utilisez le régulate à l'épaule et à la ta ajustement plus p de l'autre côté.
  • Page 41 3. Remove shoulder straps from stroller. 4. Attach waist straps to harness buckle as shown. 5. Use slide adjuster at waist for tighter adjustment. 6. To open, press button on buckle to release the waist straps.
  • Page 42 Adjusting Shoulder Harness position Shoulder harness anchor—larger child Shoulder harness anchor—smaller child Slide adjuster...
  • Page 43 1. Push harness anchor through the front of the seat then re-insert through desired slots at the same height level. Use either shoulder harness anchor in the slots that are closest to child’s shoulder height. Use slide adjuster for further adjustment.
  • Page 44 To Recline WARNING When making adjustments to the stroller seat, make sure child’s head, arms, and legs are clear of moving seat parts and stroller frame. 1. To recline push button down and pull seat towards the rear. 2. To raise, pull both straps up.
  • Page 45 Brakes WARNING CHECK that brakes are on by trying to push stroller. ALWAYS LOCK BRAKES before folding. 1. Push down on either brake to lock brakes. SNAP! 2. Push up on either brake to unlock brakes. SNAP!
  • Page 46 Swivel Wheels Front swivel wheels lock for use on uneven surfaces such as grass, stones or gravel. 1. To lock, press up. SNAP! 2. To unlock, press down. SNAP!
  • Page 47 Click Connect™ logo. Improper use of this product with a car seat may result in serious injury or death. Read the manual provided with your Graco car seat before using it with your product. • Always secure your child with infant car seat harness when using the car seat in the product.
  • Page 48 1. Infant car seat can be attached to stroller frame rear and forward facing. DO NOT use car seat in rear seat position.
  • Page 49 2. Insert car seat into stroller and push down on car seat until the latches snap into the seat attachment mounts. Mount Supports 3. Check that infant car seat is securely attached by pulling up on it. 4. To remove car seat: (a) squeeze release handle at back of car seat, and (b) lift car seat out of the stroller.
  • Page 50 To Attach Graco Infant Car Seat to Toddler ® Seat in Front Position WARNING • NEVER ATTACH infant car seat in the toddler seat without the child’s tray and side armrests attached. 1. NOTE: Infant car seat can ONLY be attached rear facing to toddler seat when toddler seat is in forward or rear facing position.
  • Page 51 2. Recline seat back to full recline position. (See section 4-E, p. 47). 3. Find mounts in toddler seat. 4. Insert infant car seat into stroller and push down on infant car seat until the latches snap into the Click Connect™ mounts. SNAP!
  • Page 52 5. Check that infant car seat is securely attached by pulling up on it. 6. To remove infant car seat: (a) squeeze release handle at back of infant car seat, and (b) lift infant car seat out of the stroller.
  • Page 53 T o Fold Stroller Frame NOTE: Stroller can be folded with front toddler seat installed forward-facing or with no seats attached. DO NOT fold stroller with: • a toddler seat rear-facing, • a toddler seat in the rear position, • an infant car seat.
  • Page 54 1. Before folding stroller: a. remove infant car seat and rear toddler seat. b. lock brakes. SNAP! 2. Slide handle release button in (a) and rotate handle forward (b).
  • Page 55 3. Rotate handle down. 4. CHECK that the storage latch is secured. Harness Covers 1. To attach harness covers, slide onto shoulder harness straps.
  • Page 56 Cover Crotch Strap 1. To attach crotch strap cover, slide onto crotch strap. 4-M To Adjust Handle To adjust handle, (a) lift up on handle release and (b) slide handle into desired position. Learn more about automotive seats on our website.
