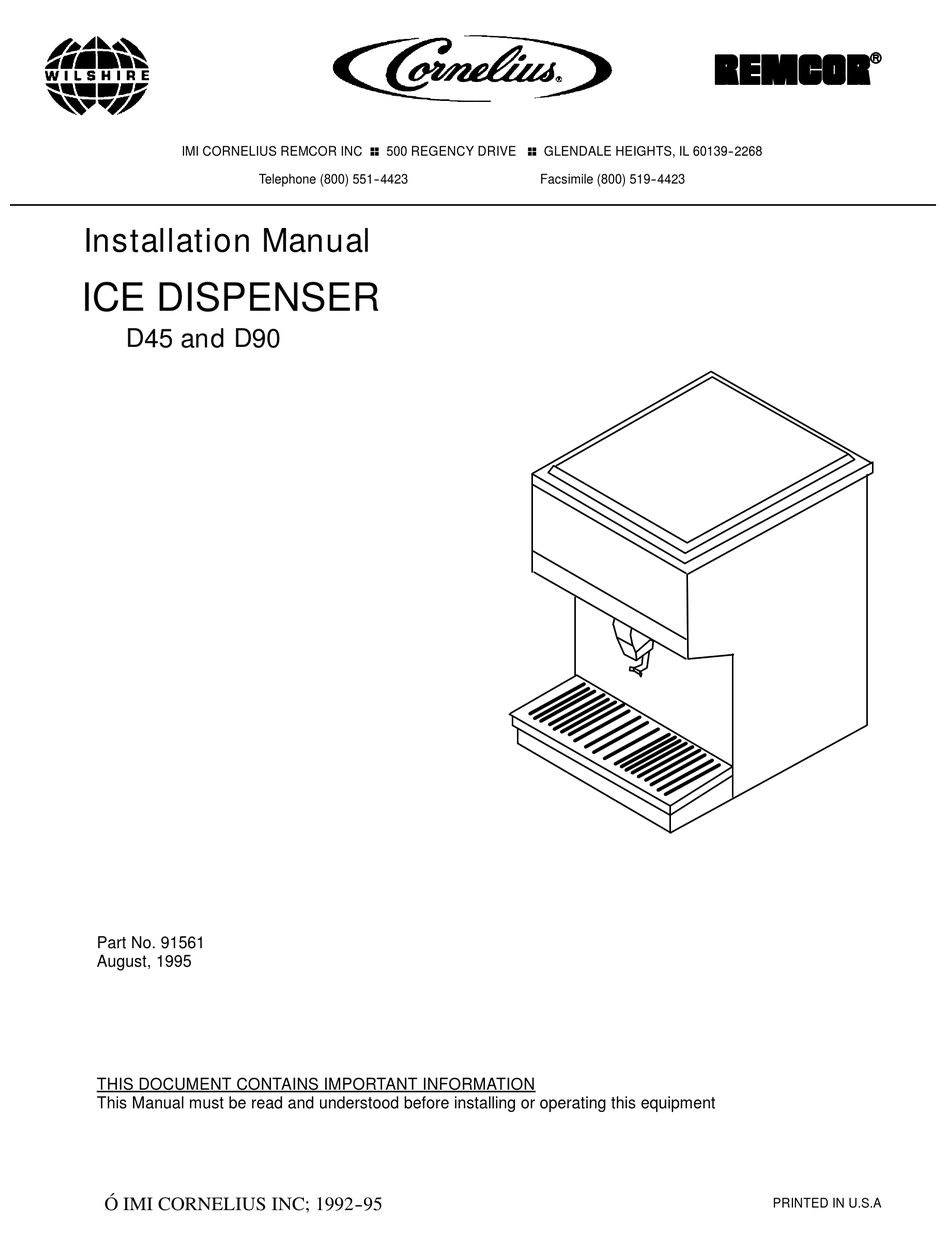

IMI CORNELIUS REMCOR INC g 500 REGENCY DRIVE g GLENDALE HEIGHTS, IL 60139- -2268
Telephone (800) 551- -4423
Facsimile (800) 519- -4423
Installation Manual
ICE DISPENSER
D45 and D90
Part No. 91561
August, 1995
THIS DOCUMENT CONTAINS IMPORTANT INFORMATION
This Manual must be read and understood before installing or operating this equipment
IMI CORNELIUS INC; 1992- - 95
Ó
PRINTED IN U.S.A
Advertisement
Table of Contents
Related Manuals for Cornelius D90
Summary of Contents for Cornelius D90
- Page 1 IMI CORNELIUS REMCOR INC g 500 REGENCY DRIVE g GLENDALE HEIGHTS, IL 60139- -2268 Telephone (800) 551- -4423 Facsimile (800) 519- -4423 Installation Manual ICE DISPENSER D45 and D90 Part No. 91561 August, 1995 THIS DOCUMENT CONTAINS IMPORTANT INFORMATION This Manual must be read and understood before installing or operating this equipment IMI CORNELIUS INC;...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page SAFETY PRECAUTIONS ........... DESCRIPTION . -
Page 3: Safety Precautions
DESCRIPTION The D45 or D90 ice dispensers solve your ice and beverage service needs in a sanitary, space saving, econom- ical way. Designed to be manually filled with ice from any remote ice-making source, these dispensers will dis- pense cubes (up to 1-1/4? in size), cubelets and hard-chipped or cracked ice. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Locate the dispenser indoors on a level counter top. Unpack the four (4) legs and install them into the threaded holes provided in the bottom of the unit. 2. Connect the 3/4? IPS (or equal) drain line to the 3/4? threaded drain connections at the lower rear of the unit. -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Fill the hopper with ice and replace the lid. Pushing the dispenser lever will cause ice to flow from the ice chute. Ice flow will continue until the lever is released. If ice does not dispense, see the TROUBLESHOOTING GUIDE to find the cause. -
Page 6: Troubleshooting Guide
GATE OPENS. AGITATOR Ice solidified in hopper. Break up ice in hopper. DOES NOT TURN. Defective agitator motor. Replace agitator motor. Defective capacitor (D90 only). Replace capacitor. ICE DISPENSES Stuck or bent depressor plate Replace depressor plate. CONTINUOUSLY. (does not release switch) Defective dispensing switch. -
Page 7: Figure 1. Mounting Templates
15 7/8-IN. 1 5/8-IN. 12 5/8-IN. 1 5/8-IN. 18 9/16-IN. OUTLINE OF UNIT 21 25/32-IN. 3/4-DIA. (4) 22-IN. 1 1/8-IN. 19 3/4-IN. 1 1/8-IN. 16 1/4-IN. OUTLINE OF UNIT 27 23/32-IN. 3/4-DIA. (4) FIGURE 1. MOUNTING TEMPLATES 91561... -
Page 8: Figure 2. Wiring Diagram
GATE SOLENOID 1 1/4 AMP TIME DELAY FUSE TERMINAL BOARD AGITATOR MOTOR PORTION PORTION CAPACITOR TIMER CONTROL D90 ONLY OPTION DISPENSE DISPENSE SWITCH SWITCH TERMINAL BOARD SERVICE INFORMATION ELECTRIC SHOCK HAZARD. DISCONNECT DANGER! POWER BEFORE SERVICING UNIT. SOLENOID ADJUSTMENT WHEN REPLACING SOLENOID,... -
Page 9: Solenoid Assembly Parts List
FIGURE 3. SOLENOID ASSEMBLY - - EXPLODED VIEW AND PARTS LIST Index Part No. Qty. Name 21493 Solenoid Mounting Plate 31551 Solenoid Service Kit 70171 8- -32 x 3/8 Phil Tr HD Screw 70121 No. 8 Lockwasher 50752 Isolator 50789 Bumper Assembly 70423 Cotter Pin... -
Page 10: Figure 4. Dispensing Levers And Switches
CUP ACTIVATED PUSH LEVER FIGURE 4. DISPENSING LEVERS AND SWITCHES 91561... -
Page 11: Parts List
PARTS LIST Item Description Part No. D45 Part No. D90 Gate Slide 214910 214910 Depressor, Cup Activated 215150 215150 Depressor Retainer (for 21515) 22644 22644 Depressor Push Lever 27126 27126 Depressor Retainer (for 27126) 27107 27107 Agitator 21517 21629 Dispense Switch... -
Page 12: Warranty
IMI Cornelius Inc. warrants that all equipment and parts are free from defects in material and workmanship un- der normal use and service. For a copy of the warranty applicable to your Cornelius product, in your country, please write, Fax or telephone the IMI Cornelius office nearest you. Please provide the equipment model num- ber and the date of purchase. - Page 13 CORPORATE HEADQUARTERS: Remcor Incorporated 500 Regency Drive Glendale Heights, IL 60139...
