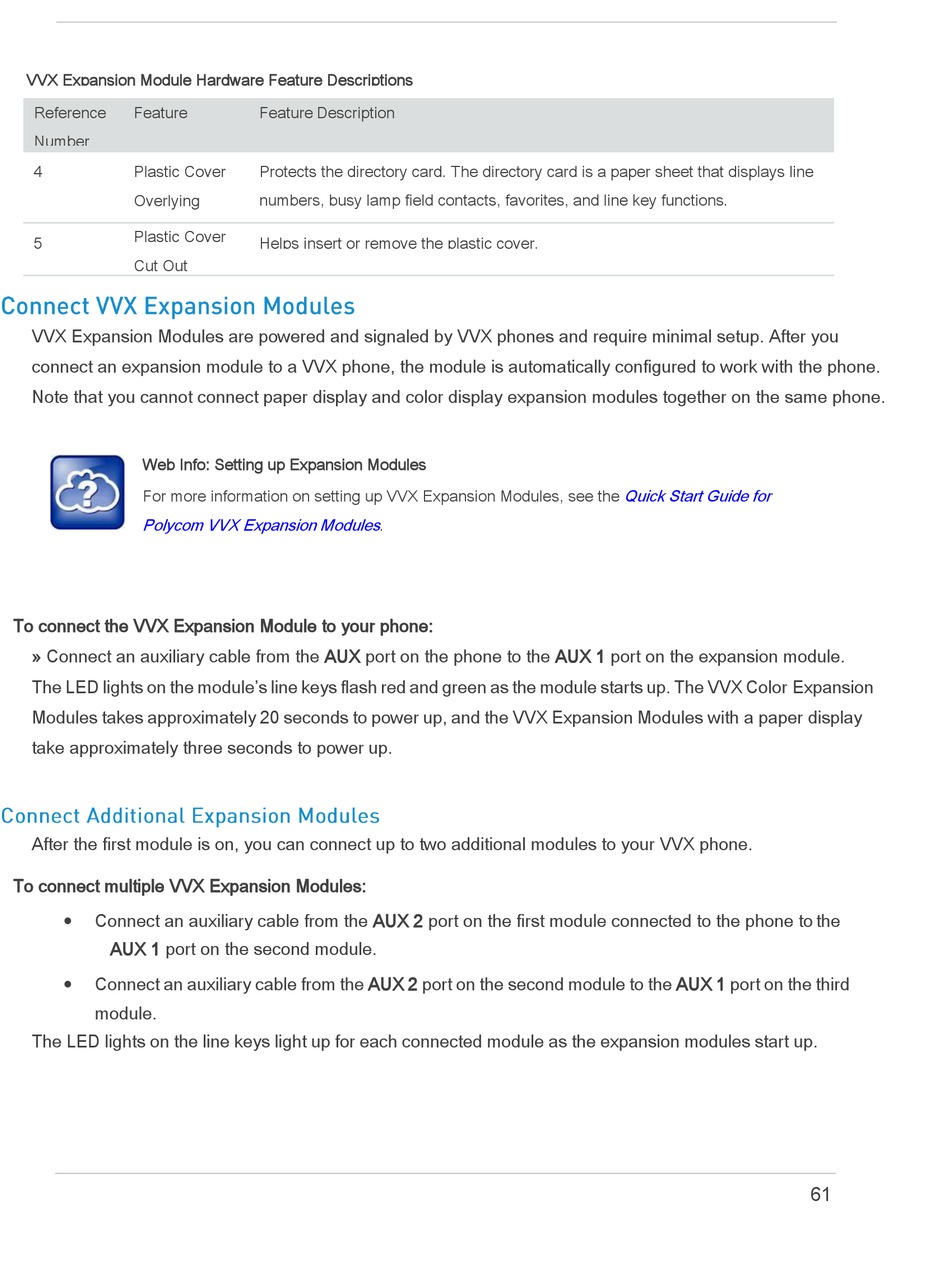

VVX Expansion Module Hardware Feature Descriptions
Reference Feature
Number
4 Plastic Cover
Overlying
Directory Card
Plastic Cover
5
Cut Out
VVX Expansion Modules are powered and signaled by VVX phones and require minimal setup. After you
connect an expansion module to a VVX phone, the module is automatically configured to work with the phone.
Note that you cannot connect paper display and color display expansion modules together on the same phone.
Web Info: Setting up Expansion Modules
For more information on setting up VVX Expansion Modules, see the
Polycom VVX Expansion Modules
To connect the VVX Expansion Module to your phone:
» Connect an auxiliary cable from the AUX port on the phone to the AUX 1 port on the expansion module.
The LED lights on the module's line keys flash red and green as the module starts up. The VVX Color Expansion
Modules takes approximately 20 seconds to power up, and the VVX Expansion Modules with a paper display
take approximately three seconds to power up.
After the first module is on, you can connect up to two additional modules to your VVX phone.
To connect multiple VVX Expansion Modules:
Connect an auxiliary cable from the AUX 2 port on the first module connected to the phone to the
●
AUX 1 port on the second module.
Connect an auxiliary cable from the AUX 2 port on the second module to the AUX 1 port on the third
●
module.
The LED lights on the line keys light up for each connected module as the expansion modules start up.
Feature Description
Protects the directory card. The directory card is a paper sheet that displays line
numbers, busy lamp field contacts, favorites, and line key functions.
Helps insert or remove the plastic cover.
.
Quick Start Guide for
