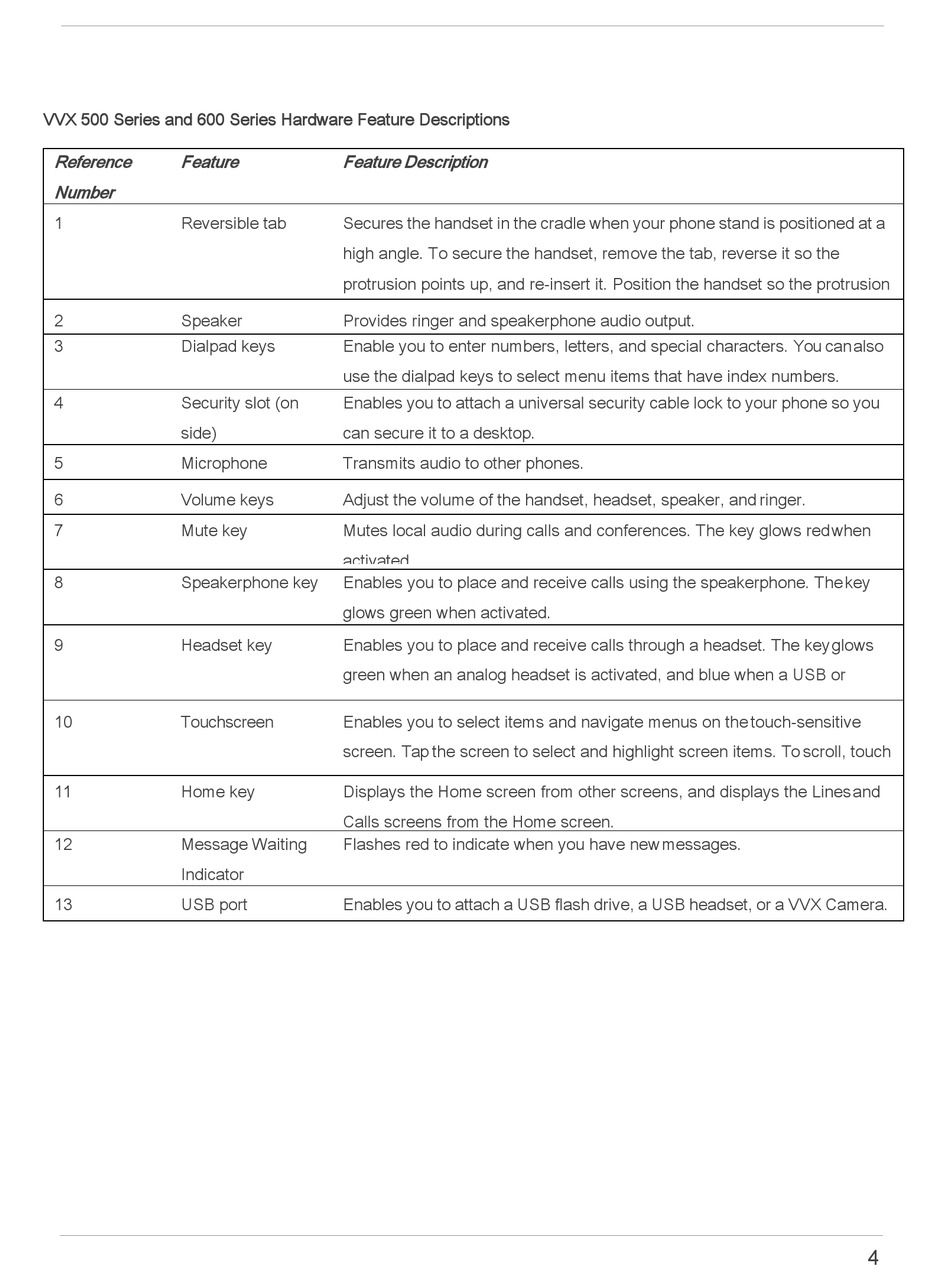

VVX 500 Series and 600 Series Hardware Feature Descriptions
Reference Feature
Number
1 Reversible tab
2 Speaker
3 Dialpad keys
4 Security slot (on
side)
5 Microphone
6 Volume keys
7 Mute key
8 Speakerphone key
9 Headset key
10 Touchscreen
11 Home key
12 Message Waiting
Indicator
13 USB port
Feature Description
Secures the handset in the cradle when your phone stand is positioned at a
high angle. To secure the handset, remove the tab, reverse it so the
protrusion points up, and re-insert it. Position the handset so the protrusion
on the tab fits into the slot on the handset.
Provides ringer and speakerphone audio output.
Enable you to enter numbers, letters, and special characters. You can also
use the dialpad keys to select menu items that have index numbers.
Enables you to attach a universal security cable lock to your phone so you
can secure it to a desktop.
Transmits audio to other phones.
Adjust the volume of the handset, headset, speaker, and ringer.
Mutes local audio during calls and conferences. The key glows red when
activated.
Enables you to place and receive calls using the speakerphone. The key
glows green when activated.
Enables you to place and receive calls through a headset. The key glows
green when an analog headset is activated, and blue when a USB or
Bluetooth headset is activated.
Enables you to select items and navigate menus on the touch-sensitive
screen. Tap the screen to select and highlight screen items. To scroll, touch
the screen, and swipe your finger up, down, right, or left.
Displays the Home screen from other screens, and displays the Lines and
Calls screens from the Home screen.
Flashes red to indicate when you have new messages.
Enables you to attach a USB flash drive, a USB headset, or a VVX Camera.
