Related Manuals for John Lewis JLBIFF1810
Summary of Contents for John Lewis JLBIFF1810

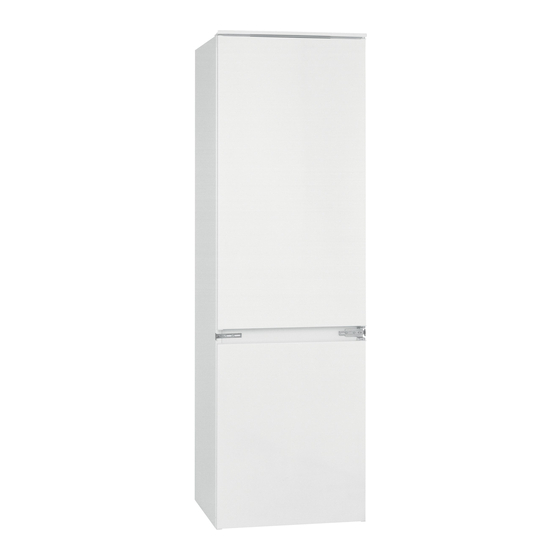

- Page 1 Fridge Freezer JLBIFF1810 User Manual...
-
Page 2: Table Of Contents
Contents Freezing fresh food Safety information Storage of frozen food Children and vulnerable people safety Thawing General Safety Safety instructions Ice-cube production Cold accumulators Installation Frozen Food Calendar Electrical connection Hints and tips Internal lighting Normal operating sounds Care and cleaning Hints for energy saving Service Hints for fresh food refrigeration... -
Page 3: Safety Information
Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. - Page 4 By clients in hotels, motels, bed and breakfast and other – residential type environments Keep ventilation openings, in the appliance enclosure or in the built- • in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the •...
-
Page 5: Safety Instructions
Safety instructions • Make sure that the parameters on the rating Installation plate are compatible with the electrical ratings of the mains power supply. Warning! Only a qualified • Always use a correctly installed shockproof person must install this socket. appliance. -
Page 6: Internal Lighting
• Do not put soft drinks in the freezer Disposal compartment. This will create pressure on the drink container. Warning! Risk of injury or • Do not store flammable gas and liquid in the suffocation. appliance. • Do not put flammable products or items that •... -
Page 7: Operation
Operation Control Panel 1. Display 8. ON/OFF 2. Freezer Temperature warmer button It is possible to change predefined sound of 3. Freezer Temperature colder button buttons by pressing together Functions and 4. OK temperature colder button for a few seconds. 5. -
Page 8: Switching Off
Switching off the fridge The alarm buzzer could operate after few seconds. 1. Press Functions until the corresponding icon To reset the alarm refer to "High appears. temperature alarm". The fridge OFF indicator and the fridge To select a different set temperature refer to compartment indicator flash. -
Page 9: Holiday Mode
Holiday mode ChildLock function This mode allows you to keep the appliance Activate the ChildLock function to lock the closed and empty during a long holiday period buttons from unintentional operation. without the formation of bad odours. 1. Press Functions until the corresponding icon appears. -
Page 10: Fan Function
Fan function 1. Press Functions until the corresponding icon appears. The Fan indicator flashes. 2. Press the OK to confirm. The Fan indicator appears. To switch off the function, repeat the procedure until the Fan indicator goes off. The activation of the Fan function increases energy consumption. -
Page 11: Daily Use
Daily use Bottle rack Warning! Refer to Safety chapters. The bottles should be placed (with the opening facing front) in the pre-positioned shelf. Cleaning the interior After pulling the shelf up so it can rotate upwards and placing on the next higher level, his Before using the appliance for the first time, the bottle holder shelf can be used to store interior and all internal accessories should be... -
Page 12: Freezing Fresh Food
Storage of frozen food When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings. Warning! In the event of accidental defrosting, for example due to a power failure, if the power has been Do not move the glass shelf above... -
Page 13: Ice-Cube Production
It is possible to switch on the device manually when needed (refer to "Fan function"). The Fan device stops when the door is open and restarts immediately after the door closing. Ice-cube production This appliance is equipped with one or more trays for the production of ice-cubes. -
Page 14: Hints And Tips
Hints and tips • Cooked foods, cold dishes: cover and place on Normal operating sounds any shelf. • Fruit and vegetables: clean thoroughly and place The following sounds are normal during in a special drawer. Bananas, potatoes, onions operation: and garlic must not be kept in the refrigerator if •... -
Page 15: Hints For Storage Of Frozen Food
Hints for storage of frozen food To obtain the best performance from this appliance, you should: • make sure that the commercially frozen foodstuffs were adequately stored by the retailer; • be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;... -
Page 16: Care And Cleaning
Care and cleaning 3. Rinse and dry thoroughly. Warning! Refer to Safety 4. If accessible, clean the condenser and the chapters. compressor at the back of the appliance with a brush. This operation will improve the performance General warnings of the appliance and save electricity consumption. -
Page 17: Periods Of Non-Operation
Periods of non-operation When the appliance is not in use for long periods, take the following precautions: 1. Disconnect the appliance from electricity supply. 2. Remove all food. 3. Clean the appliance and all accessories. 4. Leave the door/doors open to prevent unpleasant smells. -
Page 18: Troubleshooting
Troubleshooting Warning! Refer to Safety chapters. What to do if... Problem Possible cause Solution The appliance does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected Connect the mains plug to the mains to the mains socket correctly. - Page 19 Problem Possible cause Solution The lamp is defective. Contact the nearest Authorised Serv- ice Centre. The compressor operates continu- Temperature is set incorrectly. Refer to "Operation". ally. Many food products were put in Wait some hours and then check the at the same time.
-
Page 20: Replacing The Lamp
Problem Possible cause Solution The food products' temperature Let the food products temperature is too high. decrease to room temperature be- fore storage. Many food products are stored at Store less food products at the same the same time. time. The door has been opened often. -
Page 21: Installation
Installation Location Electrical Connection Refer to the assembly instructions Caution! Any electrical work for the installation. required to install this appliance should be carried out by a qualified electrician To ensure best performance, install the or competent person. appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. -
Page 22: Ventilation Requirements
1. Connect the wire coloured green and yellow to the terminal marked either with the letter “E“ or by the earth symbol or coloured green and yellow. 2. Connect the wire coloured blue to the terminal either marked with the letter “N“ or coloured black. -
Page 23: Technical Data
Technical data Dimensions of the recess Height 1780 Width Depth Rising time Hours Voltage Volts 230 - 240 Frequency The technical information is situated in the rating plate, on the external or internal side of the appliance and in the energy label. Fridge Freezer User Manual... -
Page 24: Repairs - After Sales Service
Shopping is easy with John Lewis Shops manual, the next step is to contact John Lewis John Lewis, Aberdeen 01224 625 000 technical support on: John Lewis, Basingstoke 01256 406200... - Page 25 John Lewis, Croydon 020 8662 4730 John Lewis, Stratford 020 8532 3500 John Lewis, Horsham 01403 214 740 John Lewis, The Trafford Centre 0161 491 4040 John Lewis, Ipswich 01473 275 850 John Lewis, Watford 01923 244 266 John Lewis, Newbury 01635 263 980...
- Page 26 ENVIRONMENTAL CONCERNS marked with the symbol with the household Recycle materials with the symbol . Put the waste. Return the product to your local packaging in relevant containers to recycle it. recycling facility or contact your municipal office. Help protect the environment and human health by recycling waste of electrical and electronic appliances.
- Page 27 Fridge Freezer User Manual...
- Page 28 222375055-A-462017 ( Subject to change without notice. )
