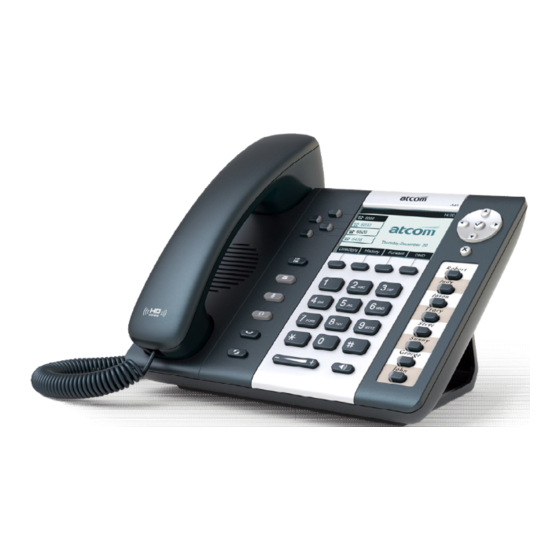

- Page 1 A40/A41(W) Quick Start Guide Version：2.0 2017-5-26...
-
Page 2: Table Of Contents
A40/A41(W) Quick Start Guide Content 1. Installation and access ............................3 1.1. Power up ................................3 1.2. Connection ................................. 4 1.3. Installation instruction ..........................5 1.4. Wiring instruction ............................7 1.5. Check IP ................................8 1.6. Enter the Setting of telephone ........................8 2. -
Page 3: Installation And Access
A40/A41(W) Quick Start Guide 1. Installation and access 1.1. Power up 1) Plug in the power jack with DC 5V/1000mA or POE 2) It will display Welcome logo and all the led will be lighted once. 3) After absolute boot up, User can select the Language and time manually, and choose to... -
Page 4: Connection
1) Connect to network Connect network cable: A40/A41(W) is able to be connected with network via LAN port. Under the Bridge mode, other devices (Laptop, IP phone) is able to access network via the PC port of A40/A41(W). Look as below scene:... -
Page 5: Installation Instruction
A40/A41(W) Quick Start Guide 3. Return to the standby interface, and phone successful connected to the WiFi. 1.3. Installation instruction 1. Stand bracket installation instruction A. Put the bottom side of the IP phone upside and press one-side joints of stand bracket into the slot, please refer the picture as below: B. - Page 6 A40/A41(W) Quick Start Guide D. Disassemble the stand bracket: Push the spring joint of stand and pull the stand according to the direction of the arrow. When the joints are pulled out of the slot, you can take off the stand bracket...
-
Page 7: Wiring Instruction
A40/A41(W) Quick Start Guide Step1. Use needle or some other tools to insert into the hole of the plastic sheet, hog the plastic sheet. Step2. Lift out the plastic sheet Step3. Take off the plastic sheet Step4. Use needle or some other tools to insert into the edge of the paster, hog and lift out the paster Step5. -
Page 8: Check Ip
A40/A41(W) Quick Start Guide 1.5. Check IP The phone uses DHCP mode by default, You can review its current IP address by pressing key when it is powered on and connected to the network. 1.6. Enter the Setting of telephone Connect the PC and telephone in the same network, input the IP address of telephone at a browser and press “Enter”, you will be required to input the username and password to access the... -
Page 9: Quick Configuration
A40/A41(W) Quick Start Guide 2. Quick Configuration After login to the webpage, you’re able to set the phone by quick configuration. Configure it quickly via Web: “Basic”→“Wizard” User should set the below two parts in turn, 1.Network——LAN Port 2.Account——SIP 2.1. Enter the Setting of phone There are 2 options for network access, 1.If chosen DHCP, the phone will be assigned a IP address automatically, click the button “Next”... - Page 10 A40/A41(W) Quick Start Guide After IP address filled manually, click the button “Next” to enter the web page of “Account Configuration”, or click the button “Back” to back to web page of “Network Configuration”. Network Configuration can be completed in below webpage:...
-
Page 11: Account Configuration
A40/A41(W) Quick Start Guide 2.2. Account Configuration The account configuration info will be saved to Line. Click the button “Finish” to save network configuration and account configuration, and click “Back” back to the previous web page. Account Configuration can be completed in below webpage:... -
Page 12: Configure The Wifi On The Web
A40/A41(W) Quick Start Guide 2.3. Configure the WiFi on the WEB A41W connect to network via Wi-Fi acquiescently, click “Search Wi-Fi” button to search the available Wi-Fi. After all available Wi-Fi hotspots are list out, click the round behind the available Wi-Fi which you want to connect.
