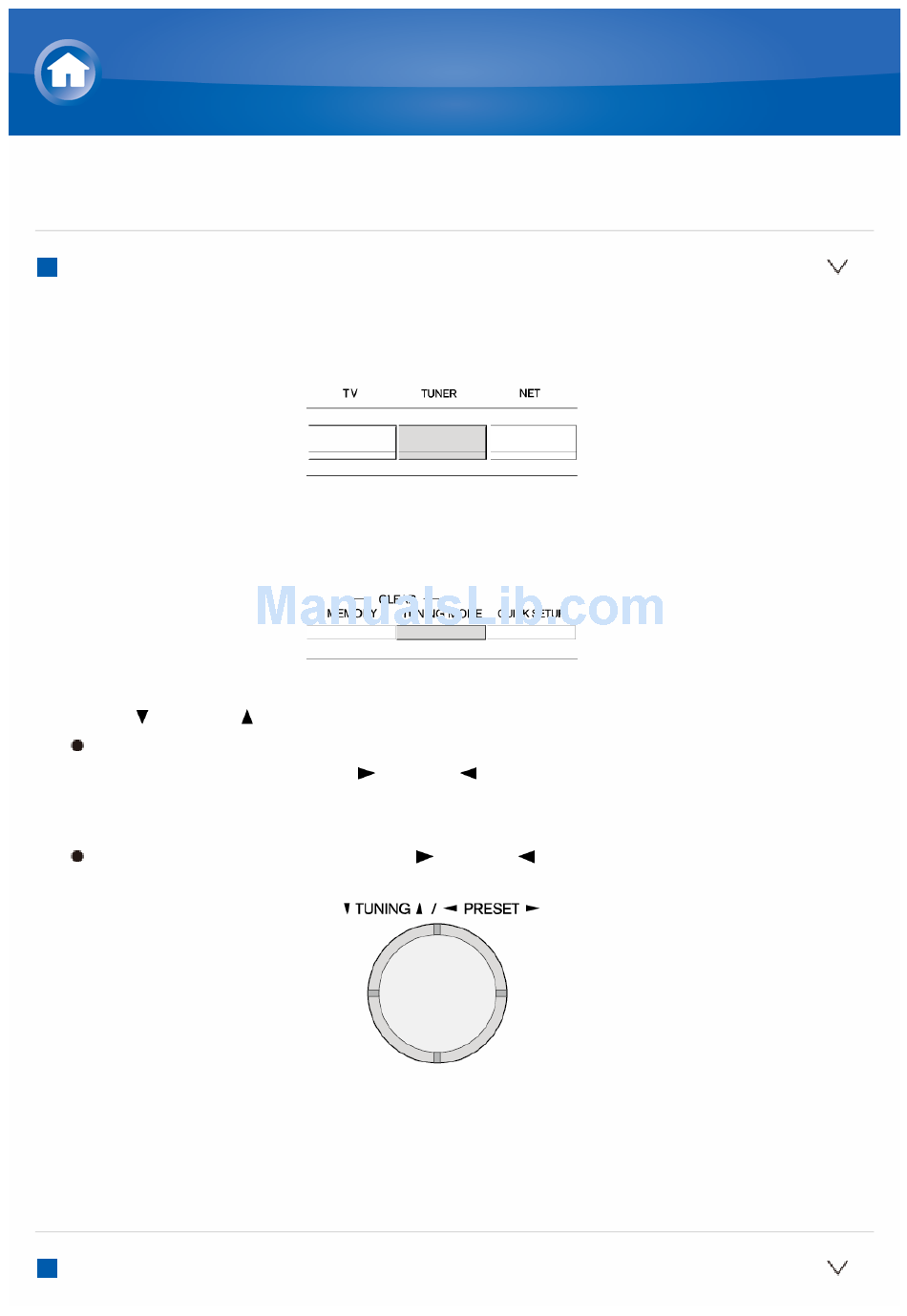

Page 1 Details on AM/FM reception Tuning into a Radio Station Tuning automatically 1. Press TUNER on the main unit several times to select either "AM" or "FM". 2. Press TUNING MODE so that the "AUTO" indicator on the display lights. 3. Press TUNING to start automatic tuning. Searching automatically stops when a station is found. When tuned into a radio station, the " TUNED " indicator on the display lights. When tuned into an FM radio station, the "FM STEREO" indicator lights. No sound is output while the " TUNED " indicator is off. When the signal from an FM radio station is weak: Radio wave may be weak depending on the building structure and environmental conditions. In that case, perform the manual tuning procedure as explained in the next section, "Tuning manually", to manually select the desired station. Tuning manually...
Page 2 1. Press TUNER on the main unit several times to select either "AM" or "FM". 2. Press TUNING MODE so that the "AUTO" indicator on the display goes off. 3. Press TUNING to select the desired radio station. The frequency changes by 1 step each time you press the button. The frequency changes continuously if the button is held down and stops when the button is released. Tune by looking at the display. To return to automatic tuning: Press TUNING MODE on the main unit again. The unit automatically tunes into a radio station. Normally "AUTO" should be displayed. Tuning to the frequency directly It allows you to directly enter the frequency of the radio station you want to listen to. 1. Press TUNER on the remote controller several times to select either "AM" or "FM".
Page 3 2. Press D.TUN. 3. Using the number buttons, enter the frequency of the radio station within 8 seconds. To enter 87.5 (FM), for example, press 8, 7, 5, or 8, 7, 5, 0. If you entered the wrong number, press D.TUN and enter the correct one.
Page 4 Details on AM/FM reception Presetting an AM/FM Radio Station It allows you to register up to 40 of your favorite AM/FM radio stations. Registering radio stations in advance allows you to tune into your radio station of choice directly. Registration Procedure 1. Tune into the AM/FM radio station you want to register. 2. Press MEMORY on the unit so that the preset number on the display flashes. 3. Press PRESET several times to select a number between 1 and 40 while the preset number is flashing (about 8 seconds). 4. Press MEMORY again to register the station. When the station is registered, the preset number stops flashing. Repeat this procedure for all of your favorite AM/FM radio stations. Selecting a Preset Radio Station 1. Press CH +/ on the remote controller to select a preset number. Alternatively you can press PRESET on the main unit. You can also select by directly entering the preset number with the number buttons on the remote controller.
Page 5 Deleting a Preset Radio Station 1. Press CH +/ on the remote controller to select the preset number to delete. 2. Press and hold MEMORY on the main unit and press TUNING MODE to delete the preset number. When deleted, the number on the display goes off.
Page 6 Details on AM/FM reception Using RDS (European, Australian and Asian models) RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. RDS works only in areas where RDS broadcasts are available. In some cases, the text information appeared on the display is not identical to the content transmitted by the RDS station. Furthermore, unexpected characters may be displayed when the unit receives unsupported characters. However, this is not a malfunction. If the signal from an RDS station is weak, the RDS data may be displayed continuously or not at all. PS (Program Service): Tuning into a radio station distributing Program Service information displays the radio station name. Pressing DISPLAY displays the frequency for 3 seconds. RT (Radio Text): Tuning into a radio station transmitting Radio Text information displays text on the display of the unit. PTY (Program Type): Allows you to search for RDS stations by program type. TP (Traffic Program): Allows you to search for radio stations transmitting traffic information. Displaying Radio Text (RT) 1. Press RT/PTY/TP on the main unit once. The Radio Text (RT) is displayed scrolling across the display. "No Text Data" is displayed when no text information is available. Searching by Type (PTY) 1. Press RT/PTY/TP on the main unit twice. The current program type appears on the display.
Page 7 2. Press PRESET to select the type of program to search for. The following RDS station types are displayed: None News (News reports) Affairs (Current affairs) Info (Information) Sport Educate (Education) Drama Culture Science (Science and technology) Varied Pop M (Pop music) Rock M (Rock music) Easy M (Middle of the road music) Light M (Light classics) Classics (Serious classics) Other M (Other music) Weather Finance Children (Children's programmes) Social (Social affairs) Religion Phone In Travel Leisure Jazz (Jazz music) Country (Country music) Nation M (National music) Oldies (Oldies music) Folk M (Folk music) Document (Documentary) 3. Press ENTER to search the radio stations of the selected type.
Page 8 4. When such a radio station is found, the indication on the display flashes. Then, press ENTER again. If no stations are found, the message "Not Found" is displayed. Listening to Traffic Information (TP) 1. Press RT/PTY/TP on the main unit three times. "[TP]" will be displayed if traffic information is transmitted by the radio station you are tuned in. "TP" only is displayed if no traffic information is available. 2. Press ENTER to search a radio station distributing traffic information. 3. When a radio station is found, searching stops and traffic information is received. "Not Found" is displayed if no radio station distributing traffic information is found.
Page 9 Playing Music Files on a USB Storage Device Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back 1. Plug your USB storage device with the music files into the USB port on the rear of the unit. 2. Press NET on the remote controller to display the NET TOP screen.
Page 10 3. Select "USB" with the cursors and press ENTER. If the "USB" indicator on the display flashes, check whether the USB storage device is plugged in properly. Do not unplug the USB storage device while "Connecting..." is on the display. This may cause data corruption or malfunction. 4. Press ENTER again in the next screen. The list of folders and music files on the USB storage device are displayed. Select the folder with the cursors and press ENTER to confirm your selection. 5. With the cursors, select the music file to play, and then press ENTER or to start playback. The USB port of this unit conforms with the USB 1.1 standard. The transfer speed may be insufficient for some content you play, which may cause some interruption in sound.
Page 11 Listening to Internet Radio About Internet Radio The unit comes preset with Internet radio stations such as TuneIn Radio for you to enjoy these services, just by connecting the unit to the Internet. Network services or contents may become unavailable if the service provider terminates its service.
Page 12 Listening to Internet Radio TuneIn Radio With more than 70,000 radio stations and 2 million ondemand programs registered, TuneIn Radio is a service where you can enjoy music, sports and news from all over the world. Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back 1. Press NET on the remote controller to display the NET TOP screen.
Page 13 2. Select "TuneIn Radio" with the cursors and press ENTER to display the TuneIn Radio top screen. 3. With the cursors, select a radio station or program and press ENTER to start playing. Regarding the TuneIn Radio Menu To display the TuneIn menu, press MENU or ENTER while playing a radio station. Selecting the corresponding menu item with the cursors and pressing ENTER allows you to perform the following operations: Add to My Presets: Registers the radio station or program being broadcast in "My Presets". Once registered, "My Presets" is displayed in the level under TuneIn Radio. To play, select the program from "My Presets". Remove from My Presets: Deletes a radio station or program from your "My Presets" within TuneIn Radio. Report a problem: Reports a problem or interactively solves a problem related to TuneIn Radio. View Schedule: Displays the radio station or program schedule. Clear recents: Clears all radio stations and programs from the "Recents" within TuneIn Radio. (This menu is displayed only when a radio station or program inside the "Recents" is being played.) Add to My Favorites: Registers the radio station or program being broadcast in "My Favorites". "My Favorites" are displayed in the level under the one displayed when you press NET. To play, select the program from "My Favorites". Regarding the TuneIn Radio Account Creating an account on the TuneIn Radio website (tunein.com) and logging in it from the unit allows you to automatically add radio stations and programs to your "My Presets" on the unit as you save them on the website.
Page 14 "My Presets" are displayed in the level under TuneIn Radio. To display a radio station registered in "My Presets", you must log into TuneIn Radio from the unit. To log in, select "Login" "I have a TuneIn account" in the "TuneIn Radio" top list on the unit, and then enter your user name and password. If you associate the device on My Page within the TuneIn Radio website using the registration code obtained by selecting "Login" "Login with a registration code" on the unit, you can log in without entering the user name and password.
Page 15 Listening to Internet Radio Pandora –Getting Started (U.S., Australia and New ® Zealand only) Pandora is a free, personalized Internet radio service that plays the music you know and helps you discover music you’ll love. Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back 1. Press NET on the remote controller to display NET TOP screen.
Page 16 2. With the cursors on the remote controller, select "Pandora", and then press ENTER. 3. Use / to select "I have a Pandora Account" or "I’m new to Pandora" and then press ENTER. If you are new to Pandora select "I’m new to Pandora". You will see an activation code on your TV screen. Please write down this code. Go to an Internet connected computer and point your browser to www.pandora.com/onkyo. Enter your activation code and then follow the instructions to create your Pandora account and your personalized Pandora stations. You can create your stations by entering your favorite tracks and artists when prompted. After you have created your account and stations you can return to your Onkyo receiver and press ENTER to begin listening to your personalized Pandora. If you have an existing Pandora account, you can add your Pandora account to your Onkyo receiver by selecting "I have a Pandora Account" and logging in with your email and password. If you want to use multiple user accounts, see "Using Multiple Accounts". Login can be made from the "Users" screen. 4. To play a station, use / to select the station from your station list, and then press ENTER. Playback starts and the playback screen appears. Create a New Station Enter the name of a track, artist, or genre and Pandora will create a unique radio station for you based on the musical qualities of that track, artist, or genre. I like this track: Give a track "thumbsup" and Pandora will play more music like it. I don’t like this track: Give a track "thumbsdown" and Pandora will ban that track from the current station. Why is this track playing?: Discover some of the musical attributes that Pandora uses to create your personal radio stations. I’m tired of this track: If you are tired of a track, you can put the track to...
Page 17 sleep and Pandora will not play it for one month. Create station from this artist: Creates a radio station from this artist. Create station from this track: Creates a radio station from this track. Delete this station: This will permanently delete a station from your Pandora account. All of your thumbs feedback will be lost should you choose to recreate the station with the same track or artist. Rename this station: Lets you rename the current radio station. Bookmark this artist: Pandora will bookmark your favorite artist for your profile on www.pandora.com. Bookmark this track: Pandora will bookmark the current track and allow you to buy them all from Amazon or iTunes in one step! Add to My Favorites: Adds a station to My Favorites list. PANDORA, the PANDORA logo, and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc. Used with permission.
Page 18 Listening to Internet Radio Spotify This unit is compatible with Spotify Connect. To enable Spotify Connect, install the Spotify application on your smartphone or tablet and create a Spotify premium account. Refer to the following for the procedures for configuring Spotify: www.spotify.com/connect/ The Spotify software is subject to third party licenses found here: www.spotify.com/connect/thirdpartylicenses Playing Back Just by clicking the Connect icon in the playback screen of the Spotify application and selecting this unit, you can automatically turn this unit on (auto power on function), switch input to the NET position, and start playback of highquality streaming from Spotify. To enable the auto power on function, make sure the "Network Standby" setting item in this unit's Setup is "On". Notes for using the multizone function To enjoy Spotify music in a separate room, select zone 2, and manually select "NET" as the input of the separate room. Also select this unit in the Spotify application. Volume adjustment with the Spotify application is possible only for the equipment connected to the ZONE2 speaker terminals. If any other terminal is used for connection, adjust the volume on the audio equipment placed in a separate room. To enjoy Spotify music in the main room after playing it in a separate room, select "NET" as the input of the main room.
Page 19 Listening to Internet Radio SiriusXM Internet Radio (North American only) If you want to listen to the service, you must subscribe. To subscribe go to www.siriusxm.com/internetradio with your computer. When you subscribe, you will be provided with a username and password which has to be entered into the AV receiver. To use SiriusXM Internet Radio, you must have your AV receiver connected to the Internet. Using the remote control, follow these steps: Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back 1. Press NET on the remote controller to display NET TOP screen.
Page 20 2. With the cursors on the remote controller, select "SiriusXM Internet Radio", and then press ENTER. 3. Select "Sign In", and then press ENTER. If you have an existing SIRIUS account, you can sign in by selecting "Sign In". Enter your user name and password in the next keyboard screen, or in Web Setup. If you do not know your username or password, call Sirius XM at (888) 5397474 for assistance. If you want to use multiple user accounts, see "Using Multiple Accounts". Login can be made from the "Users" screen. Using the keyboard screen 1 Use / / / and ENTER to enter your user name and password. 2 Select "OK". 3 Press ENTER. The "Confirm your entries" screen appears. 4 Press ENTER. "Please wait..." appears and then "SiriusXM Internet Radio" screen appears which displays the category available for selection. 4. Use / to select the category and then press ENTER. The channel list screen for the selected category appears. 5. Use / to select the desired channel and then press ENTER. The playback screen for the selected channel appears and you can listen to SiriusXM Internet Radio. You can control the tracks with the buttons on the remote control. Enabled buttons: , ...
Page 21 SiriusXM Internet Radio subscriptions are sold separately and are governed by the Sirius Terms and Conditions (see www.sirius.com). Be sure to read this agreement before you purchase your subscription. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved.
Page 22 Listening to Internet Radio Slacker Personal Radio (North American only) Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back 1. Press NET on the remote controller to display NET TOP screen.
Page 23 2. With the cursors on the remote controller, select "Slacker Personal Radio", and then press ENTER. 3. If you do not have an account, create one on the Slacker website (www.slacker.com) with your computer. If you already have a Slacker account, select "Sign in to your account" and then press ENTER. The keyboard screen appears. You can enter information from the remote control or the keys on the main unit. 4. If there are no mistakes in the information you have entered, use / / / to select "OK" then press ENTER. An account information confirmation screen appears. 5. If you do not have an account, select "Access without Sign In" and press ENTER to use a restricted version of the service. Note that use will be restricted. If you want to use multiple user accounts, see "Using Multiple Accounts". Login can be made from the "Users" screen. 6. Use / to select a menu item and then press ENTER. To sign out, use / to select "Sign out" from this screen and then press ENTER. 7. Use / to select a station and then press ENTER or to start playback from the station. The playback screen appears. 8. You can control the tracks with the buttons on the remote control. Enabled buttons: , , , Rate Song as Favorite: Stores information to server, making it more likely that the song will be played again.
Page 24 favorites. Add song to Library: Adds the currently playing track to your library. Delete song from Library: Deletes the currently playing track from your library. Add to My Favorites: Adds a station or song to My Favorites list. Using Multiple Accounts: The AV receiver supports multiple user accounts, which means you can freely switch between several logins. After registering user accounts, login is performed from the "Users" screen. Press MENU while the Users screen is displayed. "Add new user", "Remove this user" menu appear. You can either store a new user account, or delete an existing one. Some of the services do not allow the use of multiple user accounts. You can store up to 10 user accounts. To switch between accounts you must first log out from the current account, and log in again on the "Users" screen.
Page 25 Listening to Internet Radio Registering Other Internet Radios To listen to other Internet radio program, register the program in the "My Favorites" list as described in the next section. "My Favorites" are displayed in the level under the one displayed when you press NET. You can register up to 40 Internet radio stations. The unit supports Internet radio stations stored in the following formats: PLS (URL ending in .pls), M3U (URL ending in .m3u) and RSS (URL ending in rss/rdf/xml). Depending on the data type and playback format, there may be some you cannot play. Available services may vary depending on your area of residence. Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Registration Procedure Before Performing any Operation: The name and URL of the radio station that you want to add are required for registration. Check the specifications...
Page 26 before use. 1. Press NET on the remote controller to display the NET TOP screen. 2. Select "My Favorites" with the cursors and press ENTER to display the "My Favorites" list screen. 3. With the cursors, select a blank area of "My Favorites" and press MENU to display the menu screen. 4. Select "Create new station" with the cursors and press ENTER to display the keyboard screen. 5. Enter the name and URL of the radio station to add. Select "A/a" and press ENTER to toggle between upper and lower case. Select "←" or "→" and press ENTER to move the cursor to the selected direction. Select " " and press ENTER to delete one character to the left of the cursor position. Registering a Station with PC Before Performing any Operation: The name and URL of the radio station that you want to add are required for registration. Check the specifications before use. Also, Make sure this unit and a computer are connected to the same router.
Page 27 1. Press RECEIVER on the remote controller. Always press RECEIVER first to change the remote controller to Receiver mode (the mode to operate this unit) since its mode may be changed to operate another component. 2. Press SETUP to display the SETUP menu. 3. With the cursors, select "6. Hardware" "Network" " IP Address" to display the IP address. Take note of the IP address since you will need it later. 4. Open the Internet browser on your PC or smartphone and enter the IP address of the unit in the URL field. When using Internet Explorer, you can alternatively select "Open" in the "File" menu to enter the IP address. Information of the unit is displayed on the browser. ("WEB Setup") 5. Click "My Favorites" tab, then enter the name and URL of the Internet radio station. 6. Click "Save" to register the entered Internet radio station in "My Favorites". To rename the registered radio station: Select the radio station in the "My Favorites" list and press MENU to display the menu screen. Select "Rename this station" with the cursors and press ENTER to display the keyboard screen. Rename the station as desired. Radio stations can be renamed also from "WEB Setup". Playing a Registered Radio Station 1. Press NET on the remote controller to display the NET TOP screen.
Page 28 2. Select "My Favorites" with the cursors and press ENTER to display the registered Internet radio stations. 3. With the cursors, select a radio station and press ENTER to start playing. Deleting a Registered Radio Station 1. Press NET on the remote controller to display the NET TOP screen. 2. Select "My Favorites" with the cursors and press ENTER to display the registered Internet radio stations. 3. With the cursors, select the radio station to delete and press MENU to display the menu screen. 4. With the cursors, select "Delete from My Favorites", and then press ENTER. A confirmation screen will appear. 5. With the cursors, select "OK", and then press ENTER to delete the radio station. Select "Back" to return to the previous screen. Radio stations can be deleted also from "WEB Setup".
Page 29 Playing Music with DLNA About DLNA Digital Living Network Alliance (DLNA) can be referred to as a technology standard or the industry group to develop the technology standard to interconnect and use AV components, computers and other devices in a home network. This unit allows you to use DLNA to play music files stored on a computer or a hard disk connected to your home network (NAS device). Make sure this unit and a computer or NAS device are connected to the same router. To stream a music file, you need a NAS device with DLNA server ® functions or a PC where a player (e.g., Windows Media Player 11 or ® Windows Media Player 12) with DLNA server functions is installed. To ® ® enable streaming with Windows Media Player 11 or Windows Media Player 12, you must first configure the settings.
Page 30 Playing Music with DLNA Configuring the Windows Media Player ® Windows Media ® Player 11 ® 1. Turn on your PC and start Windows Media Player 11. 2. In the "Library" menu, select "Media Sharing" to display a dialog box. 3. Select the "Share my media" check box, and then click "OK" to display the compatible devices. 4. Select this unit, and then click "Allow". When it is clicked, the corresponding icon is checked. 5. Click "OK" to close the dialog. ® Depending on the version of Windows Media Player, the names of the items you need to select may differ from the explanation here. Windows Media ® Player 12 ® 1. Turn on your PC and start Windows Media Player 12. 2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box. ...
Page 31 Playing Music with DLNA DLNA Playback Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back ® ® 1. Start the server (Windows Media Player 11, Windows Media Player 12, or NAS device) containing the music files to play. 2. Press NET on the remote controller to display the NET TOP screen. If the "NET" indicator on the display flashes, the unit is not properly connected to the network. Check the connection.
Page 32 3. Select "DLNA" with the cursors and press ENTER. 4. Select the target server with the cursors and press ENTER to display the items list screen. Searching does not work in servers that do not support search functions. The unit cannot access pictures and videos stored on servers. Contents stored on the server may not be displayed depending on the server sharing settings. 5. With the cursors, select the music file to play, and then press ENTER or to start playback. If "No Item" is displayed, check whether the network is properly connected.
Page 33 Playing Music with DLNA Controlling Remote Playback from a PC You can use this unit to play music files stored on your PC by operating the PC inside your home network. The unit supports remote playback with ® Windows Media Player 12. To use the remote playback function with Windows Media ® Player 12, Windows Media ® Player 12 must be configured in advance. Using a DLNAcompatible controller (such as an Android application), you ® can select a music file stored on Windows Media Player 12 and stream to this unit by operating the controller. For information on how to remotely play using the controller, refer to the controller's instruction manual. Setting PC ® 1. Turn on your PC and start Windows Media Player 12. 2. In the "Stream" menu, select "Turn on media streaming" to display a dialog box. If media streaming is already turned on, select "More streaming options..." in the "Stream" menu to list players in the network, and then go to step 4. 3. Click "Turn on media streaming" to list players in the network. 4. Select this unit in "Media streaming options" and check that it is set to "Allow". 5.
Page 34 ® 2. Turn on your PC and start Windows Media Player 12. ® 3. Select and rightclick the music file to play with Windows Media Player To remotely play a music file on another server, open the target server from "Other Libraries" and select the music file to play. 4. Select this unit in "Play to" to open the "Play to" window of Windows Media ® Player 12 and start playback on the unit. Operations during remote playback are possible from the "Play to" window on the PC. The playback screen is displayed on the TV connected to the HDMI output of the unit. If your PC is running on ® Windows 8 , click "Play to", and then select this unit. 5. Adjust the volume using the volume bar on the "Play to" window. Sometimes, the volume displayed on the remote playback window may differ from that appeared on the display of the unit. When the volume is adjusted from the unit, the value is not reflected in the "Play to" window. This unit cannot play music files remotely in the following conditions. – It is using a network service. – It is playing a music file on a USB storage device. ® Depending on the version of Windows Media Player, the names of the items you need to select may differ from the explanation here.
Page 35 Playing Music Files in a Shared Folder About Shared Folder A shared folder is configured in a network device such as a PC or NAS (hard disk connected to your home network) for access from other users. You can play music files in a shared folder on your PC or NAS connected to the same home network as that of the unit. To play music files in a shared folder, you must first configure Windows ® 8 or Windows ® 7, Make sure the unit and PC or NAS device are connected to the same router. The sharing options must be configured and a shared folder created on the PC in advance. For information on how to configure the NAS device and create a shared folder, refer to the NAS device's instruction manual.
Page 36 Playing Music Files in a Shared Folder Setting PC Configuring the Sharing Options 1. Select "Choose home group and sharing options" on the "Control Panel". If the menu is not displayed, check whether "View by" is set to "Category". 2. Select "Change advanced sharing settings". 3. Check whether the following radio buttons are selected in "Home or Work": "Enable network discovery" "Turn on file and printer sharing" "Turn on sharing so anyone with network access can read and write files in the Public folders." "Turn off password protected sharing" 4. Select "Save Changes" and click "OK" on the dialog box. Creating a Shared Folder 1. Select and rightclick the folder to share. 2. Select "Properties". 3. Select "Advanced Sharing" on the "Sharing" tab. 4. Select the "Share this folder" check box and click "OK". 5. Select "Share" for "Network File and Folder Sharing". 6. Select "Everyone" from the pulldown menu. Click "Add", and then "Share". ...
Page 37 Playing Music Files in a Shared Folder Playing from a Shared Folder Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. (European, Australian, Taiwanese and Asian models)If the OSD language is set to Chinese, the operations in this section are not displayed on the TV. Operate by looking at the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ). Playing Back 1. Press NET on the remote controller to display the NET TOP screen. If the "NET" indicator on the display flashes, the unit is not properly connected to the network. Check the connection.
Page 38 2. With the cursors, select "Home Media", and then press ENTER. 3. With the cursors, select the target server, and then press ENTER. You can check the server name of your PC from the PC properties. 4. With the cursors, select the target shared folder, and then press ENTER. 5. If a username and password is required, enter the necessary login information. The login information is the account information set at the time of creating the shared folder. Once entered, the login information will be remembered from the next time onward. 6. With the cursors, select the music file to play, and then press ENTER or to start playback.
Page 39 Operating Music Files with the Remote Controller About the Remote Controller The remote controller of this unit allows you to play music files stored on USB storage devices, Internet radio, PCs and NAS devices on your home network, as well as on Bluetoothenabled devices. It also allows you to view information of the music file being played and perform various other operations. Available buttons may vary depending on the service and device to play. Some buttons cannot be used with Bluetoothenabled devices. Furthermore, the Bluetoothenabled devices must support the AVRCP profile. Some devices may not be operated, even when they support AVRCP profile.
Page 40 Operating Music Files with the Remote Controller Remote Controller Buttons 1. Press INPUT SELECTOR (NET, or BLUETOOTH) appropriate for the input source on the remote controller. 2. Operate the remote controller by referring to the name and function of each of the buttons. 1 TOP MENU: This button displays the top menu for each media or server. 2 / , ENTER: These buttons navigate through items and activate the selected item. / : These buttons allow you to navigate to other pages when the list continues on other pages. : This button fastreverses the current track. This button is not operable from 10 seconds before the playback ends. : This button plays the current track from the beginning. Pressing this button twice plays the previous track. 5 +/– button: Moves the cursor up or down on the Internet radio stations list in "My Favorites". 6 MENU: This button displays the menu of each Internet radio service. 7 RETURN: This button returns to the previous screen. : This button fastforwards the current track. This button is not operable from 10 seconds before the playback ends.
Page 41 : This button plays the next track. : This button starts the playback. : This button pauses the playback. H SEARCH: This button toggles between the playback screen and list screen during playback. : This button stops the playback. J MODE: This button displays the video from the input selected in "Video Select". Each press of the button displays or turns off the video. You can change the display position of the OSD by pressing ENTER while the video is displayed on the screen. These buttons are disabled when the OSD language is set to Chinese. (European, Australian, Taiwanese and Asian models) K RANDOM: This button performs random playback. L REPEAT: This button replays the track (or tracks). Pressing this button repeatedly cycles through the repeat modes. M DISPLAY: This button changes the displayed track information during playback. Pressing this button when the list screen is displayed toggles the screen to playback. Bluetoothenabled devices: Usable buttons are , , , , , , and .
Page 42 Operating Music Files with the Remote Controller Icons Displayed during Playback Icons are displayed on the display during music file playback. The meaning of each icon is as follows: : Folder : Track : Play : Pause : Fastforward : Fastreverse : Artist : Album : Repeat one track : Repeat within a folder : Repeat : Shuffle...
Page 43 Using the Listening Modes Selecting Listening Mode The listening modes allow you to select the best sound effect for your input source. 1. After pressing RECEIVER on the remote controller, press one of the following four buttons. 2. Press the selected button repeatedly to switch the modes displayed on the display of the unit. Set the listening mode of your choice by listening to the actual sound. For details on the listening modes see "Listening Mode Types". For listening modes selectable with each button, refer to "Selectable Listening Modes".
Page 44 Using the Listening Modes Listening Mode Types In alphabetical order AllCh Stereo Ideal for background music, this mode fills the entire listening area with stereo sound. Direct In this mode, audio from the input source is output asis. For example, if a 2 ch source from a music CD is input, the output will be stereo, or if Dolby Digital signal is input, the sound field will be controlled in accordance with the number of channels present. Dolby Atmos Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of dimension and immersion to the Home Theater experience. Dolby Atmos is an adaptable and scalable object based format that reproduces audio as independent sounds (or objects) that can be accurately positioned and move dynamically throughout the 3 dimensional listening space during playback. A key ingredient of Dolby Atmos is the introduction of a height plane of sound above the listener. Dolby D (Dolby Digital) Mode suitable for playing sources recorded in Dolby Digital. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. Dolby D+ (Dolby Digital Plus) Mode suitable for playing sources recorded in Dolby Digital Plus. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. Dolby Surround...
Page 45 Dolby surround is a next generation surround technology that intelligently up mixes stereo; 5.1 and 7.1 content for playback through your surround speaker system. Dolby surround is compatible with traditional speaker layouts, as well as Dolby Atmos enabled playback systems that employ inceiling speakers or products with Dolby speaker technology. Dolby TrueHD Mode suitable for playing sources recorded in Dolby TrueHD. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. Mode suitable for playing sources recorded in DSD. This unit supports DSD signals input through HDMI IN. However, depending on the connected player, better sound is possible when output from the PCM output of the player. This listening mode can be selected only if your Bluray Disc/DVD player's output setting is DSD. Mode suitable for playing sources recorded in DTS. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. DTS 96/24 Mode suitable for playing sources recorded in DTS 96/24. With 96 kHz sampling rate and 24bit resolution, it provides superior fidelity. Depending on the settings, this listening mode becomes DTS. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. DTS Express Mode suitable for playing sources recorded in DTS Express. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. DTSHD HR (DTSHD High Resolution Audio) Mode suitable for playing sources recorded in DTSHD High Resolution Audio.
Page 46 This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. DTSHD MSTR (DTSHD Master Audio) Mode suitable for playing sources recorded in DTSHD Master Audio. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. DTS Neo:6 This mode expands any 2 ch source for 5.1 ch multichannel surround playback. It offers fullbandwidth on all channels, with great independence between the channels. There are two variants for this mode: one ideal for movies and another ideal for music. – Neo:6 Cinema: Use this mode with any 2 ch movie. – Neo:6 Music: Use this mode with any 2 ch music source. ES Discrete (DTSES Discrete) This mode is for use with DTSES Discrete sources and enables 6.1 ch or 7.1 ch playback using back channel. Completely discrete seven channels will improve spatial imaging and enable 360degree sound localization producing a sound crossing between the surround channels. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. Use on the DVD with DTS ES logo, particularly on the software containing DTSES Matrix soundtrack. ES Matrix (DTSES Matrix) This mode is for use with DTSES Matrix soundtrack and enables 6.1 ch or 7.1 ch playback using matrixencoded back channel. This listening mode can be selected only if your Bluray Disc/DVD player is digitally connected to the unit or the player's output setting is bitstream. Use on the CD, DVD or LD with DTS ES logo, particularly on the software containing DTSES Matrix soundtrack. Full Mono In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room. GameAction...
Page 47 In this mode, sound localization is distinct with emphasis on bass. GameRock In this mode, sound pressure is emphasized to heighten live feel. GameRPG In this mode, the sound has a dramatic feel with a similar atmosphere to Orchestra mode. GameSports Suitable for audio source with much reverberation. Mono Use this mode when watching an old movie with a mono soundtrack, or use it to separately reproduce soundtracks in two different languages recorded in the left and right channels of some movies. It is also suitable for DVDs or other sources containing multiplexed audio. Multich (Multichannel) Mode suitable for playing sources recorded in PCM multichannel. Orchestra Suitable for classical or operatic music. This mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall. Pure Audio (European, Australian and Asian models) This mode reproduces the original sound accurately. Since the audio from the input source is output without surround sound processing and the display and video circuitry are turned off, possible noise sources are minimized for a realistic audio reproduction. This mode cannot be selected when Zone 2 is active. Activating Zone 2 when this mode is selected automatically switches to the Direct listening mode. Stereo In this mode, sound is output from the front left and right speakers and...
Page 48 subwoofer. StudioMix Suitable for rock or pop music, Listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert. TD (TheaterDimensional) In this mode, you can enjoy a virtual playback of multichannel surround sound even with only two or three speakers. This works by controlling how sounds reach the listener's left and right ears. TV Logic Suitable for TV shows produced in a TV studio. This mode enhances the surround effects to the entire sound to give clarity to voices and create a realistic acoustic image. Unplugged Suitable for acoustic instruments, vocals and jazz. This mode emphasizes the front stereo image, giving the impression of being right in front of the stage.
Page 49 Using the Listening Modes Selectable Listening Modes Listening modes that can be selected with the listening mode buttons will differ depending on the input signal format and actual speaker configuration. Also note that depending on the player settings and content, some listening modes may not be available for selecting. Listening modes available when headphones are connected are: Pure Audio (European, Australian and Asian models), Mono, Direct, and Stereo. MOVIE/TV button You can select a mode suitable for movies and TV programs. Analog Direct Mono Dolby Surround Neo:6 Cinema ＊1 TV Logic ＊2 AllCh Stereo ＊3 Full Mono ＊3 TD ＊1 Center speaker or surround speakers need to be installed. ＊2 Surround speakers or height speakers need to be installed. ＊3 Center speaker, surround speakers or height speakers need to be installed. Direct Mono Dolby Surround Neo:6 Cinema ＊1 TV Logic ＊2 AllCh Stereo...
Page 50 Full Mono ＊3 TD ＊1 Center speaker or surround speakers need to be installed. ＊2 Surround speakers or height speakers need to be installed. ＊3 Center speaker, surround speakers or height speakers need to be installed. Multich PCM Direct Mono Multich ＊1 Dolby Surround TV Logic ＊2 AllCh Stereo ＊3 Full Mono ＊3 TD ＊1 Center speaker or surround speakers need to be installed. ＊2 Surround speakers or height speakers need to be installed. ＊3 Center speaker, surround speakers or height speakers need to be installed. Direct Mono ＊1 ＊2 Dolby Surround Neo:6 Cinema ＊3 TV Logic ＊4 AllCh Stereo ＊5 Full Mono...
Page 51 installed. Dolby Atmos The listening mode of Dolby Digital Plus or Dolby TrueHD can be selected if back speakers or height speakers are not connected. Direct Mono Dolby Atmos TV Logic AllCh Stereo Full Mono TD Dolby D Direct Mono Dolby D ＊1 ＊2 Dolby Surround Neo:6 Cinema ＊3 TV Logic ＊4 AllCh Stereo ＊5 Full Mono ＊5 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed.
Page 52 Full Mono ＊5 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. Dolby TrueHD Direct Mono Dolby TrueHD ＊1 ＊2 Dolby Surround Neo:6 Cinema ＊3 TV Logic ＊4 AllCh Stereo ＊5 Full Mono ＊5 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed.
Page 53 ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. DTS 96/24 Direct Mono DTS 96/24 ＊1 ＊2 Dolby Surround Neo:6 Cinema ＊3 TV Logic ＊4 AllCh Stereo ＊5 Full Mono ＊5 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed.
Page 54 ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. DTSHD HR Direct Mono DTSHD HR ＊1＊2 Dolby Surround Neo:6 Cinema ＊3 TV Logic ＊4 AllCh Stereo ＊5 Full Mono ＊5 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. DTSHD MSTR Direct Mono DTSHD MSTR ＊1 ...
Page 55 ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. DTSES Direct Mono ＊1 ES Matrix ＊2 ES Discrete ＊2 Dolby Surround ＊3 TV Logic ＊4 AllCh Stereo ＊5 Full Mono ＊5 TD ＊1 Can only be selected when the back speakers are not installed. ＊2 Back speakers need to be installed. ＊3 Height speakers need to be installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. MUSIC button You can select a mode suitable for music. Analog Pure Audio (European, Australian and Asian models) Direct Stereo Dolby Surround Neo:6 Music ＊1 Orchestra...
Page 56 ＊2 Surround speakers or height speakers need to be installed. ＊3 Center speaker, surround speakers or height speakers need to be installed. Pure Audio (European, Australian and Asian models) Direct Stereo Dolby Surround Neo:6 Music ＊1 Orchestra ＊2 Unplugged ＊2 StudioMix ＊2 AllCh Stereo ＊3 Full Mono ＊3 ＊1 Center speaker or surround speakers need to be installed. ＊2 Surround speakers or height speakers need to be installed. ＊3 Center speaker, surround speakers or height speakers need to be installed. Multich PCM Pure Audio (European, Australian and Asian models) Direct Stereo Multich ＊1 Dolby Surround Orchestra ＊2 Unplugged ＊2 StudioMix ＊2 AllCh Stereo ＊3...
Page 57 Pure Audio (European, Australian and Asian models) Direct Stereo ＊1 ＊2 Dolby Surround Neo:6 Music ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. Dolby Atmos The listening mode of Dolby Digital Plus or Dolby TrueHD can be selected if back speakers or height speakers are not connected. Pure Audio (European, Australian and Asian models) Direct Stereo Dolby Atmos Orchestra Unplugged StudioMix AllCh Stereo...
Page 58 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. Dolby D+ Pure Audio (European, Australian and Asian models) Direct Stereo Dolby D+ ＊1 ＊2 Dolby Surround Neo:6 Music ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Cannot be selected when the input format is monaural or 2 ch.
Page 59 Neo:6 Music ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. Pure Audio (European, Australian and Asian models) Direct Stereo ＊1 ＊2 Dolby Surround Neo:6 Music ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5...
Page 60 DTS 96/24 ＊1 ＊2 Dolby Surround Neo:6 Music ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. DTS Express Pure Audio (European, Australian and Asian models) Direct Stereo DTS Express ＊1 ＊2 Dolby Surround Neo:6 Music ＊3 Orchestra ＊4 Unplugged...
Page 61 Pure Audio (European, Australian and Asian models) Direct Stereo DTSHD HR ＊1 ＊2 Dolby Surround Neo:6 Music ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Can only be selected when the input format is 2 ch and a center speaker or surround speakers are installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. DTSHD MSTR Pure Audio (European, Australian and Asian models) Direct Stereo DTSHD MSTR ＊1 ＊2 Dolby Surround Neo:6 Music ＊3...
Page 62 DTSES Pure Audio (European, Australian and Asian models) Direct Stereo ＊1 ES Matrix ＊2 ES Discrete ＊2 Dolby Surround ＊3 Orchestra ＊4 Unplugged ＊4 StudioMix ＊4 AllCh Stereo ＊5 Full Mono ＊5 ＊1 Can only be selected when the back speakers are not installed. ＊2 Back speakers need to be installed. ＊3 Height speakers need to be installed. ＊4 Surround speakers or height speakers need to be installed. ＊5 Center speaker, surround speakers or height speakers need to be installed. GAME button You can select a mode suitable for games. Analog Direct Dolby Surround GameRPG ＊1 GameAction ＊1 GameRock ＊1...
Page 63 Direct Dolby Surround GameRPG ＊1 GameAction ＊1 GameRock ＊1 GameSports ＊1 AllCh Stereo ＊2 Full Mono ＊2 TD ＊1 Surround speakers or height speakers need to be installed. ＊2 Center speaker, surround speakers or height speakers need to be installed. Multich PCM Direct Multich ＊1 Dolby Surround GameRPG ＊2 GameAction ＊2 GameRock ＊2 GameSports ＊2 AllCh Stereo ＊3 Full Mono ＊3 TD ＊1 Center speaker or surround speakers need to be installed. ＊2 Surround speakers or height speakers need to be installed.
Page 64 GameSports ＊3 AllCh Stereo ＊4 Full Mono ＊4 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Surround speakers or height speakers need to be installed. ＊4 Center speaker, surround speakers or height speakers need to be installed. Dolby Atmos The listening mode of Dolby Digital Plus or Dolby TrueHD can be selected if back speakers or height speakers are not connected. Direct Dolby Atmos GameRPG GameAction GameRock GameSports AllCh Stereo Full Mono TD Dolby D Direct Dolby D ＊1 ＊2 Dolby Surround GameRPG ＊3 GameAction ＊3 GameRock ＊3 GameSports...
Page 65 installed. Dolby D+ Direct Dolby D+ ＊1 ＊2 Dolby Surround GameRPG ＊3 GameAction ＊3 GameRock ＊3 GameSports ＊3 AllCh Stereo ＊4 Full Mono ＊4 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Surround speakers or height speakers need to be installed. ＊4 Center speaker, surround speakers or height speakers need to be installed. Dolby TrueHD Direct Dolby TrueHD ＊1 ＊2 Dolby Surround GameRPG ＊3 GameAction ＊3 GameRock ＊3...
Page 66 Direct ＊1 ＊2 Dolby Surround GameRPG ＊3 GameAction ＊3 GameRock ＊3 GameSports ＊3 AllCh Stereo ＊4 Full Mono ＊4 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Surround speakers or height speakers need to be installed. ＊4 Center speaker, surround speakers or height speakers need to be installed. DTS 96/24 Direct DTS 96/24 ＊1 ＊2 Dolby Surround GameRPG ＊3 GameAction ＊3 GameRock ＊3 GameSports ＊3 AllCh Stereo...
Page 67 GameRPG ＊3 GameAction ＊3 GameRock ＊3 GameSports ＊3 AllCh Stereo ＊4 Full Mono ＊4 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Surround speakers or height speakers need to be installed. ＊4 Center speaker, surround speakers or height speakers need to be installed. DTSHD HR Direct DTSHD HR ＊1 ＊2 Dolby Surround GameRPG ＊3 GameAction ＊3 GameRock ＊3 GameSports ＊3 AllCh Stereo ＊4 Full Mono ＊4 TD ＊1...
Page 68 GameSports ＊3 AllCh Stereo ＊4 Full Mono ＊4 TD ＊1 Cannot be selected when the input format is monaural or 2 ch. ＊2 Center speaker or surround speakers need to be installed. ＊3 Surround speakers or height speakers need to be installed. ＊4 Center speaker, surround speakers or height speakers need to be installed. DTSES Direct ＊1 ES Matrix ＊2 ES Discrete ＊2 Dolby Surround ＊3 GameRPG ＊4 GameAction ＊4 GameRock ＊4 GameSports ＊4 AllCh Stereo ＊5 Full Mono ＊5 TD ＊1 Can only be selected when the back speakers are not installed. ＊2 Back speakers need to be installed.
Page 69 ＊1 Center speaker, surround speakers or height speakers need to be installed. PURE AUDIO button (on the main unit only) (European, Australian and Asian models) The display and analog video circuit are turned off to switch the unit to Pure Audio mode (European, Australian and Asian models) which provides purer sound. Selecting this mode lights the PURE AUDIO indicator on the unit. Pressing the button again reselects the previous listening mode. Selecting Pure Audio for listening mode turns off the display and analog video circuitry, but the video signals input through HDMI input are output from HDMI output.
Page 70 Using the Listening Modes Checking the Input Format While audio from the player is being input, press DISPLAY on the remote controller several times to switch the information shown on the main unit display. For example, if "Dolby D 5.1" is displayed, the Dolby Digital 5.1 ch signals are being input. The number of channels is not displayed when the input signal is "Dolby Atmos" format.
Page 71 Advanced Settings (Setup Menu) How to Set The unit allows you to configure advanced settings in order to provide even better experience. Operation: You can set up by viewing the guidance displayed on the TV screen (OSD). Select the item with the cursor buttons of the remote controller and press ENTER to confirm your selection. To return to the previous screen, press RETURN. Operation 1. Press RECEIVER on the remote controller. Always press RECEIVER first to change the remote controller to RECEIVER mode (the mode to operate this unit) since its mode may be changed to operate another component. 2. Press SETUP to display the Setup menu.
Page 72 3. Press / to select the desired menu, and then press ENTER. 4. Press / to select the item, and then press ENTER. 5. With the / / / cursors, select the item to configure the settings. To exit the setup menu, press SETUP. Overview of the Setup menu 1. Input/Output Assign Make settings to assign the various jacks and for the onscreen display function on the TV when you use the setting menu, for example. 2. Speaker Make advanced settings for the speakers. 3. Audio Adjust Make a variety of settings related to sound. 4. Source Make settings for input sources, such as volume difference adjustments for each input selector for the connected equipment. 5. Listening Mode Preset You can preset your favorite listening mode. 6. Hardware Make a variety of settings such as for linked operation with connected HDMI...
Page 73 equipment, the standby mode and network connection for this unit. 7. Remote Controller Make settings related to the remote controller. 8. Miscellaneous Update the firmware and perform initial settings, etc.
Page 74 Advanced Settings (Setup Menu) 1. Input/Output Assign TV Out Make settings for the onscreen display function on the TV when you use the setting menu, for example. OSD Language Default Value: English Select the onscreen display language. Select from English, German, French, Spanish, Italian, Dutch, Swedish, Russian (European, Australian and Asian models), or Chinese (European, Australian, Taiwanese and Asian models). Impose OSD Default Value: On Set whether or not to display the information on the TV when the volume is adjusted or input is changed, for example. "On": OSD will be displayed on the TV. "Off": OSD will not be displayed on the TV. The OSD may not be displayed depending on the input signal even if "On" is selected. If the operation screen is not displayed, change the resolution of the connected device. Screen Saver Default Value: 3 minutes Set the time to start the screen saver. Select a value from "3 minutes", "5 minutes", "10 minutes" and "Off". HDMI Input You can change input assignment between the input selectors and HDMI IN jacks. BD/DVD Default Value: HDMI 1 (HDCP 2.2)
Page 75 "HDMI 1 (HDCP 2.2)" to "HDMI 6": Assign a desired HDMI IN jack to the BD/DVD button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to "" first. CBL/SAT Default Value: HDMI 2 (HDCP 2.2) "HDMI 1 (HDCP 2.2)" to "HDMI 6": Assign a desired HDMI IN jack to the CBL/SAT button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to "" first. STRM BOX Default Value: HDMI 3 (HDCP 2.2) "HDMI 1 (HDCP 2.2)" to "HDMI 6": Assign a desired HDMI IN jack to the STRM BOX button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to "" first. Default Value: HDMI 4 "HDMI 1 (HDCP 2.2)" to "HDMI 6": Assign a desired HDMI IN jack to the PC button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to "" first. GAME Default Value: HDMI 5 "HDMI 1" to "HDMI 6": Assign a desired HDMI IN jack to the GAME button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to " " first. Default Value: "HDMI 1 (HDCP 2.2)" to "HDMI 6": Assign a desired HDMI IN jack to the CD button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to "" first. Default Value: ...
Page 76 "HDMI 1 (HDCP 2.2)" to "HDMI 6": Assign a desired HDMI IN jack to the TV button. If you do not assign a jack, select "". To select an HDMI IN jack already assigned to another input selector, change its setting to "" first. Video Input You can change assignment of the COMPONENT VIDEO IN 1 and 2 jacks and the VIDEO IN 1 to 3 jacks between the input selectors. If you do not assign a jack, select "". BD/DVD Default Value: COMPONENT 1 "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT VIDEO IN jacks to the BD/DVD button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the BD/DVD button. CBL/SAT Default Value: VIDEO 1 "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT VIDEO IN jacks to the CBL/SAT button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the CBL/SAT button. STRM BOX Default Value: VIDEO 2 "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT VIDEO IN jacks to the STRM BOX button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the STRM BOX button. Default Value: VIDEO 3 "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT VIDEO IN jacks to the PC button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the PC button. GAME Default Value: COMPONENT 2 "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT...
Page 77 VIDEO IN jacks to the GAME button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the GAME button. Default Value: The setting cannot be changed. Default Value: "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT VIDEO IN jacks to the CD button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the CD button. Default Value: "COMPONENT 1", "COMPONENT 2": Assign the COMPONENT VIDEO IN jacks to the TV button. "VIDEO 1" to "VIDEO 3": Assign a desired VIDEO IN jack to the TV button. When you convert video signals input to the COMPONENT VIDEO IN jacks and output them from the HDMI OUT jack, set the output resolution of the player to 480i or 576i. If the input has 480p/576p or higher resolution, an error message will appear. Digital Audio Input You can change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL 1 to 2 jacks. If you do not assign a jack, select "". BD/DVD Default Value: COAXIAL "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the BD/DVD button. CBL/SAT Default Value: "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the CBL/SAT button. STRM BOX...
Page 78 Default Value: "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the STRM BOX button. Default Value: "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the PC button. GAME Default Value: "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the GAME button. Default Value: OPTICAL 1 "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the CD button. Default Value: OPTICAL 2 "COAXIAL", "OPTICAL 1", "OPTICAL 2": Assign a desired DIGITAL IN jack to the TV button. Sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.
Page 79 Advanced Settings (Setup Menu) 2. Speaker Allows you to change the speaker configuration such as presence or not of subwoofer, crossover frequency, and so on. Settings are automatically configured if you use the Automatic Speaker Setup. This setting cannot be selected if headphones are connected or audio is output from the speakers of the TV. Configuration You can change the number of speaker channels connected, the type of front speaker connection, the height speaker type, and other speaker settings. Speaker Channels Default Value: 7.1 ch Select "2.1 ch", "3.1 ch", "4.1 ch", "5.1 ch", "6.1 ch", "7.1 ch", "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", or "5.1.2 ch" to suit the number of speaker channels connected. Subwoofer Default Value: Yes Set whether a subwoofer is connected or not. "Yes": When subwoofer is connected "No": When subwoofer is not connected Height Speaker Default Value: Front High Set the speaker type if height speakers are connected to the BACK or HEIGHT terminals. Select "Front High", "Top Front", "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)", or "Dolby Speaker (Surr)" according to the connected speaker type and location. If an item cannot be selected even though connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels. BiAmp...
Page 80 Default Value: No Set whether your front speaker connection is biamp. "No": When front speakers are connected in a normal manner "Yes": When front speakers are biamp connected If an item cannot be selected even though connection is correct, check that the settings in "Speaker Channels" matches the number of connected channels. Powered Zone 2 Default Value: No Set the connection of speakers to Zone 2 speaker terminals. "Yes": When speakers are connected to ZONE2 speaker terminals "No": When speakers are not connected to ZONE2 speaker terminals This item will be set to "No" when "BiAmp" is set to "Yes". Crossover Allows you to change speaker configurations, such as crossover frequency. Settings are automatically configured if you use the Automatic Speaker Setup. Audio will not be output while you are making this setting. Front Default Value: 100 Hz Select the crossover frequency from "40Hz" to "200Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. If "Configuration" "Subwoofer" is set to "No", "Front" will be fixed to "Full Band" and the low pitched range of the other channels will be output from the front speakers. Refer to the instruction manual of your speakers to make the setting. Center Default Value: 100 Hz Select the crossover frequency from "40Hz" to "200Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. "Full Band" can be selected only when "Front" is set to "Full Band". If an item cannot be selected even though connection is correct, check that the settings in "Configuration" "Speaker Channels" matches the number of connected channels. Height Default Value: 100 Hz...
Page 81 Select the crossover frequency from "40Hz" to "200Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. "Full Band" can be selected only when "Front" is set to "Full Band". If an item cannot be selected even though connection is correct, check that the settings in "Configuration" "Speaker Channels" matches the number of connected channels. Surround Default Value: 100 Hz Select the crossover frequency from "40Hz" to "200Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. "Full Band" can be selected only when "Front" is set to "Full Band". If an item cannot be selected even though connection is correct, check that the settings in "Configuration" "Speaker Channels" matches the number of connected channels. Back Default Value: 100 Hz Select the crossover frequency from "40Hz" to "200Hz" to start outputting frequencies for each channel. "Full Band": Full band will be output. This cannot be selected in the following conditions. – The setting for "Configuration" "BiAmp" is "Yes" – "Configuration" "Powered Zone 2" is set to "Yes" and ZONE 2 is "Full Band" can be selected only when "Surround" is set to "Full Band". If an item cannot be selected even though connection is correct, check that the settings in "Configuration" "Speaker Channels" matches the number of connected channels. LPF of LFE Default Value: 120Hz Set the lowpass filter for LFE (lowfrequency effect) signals in order to pass lower frequency signals than the set value and thus cancel...
Page 82 This can only be selected when "Configuration" "Subwoofer" is set to "Yes" and "Front" is set to "Full Band". Boost bass output by feeding bass sounds from the front left and right, and center speakers to the subwoofer. "On": Bass output will be boosted. "Off": Bass output will not be boosted. The setting will not automatically be configured even if you performed the automatic speaker setup. Distance Set the distance from each speaker to the listening position. Settings are automatically configured if you use the automatic speaker setup. Unit Default Value: feet/meters Specify the unit of distance for configuring settings. "feet": When setting in feet (0.1 ft to 30.0 ft, in increments of 0.1 ft) "meters": When setting in meters (0.03 m to 9.00 m, in increments of 0.03 m) Front Left Default Value: 12.0ft/3.60m Specify the distance between each speaker and the listening position. Center Default Value: 12.0ft/3.60m Specify the distance between each speaker and the listening position. Front Right Default Value: 12.0ft/3.60m Specify the distance between each speaker and the listening position. Height Left Default Value: 9.0ft/2.70m Specify the distance between each speaker and the listening position. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Height Right Default Value: 9.0ft/2.70m...
Page 83 Specify the distance between each speaker and the listening position. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Surround Right Default Value: 7.0ft/2.10m Specify the distance between each speaker and the listening position. Back Right Default Value: 7.0ft/2.10m Specify the distance between each speaker and the listening position. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Back Left Default Value: 7.0ft/2.10m Specify the distance between each speaker and the listening position. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Surround Left Default Value: 7.0ft/2.10m Specify the distance between each speaker and the listening position. Subwoofer Default Value: 12.0ft/3.60m Specify the distance between each speaker and the listening position. Default values vary depending on the regions. The speaker "Distance" may be unable to be changed depending on the settings in "Configuration" "Speaker Channels" / "Subwoofer". Level Calibration Adjust the level of each speaker with the builtin test tone. Settings are automatically configured if you use the Automatic Speaker Setup. Front Left Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level.
Page 84 Center Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. Front Right Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. Height Left Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Height Right Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Surround Right Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. Back Right Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. This setting cannot be changed if "Configuration" "Powered Zone 2" is set to "Yes" and Zone2 is set to on. Back Left Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. This setting cannot be changed if "Configuration" "Powered Zone...
Page 85 2" is set to "Yes" and Zone2 is set to on. Surround Left Default Value: 0 dB Select a value between "12 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. Subwoofer Default Value: 0 dB Select a value between "15 dB" and "+12 dB". A test tone will be output each time you change the value. Select the desired level. The speaker "Level Calibration" may be unable to be changed depending on the settings in "Configuration" "Speaker Channels" / "Subwoofer". "Level Calibration" cannot be changed while muting is on.
Page 86 Advanced Settings (Setup Menu) 3. Audio Adjust Configure various settings related to sound, such as settings for listening to multiplex audio or multilingual TV broadcasts and sound field settings for listening modes. Multiplex/Mono Multiplex Input Channel Default Value: Main Set the audio channel or language to be output when playing multiplex audio or multilingual TV broadcasts etc. "Main": Main channel only "Sub": Sub channel only "Main/Sub": Main and sub channels will be output at the same time. If multiplex audio is being played, "1+1" will be displayed when DISPLAY is pressed. Mono Input Channel Default Value: Left+Right Set the input channel to use for playing any 2 ch digital source such as Dolby Digital, or 2ch analog/PCM source in the Mono listening mode. "Left": Left channel only "Right": Right channel only "Left + Right" : Left and right channels Dolby Make the settings for Dolby listening mode. Loudness Management Default Value: On Enable the Late Night function that allows you to enjoy surround sound of Dolby TrueHD playback even in low volume. "On": Use this function...
Page 87 "Off": Do not use this function Make the settings for DTS Neo:6 Music listening mode. Neo:6 Music Center Image Default Value: 2 Adjust the width of the sound field of the front channel when playing in the DTS Neo:6 Music listening mode. "0" to "5": Selecting a smaller value brings the sound field of the front channel to the center while selecting a larger value spreads the sound field of the front channel to left and right. TheaterDimensional Make the settings for TheaterDimensional listening mode. Listening Angle Default Value: Wide To enhance the effect of TheaterDimensional, select the actual angle of the left and right front speakers as it appears from the listening position. "Narrow": Less than 30° "Wide": Greater than 30° Position the front speakers 20° to the listening position if you have selected "Narrow" in "Listening Angle" and 40° if you have selected "Wide". Volume Make the detailed volume setting of the unit. Maximum Volume Default Value: Off Set the maximum value to avoid too high volume. Select a value from "Off", "30" to "79". Power On Volume Default Value: Last...
Page 88 Set the volume level of when the power is turned on. Select a value from "Last" (Volume level before entering standby mode), "Min", "1" to "79" and "Max". You cannot set a higher value than that of "Maximum Volume". Headphone Level Default Value: 0 dB Adjust the output level of the headphones. Select a value between "12 dB" and "+12 dB".
Page 89 Advanced Settings (Setup Menu) 4. Source Make settings for input sources, such as volume difference adjustments for each input selector for the connected equipment. Select the input selector to configure. IntelliVolume IntelliVolume Default Value: 0 dB Adjust the volume level difference between the devices connected to the unit. Select a value between "12 dB" and "+12 dB". Set a negative value if the volume of the target device is larger than the others and a positive value if smaller. When you select a desired input to check the audio, start playback of the connected device. This function is not effective in Zone 2. Name Edit Set an easy name to each input. The set name will be shown on the main unit display. Select the input selector to configure. Name Default Value: Input name 1. Select a character or symbol with the cursors and press ENTER. Repeat it to input 10 or less characters. "A/a": Switches between upper and lower cases. (Pressing +10 on the remote controller also toggles between upper and lower cases.) "←" "→": Moves the cursor to the arrow direction. " ": Removes a character on the left of the cursor. "Space": Puts a space. Pressing CLR on the remote controller will remove all the input characters. 2. After inputting, select "OK" with the cursors and press ENTER. The input name will be saved. To name a preset radio station, press TUNER on the remote controller,...
Page 90 select AM/FM and select the preset number. It cannot be set if the "NET" or "BLUETOOTH" input is selected. Audio Select Make the audio input setting. The setting can be separately set to each input selector button. Select the input selector to configure. Audio Select Default Value: BD/DVD: HDMI CBL/SAT: HDMI STRMBOX: HDMI PC: HDMI GAME: HDMI CD: OPTICAL TV: OPTICAL Select the priority for input selection when multiple audio sources are connected to one input selector, such as connections to both the "BD/DVD" of HDMI IN jack and "BD/DVD" of AUDIO IN jack. You cannot select a jack that is not associated with the currently selected input. The priority is HDMI → COAXIAL/OPTICAL → Analog if this setting is not changed. ARC: When giving priority to input signal from ARC compatible TV. The setting can be selected only when "HDMI" "Audio Return Channel" is set to "Auto" and also the "TV" input is selected. HDMI: When giving priority to input signal from HDMI jacks The setting can be selected only when the input is assigned to the HDMI IN jack in the "HDMI Input" setting. "COAXIAL (Coaxial input)": When giving priority to input signal from DIGITAL IN COAXIAL jacks. The setting can be selected only when the input is assigned to the COAXIAL jack in the "Digital Audio Input" setting. "OPTICAL (Optical input)": When giving priority to input signal from DIGITAL IN OPTICAL jacks. The setting can be selected only when the input is assigned to the OPTICAL jack in the "Digital Audio Input" setting. "Analog": To always output analog audio independently of the input signal PCM Fixed Mode Default Value: Off Select whether to fix input signals to PCM (except multichannel PCM) when you have selected "HDMI", "COAXIAL", or "OPTICAL" in the "Audio Select" setting. Set this item to "On" if noise is produced or truncation occurs at the beginning of a track when playing PCM...
Page 91 The setting cannot be changed when "AUX", "TUNER", "NET", or "BLUETOOTH" input is selected. Video Select Video Select Default Value: Last Select the video input played along with audio output when either "TUNER", "NET" or "BLUETOOTH" is selected. This setting is effective only for an input selector which is assigned in "HDMI Input" or "Video Input". "Last": Select the video input played immediately prior. "BD/DVD", "CBL/SAT", "STRM BOX", "PC", "GAME", "CD", "TV": Play the video from the selected input. The setting cannot be changed when input other than "TUNER", "NET" or "BLUETOOTH" is selected. When input is "NET" or "BLUETOOTH", switch between displaying and not displaying video by pressing MODE on the remote controller.
Page 92 Advanced Settings (Setup Menu) 5. Listening Mode Preset You can preset your favorite listening mode to each input. (For example, you can always apply straight decode to the Dolby TrueHD source of Bluray Disc to play it in unchanged sound field.) When the list of input sources is displayed, set the signal type and listening mode. Although it is possible to select the listening mode during playback, the selected mode will be reset when the unit enters standby mode. Analog/PCM Default Value: Last Valid Set the listening mode for playing PCM signals of CD and analog signals of record and cassette tape. Mono/Multiplex Default Value: Last Valid Set the listening mode for playing Dolby Digital and other digital signals recorded in monaural or multiplex audio. 2 ch Source Default Value: Last Valid Set the listening mode for playing Dolby Digital and other digital signals recorded in 2 channels. Dolby D/Dolby D+/TrueHD Default Value: Last Valid Set the listening mode for playing Dolby Digital, Dolby Digital Plus and Dolby TrueHD signals. DTS/DTSES/ DTSHD Default Value: Last Valid...
Page 93 Set the listening mode for playing digital audio signals in DTS and DTS HD High Resolution formats. Select the listening mode specified for Bluray or such other DTSHD Master Audio source. Other Multich Source Default Value: Last Valid Set the listening mode for playing DSD signals of DVDAudio and Super Audio CD that are input from HDMI IN jack. Available listening modes vary depending on the input signal. Setting "Last Valid" will always select the last selected mode. Only "Analog" can be set to the "TUNER" input. "Digital" and "TrueHD" can be set to the "NET" input. Only "Digital" can be set to the "BLUETOOTH" input.
Page 94 Advanced Settings (Setup Menu) 6. Hardware Tuner AM/FM Frequency Step (North American and Taiwanese models) Default Value: 10kHz/0.2MHz Select a frequency step depending on your area of residence. Select "10kHz/0.2MHz" or "9kHz/0.05MHz". When this setting is changed, all radio presets are deleted. AM Frequency Step (European, Australian and Asian models) Default Value: 9kHz Select a frequency step depending on your area of residence. Select "10kHz" or "9kHz". When this setting is changed, all radio presets are deleted. HDMI HDMI CEC (RIHD) Default Value: Off Setting to "On" enables the input selection link and other link functions with HDMI connected CEC compliant device. "On": Use this function "Off": Do not use this function When changing this setting, turn off and then on again the power of all connected components. Depending on the TV set, a link may need to be configured on the When this setting is "On", the names of the CECcompatible components and "CEC On" are displayed after this operation screen is closed. Power consumption in standby mode may increase if this setting is "On". (Depending on the TV status, the unit will enter the normal standby mode.) If you operate the MASTER VOLUME control on the unit when this setting is "On" and audio is output from the TV speakers, audio will...
Page 95 When connecting a nonCEC compatible component, or when you are not sure whether it is compatible, set the setting to "Off". HDMI Standby Through Default Value: Off When this is set to anything other than "Off", you can play the video and audio of an HDMI connected player on the TV even if the unit is in standby mode. Only "Auto" and "Auto(Eco)" can be selected if "HDMI CEC (RIHD)" is set to "On". If you select anything else, set "HDMI CEC (RIHD)" to "Off." Power consumption in standby mode increases if set to anything other than "Off". "BD/DVD", "CBL/SAT", "STRM BOX", "PC", "GAME", "AUX", "CD", "TV": For example, if you select "BD/DVD", you can play the equipment connected to the "BD/DVD" terminal on the TV even if the unit is in standby mode. Select this setting if you have decided which player to use with this function. "Last": You can play the video and audio of the input selected immediately prior to the unit being switched to standby on the TV. When "Last" is selected, you can switch the input of the unit even in the standby mode with the remote controller or the Onkyo Remote app. "Auto", "Auto (Eco)": Select one of these settings when you have connected equipment that conforms to the CEC standard. You can play the video and audio of the input selected on the TV, irrespective of what input was selected immediately prior to the unit being switched to standby, using the CEC link function. To play players on the TV that do not conform to the CEC standard, you will need to turn the unit on and switch to the relevant input. When using a TV that conforms to the CEC standard, you can reduce the power consumption in standby mode by selecting "Auto (Eco)". Audio TV Out Default Value: Off You can enjoy audio through the speakers of the HDMI connected TV while this unit is on. "On": Use this function "Off": Do not use this function ...
Page 96 Listening mode cannot be changed while "Audio TV Out" is set to "On" and audio is being output through the speakers of the TV. Depending on your TV set or input signal of the component, audio may not output through the speakers of the TV even if this setting is set to "On". In such case, audio is output from the speakers of the unit. If you operate the MASTER VOLUME control on the unit when "Audio TV Out" or "HDMI CEC (RIHD)" is "On" and audio is output from the TV speakers, audio will be output from the unit. If you do not want to output audio from the unit, change the unit or TV settings, or reduce the volume of the unit. Audio Return Channel Default Value: Auto You can enjoy sound of the HDMI connected ARC compatible TV through the speakers connected to the unit. To use this function, set "HDMI CEC (RIHD)" to "On" in advance. "Auto": When enjoying the TV sound through the speakers connected to the unit "Off": When not using the ARC function Auto LipSync Default Value: On This setting automatically corrects any desynchronization between the video and audio signals based on data from the HDMI LipSync compatible TV. "On": Automatic correction will be enabled. "Off": Automatic correction will be disabled. Power Management Sleep Timer Default Value: Off Select to turn the unit into standby mode automatically when the specified time elapses. Select a value between "10 min" to "90 min". "Off": Select if you do not want the unit to automatically switch to standby. Auto Standby Default Value: On/Off This setting places the unit on standby automatically after 20 minutes of inactivity without any video or audio input.
Page 97 "Auto Standby" does not work when Zone 2 is active. Default values vary depending on the regions. Auto Standby in HDMI Standby Through Default Value: Off Enable or disable "Auto Standby" while "HDMI Standby Through" is on. "On": The setting will be enabled. "Off": The setting will be disabled. This setting cannot be set to "On" if "Auto Standby" is set to "Off". USB Power Out at Standby Default Value: Off When this function is "On", you can still have equipment connected to the USB port supplied with power even when this unit is in standby. When this function is being used, the power consumption increases even when the unit is on standby. However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating. Network Standby Default Value: Off When this function is "On", you can turn on the power of the unit via network using an application such as Onkyo Remote. When "Network Standby" is used, the power consumption increases even when the unit is on standby. However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY mode, where only the essential circuit is operating. Bluetooth Wakeup Default Value: Off This function wakes up the unit on standby by connecting a Bluetooth enabled device. "On": Use this function "Off": Do not use this function Setting to "On" increases the power consumption even when the unit is on standby. However, the increase in power consumption is kept to a minimum by automatically entering the HYBRID STANDBY...
Page 98 mode, where only the essential circuit is operating. This setting is fixed to "Off" if "Bluetooth" "Auto Input Change" is set to "Off". Wait for a while if "Network Standby" or "Bluetooth Wakeup" cannot be selected. It will appear when the network function is started up. Network Make the network setting. When LAN is configured with a DHCP, set "DHCP" to "Enable" to configure the setting automatically. ("Enable" is set by default) To assign fixed IP addresses to each components, you must set "DHCP" to "Disable" and assign an address to this unit in "IP Address" as well as set information related to your LAN, such as Subnet Mask and Gateway. WiFi Default Value: Off (Wired) Connect the unit to network via wireless LAN router. "On": Wireless LAN connection "Off (Wired)": Wired LAN connection WiFi Setup Default Value: – You can configure wireless LAN settings by pressing ENTER when "Start" is displayed. WiFi Status Default Value: – The information of the connected access point will be displayed. "SSID": SSID of the connected access point. "Signal": Signal strength of the connected access point. "Status": Status of the connected access point. MAC Address Default Value: – This is the MAC address of the AV receiver. This value is specific to the component and cannot be changed. DHCP Default Value: Enable...
Page 99 "Enable": Auto configuration by DHCP "Disable": Manual configuration without DHCP If selecting "Disable", you must set "IP Address", "Subnet Mask", "Gateway", and "DNS Server" manually. IP Address Default Value: – Displays/Sets the IP address. Subnet Mask Default Value: – Displays/Sets the subnet mask. Gateway Default Value: – Displays/Sets the gateway. DNS Server Default Value: – Displays/Sets the primary DNS server. Proxy URL Default Value: – Displays/Sets the proxy server URL. Proxy Port Default Value: – Displays/Sets the proxy server port number when you enter "Proxy URL". Friendly Name Default Value: TXNR545 Change the name for this unit to a simple one for display on the equipment connected by network. 1. Press ENTER to display the Edit screen. 2. Select a character or symbol with the cursors and press ENTER. Repeat it to input 31 or less characters. "A/a": Switches between upper and lower cases. (Pressing +10 on the remote controller also toggles between upper and lower cases.) "←" "→": Moves the cursor to the arrow direction.
Page 100 1. Press ENTER to display the Edit screen. 2. Select a character or symbol with the cursors and press ENTER. Repeat it to input 31 or less characters. "A/a": Switches between upper and lower cases. (Pressing +10 on the remote controller also toggles between upper and lower cases.) "←" "→": Moves the cursor to the arrow direction. " ": Removes a character on the left of the cursor. "Space": Puts a space. Pressing D on the remote controller will switch whether to mask the password with " " or display in the plain text. Pressing CLR on the remote controller will remove all the input characters. 3. After inputting, select "OK" with the cursors and press ENTER. The input password will be saved. Usage Data Default Value: No As a means of improving the quality of our products and services, Onkyo may collect information about your usage over the network. Select "Yes" if you agree to our collecting this information. Select "No" if you do not want us to collect this information. You can set this after confirming the Privacy Policy. When you select "Usage Data" and press ENTER, the Privacy Policy is displayed. (The same screen is displayed once also when setting up the network connection.) If you agree to the collection of the information, this setting also becomes "Yes". Note that if you agree to the Privacy Policy but select "No" for this setting, the information will not be collected. Network Check Default Value: – You can check the network connection. Press ENTER when "Start" is displayed.
Page 101 Wait for a while if "Network" cannot be selected. It will appear when the network function is started up. Bluetooth Bluetooth Default Value: On Select whether or not to use the Bluetooth function. "On": Enables connection with a Bluetoothenabled device by using the Bluetooth function. Select "On" also when making various Bluetooth settings. "Off": When not using the Bluetooth function Auto Input Change Default Value: On The input of the unit will automatically be switched to "BLUETOOTH" when connection is made from a Bluetoothenabled device to the unit. "On": The input will automatically become "BLUETOOTH" when a Bluetoothenabled device is connected. "Off": The function is disabled. If the input is not switched automatically, set to "Off" and change the input manually. Auto Reconnect Default Value: On This function automatically reconnects to the Bluetoothenabled device connected last when you change the input selector to "BLUETOOTH". "On": Use this function "Off": Do not use this function This may not work with some Bluetoothenabled devices. Pairing Information Default Value: – The information of the previous pairing stored in this unit will be initialized. Pressing ENTER when "Clear" is displayed initializes the pairing information stored in this unit. This function does not initialize the pairing information on the Bluetoothenabled device. When pairing the unit again with the device, be sure to clear the pairing information on the Bluetooth enabled device in advance. For information on how to clear the pairing information, refer to the Bluetoothenabled device's instruction manual.
Page 102 Device Default Value: – Displays the name of the Bluetoothenabled device connected to the unit. The name is not displayed when "Status" is "Ready" or "Pairing". Status Default Value: – Displays the status of the Bluetoothenabled device connected to the unit. "Ready": Not paired "Pairing": Pairing "Connected": Successfully connected Wait for a while if "Bluetooth" cannot be selected. It will appear when the Bluetooth function is started up.
Page 103 Advanced Settings (Setup Menu) 7. Remote Controller Remote ID Default Value: 1 Select an ID for the unit's remote controller from "1", "2", and "3" to prevent interference between the unit and other Onkyo components that are installed in the same room. After changing the ID on the main unit, change the ID on the remote controller accordingly with the following procedure. 1. While holding down RECEIVER, press and hold SETUP for about 3 seconds until the remote indicator lights. 2. With the number buttons, press one of 1, 2, and 3. The remote indicator flashes twice. Remote Mode Default Value: – Input and register the remote controller code of other devices. For registration of the remote control code, refer to "Operating Other Components with the Remote Controller".
Page 104 Advanced Settings (Setup Menu) 8. Miscellaneous Firmware Update Update Notice Default Value: Enable Availability of a firmware update will be notified via network. "Enable": Notify updates "Disable": Do not notify updates Version Default Value: – The current firmware version will be displayed. Update via NET Default Value: – Press ENTER to select when you want to update the firmware via network. You will not be able to select this setting if you do not have Internet access or there is nothing to update. Update via USB Default Value: – Press ENTER to select when you want to update the firmware via USB. You will not be able to select this setting if a USB storage device is not connected or there is nothing to update in the USB storage device. Wait for a while if "Firmware Update" cannot be selected. It will appear when the network function is started up. Initial Setup You can make the initial setup from the setup menu.
Page 105 Wait for a while if "Initial Setup" cannot be selected. It will appear when the network function is started up. Lock Setup Parameter Default Value: Unlocked Lock the Setup menu to protect the settings. "Locked": The menu is locked. "Unlocked": The menu is unlocked.
Page 106 Operating Other Components with the Remote Controller Functions of REMOTE MODE Buttons You can control any other device than this unit by programming a specified remote control code to a REMOTE MODE button of the remote controller. Register a remote control code to a desired REMOTE MODE button and press it to enter the remote mode that allows you to operate the corresponding device. ＊ The RECEIVER and ZONE2 buttons cannot be programmed.
Page 107 Operating Other Components with the Remote Controller Programming Remote Control Codes Searching in the Setup Menu You can search a remote control code and register it to a desired REMOTE MODE button in the unit's Setup menu. 1. After pressing RECEIVER on the remote controller, press SETUP. 2. With the cursors, select "7. Remote Controller" "Remote Mode" and press ENTER. 3. With the cursors, select the REMOTE MODE button for which you want to register a remote control code and press ENTER to display the subcategory selection screen. 4. With the cursors, select the target subcategory, and then press ENTER to display the brand name input screen. 5. Select a character with the cursors and press ENTER. Repeat it to enter the first three characters of the brand name. 6. Select "Search" with the cursors and press ENTER. After a search is done, the list of possible brand names is displayed. If the brand name list is not displayed, select "Not Listed" with the cursors and press ENTER to return to the brand name input screen in step 5. 7. With the cursors, select the target brand name, and then press ENTER. When the brand name is specified, the remote control code of the brand and how to register it will be displayed on the TV screen.
Page 108 Program a remote control code in accordance with the input since each button also works as the input selector. (For example, when the CD player is connected to the CD jack, program the remote control code for the CD player to CD) If the component cannot be operated, select "Try Next Code" with the cursors and press ENTER to display another code. Consulting the Remote Control Code List Find the remote control code in the remote control code list. 1. Look up the Remote Control Codes for the corresponding remote control code. The codes in the Remote Control Code List are those known as of the date of publication and may be changed. The following REMOTE MODE buttons are preprogrammed with remote control codes. BD/DVD: Onkyo Bluray Disc/DVD player CD: Onkyo CD player STRM BOX: Apple TV Only TV remote control codes can be entered for TV. Program a remote control code in accordance with the input since each button also works as the input selector. (For example, when the CD player is connected to the CD jack, program the remote control code for the CD player to CD) 2. Press and hold DISPLAY for 3 or more seconds while holding down the REMOTE MODE button to which you want to program the remote control code. The remote indicator lights in the input mode. 3. With the number buttons, enter the 5digit remote control code within 30 seconds. Programming is complete when the remote indicator flashes twice.
Page 109 remote control code fails. Try programming again. Remapping the Colored Buttons The colored button assignment on the AV receiver's remote controller can be remapped to match that on the remote controller of the component whose remote control code you programmed to REMOTE MODE. However, you will not be able to remap the colored buttons if Zone 2 is selected. 1. Hold down the REMOTE MODE button to map and A (Red) simultaneously until the remote indicator lights (about 3 seconds). Remapping is possible only for codes included in the categories of the Remote Control Code List (DVD player, TV, etc.) 2. Within 30 seconds, press the colored buttons from left to right, in the order you want to remap. For example, if the colored buttons on the remote controller of the other component are yellow, green, blue, and red from left to right, press the buttons on the AV receiver's remote controller in that order. Programming is complete when the remote indicator flashes twice. The remote indicator flashes once slowly when programming the remote control code fails. Try programming again. Pressing any other button than a colored button cancels the remap operation. Resetting the REMOTE MODE Buttons...
Page 110 You can reset the remote control code registered in the REMOTE MODE button to its default status. This operation can be executed on a single REMOTE MODE button. 1. Press and hold Q for 3 or more seconds while holding down the REMOTE MODE button you want to reset. The remote indicator will light. 2. Within 30 seconds, press the REMOTE MODE button again. Resetting is complete when the remote indicator flashes twice. To reset all the remote controller settings: While holding down RECEIVER, press and hold Q for 3 or more seconds until the remote indicator stays lit. Within 30 seconds, press RECEIVER again. Resetting is complete when the remote indicator flashes twice.
Page 111 Operating Other Components with the Remote Controller TV operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product. 1 REMOTE MODE , INPUT, VOL / 3 MUTING 4 CH +/– 5 GUIDE 6 / / / , ENTER 7 HOME 8 PREV CH 9 RETURN...
Page 112 , , , , , , (＊) G A (Red), B (Green), C (Yellow), D (Blue) H Number 1 to 9, 0, +10 I CLR, DISPLAY ＊ Not CECcompatible.
Page 113 Operating Other Components with the Remote Controller Bluray Disc player/DVD player/DVD recorder operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product. 1 REMOTE MODE SOURCE 3 MUTING 4 CH +/–, DISC +/– 5 TOP MENU 6 / / / , ENTER 7 HOME 8 MENU 9 RETURN...
Page 114 , , , , , , G A (Red), B (Green), C (Yellow), D (Blue) H Number 1 to 9, 0, +10 (＊) I CLR, DISPLAY ＊ Not CECcompatible.
Page 115 Operating Other Components with the Remote Controller VCR/PVR operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product. 1 REMOTE MODE SOURCE 3 MUTING 4 CH +/– 5 GUIDE 6 / / / , ENTER 7 HOME 8 PREV CH 9 RETURN...
Page 116 , , , , , , G Number 1 to 9, 0, +10 H CLR, DISPLAY...
Page 117 Operating Other Components with the Remote Controller Satellite receiver / Cable receiver operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product. 1 REMOTE MODE SOURCE 3 MUTING 4 CH +/– 5 GUIDE 6 / / / , ENTER 7 HOME 8 PREV CH 9 RETURN...
Page 118 , , , , , , G A (Red), B (Green), C (Yellow), D (Blue) H Number 1 to 9, 0, +10 I CLR, DISPLAY...
Page 119 Operating Other Components with the Remote Controller CD player operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product. 1 REMOTE MODE SOURCE 3 MUTING 4 DISC +/– 5 / / / , ENTER 6 HOME...
Page 120 , , , , , , 8 SEARCH, REPEAT, RANDOM, MODE 9 Number 1 to 9, 0, +10 F CLR, DISPLAY...
Page 121 Operating Other Components with the Remote Controller Cassette tape deck operation Press the REMOTE MODE button programmed with the remote control code for the relevant AV component to switch the remote controller mode to that for the AV component. Then, operate by using the corresponding buttons. Available buttons vary depending on the product category of the component. Operation may be incorrect or impossible depending on the product. 1 REMOTE MODE SOURCE 3 MUTING , (Reverse Playback), , , , , ...
Page 122 Operating Other Components with the Remote Controller To operate CECcompatible components If this unit is connected via HDMI to a TV or BD/DVD player, you may be able to control the devices using the remote controller of this unit with CEC (Consumer Electronics Control) linked operation. TV: The TV button on the remote controller is preprogrammed with remote control codes for linked operation of some CEC(Consumer Electronics Control)compatible TV sets. If you cannot operate your CECcompatible TV, program one of the following remote control codes (11807/13100/13500) to the TV button. BD/DVD player: By registering a remote control code (32910/33101/33501/31612) in the BD/DVD button, your remote controller will be able to take advantage of linked operation with CECcompatible BD/DVD players.
Page 123 Advanced speaker connections Connecting Biamp Speakers It is possible to connect speakers supporting biamping to improve quality of the bass and treble. Up to 5.1 ch will be played in biamping. Connections 1. Connect as below using the FRONT terminals and BACK or HEIGHT terminals. 2. Turn the unit on and make the biamping setting. 1 After pressing RECEIVER on the remote controller, press SETUP. 2 With the cursors, select "2. Speaker" "Configuration" "BiAmp". 3 Select "Yes" with the cursors. Before biamping, be sure to remove the shortcircuit connector that connects the tweeter (treble) jack and the subwoofer (bass) jack. Use speakers supporting biamping only. For details, refer to the speakers' instruction manual.
Page 124 Connecting and Operating Onkyo RI Components About RI Function Connecting an Onkyo component with RI jack such as the separately sold RI Dock to the unit by using an RI cable and an analog audio cable enables the following RI functions: System On / Auto Power On: Starting playback on a component connected via RI when the unit is on standby mode, automatically turns on the unit to select the relevant component as its input source. Direct Change: When playback is started on a component connected via RI, the unit selects that component as the input source. Remote Controller Operation: Allows you to operate RIcompatible Onkyo components using the AV receiver's remote controller. Point the remote controller at remote control sensor of the unit. This operation is possible only when the RI remote control code is programmed. Some components may not support all RI functions. These functions do not work when Zone 2 is turned on. For information on the RI functions, also refer to each component's instruction manual.
Page 125 Connecting and Operating Onkyo RI Components RI Connection and Setting Connect an Onkyo component with RI jack to this unit using an RI cable and an analog audio cable. For details, refer to the instruction manual of the component with RI jack. The RI cable can be connected in any order. When there are two RI jacks, both jacks work in the same way and are interchangeable. To connect the RI Dock or cassette tape deck via RI, the following settings are required. Rename the input selector To make the RI functions work, you must rename the input selectors on the unit. Press CD or GAME to display "CD" or "GAME" on the main unit display. Then press and hold CD or GAME 3 seconds or more to switch the display to "DOCK" or "TAPE". To program the RI remote control code Program the remote control code to any REMOTE MODE button on the remote controller. This will allow you to operate the component by pointing the remote controller at the unit instead of the component. 1. Press and hold DISPLAY for 3 or more seconds while holding down the REMOTE MODE button to which you want to program the remote control code.
Page 126 The remote indicator will light. The RECEIVER and ZONE2 buttons cannot be programmed. 2. With the number buttons, enter the following 5digit remote control code within 30 seconds. RI Dock: 81993 Cassette tape deck with RI jack: 42157 Programming is complete when the remote indicator flashes twice. The remote indicator flashes once slowly when programming the remote control code fails. Try programming again. Input selector on the RI Dock: Switch to "DOCK" or "TAPE". For details, refer to the RI Dock's instruction manual. To operate Onkyo components directly or Onkyo components that are not connected via RI, use the following remote control codes: Onkyo DVD player: 30627 Onkyo CD player: 71817 RI Dock: 82990 With some models, operation may be not possible in part or not possible at all.
Page 127 Connecting and Operating Onkyo RI Components iPod ® /iPhone ® Operation The RI Dock allows you to use the AV receiver's remote controller to operate and play music on your iPod/iPhone. Moreover, it also allows you to view videos on your iPod/iPhone on the screen of your TV, as well as perform RI operations if connected via RI. This operation is possible only when the RI remote control code is programmed. Before performing any operation: Make sure the OS for your iPod/iPhone is updated to the latest version. Certain buttons may not work for some iPod/iPhone models and generations, or RI Dock. For details on the operation, refer to the RI Dock's instruction manual. Switch the remote controller mode by pressing the REMOTE MODE button programmed with the remote control code for the iPod/iPhone, and operate by using the corresponding buttons. Point the remote controller at the unit. 1 REMOTE MODE SOURCE 3 MUTING 4 VOL / 5 ALBUM +/– 6 TOP MENU...
Page 128 7 / / / , ENTER, PLAYLIST / 8 MENU , , , , , , F REPEAT, RANDOM G MODE H DISPLAY Pressing DISPLAY turns on the backlight for a few seconds. MODE allows you to use the Resume function.
Page 129 Firmware Update About Firmware Update There are two methods for updating the firmware; via network and via USB. Use the one that best suits your environment. For the latest information on updates, visit the Onkyo website. Before updating, make sure that the speaker setup microphone is not connected. During an update, do not – Disconnect and reconnect any cable, USB storage device, speaker setup microphone or headphones, or perform any operation on the component such as turn off its power – Access to this unit from a PC or smartphone using Android application The update may take about 30 minutes to complete for either method: via network or via USB. Furthermore, existing settings are guaranteed regardless of the method used for update. Disclaimer: The program and accompanying online documentation are furnished to you for use at your own risk. Onkyo will not be liable and you will have no remedy for damages for any claim of any kind whatsoever concerning your use of the program or the accompanying online documentation, regardless of legal theory, and whether arising in tort or contract. In no event will Onkyo be liable to you or any third party for any special, indirect, incidental, or consequential damages of any kind, including, but not limited to, compensation, reimbursement or damages on account of the loss of present or prospective profits, loss of data, or for any other reason whatsoever.
Page 130 Firmware Update Updating the Firmware via Network Before Starting Check that the unit is turned on, and the connection to the Internet is secured. Turn off the controller component (PC etc.) connected to the network. Stop any playing Internet radio, USB storage device, or server content. If the multizone function is active, press OFF on the main unit to turn it off. If "HDMI CEC (RIHD)" is set to "On", set it to "Off" (default value). – After pressing RECEIVER on the remote controller, press SETUP. Then, after selecting "6. Hardware" "HDMI" and pressing ENTER, select "HDMI CEC (RIHD)" to select "Off". ＊ The description may differ from the onscreen display but that will not change the way to operate or the function. Update 1. After pressing RECEIVER on the remote controller, press SETUP. The Setup menu is displayed on the TV screen.
Page 131 2. With the cursors, select "8. Miscellaneous" "Firmware Update" "Update via NET", and then press ENTER. If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up. You will not be able to select "Update via NET" if there is nothing to update. 3. Press ENTER with "Update" selected to start update. During the update, the TV screen may go black depending on the updated program. In that case, check the progress on the display of the unit. The TV screen will remain black until the update is complete and the power is turned on again. "Completed!" is displayed when the update is complete. 4. Press ON/STANDBY on the main unit to turn the unit into standby mode. The process is completed and your firmware is updated to the latest version. Do not use RECEIVER on the remote controller. If an Error Message is Displayed When an error occurs, "＊＊＊ Error!" is displayed on the unit. ("＊" represents an alphanumeric character.) Check the following: Error Code ＊01, ＊10: Ethernet cable not found. Connect the Ethernet cable properly.
Page 132 ＊02, ＊03, ＊04, ＊05, ＊06, ＊11, ＊13, ＊14, ＊16, ＊17, ＊18, ＊20, ＊21: Internet connection error. Check the following: – Whether the router is turned on – Whether this unit and router are connected to the network Try to disconnect and then connect again the power to the unit and router. This may solve the problem. If you are still unable to connect to the Internet, the DNS server or proxy server may be temporarily down. Check the service status with your ISP provider. Others First disconnect then reconnect the AC power cord, and then retry from the beginning.
Page 133 Delete any data stored on the USB storage device. Turn off the controller component (PC etc.) connected to the network. Stop any playing Internet radio, USB storage device, or server content. If the multizone function is active, press OFF on the main unit to turn it off. If "HDMI CEC (RIHD)" is set to "On", set it to "Off" (default value). – After pressing RECEIVER on the remote controller, press SETUP. Then, after selecting "6. Hardware" "HDMI" and pressing ENTER, select "HDMI CEC (RIHD)" to select "Off". ＊ Some USB storage devices may take long to load, may not be loaded correctly, or may not be correctly fed depending on the device or their content. ＊ Onkyo will not be liable whatsoever for any loss or damage of data, or storage failure arising from the use of the USB storage device with this AV receiver. Thank you for your understanding. ＊ The description may differ from the onscreen display but that will not change the way to operate or the function. Update 1. Connect the USB storage device to your PC. 2. Download the firmware file from the Onkyo website to your PC and unzip. Firmware files are named in the following way: ONKAVR＊＊＊＊_＊＊＊＊＊＊＊＊＊＊＊＊.zip Unzip the file on your PC. The number of unzipped files and folders varies depending on the model. 3. Copy all unzipped files and folders to the root folder of the USB storage device. Make sure to copy the unzipped files.
Page 134 4. Connect the USB storage device to the USB port of the unit. If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it. If the USB storage device has been partitioned, each section will be treated as an independent device. 5. After pressing RECEIVER on the remote controller, press SETUP. The Setup menu is displayed on the TV screen. 6. With the cursors, select "8. Miscellaneous" "Firmware Update" "Update via USB", and then press ENTER. If "Firmware Update" is grayed out and cannot be selected, wait for a while until it starts up. You will not be able to select "Update via USB" if there is nothing to update. 7. Press ENTER with "Update" selected to start update. During the update, the TV screen may go black depending on the updated program. In that case, check the progress on the display of...
Page 135 the unit. The TV screen will remain black until the update is complete and the power is turned on again. During the update, do not turn off, or disconnect and reconnect the USB storage device. "Completed!" is displayed when the update is complete. 8. Disconnect the USB storage device from the unit. 9. Press ON/STANDBY on the main unit to turn the unit into standby mode. The process is completed and your firmware is updated to the latest version. Do not use RECEIVER on the remote controller. If an Error Message is Displayed When an error occurs, "＊＊＊ Error!" is displayed on the unit. ("＊" represents an alphanumeric character.) Check the following: Error Code ＊01, ＊10: USB storage device not found. Check whether the USB storage device or USB cable is correctly inserted to the USB port of the unit. Connect the USB storage device to an external power source if it has its own power supply. ＊05, ＊13, ＊20, ＊21: The firmware file is not present in the root folder of the USB storage device, or the firmware file is for another model. Retry from the download of the firmware file. Others First disconnect then reconnect the AC power cord, and then retry from the beginning.
Page 136 Troubleshooting Before starting the procedure Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. If the problem is that the video or audio is not output or the HDMI linked operation does not work, disconnecting/connecting the HDMI cable may solve it. When reconnecting, be careful not to wind the HDMI cable since if wound the HDMI cable may not fit well. After reconnecting, turn off and on the unit and the connected device. The AV receiver contains a microPC for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in. Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.
Page 137 Troubleshooting Resetting the unit Resetting the unit to the status at the time of shipment may solve the problem. If the measures mentioned in the troubleshooting do not solve the problem, reset the unit with the following procedure. If you reset the unit status, your preferences will be reset to the defaults. Note them down before starting reset. How to reset 1. While holding down CBL/SAT on the main unit (note that step 2 must be performed with this button pressed down) 2. Press ON/STANDBY on the main unit. "Clear" is appeared on the display and the unit will enter standby mode. How to reset the remote controller 1. While holding down 1 RECEIVER on the remote controller (note that step 2 must be performed with this button pressed down) 2. Press and hold 2 Q for 3 or more seconds until the 3 remote indicator stays lit. Within 30 seconds, press 1 RECEIVER again.
Page 138 Troubleshooting Power Cannot turn on the unit Make sure that the power cord is properly plugged into the wall outlet. Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again. The unit turns off unexpectedly The AV receiver will automatically enter standby mode when Auto Standby or Sleep Timer is set and launched. The protection circuit may have been activated. If this is the case, when you turn the unit on again, "AMP Diag Mode" will appear on the main unit’s display. The unit will then enter a mode that detects abnormal conditions. If no problems are detected, "AMP Diag Mode" will disappear and the unit will return to a normal state. If "CHECK SP WIRE" appears on the display, the speaker cables may be shortcircuited. Turn the unit off, and check to see if the cable core of any of the speaker cables is in contact with that of another speaker cable or with the rear panel. After that, turn the unit on again. If "NG" appears, unplug the power cord immediately and contact your Onkyo dealer. WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or Onkyo Support.
Page 139 Troubleshooting Audio Make sure that the speaker setup microphone is not still connected. Check that the output jack of the connected equipment and the input jack of this unit are connected correctly. Make sure that none of the connecting cables are bent, twisted, or damaged. If the MUTING indicator on the display flashes, press MUTING on the remote controller to unmute the unit. While headphones are connected to the PHONES jack, no sound is output from the speakers. If "Audio Select" "PCM Fixed Mode" is set to "On", set it to "Off". If the above does not solve the problem, check the following. There is no sound from the television There is no sound from the connected player One of the speakers produces no sound Only the front speakers produce sound Only the center speaker produces sound The surround speakers produce no sound The center speaker produces no sound No sound from the back speakers and height speakers The subwoofer produces no sound Volume is low Noise can be heard The sound changes when I connect my headphones About DTS signals The beginning of audio received by an HDMI IN cannot be heard...
Page 140 Troubleshooting There is no sound from the television The input selector of this unit needs to be in the position that corresponds to the jack where the television is connected. If your TV does not support ARC, you need, in addition to the HDMI OUT jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL IN OPTICAL jack of the unit or an analog audio cable connection between the audio output jack of the TV and the AUDIO IN TV jack of the unit.
Page 141 Troubleshooting There is no sound from the connected player The input selector of this unit needs to be in the position that corresponds to the jack where the player is connected. Check the digital audio output setting on the connected component. On some game consoles, such as those that support DVD, the default setting is off. With some DVDVideo discs, you need to select an audio output format from a menu.
Page 142 Troubleshooting One of the speakers produces no sound Make sure that the polarity of the speaker cables is correct, and that no bare wires are in contact with the metal part of speaker terminals. Make sure that the speaker cables are not shorting. Make sure the speakers are configured correctly.
Page 143 Troubleshooting Only the front speakers produce sound When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.
Page 144 Troubleshooting Only the center speaker produces sound If you use the Dolby Surround listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.
Page 145 Troubleshooting The surround speakers produce no sound When the TD, Stereo or Mono listening mode is selected, the surround speakers produce no sound. Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.
Page 146 Troubleshooting The center speaker produces no sound When the Stereo or Mono listening mode is selected, the center speaker produces no sound.
Page 147 Troubleshooting No sound from the back speakers and height speakers Depending on the source and current listening mode, not much sound may be produced by the speakers. Try selecting another listening mode.
Page 148 Troubleshooting The subwoofer produces no sound When the input signal does not include a subwoofer audio element (LFE), the subwoofer may not produce sound.
Page 149 Troubleshooting Volume is low Check the volume. The volume level is adjustable between Min, 1 to 79, Max (80). A level of around 40 is normal in a domestic environment.
Page 150 Troubleshooting Noise can be heard Using cable ties to bundle audio cables with power cords, speaker cables, etc. may degrade the audio performance, so refrain from doing it. An audio cable may be picking up interference. Try repositioning your cables.
Page 151 Troubleshooting The sound changes when I connect my headphones When a listening mode other than Direct, Pure Audio (European, Australian and Asian models), or Mono is selected, connecting a headphone automatically selects Stereo.
Page 152 Troubleshooting About DTS signals When DTS program material ends and the DTS bitstream stops, the unit remains in DTS listening mode and the dts indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, you may not hear any sound because the unit does not switch formats immediately. In such case, you should stop your player for about 3 or more seconds and then resume playback. With some CD and LD players, you will not be able to playback DTS material properly even though your player is connected to a digital input on the unit. This is usually because the DTS bitstream has been processed (e.g., output level, sampling rate, or frequency response changed) and the unit does not recognize it as a genuine DTS signal. In such cases, you may hear noise. When playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.
Page 153 Troubleshooting The beginning of audio received by an HDMI IN cannot be heard Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.
Page 154 Troubleshooting Listening Mode When listening to Dolby Digital and/or DTS sound, digital connection is necessary. Check the digital audio output setting on the connected component. On some game consoles, such as those that support DVD, the default setting is off. After pressing RECEIVER on the remote controller, repeatedly press DISPLAY to switch the display on the main unit. You can see the input format. If the above does not solve the problem, check the following. Cannot select a desired listening mode There is no sound with Dolby Atmos Cannot select the Pure Audio listening mode (European, Australian and Asian models)
Page 155 Troubleshooting Cannot select a desired listening mode Depending on the connecting status of the speaker, some listening modes may not be selected. Check the details in "Selectable Listening Modes" section.
Page 156 Troubleshooting There is no sound with Dolby Atmos You need to have either back speakers or height speakers connected. After connecting each of the speakers, make sure the connection settings in "Configuration" "Speaker Channels" are correct. Dolby Atmos play is only possible when the input signal is Dolby Atmos.
Page 157 Troubleshooting Cannot select the Pure Audio listening mode (European, Australian and Asian models) The Pure Audio listening mode cannot be selected while Zone 2 is on.
Page 158 Troubleshooting Video Check that the output jack of the connected equipment and the input jack of this unit are connected correctly. Make sure that none of the connecting cables are bent, twisted, or damaged. Make sure the switching of input screens is proper at the monitor side such as a TV. If the above does not solve the problem, check the following. There is no picture from a source connected to an HDMI IN There is no picture from a source connected to the component video input jack Images flicker...
Page 159 Troubleshooting There is no picture from a source connected to an HDMI IN The input selector of this unit needs to be in the position that corresponds to the jack where the player is connected. While the Pure Audio (European, Australian and Asian models) listening mode is selected only video signals input through HDMI IN can be output. Check if "Resolution Error" is displayed on the main unit display when video input via HDMI IN jack is not displayed. In this case, the TV does not support the resolution of the video input from the player. Change the setting on the player. Reliable operation with an HDMItoDVI adapter is not guaranteed. In addition, video signals from a PC are not supported. Try switching off the DeepColor function. To turn off the DeepColor function, simultaneously press the STRM BOX and ON/STANDBY buttons on the main unit. While holding down STRM BOX, press ON/STANDBY repeatedly until "Deep Color:Off" appears on the display. To reactivate the DeepColor function, repeat the above described step until "Deep Color:On" is appeared on the display.
Page 160 Troubleshooting There is no picture from a source connected to the component video input jack If multiple video inputs are put into one input, the output will be made in the order of HDMI, COMPONENT VIDEO/composite video. In this case, to output composite video, set "HDMI Input" to "".
Page 161 Troubleshooting Images flicker It is possible that the resolution of the player is not compatible with the TV's resolution. If you have connected the player to this unit with an HDMI cable, try changing the output resolution on the player. There also may be an improvement if you change the screen mode on the TV.
Page 162 Troubleshooting Linked operation There is no HDMI linked operation with CECcompliant equipment such as a television Set the HDMI CEC (RIHD) setting of the unit to "On". Press RECEIVER and then SETUP on the remote controller, select "Setup" "6. Hardware" "HDMI" "HDMI CEC (RIHD)" and set to "Yes". It is also necessary to make the HDMI linked system settings on the CECcompliant equipment. Check the operating instructions. The RI functions do not work To use RI, you must make an RI connection and an analog audio connection (RCA) between the component and AV receiver. While Zone 2 is selected, the RI functions do not work.
Page 163 Troubleshooting Tuner Reception is noisy, FM stereo reception is noisy, or the "FM STEREO" indicator does not stay lit Recheck the antenna connection. Relocate your antenna. Move the unit away from your TV or PC. Passing cars and airplanes can cause interference. Concrete walls weaken radio signals. Listen to the station in mono. When listening to an AM station, operating the remote controller may cause noise.
Page 164 Troubleshooting Bluetooth Try plugging/unplugging the power of the unit and try turning on/off the Bluetoothenabled device. Restartup of the Bluetoothenabled device may be effective. The Bluetoothenabled devices must support the A2DP profile. Near components such as microwave oven or cordless phone, which use the radio wave in the 2.4 GHz range, a radio wave interference may occur, which disables the use of this unit. If there is a metallic object near the unit, Bluetooth connection may not be possible as the metal can effect on the radio wave. If the above does not solve the problem, check the following. Cannot connect with this unit Music playback is unavailable on the unit even after successful Bluetooth connection Sound is interrupted The audio quality is poor after connection with a Bluetoothenabled device "Bluetooth" "Auto Reconnect" does not work...
Page 165 Troubleshooting Cannot connect with this unit The Bluetooth function of the Bluetoothenabled device is not enabled. Refer to the user manual of the Bluetoothenabled device for how to enable the Bluetooth function. When building a Bluetooth connection between this unit and your Bluetoothenabled device for the first time, if the connection fails, select "6.Hardware" "Bluetooth", execute "Clear" in "Pairing Information", turn off and then on again your Bluetoothenabled device to clear the device name, and build the Bluetooth connection again. If the wireless LAN and Bluetooth connections are used at the same time, try connecting the ETHERNET port and router with the Ethernet cable after selecting "6. Hardware" "Network" and changing "WiFi" to "Off (Wired)" for a better connection.
Page 166 Troubleshooting Music playback is unavailable on the unit even after successful Bluetooth connection When the audio volume of your Bluetoothenabled device is set low, the playback of audio may be unavailable. Increase the volume of the Bluetoothenabled device. Depending on the Bluetoothenabled device, Send/Receive selector switch may be provided. Select Send mode. Depending on the characteristics or specifications of your Bluetooth enabled device, playback on the unit is not guaranteed.
Page 167 Troubleshooting Sound is interrupted Problem may be occurring at the Bluetoothenabled device. Check the information on a web page.
Page 168 Troubleshooting The audio quality is poor after connection with a Bluetoothenabled device The Bluetooth reception is poor. Move the Bluetoothenabled device closer to the unit or remove any obstacle between the Bluetoothenabled device and this unit.
Page 169 Troubleshooting "Bluetooth" "Auto Reconnect" does not work This may not work with some Bluetoothenabled devices. In that case, pair the unit and the Bluetoothenabled device and then play again.
Page 170 Troubleshooting Network function "Network Setup" becomes selectable after the network starts up even if it cannot be selected first. It may take about a minute to start up. When NET is blinking, the AV receiver is not properly connected to the home network. Try unplugging the power supply of this unit and the router, and then plugging in again. Try rebooting the router. If the above does not solve the problem, check the following. Cannot access the Internet radio Cannot access the network server Playback stops while listening to music files on the network server...
Page 171 Troubleshooting Cannot access the Internet radio Certain network service or contents available through the unit may not be accessible in case the service provider terminates its service. Make sure that your modem and router are properly connected, and make sure they are both turned on. Make sure that the router LAN side port is properly connected to the AV receiver. Make sure that connecting to Internet from other components is possible. If connecting is not possible, turn off all components connected to the network, wait for a while, and then turn on the components again. If a specific radio station is unavailable for listening, make sure the registered URL is correct, or whether the format distributed from the radio station is supported by this unit. Depending on ISP, setting the proxy server is necessary. Make sure that the used router and/or modem is supported by your ISP.
Page 172 Troubleshooting Cannot access the network server This unit needs to be connected to the same router as the network server. Make sure your network server has been started up. Make sure your network server is properly connected to the home network. Make sure your network server is correctly set. Make sure that the router LAN side port is properly connected to the AV receiver.
Page 173 Troubleshooting Playback stops while listening to music files on the network server Make sure the network server is compatible with this unit. When the PC is serving as the network server, try quitting any application ® software other than the server software (Windows Media Player 12 etc.). If the PC is downloading or copying large files, the playback may be interrupted.
Page 174 Troubleshooting USB storage device USB storage device is not displayed Check whether the USB storage device or USB cable is correctly inserted to the USB port of the unit. Remove the USB storage device from the AV receiver once, and then try reconnecting. Performance of the hard disk that receive power from the USB port of the unit is not guaranteed. Depending on the type of format, the playback may not be performed normally. Check the type of the file formats that is supported. USB storage devices with security functions may not be played.
Page 175 Troubleshooting WiFi (Wireless LAN) Network Try plugging/unplugging the power supply of wireless LAN router and the unit, check the wireless LAN router poweron status, and try reboot of the wireless LAN router. If the above does not solve the problem, check the following. Cannot access to WiFi (Wireless LAN) network Playback is interrupted and communication does not work...
Page 176 Troubleshooting Cannot access to WiFi (Wireless LAN) network The wireless LAN router setting may be switched to Manual. Return the setting to Auto. Try the manual setup. The connection may succeed. When the wireless LAN router setting is at stealth mode (mode to hide the SSID key) or when ANY connection is off, the SSID is not displayed. Change the setting and try again. Check if SSID and encryption settings (WEP, etc.) are correct. Make sure the network settings of the unit is properly set. Connection to an SSID that includes multibyte characters is not supported. Name the SSID of the wireless LAN router using singlebyte alphanumeric characters only and try again.
Page 177 Troubleshooting Playback is interrupted and communication does not work Cannot receive signals due to a bad connection. Shorten the distance from wireless LAN access point or remove obstacles for a good visibility, and try again. Place the unit away from microwave ovens or other access points. It is recommended to place the WiFi router (access point) and the unit in the same room. If there is a metallic object near the unit, wireless LAN connection may not be possible as the metal can effect on the radio wave. 2.4 GHz band for wireless LAN may not be enough. Connect ETHERNET port of the unit and the router via an Ethernet cable after selecting "6. Hardware" "Network" and changing "WiFi" to "Off(Wired)". When other wireless LAN devices are used near the unit, several issues such as interrupted playback and communication may occur. You can avoid these issues by changing the channel of your WiFi router. For instructions on changing channels, see the instruction manual provided with your WiFi router.
Page 178 Troubleshooting Multizone Function There is no zone output from the connected player With multizone function, sound is output only when the signal input source is an external component connected to the analog audio input jacks, "NET", "BLUETOOTH", "AM" or "FM". Multizone output is not possible if the player and the unit are connected via HDMI cable. Connect the player using RCA cable. Also, some players require audio output setting. Only analog audio signals can be output from an external component to Zone 2. When the "NET" input source is selected, DSD and Dolby TrueHD audio signals cannot be output to Zone 2.
Page 179 Troubleshooting Remote Controller Make sure that the batteries are installed with the correct polarity. Install new batteries. Do not mix different types of batteries, or old and new batteries. Make sure that the remote controller is not too far away from the unit, and that there is no obstruction between the remote controller and the remote control sensor of the unit. Make sure that the unit is not subjected to direct sunshine or invertertype fluorescent lights. Relocate if necessary. If the unit is installed in a rack or cabinet with coloredglass doors or if the doors are closed, the remote controller may not work reliably. If the above does not solve the problem, check the following. The remote controller does not work Operating other Onkyo component by using a RI remote control code is not available Cannot operate Onkyo components (ones without RI connection) and components of other makers...
Page 180 Troubleshooting The remote controller does not work Before operating this unit with the remote controller, be sure to press RECEIVER.
Page 181 Troubleshooting Operating other Onkyo component by using a RI remote control code is not available Make sure that the Onkyo component is properly connected with RI cable. When RI cable is used for connection, make sure to connect analog audio cable as well. (Connecting only an RI cable will not be enough.) Make sure you have selected the correct remote controller mode. When the RI remote control code is input, point the remote controller at remote control sensor of the unit. Make sure that the input display is correctly set. Input the RI remote control code again.
Page 182 Troubleshooting Cannot operate Onkyo components (ones without RI connection) and components of other makers Operate the remote controller by setting toward the light receiving section of each component. When using the remote controller to control other manufacturers' AV components, some buttons may not work as expected. Also, some components may not operate at all. Make sure you have selected the correct remote controller mode. Make sure you have entered the correct remote control code. Make sure to set the same ID on both the unit and remote controller. Input a correct remote control code again. If there are several codes, try each code.
Page 183 Troubleshooting Display and OSD The display does not light Make sure that Dimmer function is not working. Press DIMMER button and change the brightness level of the display. The display is turned off when the Pure Audio (European, Australian and Asian models) listening mode is selected. The onscreen menus do not appear On your TV, make sure that the video input to which this unit is connected is selected. Set "TV Out" "Impose OSD" to "On". (European, Australian, Taiwanese and Asian models)The guidance displayed on the TV screen (OSD) are not displayed when the OSD language is set to Chinese if the input selector is "NET" or "BLUETOOTH". Operate by confirming the display on the main unit. Note that the display on the main unit does not support the display of Chinese characters. Characters that cannot be displayed are replaced with asterisks ( ).
Page 184 Troubleshooting RI Dock Make sure the unit is turned on, the correct input source is selected, and the volume is turned up. Make sure cord and cable plugs are properly plugged in. Make sure your iPod/iPhone is properly inserted in the Dock. If your iPod/iPhone is in a case, it may not connect properly to the Dock. Always remove your iPod/iPhone from the case before inserting it into the Dock. Try reconnecting your iPod/iPhone. Make sure your iPod/iPhone is actually playing. If the above does not solve the problem, check the following. There is no sound There is no video The AV receiver's remote controller does not control your iPod/iPhone The unit unexpectedly selects your iPod/iPhone as the input source...
Page 185 Troubleshooting There is no sound Try resetting your iPod/iPhone.
Page 186 Troubleshooting There is no video Make sure the correct input is selected on your TV or the unit. Make sure that your iPod/iPhone model's TV OUT setting is set to On. Some versions of the iPod/iPhone do not output video.
Page 187 Troubleshooting The AV receiver's remote controller does not control your iPod/iPhone The iPod/iPhone cannot be operated while it is displaying the Apple logo. Make sure you have selected the correct remote controller mode. When you use the AV receiver's remote controller, point it toward this unit. Before operating with the remote controller, you may need to play on your iPod/iPhone to make the input selector be recognized. Depending on your iPod/iPhone model and generation, some buttons may not work as expected. Try resetting your iPod/iPhone.
Page 188 Troubleshooting The unit unexpectedly selects your iPod/iPhone as the input source Always pause iPod/iPhone playback before selecting a different input source. If playback is not paused, the Direct Change function may select your iPod/iPhone as the input source by mistake during the transition between tracks.
Page 189 Troubleshooting Others Strange noises can be heard from the unit If you have connected another unit to the same wall outlet as this unit, this noise may be an effect from the other unit. If the symptoms improve by unplugging the power cord of the other unit, use different wall outlets for this unit and the other unit. When performing Automatic Speaker Setup, the measurement fails and the message "Ambient noise is too high." is displayed. This can be caused by a malfunction in your speaker unit. Check if the unit produces normal sounds. The Late Night function does not work Make sure the source material is Dolby Digital, Dolby Digital Plus or Dolby TrueHD. The Cinema Filter function does not work This function can be used in the following listening modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Multichannel, DTS, DTSES, DTS Neo:6 Cinema, DTS 96/24, DTSHD High Resolution Audio, DTSHD Master Audio, DTS Express, DSD. How do I change the language of a multiplex source Select "Main" or "Sub" for "3. Audio Adjust" "Multiplex/Mono" "Multiplex Input Channel". Cannot connect to the AV receiver from a Web browser Make sure that the IP address of the AV receiver is correctly input to the Internet browser. When DHCP is used for allocating the IP address, the IP address of this AV receiver may have been changed. Make sure that both AV receiver and PC are properly connected to the network. Power consumption in standby mode In the following cases, the power consumption in standby mode may reach up to a maximum of 4.4 W: –...
Page 190 status, this unit will enter normal standby mode.) – The "HDMI Standby Through" setting is set to other than "Off". – When "Bluetooth Wakeup" in "6. Hardware" "Power Management" is set to "On". – When "USB Power Out at Standby" is set to "On"...
Page 191 Reference Information Linked Operation with CECcompatible Components Link operation with a product conforming to the CEC of the HDMI standard. Note that linked operation is not always guaranteed with all CEC devices. Operation has been confirmed on the following devices (as of February 2015). TV (Random order): Toshiba TV sets Sharp TV sets Players/Recorders (Random order): Onkyo and Integra RIHDcompatible players Toshiba players and recorders Sharp players and recorders (only when used together with Sharp TV sets) Caution: For linking functions to work properly, do not connect more RIHD compatible components than the quantities specified below, to the HDMI jacks. Linking functions are not guaranteed when more RIHDcompatible components than the below mentioned quantities are connected. Furthermore, do not connect the AV receiver to another AV receiver/AV amplifier via HDMI. Bluray Disc/DVD players: up to 3. Bluray Disc/DVD recorders: up to 3. Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up to 4 units.
Page 192 Reference Information Checking whether the HDMI Linked Operation Settings Are Enabled 1. Turn on the power of all connected components. 2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation. 3. Turn on the power of the Bluray Disc/DVD player/recorder. 4. Start playback on the Bluray Disc/DVD player/recorder, and verify the following: The AV receiver automatically turns on, and selects the input to which the Bluray Disc/DVD player/recorder is connected. The TV automatically turns on, and selects the input to which the AV receiver is connected. 5. Following the instruction manual of the TV, select "Use the TV speakers" from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver. 6. Select "Use the speakers connected from the AV receiver" from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers. Caution: Even if you set to output audio on the TV speakers, audio will be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, redo the corresponding operations on the TV. In case of an RIHD connection with RI and RI EX audio control compatible components, do not connect the RI cable at the same time. On the TV, when you select anything other than the HDMI jack to which the AV receiver is connected, the input on the AV receiver will be switched to "TV".
Page 193 of the AV receiver, the corresponding component may not be programmed to support the remote controller operation of CEC. Program the remote control code of the component maker to the remote controller for using.
Page 194 Reference Information About HDMI HDMI (HighDefinition Multimedia Interface) is a digital interface standard for connecting TVs, projectors, Bluray Disc/DVD players, settop boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video and digital audio (2channel PCM, multichannel digital audio, and multichannel PCM). The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface) (＊1), so TVs and displays with a DVI input can be connected by using an HDMItoDVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) This unit supports HDCP (Highbandwidth Digital Content Protection) (＊2), so it can display picture only on HDCPcompatible components. HDMI of the unit supports the following functions. Audio Return Channel, 3D, x.v.Color, Deep Color, LipSync, 4K (Passthrough) Audio Formats Supported by The Unit: 2channel linear PCM (32 192 kHz, 16/20/24 bit) Multichannel linear PCM (up to 7.1 ch, 32 192 kHz, 16/20/24 bit) Bitstream (Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTSHD High Resolution Audio, DTSHD Master Audio) Your Bluray Disc/DVD player must also support HDMI output of the above audio formats. About Copyright Protection: The unit supports Revision 1.4 and Revision 2.2 (HDMI OUT and HDMI IN1 to 3 only) of the HDCP (Highbandwidth Digital Content Protection) (＊2), a copyprotection system for digital video signals. Other devices connected to the unit must also support HDCP. DVI (Digital Visual Interface): The digital display interface standard ＊1 set by the DDWG (＊3) in 1999. HDCP (Highbandwidth Digital Content Protection): The video ＊2 encryption technology developed by Intel for HDMI/DVI. It is designed to protect video content and requires a HDCPcompatible HDMI/DVI receiver to display the encrypted video.
Page 195 industry group's objective is to address the industry's requirements for a digital connectivity specification for highperformance PC and digital displays. Caution: There are some content that can be played only with HDCP Rev. 2.2 compatible devices. To play such content, connect an HDCP Rev.2.2 compatible TV or player to the HDMI OUT jack or HDMI IN1 to 3 jacks of the unit. The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMItoDVI adapter cable. (Note that DVI connections only carry video, so you will need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported. The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there is no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.
Page 196 Reference Information Home network (LAN) The connection of several components via cables enabling the mutual communication is called a network. At households, many families create (generally, the term "build" is used) a network to connect PC and gaming machines to the Internet and to exchange data between PC. The network established in a relatively narrow area such as one household is called a LAN (Local Area Network). In this manual, a term "home network" (network for a family) is used instead of "LAN," so this LAN becomes more familiar. By connecting this unit with the network server such as a PC, playing music files in the network server (in the PC) is possible. Moreover, by connecting to the Internet, listening to the Internet radio is also possible. This unit, PC, and Internet are not directly connected. When connecting with a PC and/or Internet, several components (network components) are necessary. Components necessary for establishing a home network (LAN): Components necessary for the home network (LAN) for using the NET function of this unit are as follows. Router A router is a device that controls information (data) flow between the unit, PC, and the Internet. As a network term, the flow of information (data) is called "traffic". The router has a role to control the information flow as the traffic control, between connected components. A router with a builtin 100BaseTX switch is recommended. In addition, if your router has the DHCP function, facilitating the network setting becomes possible. Some routers have a builtin modem, and some Internet Service Providers (ISP) require you to use specific routers. Please consult your ISP or PC dealer if you are unsure. CAT5 Ethernet cable The Ethernet cable is a cable that actually connects components that comprise the network. There are straight type and cross type Ethernet cables. ...
Page 197 Consult your cable store for details of Ethernet cable. Network server (When PC etc./network server is used) Component that stores music files and provides the unit with those files at the time of playback. Requirements for use with this unit depend on the component that is used as a network server. Conditions for pleasant playback of music files on the unit depend on the using network server (PC performance). See instruction manuals of using components. Modem (when Internet radio is used) Device that connects home network (LAN) and Internet There are many kinds of modems depending on the forms of Internet connection. In addition, when connecting to the Internet, it is required to conclude an agreement with a company that provides Internet connection service, called ISP (Internet Service Provider). Use a modem that is recommended by your ISP company for the Internet connection. There are some devices that have both router and modem functions. Within above network components, prepare a router, Ethernet cable, and network server when the NET function "network server" is used. For enjoying the NET function "Internet radio," it is necessary to use the router, Ethernet cable, and modem (and agreement with ISP).
Page 198 Reference Information Server Requirements Server playback This unit can play digital music files stored on a PC or media server and supports the following technologies: ® Windows Media Player 11 ® Windows Media Player 12 DLNAcertified media server The network server must be connected to the same network as this unit. Up to 20,000 folders can be displayed, and folders may be nested up to 16 levels deep. Caution: Depending on the media server, the unit may not recognize it, or may not be able to play its music files. Remote playback Remote playback is the function that enables this unit to play music files saved in different components by operating the DLNAcompliant controller component and PC in the home network. Windows Media ® Player 12 DLNAcertified (within DLNA Interoperability Guidelines version 1.5) media server or controller component. ＊ The setting varies depending on the media server or controller components. Refer to your components’ instruction manual for details. ® ® If the operating system of your personal PC is Windows 8/Windows 7, ®...
Page 199 Caution: If the media you connect is not supported, the message "No Storage" will be displayed. Sound files that are protected by copyright cannot be played. When the USB audio player and this unit are connected, the audio player screen and the screen of the unit may be different. In addition, control functions of the audio player (classifying and sorting music files and adding information, etc.) are not available on this unit. Do not connect a PC to the USB port of the unit. Inputting sound to the USB port of the unit from a PC is not possible. Media inserted to the USB card reader may not be available in this function. Some USB storage devices and its contents may require some time to be read. Depending on the USB storage device, proper reading of the contents and proper supply of the power supply may not be possible. Onkyo accepts no responsibility whatsoever for the loss or damage to data stored on a USB storage device when that device is used with this unit. We recommend that you back up your important music files beforehand. Performance of the hard disk that receive power from the USB port of the unit is not guaranteed. If you connect a USB hard disk drive to the USB port of the unit, we recommend that you use its AC adapter to power it. When an audio player that are operated with batteries is used, make sure that the batteries have enough remaining power. This unit does not support USB storage devices with security functions.
Page 200 Reference Information Supported Audio Formats For server playback and playback from a USB storage device, this unit supports the following music file formats. Music files of the following formats that can be played depend on the network server. For example, when using Windows Media ® Player 12, not all music files in the PC can be played. The music files that can be played ® are the ones registered to the Windows Media Player 12 library. Variable bitrate (VBR) files are supported. However, playback times may not be displayed correctly. This unit supports the gapless playback of the USB storage device in the following conditions. When WAV, FLAC and Apple Lossless files are continuously played back with the same format, sampling frequency, channels and quantization bit rate Remote playback does not support the gapless playback. For playback via wireless LAN, the sampling rate of 88.2 kHz or higher, DSD and Dolby TrueHD are not supported. Caution: With remote playback on this unit the following formats are not supported: – FLAC, Ogg Vorbis, DSD and Dolby TrueHD. MP3 (.mp3 or .MP3) Supported formats: MPEG1/MPEG2 Audio Layer 3 Supported sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz ...
Page 201 WMA Lossless (.wma or .WMA) Supported sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz Quantization bit: 16 bit, 24 bit WAV (.wav or .WAV) WAV files contain uncompressed PCM digital audio. Supported sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Quantization bit: 8 bit, 16 bit, 24 bit ＊ For playback from a USB storage device, sampling rates of 176.4 kHz and 192 kHz are not supported. ＊ For playback from a USB storage device, 5.1 ch is not supported. (.aac/.m4a/.mp4/.3gp/.3g2/.AAC/.M4A/.MP4/.3GP or .3G2) Supported formats: MPEG2/MPEG4 Audio Supported sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz Supported bitrates: Between 8 kbps and 320 kbps. Incompatible files cannot be played. FLAC (.flac or .FLAC) FLAC is a file format for lossless audio data compression. Supported sampling rates: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Quantization bit: 8 bit, 16 bit, 24 bit ＊ For playback from a USB storage device, sampling rates of 176.4 kHz and 192 kHz are not supported. ＊ For playback from a USB storage device, 5.1 ch is not supported. Ogg Vorbis (.ogg or .OGG) ...
Page 202 Quantization bit: 16 bit, 24 bit DSD (.dsf or .DSF) Supported sampling rates: 2.8224 MHz, 5.6448 MHz ＊ For playback from a USB storage device, 5.6448 MHz is not supported. Dolby TrueHD (.vr/.mlp/.VR/.MLP) Supported sampling rates: 48 kHz, 64 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz ＊ Only sampling rates of 48 kHz is supported for playback from USB. ＊ Playback via DLNA is not supported. ＊ For playback from a USB storage device, 7.1 ch is not supported.
Page 203 Reference Information Radio Wave Caution The AV receiver uses a 2.4 GHz radio wave frequency, which is a band used by other wireless systems as 1 and 2 described below. 1. Devices which use a 2.4 GHz radio wave frequency Cordless phones Cordless facsimiles Microwave ovens Wireless LAN devices (IEEE802.11b/g/n) Wireless AV equipment Wireless controllers for game systems Microwave ovenbased health aids Video transmitter Specific type of external monitor and LCD display 2. Less common devices which use a 2.4 GHz radio wave frequency Antitheft systems Amateur radio stations (HAM) Warehouse logistic management systems Discrimination systems for train or emergency vehicles If these devices and the AV receiver are used at the same time, the audio may be undesirably stopped or disturbed due to a radio wave interference. Suggestions for improvement Switch off the devices which emit the radio wave.
Page 204 Reference Information Scope of Operation Use of the AV receiver is limited to home use. (Transmission distances may be reduced depending on communication environment.) In the following locations, poor condition or inability to receive radio waves may cause the audio to be interrupted or stopped: In reinforced concrete buildings or steel framed or iron framed buildings. Near large metallic furniture. In a crowd of people or near a building or obstacle. In a location exposed to the magnetic field, static electricity or radio wave interference from radio communication equipment using the same frequency band (2.4 GHz) as the AV receiver, such as a 2.4 GHz wireless LAN device (IEEE802.11b/g/n) or microwave oven. If you live in a heavily populated residential area (apartment, townhouse, etc.) and if your neighbor’s microwave oven is placed near your AV receiver, you may experience radio wave interference. If this occurs, move your AV receiver to a different place. When the microwave oven is not in use, there will be no radio wave interference.
Page 205 Reference Information Radio Wave Reflections The radio waves received by the AV receiver include the radio wave coming directly from the devices and waves coming from various directions due to reflections by walls, furniture and building (reflected waves). The reflected waves (due to obstacles and reflecting objects) further produce a variety of reflected waves as well as variation in reception condition depending on locations. If the audio cannot be received properly due to this phenomenon, try moving the location of the wireless LAN device a little. Also note that audio may be interrupted due to the reflected waves when a person crosses or approaches the space between the AV receiver and the wireless LAN device. We assume no responsibility whatsoever for any damages resulting from the use of this apparatus except in the cases deemed acceptable under the applicable laws and regulations. Operation in all environment is not guaranteed for wireless LAN. The communication may not be possible or have desirable communication speed.
Page 206 Reference Information Precautions Do not use this apparatus near an electronic device handling high accuracy controls or weak signals. Doing so may cause an accident due to a malfunction of the device. Do not use this apparatus in use prohibited location such as an aircraft equipment or a hospital. Doing so may cause an accident due to a malfunction of an electronic device or an electromedical apparatus. Follow the instructions of the medical facilities. Electronic device which requires cautions Hearing aid, pace maker, other medical electronic devices, fire alarm, automatic door, and other automatic control device. When using a pace maker or other medical electronic devices, confirm with the medical electronic device maker or dealer for the effect of the radio wave.
Page 207 Reference Information Remote Control Codes Television (A to E) A.R. Systems 10037, 10556 ACCENT 10037 Acoustic Solutions 11667, 11585, 11523, 11037 Action 10650 Adcom 10625 Addison 10653, 11150 Admiral 10093 12197, 11037, 12239 Affinity 13717, 13870, 13577 Aftron 13478 Aiko 10037 10037 Akai 12676, 10812, 10037, 10672, 10208, 10714, 11523, 13067, 12414, 13183, 10178, 10556, 12197 Akiba 10037 Akito 10037 Akura 12289, 10037, 11667, 10714, 10668, 11585, 10171, 11037, 11498, 11687, 11983, 12239 Alba 12676, 11037, 10037, 10668, 10714, 11585, 13005, 13067, 13790, 11667, 12104, 12561...
Page 208 11589, 12769, 11365, 13720, 12014, 12087, 13790, 10093, 10178, 10625, 11150 Apex Digital 12397 Apollo 12239 Ardem 10714, 10037 Arena 10037 Ario 12397 Aristona 10556, 10037 11037 Art Mito 11585, 11667 11667, 11585, 11523, 11037 Asberg 10037 Astra 10037 10698 Atlantic 10037 Atvio 13636 Audiosonic 10714, 12104, 10037, 13067, 11983 AudioTechnica 10000, 10093, 10150, 11150 Audiovox 11769 Audioworld 10698 Auria 12087, 12014 Autovox 12676 Aventura 10171...
Page 209 Beko 10714, 12125, 10037, 12239 Bell & Howell 10017 Belson 10698, 11667 Belstar 11037 BenQ 12563, 11562, 11523 Beon 10037 Berthen 10556, 10668 Bestar 10037 Bexa 12493 14070, 14029, 10898, 12414, 12098 Black Diamond 11037 Blaupunkt 10195, 12426 Blue Sky 10714, 10037, 11037, 10668, 10556, 10625 BlueDiamond 12426 Bluetech 12561 bogo 12561 10208, 10037 Brandt 10625, 11585, 10714 Brinkmann 10037, 10668 Brionvega 10037 Britania 12414 BuBuGao...
Page 210 Celcus 12676, 11585 Celebrity 10000 cello 12673 Centrum 11037 Centurion 10037 Changhong 13434, 12769, 11498, 10508, 10208 Chiawin 10810 Chimei 12769 13067 Chung Hsin 11150 Chunyun 10000, 11150, 11687 Cinema 10672 Clarivox 10037 Clatronic 10037, 10714 Clayton 11037 10037, 10512 13332, 13067 Coby 13478, 12315, 13627 Commercial Solutions 11447 Condor 10037 Conia 11498, 11523, 11687 Conrowa 10698 Contec...
Page 211 Dansai 10037, 10208 Dantax 11037, 12676, 10714, 11667 Datsura 10208 DAWA 10037 Daytek 10672 Daytron 10037 De Graaf 10208 Decca 10037 Dell 11863 Denver 12197, 13067, 10037, 12239 Desmet 10037 Devant 12098 12239 Diamant 10037 Diamond 10698, 10672 Dick Smith Electronics 10698 Digatron 10037 Digihome 12676, 11667 Digiline 10037, 10668 Digimate 12239 Digisonic 11826 Digitor 10698, 10037...
Page 212 Dynex 12049 E.S.C. 10037 Easy Living 12104 10037 12197, 12125 Eiki 10735 Elbe 10037, 10556 Electroband 10000 Electrograph 11755 Electrohome 11670 Electrolux 11585 Electron 12466, 12855 Elektra 10017 Element 13559, 11687, 12183, 12964, 13907, 11886, 12256 Elfunk 11037 10037 Elin 10037 Elite 13867, 10037 Emerson 11864, 11394, 10171, 11886, 10178, 10037, 13623, 12183, 10668, 10714, 13559 emotion 12426 Enox.
Page 213 Exquisit 10037 Television (F to J) F&U 12676 FairTec 11585 Favi 13382 Fedders Lloyd 13639 Ferguson 10625, 11037, 13005, 10037, 12426, 10195, 11585, 12676 Fidelity 10037, 10512, 10171 Finlandia 10208 Finlux 11667, 12676, 10714, 10037, 10556 Firstline 10714, 10037, 10668, 11037, 10208, 10556 Fisher 11585, 10208 Flint 10037 Fluid 12964, 13907 Formenti 10037 Fortress 10093 Fraba 10037 Friac 10037 Frigidaire 11826 Fujimaro 11498, 11687 Fujimaru...
Page 214 Genexxa 10037 10171, 11864, 11886 Gibralter 10017 Gibson 11826 Gintai 11150 Godrej 11585 GoGen 12676, 11585 Goldfunk 10668 GoldStar 10178, 10037, 10714, 13183, 11150 Goodmans 10037, 11037, 10634, 11667, 10668, 11523, 11585, 11687, 11983, 10714, 10556, 10625, 12426, 12676 Gorenje 11585, 12676 Gradiente 10037 Graetz 10714 Gran Prix 12197 Granada 10037, 10208 Grandin 10037, 10714, 10668, 11037, 10556, 12125 Grundig 10195, 11223, 12125, 12239, 10556, 10037, 11523, 11667, 13067, 10672, 12561, 12676 Grunkel 11523 12098, 13067...
Page 215 10714 HB Ingelen 10714 HBuster 13620, 13419 10037 Heran 11826 Herosonic 11826 Highline 10037 Hikona 11983 Hinari 10037, 10208 HiPlus 11826 Hisawa 10714 Hisense 12846, 12098, 13519, 12183, 10556, 13123, 10508, 14029, 10208, 13382 Hitachi 11643, 12676, 11576, 11585, 11037, 11691, 13317, 11667, 10634, 13639, 10037, 10679, 12170, 12846, 10150, 10178, 10508, 11150 Hitachi Fujian 10150 Hitec 10698 Hiteker 13118 Hoher 10714, 13434 Hongmei 10093 Hornyphon 10037 Hua Tun...
Page 216 Insignia 12049, 11423, 10171 Integra 11807, 13100, 13500 Inteq 10017 Interbuy 10037 Interfunk 10037, 10512 Internal 10556 Intervision 10037 Irradio 10037 10698 Isis 12676 Isukai 10037 iSymphony 13429, 13382, 13118 10037 12675, 12125, 12676, 10208, 11523 ITT Nokia 10208 10037 James 13183 Jaytech 13067 JC Penney 10178 10000 12256 Jinfeng 10208 Jinxing 10556, 10037, 10698 12676, 10634, 10556, 12426 13067...
Page 217 Kiton 10037, 10668 10037 Kneissel 10037, 10556 Kolin 11610, 10150, 11755, 10037, 11150 Kolster 10037 Konig 10037, 10512 Konka 12881, 13419, 10037, 10714 Korpel 10037 Kosmos 10037 Kunlun 10208 Kuppersbusch 12676 L&S Electronic 10714 Lavis 11037 Leader 12876 Lecson 10037 Legend 12397, 12309 Lenco 12676, 11983, 10037, 11037 Leyco 10037 11840, 11860, 11423, 12731, 12182, 12358, 10178, 12362, 13941, 12424, 10037, 10714, 10017, 10556, 10698, 11753 Liberton 13183 Liesenkotter...
Page 218 10178, 10017 Madison 10037 11687, 11498 Magnavox 13623, 11866, 12372, 11454, 11506, 10171, 11365, 11755, 11867 Magnum 10714, 10037 Manesth 10037 Manhattan 10037, 11037, 10668 Marantz 10037, 10556, 11454 Mark 10037, 10714 Marks & Spencer 12673 Mascom 12197, 12125 Masters 10037 Mastro 10698 Masuda 10037 Matsui 10037, 10195, 10208, 12486, 11037, 10714, 11667, 12676, 10556, 12561 Matsushita 10650 Maxent 11755 Maxess 12493 Meck 10698 Mediator 10037, 10556 Medion...
Page 219 10150, 10178 Micromaxx 10037, 10668, 10714, 11037 Microsonic 13419 Midland 10017 Mikomi 11585, 11667 Minato 10037 Minerva 10195 Ministry Of Sound 11667 Minoka 10037 Miray 12414, 13183, 10898 Misakai 10171 Mitsubishi Electric 11250, 12313, 10150, 10178, 10512, 11797, 10093, 10556, 10037, 11150, 11037, 11171 Mivar 10609 Moree 10037 Morgan's 10037 Moserbaer 11585 Motorola 10093 10512 MTlogic 10714, 12104 Mudan 10208 Multitec 11037, 10037, 10668 Multitech...
Page 220 Neon 12673 Netsat 10037 NetTV 11755 Neufunk 10037, 10556, 10714 Nevir 12676 New Acoustic Dimension 10037, 10178 New Sonic 11826 New Tech 10037, 10556 Newave 10093, 10178, 11150 13861 Nexus Electronics 12183 Nikkai 10037 Nikkei 12197, 10714 Nikko 10178, 10017 Nimbro 12104 Noblex 14029 Nokia 10208 Norcent 11365, 11589 Nordmende 13419, 13861, 10037, 10195, 11585, 13835, 10714, 11667 Normerel 10037 Nortek 10668 Novatronic...
Page 221 Onimax 10714 Onix 10698 Onkyo 11807, 13100, 13500 12125, 11667 Opera 10037, 10714 Optimus 10650, 10679 Optoma 12796 Optonica 10093 Orava 11037 Orbit 10037 Orion 12108, 10037, 12676, 10556, 10714, 11037, 11667, 13540, 13650 Orline 10037 Ormond 10668, 11037 Osaki 10037, 10556 Osio 10037 Osume 10037 Otic 11983, 11498, 11687 Otto Versand 10037, 10512, 10093, 10556, 10195 Pacific 10714, 11037, 10556 Palladium 10037, 10714, 10556...
Page 222 Philips 11887, 11867, 10037, 12372, 12800, 10556, 13614, 11506, 11744, 12768, 12680, 11454, 10639, 11866, 10017, 10512, 13623, 10171, 12769, 11365, 11394, 10000, 10178, 11589 Phocus 10714 Phoenix 10037 PHOENIX Apollo 12239 Phonola 10037, 10556 Pioneer 10679, 11457, 10037, 10698, 11636, 10512, 12171 11506 Planar 10679, 14247, 11589 Plantron 10037 Playsonic 10714, 10037 Polaroid 11523, 11769, 11498, 11687, 11767, 12676, 14035, 12125, 11826 Powerpoint 10037, 10698 Premier 13419, 13183, 13793 Prestiz 13419 Prima 11753, 10037, 11749, 12461, 10698 Prinston 11037 Pro Vision 10037, 10556, 10714, 12197 Profitronic...
Page 223 Q.Bell 12561 Quadro 11667 QuantumFX 12337 Quasar 11291, 13899, 10650 Quelle 10037, 10512, 11037, 10195, 10668 Radiola 10037, 10556 Radiomarelli 10037 Radionette 10714 RadioShack 10178, 10037 Radiotone 10037, 10668, 11037 12746, 12434, 12932, 11447, 12247, 13577, 11781, 10625, 12187, 13382, 10679, 13332, 13717, 10093, 13793, 12183, 12855, 13419, 10000, 10178, 10618, 11454, 13426, 13636 Realistic 10178 Recco 10898, 13183 Reconnect 13183 Recor 10037 Rectiligne 10037 Red Star 10037 Reflex 10037, 10668, 11037 RefleXion 12239...
Page 224 Saga 12197 Sagem 10618 Saivod 10668, 11037, 10037, 11667 Salora 12197, 12676, 12239, 12125, 13067, 10208 Sampo 11755, 10898, 13419, 10093, 10171, 10178, 10650 Samsung 12051, 10812, 11632, 10618, 11458, 11630, 12953, 10037, 10556, 10650, 10178, 10208, 11150 Sandstrom 12197, 13047 Sansui 13540, 11670, 13564, 10037, 10898, 10171, 10714, 13559 Sanyo 11142, 10208, 11585, 12676, 12461, 12994, 10735, 11974, 12881, 12769, 13488, 11498, 11365, 10508, 11037, 11150, 11667, 13861 Sanyuan 10093 Save 10037 10037, 10556 Sceptre 13899, 12528, 12337 Schaub Lorenz 10714, 12676, 12125, 12197, 11667, 12289 Schneider 10037, 10714, 10556, 11037, 10668, 11585, 12676 Schontech 11037...
Page 225 Sencor 13067, 12197, 10714 Senzu 12493 Serie Dorada 10178 Serino 10093 Shanghai 10208 Sharp 12360, 11659, 10818, 10093, 12951, 11393, 12676, 13867, 10650, 11165, 11423 Sheng Chia 10093, 11150 Shinelco 12104 Shintoshi 10037 Shivaki 12197, 10178, 10037 Siam 10037 Siemens 10195, 10037 Siera 10556, 10037 Silva 10037 Silva Schneider 12197, 10037, 12125 SilverCrest 12676, 11037 Sinudyne 10037 10037 Sky Brasil 10037 Skyworth 12899, 12963, 12889, 12769, 10037, 10698 10668...
Page 226 Soundwave 10037, 11037, 12673 SOVOS 12239 Sowa 10178, 11150 Soyea 10698, 11743 Soyo 11826 Spectroniq 11498, 11687 Squareview 10171 SR Standard 10037, 11037 Starion 11037 Starlite 10037 13793 Strato 10037 SunBriteTV 12337, 12528, 11610 Sunic Line 10037 Sunkai 10037, 11523 Sunny 10037 Sunstar 10037 Sunstech 12676 Sunwood 10037 Superior 11585 Superscan 10093, 10171 Supersonic 10208, 11753, 12104...
Page 227 Tashiko 10650, 11150 Tatung 10037, 11150, 11687 Tauras 12197 13047, 13183, 12434, 13001, 10898, 11038, 12414, 13426, 12675, 10698 10714 Teac 10037, 11037, 10698, 10714, 11755, 10898, 10178, 10668, 10171, 10512, 11983, 13005 10037 Tech Line 10037, 10668, 11585 Technica 11037, 12106, 12426 Technical 12676, 11667 Technics 10017, 10556, 10650 Technika 12426, 12106, 12197, 11667, 11983, 12676, 13005, 12125, 13067 TechniSat 10556 Technisson 10714 Techno 11585 Technosonic 10556, 10625 Techwood 12676, 11667, 11037 Tecnimagen 10556 Teco 10093, 10178, 10653, 11523, 11687 Tedelex...
Page 228 Teleview 10037 Tennessee 10037 Tensai 10037, 11037 Terris 11667 Tesco 12426 Tesla 11037, 10037, 10556, 10714 Tevion 10714, 12426, 10668, 11037, 12125, 10037, 10556, 11498, 11585, 11667, 11687, 12197, 12289 ThemeScene 12796 Thomas 10625 Thomas America 10625 Thomson 10625, 13047, 12675, 11447, 10037 Thorn 10037, 10512 Tiane 10093 10178 TNCi 10017 Tokai 10037, 10668, 11037 Tokaido 11037 Tophouse 10672, 10698 Topline 10668, 11037 Toshiba 11508, 11524, 11656, 13323,...
Page 229 12106, 12426 Unic Line 10037 Uniden 12122, 12676, 11667 United 10714, 11037, 10037, 10556, 11523, 11983, 12125, 13434 Universal 10037, 10714 Universum 10037, 11037, 10512, 10668, 10618, 10195 Univox 10037 V7 Videoseven 11755 Vanguard 10037 VDTech 13067, 13332 Venturer 13005 Vestel 11037, 11585, 10037, 12676, 10668, 11667 Vexa 10037 Victor 11428, 10000, 10093, 10150, 11150, 10650, 10653 Videocon 10508, 10037 Videoseven 11755 VideoSystem 10037 Vidikron 10735 Vidtech 10178 Viewsonic 12014, 12745, 12087, 13706,...
Page 230 Watson 11037, 10037, 10668, 10714 WeCube 11860 Wega 10037 Welltech 10714 Weltstar 11037 Westinghouse 11712, 13579, 13382, 13949, 11826, 12293, 11755, 12397 Westwood 11585 Wharfedale 11983, 11667, 10037, 10556 White Westinghouse 10037 Wilson 10556 Windsor 11037, 10668 Windy Sam 10556 Wintel 10714 Wyse 11365 Xenius 11667, 10634, 11585, 12676 Xiahua 11753, 10037, 11749, 12461, 10698 Xiron 11983, 11037 XLogic 10698 Xoceco 11753, 10037, 11749, 12461, 10698 Xogego 11753, 10037, 11749, 12461,...
Page 231 Akai 32966 Alba 32966 Black Diamond 30713 Blue Sky 30713 Bush 30713, 32966 Celcus 32966 Centrum 30713 Crown 30713 Dantax 32966 Digihome 32966 Dual 32966, 30713 Elfunk 30713 Emerson 30675 Ferguson 30713, 32966 Finlux 32966 Funai 30675 Goodmans 30713, 32966 Grandin 30713 Grundig 30539, 32966 Hitachi 32966, 30713 Hyundai 32966 Insignia...
Page 232 ProLine 32966 Prosonic 32966 Saba 32966 Salora 32966 Sanyo 32966 30713 Sharp 32966, 30630 Sony 30864 Soundwave 30713 Sylvania 30675, 30630 Symphonic 30675 Technica 30713 Technical 32966 Techwood 32966 Telefunken 32966 Teletech 30713 Thomson 30551 Toshiba 32966 United 30713 Universum 30713 Walker 32966 Waltham 30713...
Page 233 Anthem 32820 Anthem Statement 32820 Aristona 30539, 30646 Arrgo 31023 30730, 30713 ASDA 32213 Audio Authority 32555 Audix 30713 Autovox 30713 30730, 30872 Axion 30730 Basic Line 30713 Beko 30831 Bel Canto Design 31571 Belson 32139 Berthen 31643 Best Buy 32139 Black Diamond 30713 Blu:sens 31233 Blue Parade 30571 Blue Sky 30713 Brainwave 30770 Brandt...
Page 234 Coby 32494, 30730 Codex 31233 Continental Edison 30831, 30872 Craig 30831 Crown 30713, 30770 Cybercom 30831 CyberHome 31023 Daenyx 30872 Daewoo 30770, 30872, 30490 Dansai 30770 Dantax 30713, 30539, 32966 Datsun 31233 Daytek 30872 Dayton Audio 30872 30831 Decca 30770 Denon 31634, 32258, 30490, 32748, 33851 Denver 31643 Dewo 31634 Dick Smith Electronics 32095, 30675 Digihome 32966, 30713 DigiLogic...
Page 235 Elite 32854 Elta 30770, 31643, 31233 Eltax 31233 Emerson 30675, 30591, 32213 Enterprise 30591 Epworth 30533 EuroLine 30675, 31233, 31643 Ferguson 30713, 32966 Finlux 32966, 30770, 30591, 30741 Firstline 30713 Funai 30675 30522 General Electric 30522 30675 GHanz 32213 GHanzS 32213 Go Video 31044, 30741 GoGen 32139 GoldStar 30741, 30591 Goodmans 30713, 30730, 32966 GoWell 31643 30741 Gran Prix 30831...
Page 236 31233 Hyundai 32966 Ingersoll 31023 Inno Hit 30713 Insignia 32095, 32596, 32428, 30675, 30741 Integra 30627, 32147, 31769, 31634, 30571, 30503, 31612 Irradio 31233, 30646 31233 Jamo 32358 30730 32966 30623, 31602, 32365, 32612, 32855, 32966 Kansas Technologies 31233 Kendo 30713, 30831 Kennex 30713, 30770 Kenwood 30534, 30490 KeyPlug 31643 Kiiro 30770 KingVision 31643 Kuppersbusch 32966 Leiker 30872 Lenco 30713, 30770 Lenoxx...
Page 237 Luxor 32966, 30713 Magnavox 30675, 31354, 30503, 30539, 30646, 31506, 33488, 30713 Manhattan 30713 Marantz 30539, 32481, 32414, 33444 Mark 30713 Marquant 30770 Matsui 30713, 32966 Maxim 30713, 30872 30730 McIntosh 31273 30713 Mecotek 30770 Medion 30831, 32966, 30741, 30630 Memorex 30831, 32213, 33153 Metz 30713, 30571 Micromedia 30503, 30539 Micromega 30539 Microsoft 31708, 32083, 32202, 30522 Microstar 30831 Minax 30713 Minoka 30770 Mitsubishi Electric 31521, 34004, 30713...
Page 238 32966 Omni 32139 One For All 32555 Onkyo 30627, 32147, 30503, 31769, 31612, 30571, 31634 Oppo 32545, 30575 Optimus 30571 Orava 30713 Orbit 31643, 30872 Orion 30713, 31233 Ormond 30713 Pacific 30831, 30713 Packard Bell 30831 Palladium 30713 Panasonic 31641, 30490, 33641, 31579, 33580, 33862, 32710, 32859, 32523, 30503 Philco 30675 Philips 32056, 30539, 31354, 32789, 30646, 32434, 31506, 32334, 31340, 30503, 33488, 30675, 32084, 30713 Pioneer 31571, 30571, 30631, 31531, 32442, 32847, 30142, 32854 Play It...
Page 239 30522, 32213, 30571, 31769, 32532 REBL 32555 30490 32213 Red Star 30770 Richmond 31233 Roadstar 30713, 30730 Ronin 30872 Rotel 30623 Rowa 30872 Saba 30551, 31643, 32966 Saivod 30831 Salora 32966, 30741 Samsung 30199, 30573, 33195, 32069, 31635, 32942, 32369, 32329, 32489, 31044, 30490, 32107 Sanyo 32966, 30713, 31233 ScanMagic 30730 Schaub Lorenz 30770, 31643 Schneider 30539, 30646, 30831, 30713 Schontech 30713 Scott 31233 Seeltech 31643 30713, 30872...
Page 240 Soniq 30831 Sony 31516, 31633, 30533, 31033, 30864, 31070, 31548, 32861, 31536, 32839, 32180, 30772 Sound Color 31233 Soundwave 30713 Spectra 30872 SR Standard 30831 Sunkai 30770 Sunstech 30831, 32139, 32966 Superior 31643 Supratech 32139 SV2000 30675 Sylvania 30675, 30630 Symphonic 30675 Sytech 30831 Tandberg 30713 Targa 30741 Tascam 31818 Tatung 30770 TBoston 32139 Tchibo 30741 30741...
Page 241 Tosaki 32006 Toshiba 30503, 33157, 33857, 32006, 32277, 32705, 31769, 32966, 32551 TRANScontinents 30831, 30872, 31233 Transonic 30730 Trent 31643 Trevi 30831 TruTech 30675 30713 United 30713, 30675, 30730, 31233, 31643 Universum 30713, 30741, 30591 Urban Concepts 30503 Venturer 31769 Vestel 30713 Vitek 30831 VIZIO 32563 Voxson 30730, 30831 Waitec 30730, 31233 Walker 32966 Waltham 30713 WB Electronics 32555 Welkin...
Page 242 32854 Funai 30675 Harman/Kardon 33228, 32927 Insignia 32596, 32428, 30675 Integra 32147, 32900, 32910, 33100, 33101, 33500, 33501 32365, 32612, 32855 Lexicon 32545 31602, 32811, 30741 Magnavox 30675 Marantz 32414, 33444 Mitsubishi Electric 34004 Onkyo 32147, 32900, 33101, 33501, 32910, 33100, 33500 Oppo 32545 Panasonic 31641, 33862, 33580, 33641, 32859, 32523, 32710 Philips 32789, 32434, 32084 Pioneer 32442, 32847, 32854, 30142 32532 Samsung 30199, 33195 Sharp 32250, 33313 Sherwood 32820, 33837 Sony 31516, 32180, 30772...
Page 243 DVDR Accurian 30675 30675 Akai 30675 Aristona 30646 CyberHome 31023 Denon 30490 Dick Smith Electronics 30675 30675 Emerson 30675 Funai 30675 Go Video 30741 30741 Hitachi 31664 Humax 30646 Insignia 32095 Irradio 30646 30623, 32612 30741 Loewe 30741 Magnavox 30675, 30646, 31506 Medion 30741 30741 Panasonic 30490, 31579, 33580, 32710, 32859, 32523 Philips...
Page 244 30741 Thomson 30551 Toshiba 32277, 32551, 30503 Universum 30741 Yamaha 30646 Zenith 30741 DirecTV 20739 Humax 20739 Loewe 21062 Metz 21062 Optimus 21062 Panasonic 21062, 20616 Philips 20739 Quasar 21062 20739 ReplayTV 20616 Sonic Blue 20616 Sony 20636 TiVo 20739, 20636 Cable Set Top Box (A to E) 03322, 02897, 02979, 03340, 03407, 03849 Access Communications 01376, 00476 02950 Adams Cable TV...
Page 245 Anguang Network 03936 Anhui Network 03936 Arcadyan 02952 Arion 03336 Armstrong 01376, 00476 Arris 02187, 01982, 01998, 02378 Arvig Communication Systems 01376, 01982, 01998, 02345 Astound Broadband 01376, 01877, 00476, 02479, 04079 AT&T 00858 AT&T Uverse 00858 Atlantic Broadband 01877, 01376 ATMC 01376, 01982, 03028 Austar 00276 B tv 02681, 03442 Baja Broadband 00476, 01376 BBTV 02980 Beijing 04010 Belgacom TV 02047, 02132 Bell 01998 Bell Aliant 01998 Bell ExpressVu 01998...
Page 246 BT Vision 02294 Buckeye Cable System 01376, 00476, 01877, 02187 C&M 03407, 03319, 02962, 02979 Cable America 01376, 01877 Cable Axion Digitel 01376, 00476 Cable HK 01374 Cable One 01376, 00476, 01877 Cablecom 01582 Cablecom Mexico 00476, 01376 Cablemas 01376, 01877 Cablevision 01877, 01376, 03336, 00476 Cabovisao 02436, 02493 Caiway 02015, 03607, 02762, 00660, 02447 Caiyun Digital 03961 CalTel Connections 02254, 02586 Canal Digital 02030 Canby Telcom 01481, 02302 Cass Cable 00476, 01376 02703, 02752, 03474 CCAP 01877 03322 Celrun 03442, 02682...
Page 247 02563, 02401, 02742, 03265, 02271, 02947, 03452 Citycable 03451, 03477 03322, 02897, 02979, 03340, 03407, 03849 CJ Digital 02979, 02897, 03322, 03340, 03407, 03849 CJ HelloVision 03322, 02897, 02979, 03340, 03407, 03849 Claro 01376, 00476 ClubInternet 02132 CMA Communications 01376 03389, 02979, 03498 CMBTV 03498 02980, 02350 Cogeco 01376, 01982, 00476 Com Hem 00660, 02447, 02832, 02015 Comcast 01982, 01376, 00476, 01877, 03560, 02187 Comporium 01877, 03560, 02187 Consolidated Communications 01877, 01376, 01998, 02302, 03048 Coship 01991, 02950, 03278, 04162, 04408, 04196 Cosmic 02897 01877, 01376, 00476 02703, 03474 Daeryung 01877...
Page 248 02832, 00660, 02030 Dom.ru TV 02493 Dream Satellite TV 02493 03340 03389 02401 02979 Eagle Communications 01376, 02187 EastLink 01376, 00476 Echostar 02955, 03452 Elion 03916 Entertain 02132 Entone 02302, 03048 ER Telecom 02493 04281 Evolution 02479, 02746, 04079 Extra TV 02132 Cable Set Top Box (F to J) Fastway 03382 FCTV 01782, 02703 Fidelity Communications 01376 Finnet 02030, 02832 First Media 03783 Freebox 01976 Frontier Communications 02378...
Page 249 Grande Communications 01877, 03560, 01376 Great Plains Communications 01376 Guangdong Cable 02980, 03131, 03132 Guangxi Broadcasting 02897, 03407, 03961 Guangxi Broadcasting Network 02897, 03407, 03961 Guangzhou Cable 02945 Guizhou Broadcasting Network 03946 Hana TV 02681, 03442 Hathw@y 02043, 02726 Hawaiian Telcom 03028 01376, 01877, 01982, 02979, 03322, 03340, 03849 02979, 03340 03607 03465 Hebei Broadcasting 04026, 03967 Hebei Broadcasting Network 04026, 03967 Hebei Digital TV 04205 Hello TV 03322 HelloD 02979 Henan Cable 04034 HickoryTech 01898, 02302 Hikari TV 03237 Himawari TV 01760...
Page 250 HyTV 02979, 03340 Hyundai Digital Technology 03465 HZRTV 02960 ICable 01374 iCAN 01585, 02437 IDigital 03319, 02979 IMBTVN 04106 INESA 03865 Innovative Systems 01898 Inotel 02437 Inter Mountain Cable 01877, 02479, 04079 Invitel 02437 InviTV 02437 iTSCOM 02703 02979, 03389, 04196, 03498 J:COM 01760, 02703, 03925, 01782, 02701, 02700, 02715, 02752, 03051, 03053 Jambox 02030 02979, 03322, 03340, 03849 JCN North 02703, 01760, 03474 Jerrold 00276, 00476 Jiangsu Cable Network 04022 Jilin Broadcasting...
Page 251 KCNTV 02703 01760, 02703, 02752, 03474 KCTV 02979, 03340, 03389, 03849, 03322 KCTV JEJU 02979, 03340, 03389, 03849 KCTVKJ 02979, 03340, 03389, 03849 KDMC 03319, 02979 Kiryung 03498 Kiss 02132, 02271 KoolConnect 01481 02952, 02437 Kreatel 02030 02683, 03478 Lattelecom 02030 03340, 02682, 03407, 02979, 03389, 03319 LG U+ 02682 Linksys 02271 Lishui Huashu 04034 Longyan Broadcasting Cable & 04195 Lumos Networks 01998, 03028 Magio Sat 02132 Magnet 01615 Maige TV 03937 Massillon Cable...
Page 252 02275, 02802 mio TV 02275, 02802 Mitsubishi Electric 03274 03647, 01917 Motorola 01376, 00476, 02378, 02437, 01998, 02030, 00858, 01982, 02952, 00276, 01562, 02275, 03916, 01585, 04034, 02401 Movistar 01585, 03288 Moxi 02187 Moyo 03611 01998, 03611, 01615, 01481, 01898 MyLGTV 02682 01883 NewWave Communications 00476, 01376, 02187 03322 Ningde Cable TV 04195 Noos 02436 Northland Communications 01376 Novus 01376, 00476 Now TV 02009, 02014 01060, 00276 03237, 03274 NTV Plus 02762 NU Telecom 01998, 03028 Numericable 02436...
Page 253 Oriental Cable Networks 03865 Pace 01376, 01060, 02620, 01982, 01877, 01998, 00858, 01582, 01883, 03454, 02294, 02401 Panasonic 02703, 02752, 03474, 01760, 01782, 01982 Parasat 03479 Paul Bunyan Communications 02254, 02586 PCCW 02009, 02057 Philips 01582, 02378, 03560, 02294 Pioneer 01782, 01877, 03925, 02700 Pioneer Telephone 02254, 02302 Portugal Telecom 02401 Premiere 02620 Primacom 02889 Primestar 02030 PrimeTel 03611, 02030, 02437 PrimeTV 02030 02401 PTCI 01376 03348 QooK TV 02683, 03478 QookSkylife 02683, 03478 Qrix 03465, 02979...
Page 254 03783, 02589, 02889, 02962, 03265, 03849, 03928, 01982, 01987 SaskTel 01998 03965 Scientific Atlanta 01877, 00858, 01982, 02401, 02345, 01987, 02047, 02436, 03028, 02378 SCTV 02493 02950 Seokyung 03340 Service Electric 01376, 00476, 01982 SetaBox 01917 Shaanxi Broadcasting 03965 Shanghai 03865 Shanghai OCN 03865 Shanxi Broadcasting Network 03965 Shaw 01376, 01877, 00476, 02187, 01982 Shenzhen Broadcasting 01991, 04162 Shenzhen Digital TV 01991, 04162 Shijiazhuang Broadcasting 04026 Shimanto CATV 02752 Sichuan Broadcasting 03953 SingTel 02275, 01998, 02802 Siti Digital...
Page 255 Sonaecom 02437 Sonera 00660 Source Cable 01376, 00476 Starcat 02703, 01782 StarHub 01927, 00276 Stipte 01898 Stofa 02015 Suddenlink 01877, 01376, 01982, 03560, 00476 Supercable 00276 Supercanal 01376, 00476 Suwon Cable 03319 Suzhou Cable Network 04022 03865 Swisscom 02271 SXBCTV 03965 Cable Set Top Box (T to Z) TalkTalk 02994 Tbaytel 03028 Tbroad 03319 04409, 04408 03340, 02703 TCom 02132 02271 TDS Telecom...
Page 256 Thomson 01582, 01981, 01982, 01983, 03007, 02407 THrvatski Telekom 02132 Tianjin Broadcast & TV Network 04010 Tianjin Broadcasting 04010 Time Warner 01877, 01376, 00476, 02187 TiVo 03560, 03265 ToongTV 03322 03766 TopTV 01991 02407 Trans PX 00276 True Visions 03075, 02762 01615 TVS Cable 01376, 01877, 01982 02682 U+ tvG 02682 UCATV 02703, 01760 Unitymedia 02955, 02610, 03451, 03477 01582, 03451, 03477, 00660, 01060 UPC Cablecom 01582, 03451, 03477 US Electronics 00276 Uverse 00858 Vector 02030...
Page 257 wasu 04034 Wave Broadband 01376, 00476, 02479, 04079 Wavevision 01376, 01877, 01982 Wbox 02832 WEHCO Video 01376 Welho 02832 WellAV 03479 Westman Communications 01376, 00476, 02187 WideOpenWest 01376, 01877, 02187 Windjammer Cable 00476, 01376, 01877 03118 WOW! 01877, 01376, 00476, 02187, 02479 Xfinity 01376, 01982, 00476, 01877, 03560, 02187 Xuyi Radio & TV 02897 03322 02703, 01760 Youview 02994 Yunnan Broadcasting 03961 Yuxing 02014 Zhong Hua Dian Xin 01917 Ziggo 02589, 03607, 02015, 02762, 00660, 02401, 02447 Zinwell...
Page 258 Akta 01986 Akura 01626 Alba 01284, 02034, 02568 Allvision 01334 Altech UEC 02059, 02097, 03517 Amiko 04197 Amstrad 00847, 01662, 01175, 01693, 02467 AMTC 02738, 02813 Ansonic 02418 Aonvision 02279 Apro 01672 Argos 02568 Arion 03374, 04348 Arnion 01300 Arris 00869 01284 00740 ASCI 01334 ASDA 01284 AssCom 00853 Astrell 01986, 02418 Astro 00173, 01838, 02627, 00658,...
Page 259 AZBox 02719 B.net 01672 B@ytronic 00740 Beijing 03299 Bell 00775 Bell ExpressVu 00775 Bell Fibe TV 00775 Bell Satellite TV 00775 Belson 02418 BENsat 02957, 02938 Best Buy 02728, 02842 BIG TV 04312 BIOSTEK 02738 BiS Television 01986 Black Diamond 01284 Blaupunkt 00173 Blu:sens 02938 Boca 02026, 02458, 02797, 02308, 02813 Boshmann 01413, 01631 Botech 02738, 03749 Boxer 02443, 01692, 01957, 04024...
Page 260 Cignal 02289, 02835, 02836 CityCom 00299, 00658, 02957 ClarkeTech 03320 Claro 03787, 03790 Classic 01291, 01284, 01672 Clatronic 01413, 02738 Clayton 01626 00173 02205, 02932 Cobra 02728, 03012 Com Hem 01176, 01915 Comag 02797, 02026, 02458, 02813, 02308, 01413 Comsat 01413 Comwell 01956 Continent 01986 Coship 03787, 03790, 01672, 02525, 03574 Cosmos TV 01545 Croner 02813 Crown 01284 Crypto 03012 Crystal 03012, 01416 Cyfra+...
Page 261 Digi Romania 01416 Digiality 01334, 02813 Digihome 02034, 01284, 01935 DigiLogic 01284, 02034 DigiQuest 02278, 02738, 01300, 01631 Digital 02308 DigitAlb 01195, 01197 DigitalBox 02540, 01631, 02289, 01100, 03240 DigitSate 02842 Digiturk 03517, 02097 Digiwave 01631 Dikom 02938, 02842 Dilog 01957, 01780 DiPro 02278 DirecTV 01377, 01442, 00099 Dish Mexico 00775 Dish Network 00775 DishHD 04090 Dishpro 00775 DishTV 01300, 02604, 01780 DiWay 02289...
Page 262 Durabrand 01284, 02034 Dyon 02738, 02813 EasyOne 03240 Echostar 00775, 02262, 02527, 00853, 01409 EcoStar 01413 Edision 01631 Ekotech 03422 Elap 01413 Elbe 02418 Electron 01956 Elisa 01322, 02455 Elless 00740 Elta 02738 Embratel 02796, 03787 Energy Sistem 02418, 01631, 02289, 02813 Engel 03749, 01611, 01672 Etisalat 02443 Europhon 00299, 01334 Europsat 01611, 01413 Eurosky 00740, 00299 Eutra 00740...
Page 263 02982 Fte Maximal 02289 Fuba 02750, 00173, 00299, 03726 Fuji Onkyo 02728, 01631 Funai United 03012 Galaxis 00853, 00879 Galaxy 01956 Galaxy Innovations 02799, 04197 General Instrument 00869 General Satellite 03064, 02622 02799, 04197 GigaBlue 03663 GigaTV 02738 Globo 02026, 01334, 00740, 01429, 02957, 01626 GMMZ 03538 01780 GoGen 02738 00775 Gold Box 00853 Gold Vision 01631 Golden Media 04197 GoldMaster 01334, 02928...
Page 264 Hauppauge 01672 HD Box 02928 02797, 02443, 01429, 02569, 03095 01416, 01255, 03321 Hirschmann 00173, 00299, 02026, 00740 Hitachi 02034, 01284 Homecast 02525 Hornet 01300 00775 Huawei 03787 Huaxian Radio and Television 04041 Network Hubei Chutian 04041 Hubei Radio & Television 04041 Network Hughes Network Systems 01442, 01377 Humax 01176, 02443, 01427, 01808, 02736, 01882, 01915, 03140, 02231, 02408, 02144, 02616, 02754, 01377, 03517, 01989, 02289, 03321, 01255 Hyundai 01416 Hyundai Digital Technology 01416, 01255, 03321 ibox 01652 IceCrypt 04197, 02838, 02928 ID Digital...
Page 265 Inverto 03095 inVion 02418 iotronic 01413 IP Vision 02455 03567 02813 IQ Prism 02813 ISkyB 00887 02418 Jaeger 02797, 01334 Jameson 02813 Jerrold 00869 Jiuzhou 03140 00775, 01284 Kabel Deutschland 01195, 01197, 01672, 01882, 01915 KabelBW 01882, 01915, 01195, 01197, 01429 KabelNoord 00253, 02443 Kamosonic 02738 Kaon 01300, 02231 Kathrein 01561, 02569, 00658, 00173, 03658, 01416, 02263 Kenwood 00853 Konig 02289, 01631, 00173...
Page 266 03321 Lifesat 00299 LinkBox 02957 Linsar 01284, 02842 Listo 01626, 02813 Lodos 01284 Logik 02034, 01284, 01906, 02842, 01803, 03652 LogiSat 02797, 02026, 02813, 02458 Lorenzen 00299 Lowry 02938 Luxor 01935, 02034 M vision 03562 02631 Macab 00853 Magic TV 02982 Majestic 03012, 02738, 02842 Manhattan 01300 Maplin 02034 Marusys 02799, 03543 Mascom 02738 Maspro 00173, 03099 Matsui 01284, 00173, 01626...
Page 267 02278 Metz 00173 Micro 02797, 02813 Micro electronic 02308, 02813 Micromaxx 00299 Microstar 00299 Miraclebox 02928 Mitsai 02738 Morgan's 02026 Motorola 00869, 03110, 00856, 03469 Movistar 02527, 02262, 02263 MTEX 03539 Multichoice 00879, 02059, 02060 Murphy 02034 Mx Onda 02938 myfreeviewHD 02982 Mysat 02738 MySky Italia 02467 MySky New Zealand 01356, 02211 Nagra 02262 NanoXX 01631 00853, 01409 NEOTION...
Page 268 02289, 01413, 01631 NTV Plus 01307, 01692, 02443 Octagon 02928 Olleh TV 03321 OllehSkylife 03321 02034, 01284 Openbox 01956, 02928 Opensat 02957, 01956, 02719 Opentech 02525 Opentel 02525 Optex 01626, 01413, 01611, 03012 Opticum 02957, 02797, 02932 Optus 01356, 00879 Orbis 01334 Orbitech 01195, 01100, 01197, 01099, 01351 Orchid 02289 Orion Express 01986 Orton 02957 P&T Luxembourg 01322, 02455 Pace 00847, 00887, 01356, 02754, 01682, 01175, 01693, 02475, 00853, 02231, 02467, 02631, 02657, 03469, 03790, 01377, 01662, 02097, 02211, 02059,...
Page 269 Pioneer 00853 Pixel Magic 02982 PLDT 02835, 02836, 02289 01611 Polsat 02262, 02527, 00253, 00853 Portugal Telecom 02466 Premiere 01429, 01114, 01195, 01197 PremiumX 03374 Primacom 01176, 01195, 01197 Pro Basic 00853 ProLine 01284 03539 02466 QooK TV 03321 QookSkylife 03321 Quelle 00299 Qwest 01377 RadioShack 00869 Radix 01255 Raduga TV 01986, 02957 01291, 01442, 02108 01416 Rebox 02928 RiksTV 01692...
Page 270 03784, 03834, 03838, 01255, 01693 Sansui 01545 Sanyo 01626 Sat Control 01300 Sat Industrie 01611 SAT+ 01409 SatCatcher 01956 Satforce 03374 Satplus 01100 SatyCon 01631 Schaub Lorenz 02034, 02418 Schneider 02842 Schwaiger 01672, 01429, 02308, 02458, 01631, 02797, 02813, 00740, 01334, 02957 Schwaiger CS 01631 Scott 02738 00299, 00740 Sedea 01626 Sedea Electronique 01626 01626, 01284, 02034 Sencor 02813 Servimat 01611 SetOne...
Page 271 Sky Austria 02754, 02443, 01429, 01114, 01915, 01195, 01197 Sky Brasil 01377, 03110, 00887, 00856, 00099, 01499, 02619 Sky Deutschland 02754, 02443, 01429, 01114, 01915, 01195, 01197 Sky Ireland 01175, 01662, 00847 Sky Italia 01693, 02467, 00853 Sky Mexico 00856, 02619, 00887, 01377, 03469 Sky New Zealand 02211, 00887, 00856, 01356 SKY PerfecTV! 03099, 02616, 03049 Sky UK 01175, 01662, 00847 SkyCable 01631, 01957 SkyLife 03321, 01255 Skylink 02957, 01545, 02443, 02928, 01195, 01197, 01986 Skymaster 01409, 02205, 01611, 02728, 02932, 01545, 01334 Skymax 01413 Skypex 00740 Skyplus 01334, 02026, 00740, 01175 SkySat 01100 Skytec 02928 Skyvision...
Page 272 Strong 01409, 02235, 01626, 02278, 02418, 02813, 00879, 03424, 00853, 01300, 03374, 01284, 01682 Sun Box 03571 Sun Direct 02525 Sunny 01300 Sunstech 02738 Supernova 00887 Supratech 01413 Systec 01334 Sytech 02418, 02842, 03012 SZWO 03374 TATA Sky 03575 TBoston 02418 TDS Telecom 00775 Teac 01957, 01322, 02813 Technical 01626 Technicolor 03469, 03790 Technika 01284, 01672, 02034 TechniSat 01197, 01195, 01100, 01099, 01351, 03440, 02813, 01322 Technoit 02278 Technosonic...
Page 273 Telsey 02738 TelSKY 02540 Telstra 01356 TELUS 00775 Tesla 01626 Tevion 02205, 01409, 01672, 02026, 02813 Thai 03573, 03539 Thomson 01291, 01935, 01662, 00847, 00853, 01175, 02278, 01307, 02160, 02619, 03110, 03469 Tiny 01672 Titan 02205 Tividi 01429 TiVo 01377, 01442 TivuSat 02750 TMobile 02631, 02443, 01545 TNT SAT 01692, 01195, 01197, 01986 Tokai 02938 Tonna 01611, 02458 Topfield 01545, 01986, 01208, 02838 Toshiba 01803, 01284, 01429 01307 Transparent Video Systems...
Page 274 01692 United 02842, 02278, 03012, 01626, 02418 Unitymedia 01429, 01882, 01915 Universum 00173, 00299, 00740, 01099 Unixbox 01652 01780, 02443 UPC Cablecom 01195, 01197 UPC Direct 02443 Vantage 02797 Variosat 00173 02418 Vectra 01195, 01197 Vestel 01626, 01284, 02231, 02034, 03517 VH Sat 00299 Via Embratel 03787, 02796 Viasat 01682, 01197, 01195, 02235, 00253 Videocon 03077 Vietnam Television Corporation 03834 Viola Digital 01672 Vision 01626 VisionNet 01631 Visiosat...
Page 275 Wisi 00740, 00173, 00299, 02957, 01986 Woxter 02418, 02813 Xoro 02813, 02738, 03012, 03422 Xtreme 01300 Xtrend 03320 Yakumo 01413 00887, 01887 Youview 03140 ZapMaster 00740 Zehnder 01777, 03422, 01334, 01413, 02289, 03424, 02034, 00740, 01631 Zenega 02604 Zenith 00856, 03110, 03469 Ziggo 02443, 01499, 01657, 00253 Zircon 02957 Zodiac 03726 02160 Zon Optimus 02160 Video Accessory A.C.Ryan 02709, 03350 01272 Acer 01272 Alienware 01272...
Page 276 Fujitsu Siemens 01272 Funai 03339 Gateway 01272 GBox Midnight 04440 Hewlett Packard 01272 01272 Howard Computers 01272 01272 Hush 01272 iBUYPOWER 01272 iconBIT 03350, 02709 ICY Box 03350 iNext 03350 Iomega 02558 ISTAR 02260 JadooTV 02260 Keedox 04442 03373 Linksys 01272 Magnavox 03339 Mede8er 02709 Media Center PC 01272 Micca 03669...
Page 277 Sony 02713, 01272 Stack 9 01272 Sumvision 04339 Systemax 01272 Tagar Systems 01272 Toshiba 01272 Touch 01272 TrekStor 02723 Trust 01272 VIA Technologies 01272 Viewsonic 01272 VIZIO 03670 Voodoo 01272 Western Digital 02558 Woxter 02709 Xbox 01805, 04000, 01272 Xtreamer 02723 ZT Group 01272 A.V.International 70157 ADVANTAGE 70032 70157 Aiwa 70157...
Page 278 70157 Linn 70157 Loewe 70157 Magnavox 70157 Marantz 70157, 70029 Matsui 70157 70029 Memorex 70032 Meridian 70157 Micromega 70157 Miro 70000 Mission 70157 Myryad 70157 70721, 70000 Naim 70157 New Acoustic Dimension 70721, 70000 70157 Onkyo 71817 Optimus 70032, 70000 Panasonic 70303, 70029 Philips 70157 Pioneer 70032...
Page 279 Polk Audio 70157 Primare 70157 Proton 70157 70157 Quad 70157 Quasar 70029 Radiola 70157 70032 Restek 70157 Revox 70157 Rotel 70157 70157 Sansui 70157 SAST 70157 Siemens 70157 Silsonic 70036 Simaudio 70157 Sonic Frontiers 70157 Sony 70000, 70490 Sylvania 70157 TAG McLaren 70157 TAG McLaren Audio 70157 Tandy 70032...
Page 280 Denon 40076 Epworth 40029 Grundig 40029 Harman/Kardon 40029 Inkel 40070 40244 Kenwood 40070 Magnavox 40029 Marantz 40029 Myryad 40029 Onkyo 42157 Optimus 40027 Panasonic 40229 Philips 40029, 40229 Pioneer 40027 Polk Audio 40029 Radiola 40029 40027 Revox 40029 Sansui 40029 Sony 40243, 40170...
Page 281 02254, 02302, 02437, 03028 Aland 02030, 02437 Alands Datakommunikation 02030, 02437 Alcom 02030, 02437 Altibox 02437, 02030 Amino 01615, 01898, 01481, 02482, 01998, 02302, 03028 Arcadyan 02952 Arkwest 02482, 01481, 01998, 02302 Arris 01998, 02378 Arvig Communication Systems 01998, 02345 AT&T 00858 AT&T Uverse 00858 ATMC 03028 B tv 02681, 03442 BBTV 02980 BEK Communications 02254, 02302 Belgacom TV 02047, 02132 Bell 01998 Bell Aliant 01998 Bell ExpressVu 01998 Bell Fibe TV 01998 BesTV...
Page 282 Cisco 00858, 03028, 02132, 02345, 02047, 02378, 01998, 02271, 03452 ClubInternet 02132 02980 Consolidated Communications 01998, 02302, 03048 Coship 04196 Deutsche Telekom 02132 02030 02401 Echostar 03452 Elion 03916 Entertain 02132 Entone 02302, 03048 04281 Evertek 02302 Finnet 02030 Freebox 01976 Frontier Communications 02378 GDCATV 02980 Google 03666 Guangdong Cable 02980 Guangxi Broadcasting 02897 Guangxi Broadcasting Network 02897 Hana TV...
Page 283 Kiss 02132, 02271 KoolConnect 01481 02952, 02437 Kreatel 02030 02683 02682 LG U+ 02682 Linksys 02271 Lumos Networks 01998, 03028 Magio Sat 02132 Magnet 01615 Maige TV 03937 Matanuska Telephone 01481, 02254, 02482, 02586 Association Mega TV 02683 02401 MHTC 01481, 01998, 02254, 02302, 02482 Minerva Networks 03118 02275, 02802 mio TV 02275, 02802 Mitsubishi Electric 03274 MM&G Enterprises 01481, 01998, 02302, 02482 03647, 01917 Motorola 02378, 02437, 01998, 02030, 00858, 02952, 02275, 03916,...
Page 284 Orange 02407 Pace 01998, 00858, 03454, 02294, 02401 PCCW 02009, 02057 Philips 02378 Pioneer Telephone 02254, 02302 Portugal Telecom 02401 Primestar 02030 PrimeTel 02030, 02437, 03611 PrimeTV 02030 02401 Qwerty 01898, 01481, 01615 Qwerty.TV 01898 Reliance 02556 RIO Media 02030 Rostelecom 03611 Sagem 02407, 03288 Sagemcom 02436, 02407, 03007 Samsung 02407 SaskTel 01998 Scientific Atlanta 00858, 02345, 02047, 02401, 03028, 02378 SetaBox 01917...
Page 285 Telefonica 01585, 03028, 03288 Telekom Deutschland 02132 Telia 02030 TELUS 03028 TeNeT 01898 THome 02132 Thomson 03007, 02407 01615 U+ tvG 02682 Uverse 00858 Verizon 02378 Viasat 02030 Viken Fibernett 02030, 02437 Vivo 03288 Vodafone 02401 03118 Youview 02994 Yuxing 02014 Zinwell 03139 04196 IPTV PVR Combination 01585, 02254, 02437 Altibox 02437 Amino 01615, 01898...
Page 286 BT Vision 02294 Cabovisao 02436 Canal Digital 02030 CenturyLink 01998 03647 Chunghwa 03647 Cisco 03028, 02132, 00858, 02047, 02345, 02271, 02378, 03452 ClubInternet 02132 02980 Consolidated Communications 01998 Deutsche Telekom 02132 02401 Echostar 03452 Elion 03916 Entertain 02132 Entone 03048 Freebox 01976 Frontier Communications 02378 GDCATV 02980 Glashart Media 01615, 01898 Google 03666 Guangdong Cable 02980 Hikari TV...
Page 287 Minerva Networks 03118 Mitsubishi Electric 03274 03647 Motorola 01998, 02437, 02378, 02952, 00858, 03916, 01585, 02030, 02401 Movistar 01585 01998, 01615, 01481, 01898 03237, 03274 Numericable 02436 Oi TV 03452, 03454, 04165 Orange 02407 Pace 00858, 01998, 03454, 02294, 02401 Philips 02378 Portugal Telecom 02401 PrimeTel 02437 02401 Qwerty 01898 Sagem 02407, 03288 Sagemcom 02436, 03007, 02407 Samsung 02407 SaskTel 01998 Scientific Atlanta 00858, 02047, 02401, 02345, 03028, 02378 Sky Austria...
Page 288 Vodafone 02401 03118 Youview 02994 Zinwell 03139 SAT_PVR Combination @sat 01300 02553 02738, 02813 Airtel 02248 Altech UEC 02097, 03517 Amiko 04197 Amstrad 01662, 01175, 02467, 01693 Arion 04348 Astro 03838 Atevio 02928 Atlanta 03320 Austriasat 01195, 01197, 02957, 02631 Auvisio 02932, 02738, 02813 Avanit 00299 Axil 03424 AZ America 01631 AZBox 02719 B@ytronic 00740 Bell...
Page 289 Claro 03790 02932 Comag 02797, 02813, 02308 Coship 03790 Cyfrowy Polsat 02527 03517 Deutsche Telekabel 01195, 01197 Digenius 00740 Digi 01195, 01197 Digihome 02034 DigiQuest 01300 Digital 02308 DigitAlb 01195, 01197 DigitalBox 02540, 03240 Digiturk 03517, 02097 Dilog 01957 DirecTV 01377, 01442, 00099 Dish Mexico 00775 Dish Network 00775 DishHD 04090 Dishpro 00775 01957 DragonSat 02928...
Page 290 Freesat 01692, 02928, 03266 Freesat+ 02443, 03266 Fuji Onkyo 01631 Galaxy Innovations 02799, 04197 General Satellite 03064 02799, 04197 GigaBlue 03663 Globo 02957 Golden Media 04197 GoldMaster 02928 Goodmans 02034 Grundig 02738, 03424 03789 Handan 01957 HD Box 02928 02797, 03095 Hirschmann 00740 Hitachi 02034 Hughes Network Systems 01442 Humax 02443, 01176, 01377, 03517, 01427, 01808, 02231, 02408, 02754 IceCrypt 04197, 02928...
Page 291 02631 Marusys 02799, 03543 Maspro 03099 Maximum 01334, 02813 Medion 02797, 00740 MegaSat 01631, 02813, 02034, 02738 02466 Mercury 03422 Micro 02797, 02813 Micro electronic 02308 Miraclebox 02928 Motorola 00869 Movistar 02527 Multichoice 02059, 02060 Mysat 02738 MySky Italia 02467 MySky New Zealand 01356, 02211 NEOTION 01334 Nova 02475 NTV Plus 01307, 01692, 02443 Octagon 02928 Openbox 02928 Opensat...
Page 292 Rebox 02928 Ross 02540 04197 Sagem 01692, 02553, 01307 Sagemcom 03789, 01692 Samsung 03063, 01442, 01682, 01989, 02467, 01377, 03266, 01662, 03784, 03838, 01693 Sansui 01545 Sat Control 01300 Schwaiger 02308, 00740, 02957 02034 SetOne 03240 Sharp 02034, 01935 Shaw Direct 00869 Siemens 01657 SilverCrest 02308, 02932 Sky Austria 02754, 02443 Sky Brasil 01377 Sky Deutschland 02754, 02443 Sky Ireland 01175, 01662 Sky Italia 02467, 01693 Sky New Zealand 02211, 01356 SKY PerfecTV!
Page 293 Starmax 02638 Stream System 01300 Strong 03424, 01300, 02813, 01682, 02278 Sunny 01300 TDS Telecom 00775 Teac 01957 Technicolor 03790 TechniSat 01197, 01195, 03440 Technotrend 01429 Techwood 02034 Telasat 02466 Telefonica 01692, 02527 TeleSAT 02631, 02466 Telestar 02540, 01195, 01197 TelkomVision 04310 TelSKY 02540 Telstra 01356 TELUS 00775 Thomson 01662, 01175, 01935, 01307, 02160 TiVo 01377, 01442 TMobile...
Page 294 03458, 02799, 03543 Wisi 00740, 02957 Xoro 02738, 02813, 03422 Xtreme 01300 Xtrend 03320 Zehnder 03422, 03424, 01777, 02034, 00740 Ziggo 02443 Zircon 02957 TV_DVD Combination 12197, 12239 Affinity 13870, 13717 Akai 12676, 13067, 12197 Akura 12289, 11983, 12239 Alba 12676, 13005, 13067, 12104 Apollo 12239 Audiosonic 12104, 11983 Audiovox 11769 Azuki 12239 Baier 12239 Bauer 12197 Beko 12239 Black Diamond 11037 Blaupunkt...
Page 295 Digihome 12676 Digimate 12239 Digitrex 13067 diVision 12197, 12239 Dual 12197, 12676, 11037 Durabrand 10171 DVision 12197 Dynex 12049 Easy Living 12104 12197, 12125 Electrohome 11670 Element 12964 Elfunk 11037 Emerson 11886, 11864, 11394, 10171 emotion 12426 Enox. 12673 Essentials 12486 Favi 13382 Ferguson 13005, 12426, 11037, 12676 Finlux 12676 Funai 11394 Goodmans 11983, 11037, 11687, 12676,...
Page 296 11601 Kuppersbusch 12676 Lenco 12676, 11983 11860, 11423 Linetech 12676 Linsar 12676 Logik 13432, 13005, 12486, 11037, 11687 Luxor 12676, 11037 Magnavox 12372, 11866, 11454 Marks & Spencer 12673 Mascom 12197 Matsui 12486, 12676, 11037 Medion 12676, 12239, 13067 Memorex 11670 Memory 11983 MTlogic 12104 Murphy 12673 Mx Onda 11983 Naxa 12104, 13382 Neon 12673 Nikkei 12197 Nimbro 12104...
Page 297 ProLine 12676 Proscan 12256, 13895, 13636 Prosonic 12676, 12197 QuantumFX 12337 12187, 12746, 12932, 11447, 12247, 13382 RefleXion 12239 Reoc 12197 Saba 12676 Saga 12197 Salora 12197, 12676, 12239 Sandstrom 12197 Sansui 11670, 13564 Sanyo 12676, 13488 Sceptre 12528, 12337 Schaub Lorenz 12197, 12289 Scott 11983 12673, 11037 Sencor 12197 Sharp 10818, 12676, 12360 Shinelco 12104 Shivaki 12197 Skyworth 12963...
Page 298 13005 Vestel 11037 Viewsonic 12049 Viore 13429, 12352, 12104, 13382, 13118 VisionPlus 12426 Walker 12676 Waltham 11037 Weltstar 11037 Westinghouse 11712 Wharfedale 11983 Xiahua 11753 Xiron 11983, 11037 Xoceco 11753 Xogego 11753 Xoro 13067 Zenith 10000, 10178 Xogego 11753 Xoro 13067 Zenith 10000, 10178 SN 29402025HTML_EN (C) Copyright 2015 Onkyo Corporation Japan. All rights reserved.

Onkyo TX-NR545 Manual

Quick Links

Related Manuals for Onkyo TX-NR545

Summary of Contents for Onkyo TX-NR545

Table of Contents
