• To supply the module power supply terminal of the AJ65BTB2-
16R/16DR, AJ65SBTB2N-8A/8R/8S/16A/16R/16S with power
using the AC/DC power supply, follow as shown below.
(14) CC-Link/LT module
• Use the module under the installation environment of Zone A
For the specified Zones of the following products, refer to the
manual provided with each product:
• To supply the CL2DA2-B and CL2AD4-B with power using the
CL1PAD1, keep the length of the power cable connected from
the CL1PAD1 to the external power supply to 30m or less.
*1 Zone defines categories according to industrial environment, specified in the EMC and Low
Voltage Directives, EN61131-2.
Zone C: Factory mains (isolated from public mains by dedicated transformer)
Zone B: Dedicated power distribution, secondary surge protection (rated voltage:
300V or less)
Zone A: Local power distribution, protected from dedicated power distribution by
AC/DC converter and insulation transformer (rated voltage: 120V or less)
• Install the AC/DC power supply in the control panel where
the module is installed.
• Use a CE-marked AC/DC power supply with a reinforced
insulation or a double insulation and ground the FG
terminals. (The AC/DC power supply used for the tests
conducted by Mitsubishi: TDK-Lambda Corporation: DLP-
120-24-1)

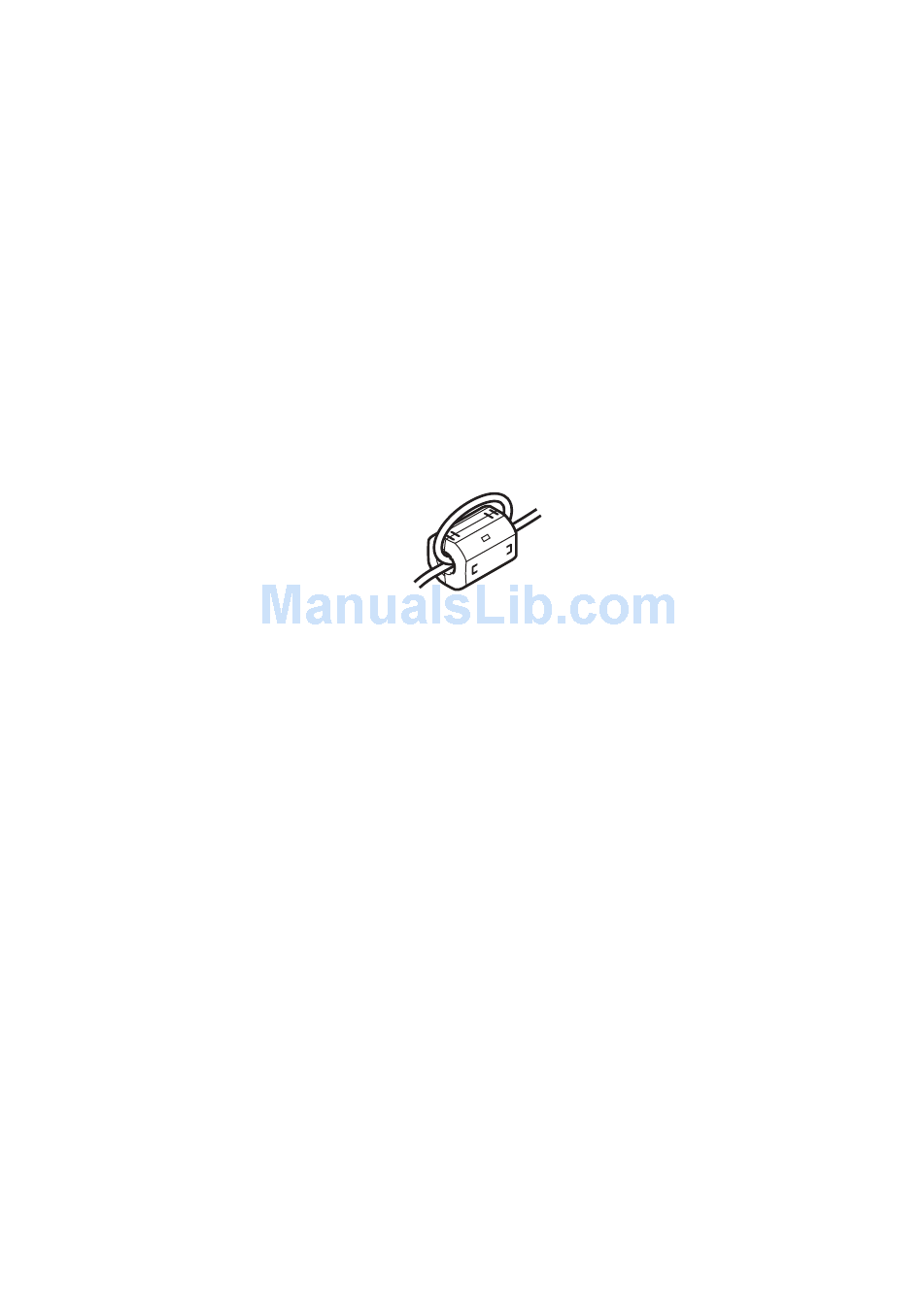

• For the cable connected to the AC input terminal and DC
output terminals of the AC/DC power supply, attach a ferrite
core. Twist the cable around the ferrite core by one as
shown below. (Ferrite core used for the tests conducted by
Mitsubishi: NEC TOKIN Corporation: ESD-SR-250)
• CL1Y4-R1B1
• CL1XY8-DR1B2
• CL1Y4-R1B2
• CL1PSU-2A
56
*1
• CL1XY4-DR1B2
.
