Interlogix Firefighter SLX-AD-T3 Installation Manual And User's Manual

Installation Manual & User Guide
IMPORTANT SAFETY INFORMATION. READ ENCLOSED WARNINGS AND SAFETY INFORMATION
OPERATION
The FireFighter™ sensor is designed to listen to the alarm sounder of any UL smoke detector. Once confirmed as an alarm, it will transmit a signal to the
alarm control panel which if connected to a central monitoring station, will dispatch the fire department.
WARNING: THIS AUDIO DETECTOR IS INTENDED ONLY FOR USE WITH SMOKE DETECTORS BUT IT DOES NOT DETECT THE PRESENCE OF SMOKE, HEAT, OR FIRE DIRECTLY. THIS DEVICE
IS NOT INTENDED TO REPLACE SMOKE, HEAT OR FIRE DETECTORS IN THE FIRE ALARM SYSTEM, IT IS A SECONDARY LISTENING DEVICE.
CE DÉTECTEUR AUDIO EST UNIQUEMENT DESTINÉ À UNE UTILISATION AVEC DES DÉTECTEURS DE FUMÉE, MAIS IL NE DÉTECTE PAS LA PRÉSENCE DE FUMÉE, LA CHALEUR OU LE FEU
DIRECTEMENT. CE DISPOSITIF DE SAPEUR-POMPIER EST PAS DESTINÉ À REMPLACER LA FUMÉE, LA CHALEUR OU LE DÉTECTEUR D'INCENDIE DANS LE SYSTÈME D'ALARME D'INCENDIE, IL
EST UN DISPOSITIF D'ÉCOUTE SECONDAIRE.
ENROLLING

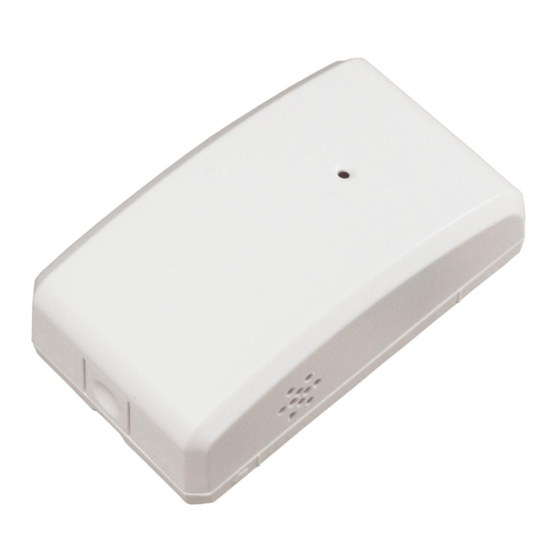

(See IMAGE 1) To enroll the sensor, set your panel into sensor learn mode. Refer to your specific alarm panel instruction manual for details on these menus.
To trigger a transmission from the sensor, press the tamper switch on the FireFighter when prompted by the panel. For some panels, you may need to manually
enter the serial number, which is printed on the back of each unit. With Simon XT/XTi, Concord, and Advisor panels program the zone to use sensor group 26.
With NetworX and Zerowire panels program the zone to use sensor group 8. Ensure the Fire Verify reporting option is enabled.
MOUNTING
(See IMAGES 2 & 3) Included with this device is a mounting bracket, hardware and double sided tape. To ensure proper operation ensure the side of the
device with the small holes is directly facing the sounder holes on the smoke detector. Secure the mounting bracket to the wall or ceiling using the two
mounting screws or double sided tape provided, and then secure the audio detector to the mounting bracket using the small screw provided. The
FireFighter must be mounted within 6 inches of the detector.
WARNING: NON-INTERCONNECTED SMOKE DETECTORS REQUIRE AN AUDIO DETECTOR BY EACH SMOKE DETECTOR SOUNDER.
DETECTEURS DE FUMÉE NON INTERCONNECTÉS NÉCESSITENT UN DÉTECTEUR AUDIO PAR CHAQUE SONDEUR DÉTECTEUR DE FUMÉE.
TESTING
(See IMAGE 1) To test the RF transmission from the mounted position, set the panel in sensor test mode, and then press the test button within the device.
This will send a RF transmission signal to the control panel. To test the audio detection, press and hold the smoke detector TEST button¹. If the smoke
detector TEST button does NOT trigger all smoke detectors then use a common can of smoke to simulate a real fire, which should trigger the entire system.²
If the Fire Verify reporting option is enabled, the sensor will need to stay in alarm for at least one minute for the panel to verify it as an alarm and communicate
to the central station. Ensure the FireFighter cover is installed during this test and that you wear hearing protection.
NOTES:
•
¹For valid audio testing the smoke detector test must produce three separate temporal 3 (T3) sound patterns. Verification of two complete T3 patterns
with alarm at the beginning of the third T3 pattern.
•
²With some smoke detector model types (i.e. combination smoke / carbon monoxide) using the TEST button to test audio detection may not
result in an audio output that the FireFighter recognizes, in this case use a common can of smoke to simulate a real fire.
•
This system must be checked by a qualified technician at least once every three (3) years. Please test the unit once per week to ensure proper
functionality.
•
Tampers will not be detected by NX panels unless the option is turned on at the panel. (Feature 4, Input Option 1)
LED
The FireFighter is equipped with a multi-color LED. When a valid audio signal is heard the LED will turn yellow and flash in sequence to the smoke detector
sounder. When the Firefighter™ has determined the audio signal heard is a valid alarm, the LED will turn red to indicate it has transmitted to the panel. It
will also turn red when the case is opened to indicate a tamper transmission to the control panel. On power up the LED will also flash red then green as part
of its power up cycle.
Insert Battery = One RED flash, then one GREEN flash
If frequency sound detected = Flash YELLOW for the duration of that sound
Fire Alarm detected = Solid RED for 3 seconds, then flash RED when tone detected
Tamper = Solid RED for three second
Test button pressed = Solid GREEN for 3 seconds
REPLACING THE BATTERY
When the battery is low a signal will be sent to the control panel. To replace the battery:
1. Remove the top cover to reveal the battery. This will send a tamper signal to the control panel.
2. Replace with a Panasonic CR123A battery ensuring the + side of the battery faces as indicated on the device.
3. Re-attach the cover. You should hear a click when the cover engages properly.
WARNING: WHILE THE AUDIO DETECTOR MONITORS ITS OWN BATTERY, IT DOES NOT MONITOR THE BATTERY IN THE SMOKE DETECTORS. BATTERIES SHOULD BE CHANGED AS PER THE
ORIGINAL SMOKE DETECTOR MANUFACTURER'S INSTRUCTIONS. TEST THE AUDIO DETECTOR AND SMOKE ALARMS AFTER BATTERY INSTALLATION TO CONFIRM PROPER OPERATION.
BIEN QUE LE DÉTECTEUR AUDIO SURVEILLE SA PROPRE BATTERIE, IL NE CONTRÔLE PAS LA BATTERIE DANS LES DÉTECTEURS DE FUMÉE. LES PILES DOIVENT ÊTRE CHANGÉES SELON
LES INSTRUCTIONS DU FABRICANT ORIGINAL DE DÉTECTEUR DE FUMÉE. TOUJOURS TESTER LES DÉTECTEURS DE FUMÉE ET ALARMES AUDIO APRÈS L'INSTALLATION DE LA BATTERIE
POUR CONFIRMER LE BON FONCTIONNEMENT.
P/N 466-5233 • REV A • 13JAN16 © 2016 UTC Fire & Security Americas Corporation, Inc. All rights reserved.
SLX-AD-T3 Audio Detector
