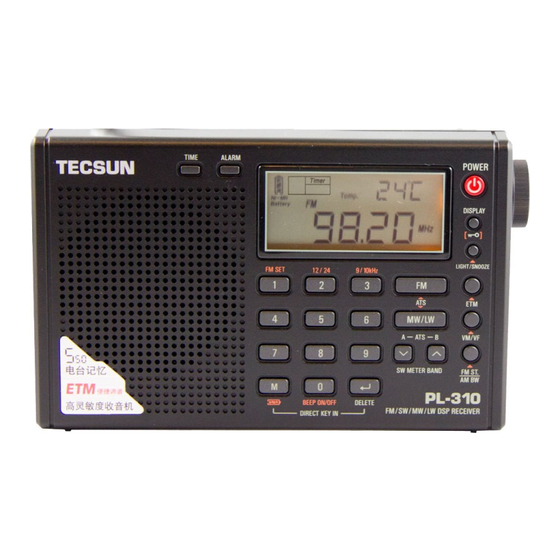

- Page 1 TECSUN PL-310 FM stereo / SW / MW / LW DSP RECEIVER OPERATION MANUAL...
- Page 2 PL-310 Functional Block Diagram PL-310 is using DSP si4734 Microchips (from Silicon Labs in USA) to digitalize the analog AM/FM broadcasting signal base on the modern software technology and radio principles. It can highly improve on radio's sensitivity, selectivity, S/N ratio and anti-interference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS : CONTROL LOCATIONS..........2 LCD DISPLAY..............4 QUICK START GUIDE............5 TURN THE RADIO ON OR OFF.........8 ●Manual tuning ●Auto scan stations ●Direct frequency entry TO STORE STATION............10 ●ATS (Auto Tuning Storage) on FM, MW, LW or SW band ● To store a station manually ●... -
Page 4: Control Locations
CONTROL LOCATIONS Power button Display & Lock button Light / Snooze button Scan Mode button FM ST. button AM BW button FM Band Selector & Auto Tuning Storage button MW/LW Band Selector & Auto Tuning Storage button SW Band & Auto Tuning Storage button 10. -
Page 5: Lcd Display
LCD DISPLAY Battery consumption indicator Sleep Indicator Alarm indicator " " alarm by radio " " alarm by buzzer Temperature (Temp.) AM, PM indicator for 12-hour format clock Signal indicators dBu: signal strength unit dB : Signal to Noise Ratio (S/N) unit Alarm indicator Meter band indicator Preset memory address indicator... -
Page 6: Quick Start Guide
QUICK START GUIDE TIME SETTING 1. Long press [TIME] button until "hour" is flashing in the display. Rotate the [TUNING] knob to adjust the correct "hour". 2. Short press [TIME] button again, rotate the [TUNING] knob to adjust "minute". 3. Press the [TIME] button again to confirm your time setting. ALARM SETTING 1. -
Page 7: Auto Scan Memory
Special note: During processing ATS with mode A in FM / MW / LW & SW, pre-stored radio stations would be deleted & covered automatically by the new searched & stored stations. If ATS is interrupted or being turned off during process, radio stations without deleted & covered by ATS would still be kept. -
Page 8: Turn The Radio On Or Off
TURN THE RADIO ON OR OFF 1. Installing batteries The battery compartment is located on the back of the PL-310. To remove the battery compartment cover, apply thumb pressure and slide it towards the bottom of the radio. Install 3 AA alkaline batteries into the battery compartment, observing the battery polarity diagram on the back of the radio. -
Page 9: To Store Station
Method 6: Direct memory access (see page 12) TO STORE STATION There are total 500 preset memories within PL-310. For FM, MW, and LW, each band has 100 preset memories; and 200 preset memories for SW. ATS (Auto Tuning Storage) on FM, MW, LW or SW band 1. -
Page 10: To Store A Station Manually
To store a station manually 1. Turn on your radio, and tune into your favorite station. 2. Short press [M] button with a "B" sound. 3. Short press [M] button again to confirm with a long "B--" sound. To store station with auto search function 1. -
Page 11: To Delete Stations With Auto Search Memory Function
Method 2: To delete stations with auto search memory function 1. Short press the [SCAN MODE] button with a "B" sound. 2. Long press the [SCAN MODE] button with a "B" sound to activate the Auto scan memory function. 3. If you want to delete that station, simply press [DELETE] button with a long "B--" sound. 4. -
Page 12: Select The Alarm By Radio " " Or By Buzzer
1. Long press [ALARM] button with a "B" sound. Rotate the [TUNING] knob when "hour" is flashing in the display. 2. Short press [ALARM] button again with a "BB" sound, the "minute" flashing. Rotate the [TUNING] knob to adjust the "minute" . 3. -
Page 13: Display Mode
When the radio is on by alarm functions with buzzer, you can short press [POWER] button to turn off the alarm. DISPLAY MODE OFF status: Short press [DISPLAY] button to view on Temperature, Alarm time. ON status: Short press [DISPLAY] button to view on Alarm time, Temperature, Local time, signal strength/ SNR. - Page 14 Turn LW on/off Turn off the radio. Press and hold the [MW/LW] button until "ON" or "OFF" appears in the display，If " OFF" appears in the display, which means LW is turned off. Turn off the "Bi" sound Press and hold the [SNOOZE/LIGHT] button until "OFF" or "ON" appears in the display; If "...
- Page 15 connect to the radio as an the external power sources for supplying power to play this radio Notes for charging power: Insisting to use up all power with batteries before charging again, this could extend the life time of battery and keeping them in good conditions. 3 pcs of batteries to be used as a group and don’t separate them to other usage.
-
Page 16: Trouble Shooting
TROUBLE SHOOTING QUESTIONS ANSWERS SOLUTIONS Can not turn on the radio. -no power with the -replace the new batteries batteries -didn't install the -according to "+" or batteries properly "-" sign to install the batteries again -power button is -press [ ] button locked to unlocked Radio goes off... -
Page 17: B" Sound Via Functions
by interference, then you can reload. and the computer If it is still not able to microchip not work, please contact function properly. your nearest dealer for customer service. "B" SOUND VIA FUNCTIONS... - Page 19 SPECIFICATIONS 1. Frequency range 87~108 MHz Russia 64~108MHz Japan 76~108 MHz China, USA 87.5~108 MHz 522~1620 (USA 520~1710) kHz 153~513 kHz 2300~21950 kHz 2. Sensitivity FM (S/N=30dB) Less than 2μV MW (S/N=26dB) Less than 1mV/m LW (S/N=26dB) Less than 10mV/m SW (S/N=26dB) Less than 20μV 3.Selectivity...
