A
SSEMBLY
Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of
the packing materials until assembly is completed.
In addition to the included tools, assembly requires an adjustable wrench
mallet
.

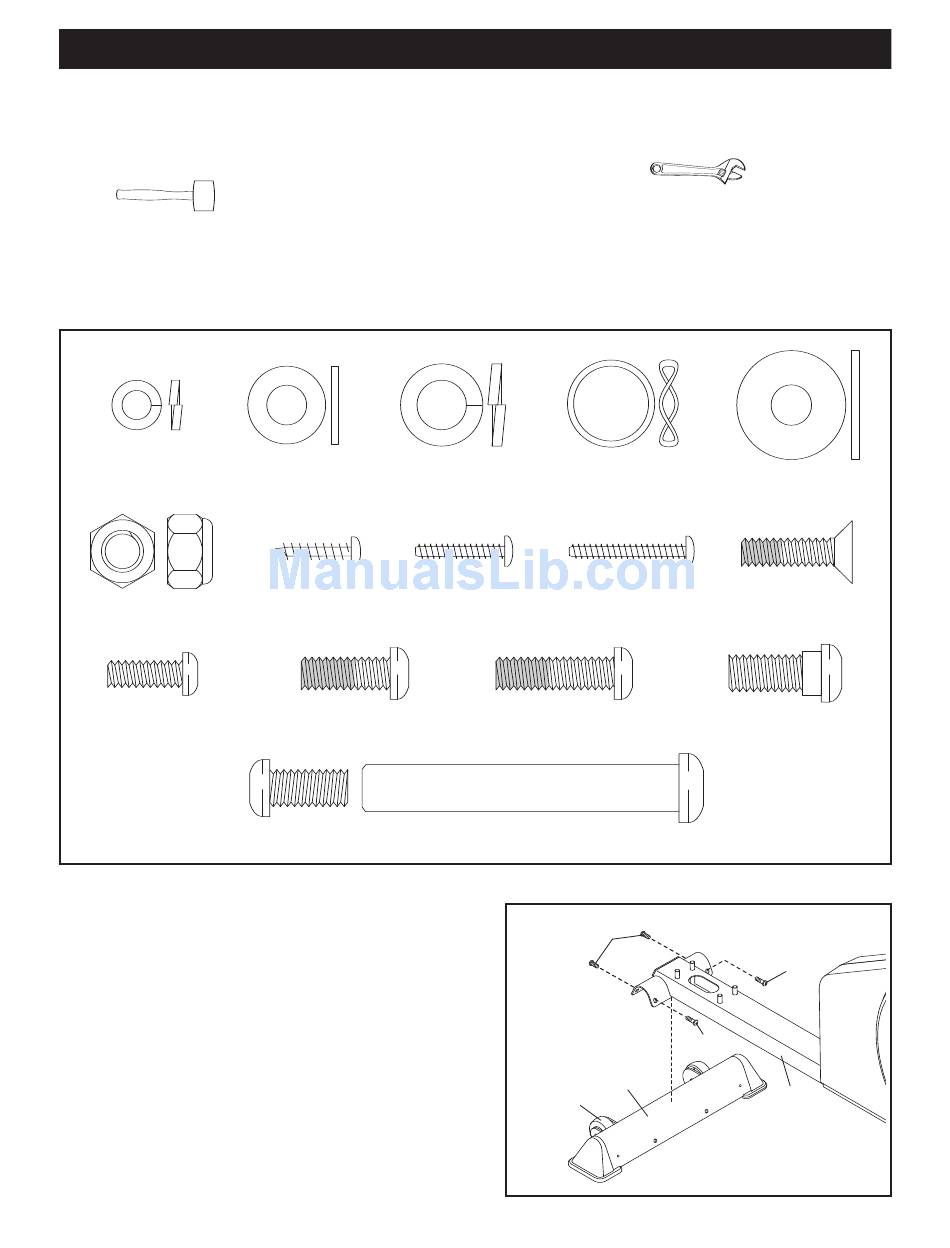

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 25. The second number refers
to the quantity used in assembly. Note: Some small parts may have been pre-assembled for shipping. If a
part is not in the parts bag, check to see if it has been pre-assembled.
M6 Split Washer
(72)–2
M10 Nylon
Locknut (85)–4
M6 x 16mm Button
Screw (93)–2
1. Identify the Front Stabilizer (63), which has Wheels
(27) attached to one side. Attach the Front Stabilizer
to the front of the Frame (1) with four M8 x 25mm
Patch Screws (73).
Small M8
M10 Split
Washer (71)–2
Washer (103)–4
M4 x 16mm
M4 x 19mm
Screw (82)—6
Screw (92)–2
M8 x 19mm Patch
Screw (81)–4
Wave Washer
(101)–2
M4 x 25mm
Screw (96)–2
M8 x 25mm Patch
Screw (73)–10
Bolt Set (67)–2
1
73
27
5
and a rubber
Large M8
Washer (70)–2
M6 x 20mm Patch
Screw (75)–4
M8 x 19mm Shoulder
Screw (102)–2
73
73
63
1
