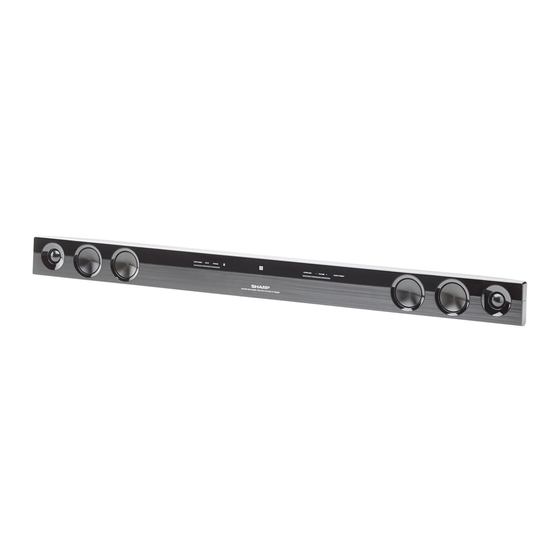

Sharp HT-SB20 Operation Manual

SHARP
'ii !
Illllli(lt'i,"l f:11
OBluetooth ° AUTOPOWER
(HT-SB3O only)
The Bluetooth® word mark and Iogos are registered trademarks owned by
Bluetooth BIG, Inc. and any use of such marks by SHARP is under license. Other
trademarks and trade names are those of their respective owners.
Note: This product is recommended for flat panel TV (LED, LCD and plasma).
I Caution: Before operating this product, refer "IMPORTANT SAFEGUARDS AND I WARRANTY" at the reverse page of English operation manual,
I
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
TINSZB425AWZZ
SHARP CORPORATION
Printed in Malaysia
13A RAS (_
The followingaccessoriesare included.
Remote control x 1
(RRMCGA326AWSA: HT-SB20)
(RRMCGA322AWSA: HT-SB30)
Audiocablex 1
(QCNWGAO87AWPZ)
AC/DCadaptor x 1
(RADPAA096AWZZ)
Pattern paperx 1
(TCAUHA034AWZZ)
AC power cordx 1
(QACCDA005AWZZ)
The illustrations printed in this manual are for the model HT-BB30.
1 2 34 56
On/Stand-by 7. Volume Up Button
Indicator 8. RemoteSensor
On/Stand-by 9. Left Channel
Button Speakers
SurroundButton 10. R_ghtChsannel Surroundindicator
Volume Indicator
Volume Down
Button
10
12 345 678910
12
1.
2.
5.
6.
7.
8.
9.
On/Stand-by
Indicator
On/Stand-by
Button
Input Button
PairingButton
PairingIndicator
Surroundindicator
SurroundButton
Volume Down
Button
Volume Up Button
10. RemoteSensor
1 1. Left Channel
Speakers
12. R_ghtChsannel
1. DCln Jack
2. Audio In Jack
2
1
Remotecontrol
1. Remote ControlTransmitter
2. Mute Button
3. Cinema(Sound Mode)button
4. Music (SoundMode)button
5. SurroundButton
6. Bypass(Sound Mode)button
7. TV OperationButtons
8. Bluetooth PairingButton(HT-SB30only)
9. Bluetooth Play/Pause Button (HT-SB30
only)
10. BluetoothSkip Up Button (HT-SB30 only)
11. BluetoothSkip Down Button (HT-SB30
only)
12. On/Stand-byButton
13. News (SoundMode) button
14. Input Button (HT-SB30only)
15. Volume Up/DownButtons
_ Plasticshield Note:
Beforeusingremotecontrol,pleaseremoveplastic
shieldat battery holder.
Batteryholder
TV Operation Buttons (Only SHARPTV):
On/Stand- _ Setsthe TV powerto input S elect _ Pressthe buttonto
by Button v "ON"or "STAND-BY". Button (TV) _ switchthe inputsource.
Volume Up _ Turn up/down the TV ChannelUpand _ Switchup/down the TV
andDown $ volume. DownButtons $ channels. Buttons
Note: • Somemodelsof SHARPTV may not be operable.
• SHARPTV remotecontrolwill notwork with HT-SB20/HT-SB30 s ystem.
To mount the soundbar on the wall ]
1
Caution:
• Beverycareful to prevent t he sound bar[5.07 Ibs.
(2.3kg)]fromfallingwhen mounting onthewall.
• Before mounting, check the wallstrength. (Donot
putontheveneer plaster o r whitewashed walt. T he
sound barmayfall.) If unsure, c onsulta qualified
service technician.
• Mounting screwsarenot supplied. U seappropri-
ateones.
• Check all wallmount a nglescrews f or looseness.
• Select a goodlocation, if not,accidents mayoccur
or the sound barmay get damaged.
• SHARP is not responsible for accidentsresult-
ingfrom improperinstallation.
SHARPdesignedthe sound barso youmay hang
it on the wall. Useproper screws (not supplied).
See belowfor sizeand type.
1/8"(3.2 mm)
(5 ram) _ 3/8" (9 ram) _
Min.7/8" (22 ram)
1 Fix the pattern paper to the wall in heft-
zontaipositionas below.
Wall 548 mm
surface
'attern paper
(supplied)
Makea hoteonthe wallfollowing the screw
pointmarkson the patternpaperby using
a drill.
1-1/4"(32 mm)
3/8" (84 ram) _
Wallsurface
Fix a wall mountplug intothe hole using
a hammer,until it is flush with the wall
surface.
1-1/4"(32 mm)
(8-9mm) _:_
3/8"
-_z/////j
WallsurfaceI
4 Fastenthe screwstothewallasshown below.
(Total s crewis 2 pieces)
_ Screwusing
__ Screwdriver
Wallsurface
Wallsurface
wallsurface
5 Hang the soundbar ontothe screws.
D ,_ 10 J" O .i! 0._
Installation image: Notes:
• Remove the protectivefilm coveringthe sound
TV barbeforeturningon the system.
• The front panel of the sound bar is not
Place the removable.
sound Caution:
bar as • Donot changethe installation directionwhen
shown, the sound baris turnedon.
• Do not standor sit on the sound bar as you
maybe injured.
• Safety wires (not supplied) are useful to prevent the sound bar from falling.
Screw eye (not supplied)
__ Safety wires (not.
supplied)
Wall
Rack/
table
Sound bar
Screw eye
(not supplied)
Safety
wires
(not
supplied)
Screw eye
(not supplied)
o ,o o. o,,- o, • t. ilil
Caution:
Turn off all other equipment before making any connections.
Notes:
• To connect to TV, use Audio IN terminals located at the rear of the sound bar.
• Refer the operation manual of the equipment to be connected.
• Fully insert the plugs to avoid fuzzy pictures or noises.
• In some cases, a small background noise could emit from the sound bar, when you
use the RCA audio output terminal connection from a TV-Set/DVD/Blu-ray Disc
Player. In such case, please change the connection to the headphone terminal
connection. This effect depends on the used TV/DVD/Blu-ray Disc Player-Brand,
model and age, and it is not a quality matter from the sound bar.
• If the TV volume is continuously at low level, the sound bar will automatically
power off. Increase the TV output volume to enjoy the sound from the speaker.
If the TV/monitor has an audio output, connect it to the Audio IN jack on the rear
of the sound bar.
To select AUDIO IN function:
Press INPUT button repeatedly.
To select Bluetooth function:
Press INPUT button repeatedly. (PAIRING indicator turns blue.)
TV
Sound bar
ToAUDIO
IN jack
(not supplied)
After checking all the connections have
been made correctly, connect the AC
power cord to the AC power input jack,
then to the AC outlet.
_1_ Plug theAC power cord into theAC/
DC adaptor.
L_ Plug the AC/DC adaptor cable into
the DC INPUT jack on the sound
bar.
_ Plug the AC power cord into an AC
outlet.
Notes:
• During power standby, the stand-by
indicator turns RED. If ON-STANDBY
button is pressed, the STAND-BY
indicator turns BLUE.
• Unplug the AC/DC adaptor from the
AC outlet if the sound bar will not be
used for a prolonged period of time.
• Use only the supplied AC/DC adaptor.
Using other AC/DC adaptor may
cause an electric shock or fire.
Make sure to unplug the AC power
cord before making any connections.
AC/DCAdaptor
Cable
DOIN jack
This product contains a CR Coin
Lithium Battery which contains Per-
chlorate Material - special handling
may apply, California residents, see
www.dtsc.ca.gov/hazardouswaste/per-
chlorate/
1 While pushing the locking tab to-
wards the center of the remote con-
trol, slide out the battery holder.
Back of
Locking
tab
2 Remove the old battery from the
battery holder, insert the new bat-
tery and then slide the battery hold-
er back into the remote control.
Batteryholder Positive(+)
up
/ Batterytype
Lockingtab
Precautions for battery use:
Remove the battery if the sound bar will
not be used for a long period of time.
This will prevent potential damage due
to battery leakage.
Caution:
• Do not use rechargeable battery
(nickel-cadmium battery, etc.).
• Danger of explosion if battery is in-
correctly replaced.
• Replace only with the same or
equivalent type.
• Batteries (battery pack or batteries
installed) shall not be exposed to ex-
cessive heat such as sunshine, fire
or the like.
• Installing the battery incorrectly may
cause the sound bar to malfunction.
Notes concerning use:
• Replace the battery if the operating
distance is reduced or if the opera-
tion becomes erratic. Purchase "CR
2025", coin lithium battery.
• Periodically clean the transmitter on
the remote control and the sensor
on the sound bar with a soft cloth.
• Exposing the sensor on the sound
bar to strong light may interfere with
operation. Change the lighting or the
direction of the sound bar if this oc-
curs.
• Keep the remote control away from
moisture, heat, shock, and vibra-
tions.
Press the ON/STAND-BY button.
The STAND-BY indicator turns BLUE.
Note:
If the power does nottum on, check whether
the power cord is plugged in properly.
To set the sound bar to stand-by mode:
Press the ON/STAND-BY button again. The
STAND-BY indicator turns RED.
IeVo _B_ _!_ fa_ i_ l
If you turn off and on the sound bar again,
volume will start at lower level and gradually
increase to the last set level.
Sound bar operation:
Press volume up (VOLUME + ) to increase
the volume and press volume down (VOL-
UME - ) to decrease the volume.
Remote control operation:
Press the VOL + button to increase the
volume and the VOL - button to decrease
the volume.
Note:
When volume is maximum or minimum:
The VOLUME indicator: blinking
The SURROUND indicator: blinking
[i _|i !
The volume is mutedtemporarilywhen pressing
the MUTE button on the remote control. Press
againto restorethe volume.
l!!i!}!i_!ii!ii!ii!ii!ii!:_iilsii_:_!_i_ii_!i_i_!_i_!! ¸!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!i!l
When the SURROUND button is pressed, the
SURROUND soundis ON.(SURROUND indicator
turns ORANGE)
Remote control operation:
Press the desired sound mode button
on the remote control.
The VOLUME indicator: blinking
The SURROUND indicator: blinking
CINEMA (for cinema sound effect)
MUSIC (for standard sound effect)
NEWS (for news)
BYPASS (for flat sound effect)
When the sound bar is connected to the TV/
DVD, etc., the AUDIO IN function is ready
to be used.
When the iNPUT button is pressed, the input
source will change.
_ Audio In Function-the pairingindicatorturns
oft.
_2_Bluetooth Function - the pairing indicator
turns blue.
Note:
The backup functionwill protect the memorized
function mode for a few hours shouldthere be
a power failure or the AC power cord becomes
disconnected.
Auto power on function:
• Whenstand-byindicatoris VIOLET,the sound
bar will automaticallypower ON if it detects
audio signal from connected equipment,
unless it is turned off manually (STAND-BY
indicatorturns red).
Auto power off and auto detect signal:
• The sound barwill automaticallygo to stand-
by mode (STAND-BY indicatorturns violet) if
no audiosignalis detectedwithin 20 minutes.
Bluetooth wireless technology is a short-range radio
technologythat enableswirelesscommunication
between various types of digital devices, such
as mobile phoneor computer.It operateswithin
a range of about 10 meters (30feet) without the
hassle of havingto use cables to connectthese
devices.Sincethe Bluetoothtechnologydoes not
require Iineof sight betweenthe communicating
devices,it is not necessaryto line upthe transmit-
tingdevice andthe receiver,as in the caseof infra
red technology.
Communication SystemandBluetoothProfile
of this sound bar
There are many available Bluetooth Profiles
describing the basic communication methods,
specificfunctionsanduses,to enablecommunica-
tion betweendevices.
This sound bar supports the following:
CommunicationSystem: BluetoothSpecification
version 2.1 Bluetooth + Enhanced Data Rate
(EDR) Profile : A2DP (AdvancedAudio Distribu-
tion Profile)
A2DP enables audio streaming from an A2DP
equipped Bluetooth stereoaudio source device
(eg mobilephone)to this sound bar. By convert-
ing wirelessstereoaudiosignalto analogueaudio
signal,youcanenjoylisteningtothe soundthrough
this speakersystem.
AVRCP(AudioNideoRemoteControlProfile)is a
technologythat allowsa single remotecontrol to
control all BluetoothenabledAudio Video equip-
ment to which a userhas access.
_ Audio stream
Bluetooth mobilephoneor other
Bluetooth Stereoaudiosourcedevice
Bluetoothdevices need to be initiallypaired first
beforethey canexchangedata. Once paired,it is
not necessary to pair themagain unless:
• pairingis madewith morethan 8 devices.
Pairing can only be made one device at
a time. This sound bar can be paired to a
maximumof 8 devices. If subsequentdevice
is paired,the oldest device paired,wilt bede-
leted and replacedwith the new one.
• this sound bar is reset.All pairinginformation
is deletedwhen sound bar is reset.
• pairinginformation i s deleted whilerepairing, etc.
On indicators
Status PAIRING indicator ( blue)
Unconnected Blinks
Pairing mode Blinksquickly
Connected Lightsup
Noteswhen usingunit with a mobile phone
• This unit cannotbe usedto talk overthe tele-
phone even when there is a Bluetooth con-
nectionmade to a mobilephone.
• Pleaserefer to the operatingmanualsupplied
withthe mobilephonefor detailson operation
of your mobile phone while transmittingthe
sound usinga Bluetoothconnection.
2
3
ON_STAN_-eY PAI_
Pressthe ON/STAND-BY b uttonto turn the
poweron.
Pressthe INPUTbuttonto select Bluetooth
function.(PAIRING indicatorblinks.)
Press and hold the PAIRING button for 1
secondor more.
PAIRING indicatorblinksquickly.The sound
baris nowin pairingmodeandis readyto be
paired withotherBluetooth sourcedevice.
Note:
Pairingindicator ( blue) will stopblinking once
the soundbaris successfully pairedwiththe
sourcedevice.
Perform pairingprocedure on the source
device to detect this sound bar. (Refer
the source device operating manual for
details).
"SHARP HT-SB30" willappearinthe detected
devices list(if available) in thesourcedevice.
Notes:
• Placethe devices to bepaired within 1me-
ter (3feet)of eachotherwhenpairing.
• Somesourcedevices areunable to display
listsof detected devices.Topairthissound
bar with the sourcedevice,refer to the
sourcedevice operating manual f or details.
5 Select"SHARPHT-SB30" f rom the source
list. If Passcode* is required,enter"OOO0".
Pairingindbator(blue)onthe soundbarwill
stop blinking oncethe soundbar is success-
fullypairedwiththe sourcedevice.Pairing
information is now memorized in the sound
bar.
* Passcode maybecalled PINCode,Passkey,
PINnumber or Password.
6 Start the Bluetooth connection from the
sourcedevice.
Someaudiosourcedevices mayconnect w ith
the soundbarautomatically, otherwise follow
the instructions i nthe sourcedevice operating
manual t o startconnection.
Notes:
• Ifthis soundbaror the sourcedeviceis turned
offbefore Bluetoothconnectionis completed,
pairingwilt not be completedand the pairing
informationwill not be memorized. Repeat
step 1 onwardsto start pairingagain.
• Topair with other devices,repeat steps 1 - 5
for eachdevice.
This sound bar can be pairedto a maximum
of 8 devices. If subsequentdevice is paired,
the oldest device paired,will be deteted and
replacedwith the newone.
• Once a device is ousted or deleted from
the pairing list, the pairing information for
the device is also deleted. To listen to the
sound from the device again, it needs to be
re-paired.Performsteps 1 - 5 to pair the de-
viceagain.
• Passcodeof this sound baris fixed to "0000"
andcan only be pairedwith Bluetoothsource
devicewhose passcodeis also "0000".
Check that:
• The sourcedeviceBluetoothfunctionality i s ON.
• Pairingd thissound barandthe sourcedevice
is completed.
• Any deviceconnected to the AUDIOIN socket
is turnedoff.
1 Pressthe ON/STAND-BY b uttonto turn the
poweron.
2 Pressthe INPUTbuttonto selectBluetooth
function.
3 Start the Bluetooth connection from the
Bluetoothstereoaudiosource device.
4 StartplayingontheBluetoothstereoaudio
sourcedevice.
Notes:
Ifthesourcedevice hasanextrabass function
or equalizer function, s et themto off. If these
functions areon,soundmaybedistorted.
Notes:
• You need to makethe Bluetoothconnection
againif:
- the soundbaris not turnedon.
- the sourcedeviceis not turnedon, or its Blue-
toothfunctionality is offor is insleep mode.
• If boththe Bluetoothconnected deviceand the
one connectedto the AUDIO IN are played
simultaneously, only the Bluetooth sound can
beheard.
Performany of the followings.
- Terminate the Bluetooth connectiononthe audio
sourcedevice.
Referthe operating manual supplied with the
device.
- Turn off the Bluefooth stereo audio source
device.
- Turn offthis sound bar.
Note:
The volume of this soundbarmaynot becontrolled
as intendeddependingon the device.
Bluetoothoperation buttons
(remotecontrolonly)
O Press the button to playor pause.
O Press the button to skip up.
O Press the button to skip down.
Manypotentialproblemscan be resolvedby the
ownerwithoutcallinga servicetechnician.
If something is wrongwith this product,checkthe
following before calling your authorizedSHARP
dealeror servicecenter.
Possiblecause
Symptom
Nosound is heard.
Noiseis heard
duringplayback.
Whena button
is pressed, t he
soundbardoesnot
respond.
Thepoweris not
turnedon.
• Isthe inputsignal
(selection) set
properly?
• Isthe volume levelset
to minimum?
• Is muting activated?
• Are theconnections
madecorrectly?
• Isthe soundbartoo
farfromthe Bluetooth
stereoaudiosource
device? (HT-SB3O)
• Isthe soundbarpaired
withthe Bluetooth
stereoaudiosource
device? (HT-SB30)
• Movethe sound
barawayfromany
computers or mobile
phones.
• Setthis sound barto
the stand-by modeand
thenturn it backon.
• If the souod barstill
malfunctions, resetit.
(Referto page 7.)
• Isthe soundbar
unplugged? ( Referto
page10)
• Theprotection circuit
maybeactivated.
Unplugandpluginthe
powercordagainafter
5 minutesor more.
Bluetooth sound
is interrupted o r
distorted.
(HT-SB30)
• tsthesoundbar
too neartoa device
that generates
electromagnetic
radiation?
• Isthereanyobstacle
between the sound
barandthe Bluetooth
stereoaudiosource
device?
Possible c ause
Symptom
The remote control
doesnotoperate
properly.
The sound bar
cannotbetumed
onwiththe remote
control.
TVcannotbe
operated withthe
remotecontrol.
• Isthe battery polarity
correct?
• tsthe battery dead?
• Isthedistance or angle
incorrect?
• Are thereany
obstructions infrontof
the soundbar?
• Istherea stronglight
shiningonthe remote
sensor?
• Isthe remote control
for another equipment
usedsimultaneously?
• IstheAC power cord
of the sound bar
plugged in?
• Isthe battery inserted?
• Depending o nthe
model, s omeor all
functionsmaynotbe
operable usingthe
remote control o fthis
soundbar.Inthis case,
usethe remote control
supplied withthe TV.
Sudden temperature changes, s torageor operation
inanextremely humidenvironment m aycausecon-
densationinsidethe cabinetor on the transmitter
on the remotecontrol.
Condensation c ancausethe sound barto malfunc-
tion. If thishappens, l eavethe power on until n ormal
operationis possible(about 1 hour).Wipeoff any
condensationon the transmitterwith a soft cloth
beforeoperatingthe sound bar.
Make sure to disconnectall audio input cables
attachedto the sound bar beforeperformingthe
factory reset.
1. Unplug theAC power cord.
z_
Press and hold ON/STAND-BY button
and the SURROUNDbutton and plug the
AC power cord.
Press and hold ON/STAND-BY button
and the PAIRINGbutton and plug the AC
power cord.
3. Press the ON/STAND-BYbutton
Caution:
This operation will erase all data stored in
memory.
When this product is subject to strong external
interference(mechanicalshock, excessivestatic
electricity,abnormalsupply voltage due to light-
ning, etc.) or if it is operatedincorrectly,it may
malfunction.
If such a problem occurs, dothe following:
1 Set the sound bar to the stand-bymode and
turn the poweron again.
2 If the soundbaris notrestoredinthe previous
operation,unplugand plug inthe sound bar,
andthenturn the poweron.
Whenyoufailto perform operations properly, the fol-
lowingmessages aredisplayedonthe soundbar.
Display Meaning
-_ • Whentheprotection circuit
Powerindica- is activated.
tor (blinksred)
(*): Should the same message appear even if
the sound bar is unpluggedand plugged in
or is set to the stand-bymodeand on again,
contactyourlocal dealerwhereyoupurchased
the soundbar.
Periodically wipe the cabinetwith a soft cloth.
Caution:
• Donot usechemicals for cleaning (petrol,paint
thinner,etc.).It maydamagethe cabinetfinish.
Do not apply oil to the insideof each component.
It maycause malfunctions.
As part of ourpolicy of continuousimprovement,
SHARPreserves the right to make design and
specification changes for product improve-
ment without prior notice. The performance
specification figures indicated are nominal
values of production unit. There may be some
deviationsfrom these values in individual unit.
Power source DCIN 17V--'=:2.8A:AC/DC
adaptor
(AC 100- 240V~ 50/60Hz)
Power 10W
consumption
Maximum
outputpower
RMS:Total40Watts
20Watts perchannelinto
6 ohmsat 1 kHz, 10%total
harmonicdistortion
FTC: Minimum14watts
perchannelinto3 ohmsat
100Hz to
20kHz, 1%total harmonic
distortion
Speaker 2-waySpeakerSystem
2-1/4"(5.7cm)Woofer
1"(2.5cm)SoftDome
Input Analoginput (AUDIOIN):
terminals Stereominijack _ 3.5ram
500mY/ 47kohms
Frequency 2.4 GHzband (2,400GHz
Band - 2,480GHz)
(HT-SB30)
Compatible A2DP(AdvancedAudio
Bluetooth DistributionProfile), A VRCP
Profile (AudioNideoRemoteControl
(HT-SB30) Profile)
Bluetooth 2.1 +EDR
Dimensions Width: 37"(940mm)
Height:2-7/8"(73mm)
Depth:3-1/4"(83ram)
Weight 5.07lbs.(2.3kg)
HT-SB30 EN SPECIAL NOTES A2.inddl 1
L
2013-01-07 06:55:01
