Installing in a built-in cabinet

1
2

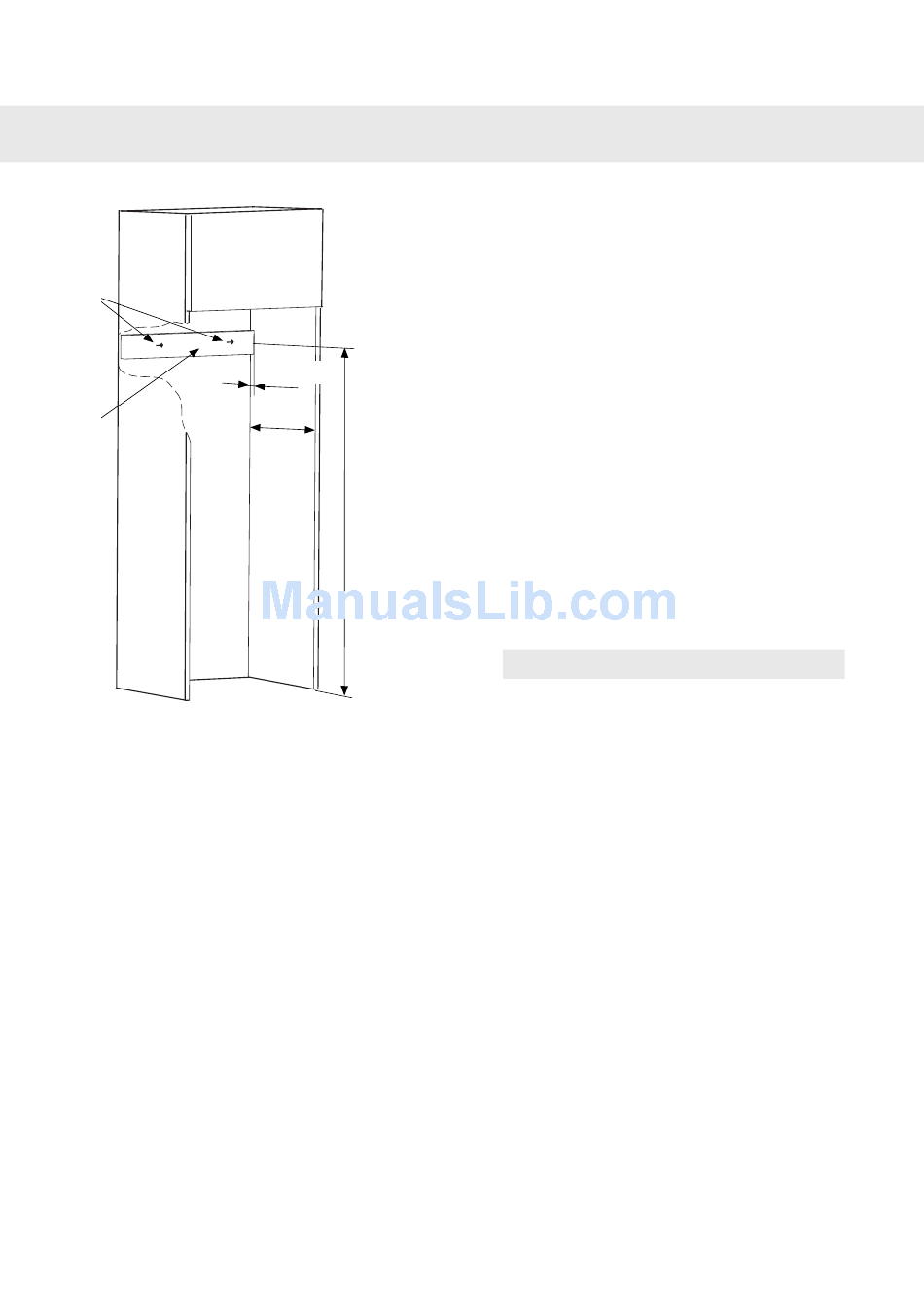

Figure 1
The dryer cabinet has a depth of 600 mm.
Use screws and possibly plugs of a suitable length
to match the material of the built-in cabinet's rear
wall.
1. Measure the assembly depth "B" where the
dryer cabinet is to be mounted (see figure 1).
2. If the assembly depth "B" is greater than 600
mm a wooden batten (2) with the thickness "A"
must be cut. The wooden batten is not included
in the delivery.
3. Slide the dryer cabinet into position so that the
front aligns with the built-in cabinet. Keep the
door closed.
4. There should be an air gap of at least 10 mm
above the dryer cabinet (see figure 2) in order
to get optimum performance from the dryer
cabinet.
14
A=B-600
B
DC7573
1500-1525
DC7583
1640-1665
5. Open the door. Align the dryer cabinet
horizontally according to the directions in the
section "Level adjustment".
6. Pull out the top hanger section and mark the
hole position with a pen on the wall behind.
7. Slide back the hanger section, close the door
and pull out the dryer cabinet again. If the
assembly depth "B" is the same as the depth
of the dryer cabinet you can go directly to point
10 below.
8. Cut a wooden batten (2) with the thickness "A"
and length between 500-575 mm. It must be
as thick as the difference between the
assembly depth "B" and 600 mm. If the
assembly depth "B" is 620 mm then the batten
thickness "A" must be 20 mm.
9. Screw the wooden batten into position with two
screws (1) on the wall behind the dryer cabinet
so that it is at the same height as the marked
holes, as set out in point 6.
NOTE!
Do not position the screws for the wooden
batten in the same position as the assembly
holes marked on the wall for the dryer cabinet.
Ensure that the wooden batten is screwed
firmly to the wall.
10. Plug the connection cable into the power outlet
and ensure that the cable is not crushed and
can be easily pulled out.
11. Slide in the dryer cabinet in the built-in cabinet.
Make sure that the rear wall of the dryer
cabinet lies against the wall in the built-in
cabinet or the wooden batten (2). Also check
that the front of the dryer cabinet aligns with
the built-in cabinet.
12. Pull out the top hanger section and screw the
cabinet into position using the supplied
securing screws and fit the cover plugs (see
figure 3).
