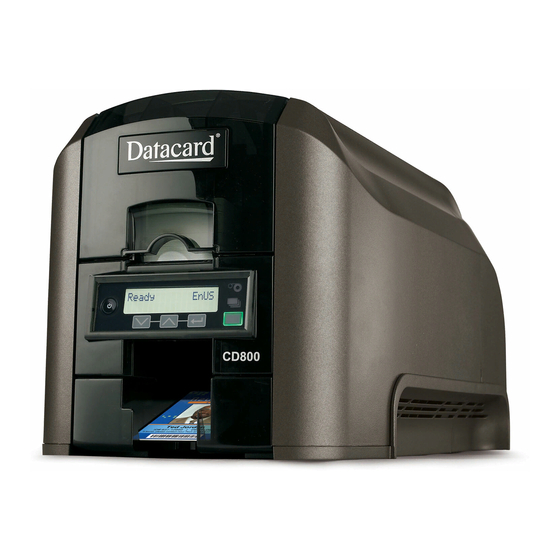

DataCard CD800 Product Manual
Card printer with inline lamination module
Hide thumbs
Also See for CD800:
- User manual (114 pages) ,
- Quick install manual (21 pages) ,
- Installation and administrator's manual (130 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for DataCard CD800
Summary of Contents for DataCard CD800
-
Page 2: Table Of Contents
DATACARD® CD800™ CARD PRINTER WITH INLINE LAMINATION MODULE......................3 NEW FEATURES ..................3 MARKET OPPORTUNITIES ................5 CD800 PRINTER WITH INLINE LAMINATION FEATURES ......5 OPTIONAL TACTILE IMPRESSION FEATURE ..........6 CONSUMABLE SUPPLIES OVERVIEW ............7 LAMINATE OVERVIEW ................. 9 BID SPECIFICATIONS ................ -
Page 3: Datacard® Cd800™ Card Printer With Inline Lamination Module
CD800 CLM. The CD800 CLM is a single system that encodes, prints and laminates in one pass and allows users to utilize a variety of new features. - Page 4 The optional bar code reader provides the ability to read serialized laminates, adding an additional layer of security. Modularity The CD800 CLM Module can be added to existing CD800 duplex printers. It’s an option for any CD800 printer purchased after July 2, 2012 and with serial number C20000, C19192, C19193 or C19194.
-
Page 5: Market Opportunities
The CD800 CLM should be targeted toward any customer that is looking for enhanced security and durability features for their card program. CD800 PRINTER WITH INLINE LAMINATION FEATURES The CD800 printer has the following features that make it a reliable choice for any card printing needs. ... -
Page 6: Optional Tactile Impression Feature
OPTIONAL TACTILE IMPRESSION FEATURE The new patent pending tactile impression feature is available as an option with the new CD800 CLM. There are two components to the tactile impression feature: the tactile impresser (hardware) and the tactile impression die (supply). -
Page 7: Consumable Supplies Overview
Worldwide representation creates a fast, direct connection with the supplies and support you need, when and where you need them. The CD800 CLM utilizes the same ribbons as the CP80 Plus printer and other printers in the CD series, providing increased flexibility. - Page 8 • • Metallic Gold 1,500 Cards • • Scratch-off (Silver Wavy) 1,500 Cards • • Refer to the CD800 CLM Supplies Data Sheet for the most current information on ribbons, durability and security supplies. Page 8 of 19 November 2013...
-
Page 9: Laminate Overview
LAMINATE OVERVIEW The CD800 CLM has an option for either one or two laminators, both capable of running the new DuraShield™ Clear and Holographic Overlays, Datacard ® ® DuraGard Clear and Holographic Laminates, and Clear or Holographic Topcoats. Two laminators allow customers to use two different durability or security products, as well as provide front and back lamination. -
Page 10: Bid Specifications
Datacard proprietary ribbons enable all enhanced product features that help you print high-quality cards more easily. When a genuine Datacard ribbon is loaded into a CD Series card printer, the driver automatically adjusts printer settings to match the ribbon type and helps ensure the best possible image quality on the cards. - Page 11 Storage Conditions 5°F to 140°F (-15°C to 60°C) 10% to 90% - Humidity V5.0 CD800 CLM Windows driver Support for color, monochrome, and UV printing; magnetic stripe read and encode; smart card and lamination Printing automatically adjusted to match printer supplies and installed options.
- Page 12 L1+L2+Impresser Dimensions: 26.6in X 10.6in X 20.2in (675mm X 270mm X 513mm) Weight: 36.96 lbs. (16.8kg) Physical dimensions-CD800 Lamination Module only Dimensions: 23.2in X 10.6in X 11.4in (589mm X 270mm X 289mm) Weight: 29.92 lbs. (13.6kg) ...
-
Page 13: Frequently Asked Questions
C19194. Q: Is smart card encoding field upgradeable for the CD800 CLM printer? A: Yes, smart card encoding for the printer can be upgraded in the field by a Datacard authorized service representative or a trained Datacard Channel Partner. Page 13 of 19... - Page 14 A. No, this must be purchased at time of printer order. Q. Is the second laminator option field upgradeable? A. Yes, this can be purchased later, and can be upgraded in the field by a Datacard authorized service representative or a trained Datacard Channel Partner.
- Page 15 Q: Can the CD800 CLM be used as a standalone laminator? A: No, the CD800 CLM must be attached to a CD800 duplex printer in order to work. Q: What are the power requirements? A: The CD800 CLM printer requires 100-240V, 50/60 Hz.
-
Page 16: Important Dates
SERVICE & SUPPORT Q: What is the warranty for the CD800 CLM printer? A: The CD800 card printer has a 30 month warranty for both the printer and printhead. Complete warranty details can be found on PartnerPage Q: What service and support is available for the CD800 CLM printer? A: Please see the Service Announcement on PartnerPage for all service options. -
Page 17: Product Spotlight Statements
Power Statement ® CD800™ card printer with inline lamination module is the solution card issuers The new Datacard need to face emerging challenges in their secure credential programs — you get exceptional program security, extended card life and long-term budget protection. -
Page 18: Competitive Analysis
COMPETITIVE ANALYSIS We have developed a competitive comparison for the CD800 CLM card printer. This competitive comparison can be accessed on PartnerPage. Zebra ZXP Series 7 Card Datacard® CD800™ CLM Instant Fargo DTC4500 Evolis Securion Benefit Printer Issuance System GENERAL... -
Page 19: Additional Information
CD800 printer with inline lamination and supplies. Datacard, CD800, DuraGard, DuraShield, ID Works, ID Centre, Intelligent Supplies Technology, PartnerPage and the Color Blue with Platinum Flecks are trademarks, registered trademarks and/or service marks of DataCard Corporation in the United States and/or other countries.
