6.3 Function Overview and Key Definitions
6.3.1

Function Overview

•
Use of a two-way serial communication protocol,
simple operation of the display via the external
5-key keypad.
•
Speed display: displaying the real-time speed as
SPEED, the maximum speed as MAXS and the
average speed as AVG.
•
km or mile: The user can choose between km
and mile.
•
Intelligent battery level indication: With an
optimization algorithm, a stable display of the
battery level is ensured, and the problem of fluc-
tuant battery level indication common with other
displays is avoided.
•
Automatic light-sensitive lights:
taillight and display light will be automatically
turned on/ off depending on lighting conditions.
•
5 levels off display backlighting: Different levels
•
5-Level-Support: setting power Levels 1 to 5
•
Trip distance indication: The maximum distance
displayed is 99999. Single-trip distances TRIP or
the total distance TOTAL can be displayed.
•
Display of error messages
•
Walk assistance
•
Settings: Various parameters, e.g. mode, wheel
diameter, speed limit etc., can be set on the com
puter via a communication cable. See the setting
•
Maintenance warning (this function can be deac
tived): Maintenance warning information is dis
played based on battery charge cycles and riding
distance. The display automatically estimates the
battery life and gives warnings when the number
of charge cycles exceeds the set value. A warning
will also be displayed when the accumulated total
riding distance exceeds the set value.
DEALER MANUAL MAX DRIVE SYSTEM

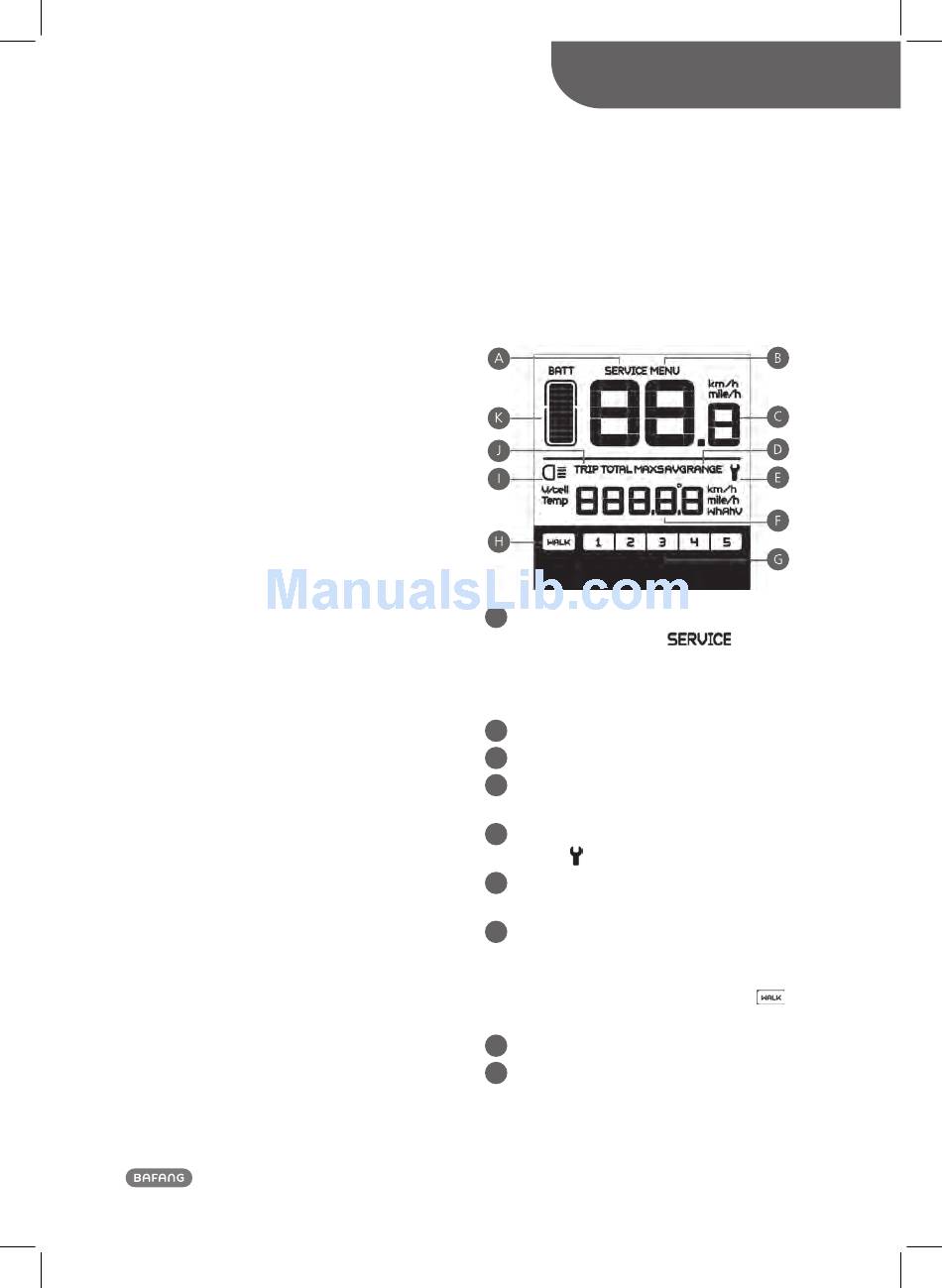

6.3.2
A
Maintenance warning: When there is a need for
The headlight, maintenance the symbol
played (riding distance or the number of battery
charge cycles exceed the set value, function can
be deactivated)
Menu
B
C
Speed display: display of the speed, km/h or mph
D Speed mode: average speed (AVG km/h), maxi
mum speed (MAXS km/h)
E
Error display: When a fault is detected the
symbol
F
Distance indication: display of the distance
depending on the setting.
G Level indication: The chosen level 1–5 will be
displayed; if there is no numeric display, it means
-
that there is no assistance (by the motor). If the
-
rider is walking and pushing the e-bike,
be displayed.
H
Walk assistance
I
Headlight indication: only shows when headlight
or backlight are on
DISPLAY (DP CO7.UART)

Information on the Display

will be displayed.
-
will be dis
-
will
46
