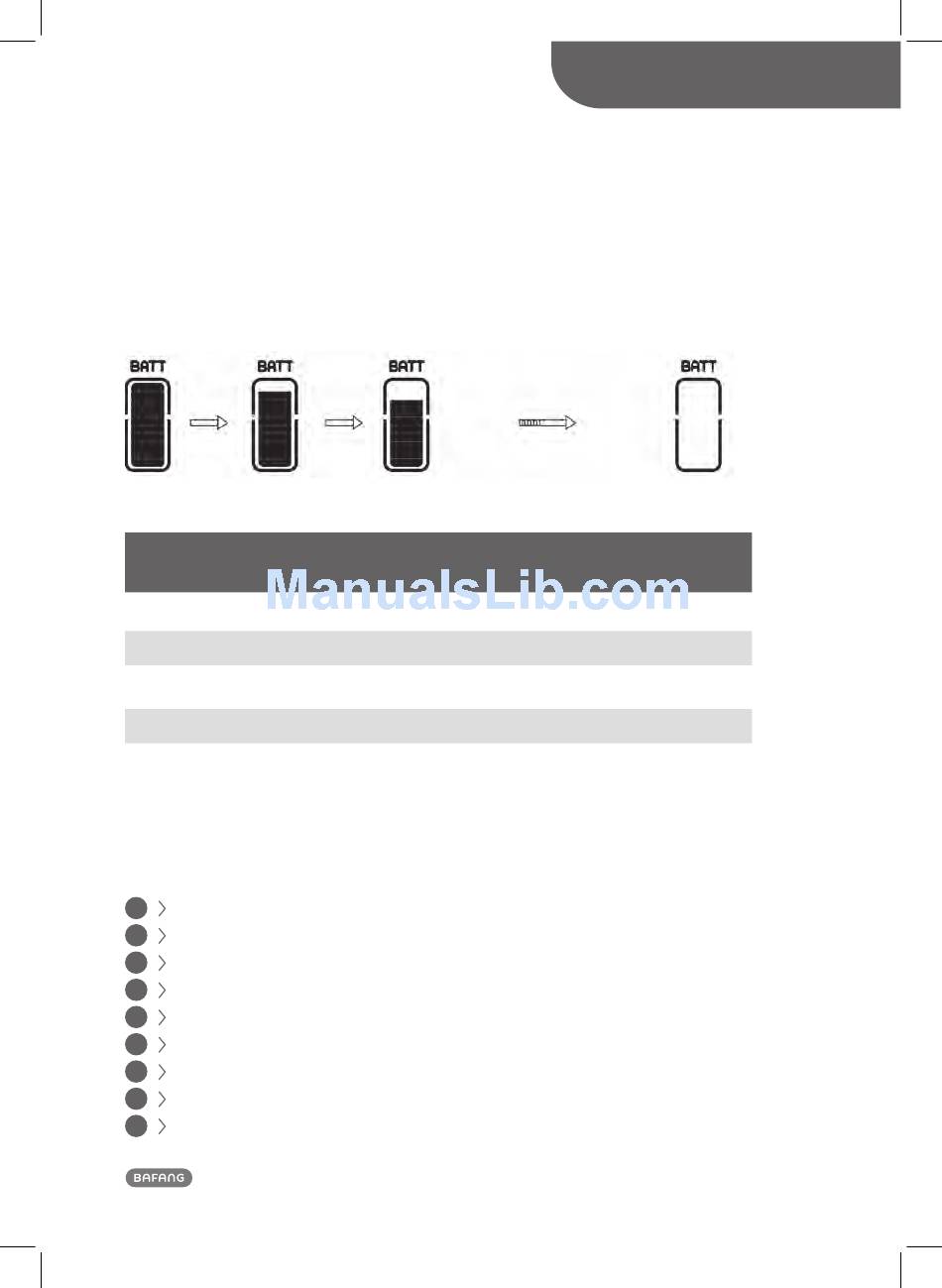

Battery Status Indication

When the battery status is normal, a certain number of the battery LCD segments as well as the border light up
according to the actual quantity of charge. If all of the 10 segments will black out with the border blinking, the
battery needs to be charged immediately.
Battery status indication
Number of Charge in
Segments Percentage
10
≥ 90 %
80 % ≤ C < 90 %
9
70 % ≤ C < 80 %
8
7 60 % ≤ C < 70 %
6.5

Parameter Setting

6.5.1 Items to be Set:
1 Data reset
2
km/mile
3
Light sensitivity
4
Display backlight brightness
5
Automatic off time
6
Maintenance warning settings
7
Input of the password
8
Wheel diameter selection
9
Setting speed limit
DEALER MANUAL MAX DRIVE SYSTEM
Number of Charge in
Segments Percentage
6 50 % ≤ C < 60 %
5 45 % ≤ C < 50 %
35 % ≤ C < 45 %
4
25 % ≤ C < 35 %
3
DISPLAY (DP C07.UART)
Number of Charge in
Segments Percentage
2 15 % ≤ C < 25 %
1 5 % ≤ C < 15 %
border blinking C < 5 %
