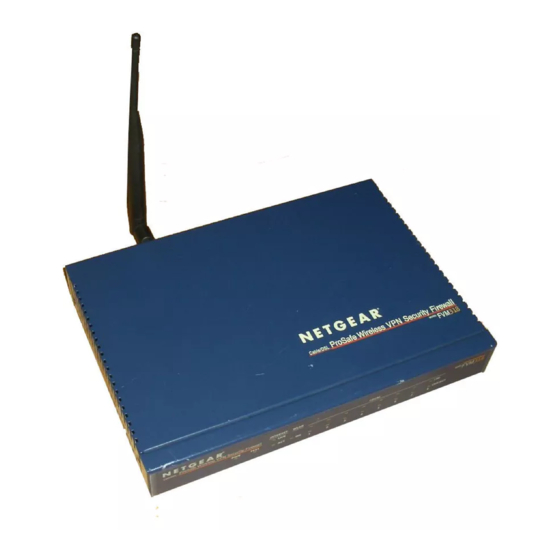

NETGEAR FVM318 Reference Manual

Cable/dsl prosafe wireless vpn security firewall
Hide thumbs Also See for FVM318:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
Reference Manual for the
Model FVM318 Cable/DSL
ProSafe Wireless VPN
Security Firewall
Reference Manual
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
Phone 1-888-NETGEAR
SM-FVM318NA-0
October 2002

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR FVM318

Summary of Contents for NETGEAR FVM318

  • Page 1 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Reference Manual NETGEAR, Inc. 4500 Great America Parkway Santa Clara, CA 95054 USA Phone 1-888-NETGEAR SM-FVM318NA-0 October 2002...
  • Page 2 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 4 Firewall. World Wide Web NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL) http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer or Netscape are required.

  • Page 6: Table Of Contents

    Cable or DSL Modem Requirement ..............2-1 LAN Configuration Requirements ................2-2 Internet Configuration Requirements ...............2-2 Where Do I Get the Internet Configuration Parameters? ........2-2 Connecting the FVM318 firewall to Your LAN ..............2-4 Connecting the FVM318 firewall to the Internet .............2-8 Contents...
  • Page 7 Configuring Wireless Connectivity ................2-17 Testing Your Internet Connection ..................2-21 Chapter 3 Protecting Your Network Protecting Access to Your FVM318 firewall ..............3-1 Configuring Basic Firewall Services ................3-3 Blocking Functions, Keywords, Sites, and Services ..........3-3 Block Services ....................3-5 Setting Times and Scheduling Firewall Services ............3-7...
  • Page 8 Dropped Packets ....................5-7 Enabling Security Event E-mail Notification ..............5-8 Backing Up, Restoring, or Erasing Your Settings ............5-9 Running Diagnostic Utilities and Rebooting the Router ..........5-12 Enabling Remote Management ..................5-13 Upgrading the Router’s Firmware .................5-14 Chapter 6 Wireless Configuration Considerations For A Wireless Network .................6-1 Security ........................6-1 Placement and Range ....................6-1 Wireless Settings ......................6-2...
  • Page 9 Troubleshooting the Web Configuration Interface ............8-4 Troubleshooting the ISP Connection ................8-5 Troubleshooting a TCP/IP Network Using a Ping Utility ..........8-6 Testing the LAN Path to Your Firewall ..............8-6 Testing the Path from Your PC to a Remote Device ..........8-7 Restoring the Default Configuration and Password ............8-8 Using the Default Reset button ................8-8 Problems with Date and Time ..................8-9 Appendix A...
  • Page 10 Infrastructure Mode ..................B-14 Extended Service Set Identification (ESSID) ............B-14 Authentication and WEP Encryption ..............B-15 Wireless Channel Selection .................. B-15 Ethernet Cabling ......................B-17 Uplink Switches, Crossover Cables, and MDI/MDIX Switching ......B-17 Cable Quality ......................B-18 Appendix C Preparing Your Network Preparing Your Computers for TCP/IP Networking ............
  • Page 11 Contents...

  • Page 12: Lan Tcp/Ip Setup

    List of Procedures Procedure 2-1: Record Your Internet Connection Information ........2-3 Procedure 2-2: Connecting the Firewall to Your LAN ............2-4 Procedure 2-3: Auto-Detecting Your Internet Connection Type ........2-9 Procedure 2-4: Wizard-Detected Login Account Setup ..........2-10 Procedure 2-5: Wizard-Detected Dynamic IP Account Setup ........2-11 Procedure 2-6: Wizard-Detected Fixed IP (Static) Account Setup ......2-13 Procedure 2-7: Manual Configuration .................2-14 Procedure 2-8: Serial Port Internet Connection Configuration ........2-17...

  • Page 14: Preface

    Preface About This Manual Thank your for purchasing the NETGEAR ™ FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall. This manual describes the features of the firewall and provides installation and configuration instructions. Audience This reference manual assumes that the reader has intermediate to advanced computer and Internet skills.

  • Page 15: Special Message Formats

    Technical Support For help with any technical issues, contact Customer Support at 1-888-NETGEAR, or visit us on the Web at www.NETGEAR.com. The NETGEAR Web site includes an extensive knowledge base, answers to frequently asked questions, and a means for submitting technical questions online.
  • Page 16 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall About This Manual...

  • Page 18: Introduction

    Key Features The FVM318 offers the following features. A Powerful, True Firewall Unlike simple Internet sharing NAT routers, the FVM318 is a true firewall, using stateful packet inspection to defend against hacker attacks. Its firewall features include: • Denial of Service (DoS) protection Automatically detects and thwarts Denial of Service (DoS) attacks such as Ping of Death, SYN Flood, LAND Attack and IP Spoofing.

  • Page 19: Content Filtering

    Internet sites. Configurable Auto Uplink™ Ethernet Connection With its internal 8-port 10/100 switch, the FVM318 can connect to either a 10 Mbps standard Ethernet network or a 100 Mbps Fast Ethernet network. Both the local LAN and the Internet WAN interfaces are autosensing and capable of full-duplex or half-duplex operation.

  • Page 20: Easy Installation And Management

    Dynamic DNS services to register your dynamic IP address. Easy Installation and Management You can install, configure, and operate the FVM318 within minutes after connecting it to the network. The following features simplify installation and management tasks: •...
  • Page 21 These functions allow you to test Internet connectivity and reboot the firewall. You can use these diagnostic functions directly from the FVM318 when your are connect on the LAN or when you are connected over the Internet via the remote management function.

  • Page 22: What's In The Box

    • Support information card If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the product for repair. The Firewall’s Front Panel...

  • Page 23: The Firewall's Rear Panel

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall These LEDs are green when lit, except for the TEST LED, which is amber. Table 1-1: LED Descriptions Label Activity Description POWER Power is supplied to the firewall.

  • Page 24: Connecting The Firewall To The Internet

    The FVM318 firewall connects to your LAN via twisted-pair Ethernet cables. Computer Requirements To use the FVM318 firewall on your network, each computer must have an installed Ethernet Network Interface Card (NIC) and an Ethernet cable. If the computer will connect to your network at 100 Mbps, you must use a Category 5 (CAT5) cable such as the one provided with your firewall.

  • Page 25: Lan Configuration Requirements

    For Macintosh computers, open the TCP/IP or Network control panel. • You may also refer to the FR328S Resource CD for the NETGEAR Router ISP Guide which provides Internet connection information for many ISPs. Once you locate your Internet configuration parameters, you may want to record them on the page below according to the instructions in “Record Your Internet Connection Information”...

  • Page 26: Procedure 2-1: Record Your Internet Connection Information

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 2-1: Record Your Internet Connection Information Print this page. Fill in the configuration parameters from your Internet Service Provider (ISP). ISP Login Name: The login name and password are case sensitive and must be entered exactly as given by your ISP.

  • Page 27: Connecting The Fvm318 Firewall To Your Lan

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Connecting the FVM318 firewall to Your LAN This section provides instructions for connecting the FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall to your Local Area Network (LAN). Note: The Resource CD included with your firewall contains an animated Installation Assistant to help you through this procedure.
  • Page 28 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Disconnect the Ethernet cable (A) from your computer which connects to your Cable or DSL modem. DSL modem Figure 2-1: Disconnect the Cable or DSL Modem Connect the Ethernet cable (A) from your Cable or DSL modem to the FR328S’s Internet port.
  • Page 29 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Connect the Ethernet cable (B) which came with the firewall from a Local port on the router to your computer. Cable or DSL modem FVS318 C bl /DSL P S f VPN Fi...
  • Page 30 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Now that the Cable or DSL Modem, firewall, and the computer are turned on, verify the following: • When power on the firewall was first turned on, the PWR light went on, the TEST light turned on within a few seconds, and then went off after approximately 10 seconds.

  • Page 31: Connecting The Fvm318 Firewall To The Internet

    Internet. There are two ways you can configure your firewall to connect to the Internet: • Let the FVM318 auto-detect the type of Internet connection you have and configure it. • Manually choose which type of Internet connection you have and configure it.

  • Page 32: Procedure 2-3: Auto-Detecting Your Internet Connection Type

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 2-3: Auto-Detecting Your Internet Connection Type The Web Configuration Manager built in to the firewall contains a Setup Wizard that can automatically determine your network connection type.

  • Page 33: Procedure 2-4: Wizard-Detected Login Account Setup

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Next, the Setup Wizard will report which connection type it has discovered, and then display the appropriate configuration menu. If the Setup Wizard finds no connection, you will be prompted to check the physical connection between your firewall and the cable or DSL modem.

  • Page 34: Procedure 2-5: Wizard-Detected Dynamic Ip Account Setup

    If you enter an address here, after you finish configuring the firewall, reboot your PCs so that the settings take effect. Click on Apply to save your settings. Click on the Test button to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 8, Troubleshooting”.
  • Page 35 MAC address of that PC. This feature allows your firewall to masquerade as that PC by using its MAC address. Click on Apply to save your settings. Click on the Test button to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 8, Troubleshooting”.

  • Page 36: Procedure 2-6: Wizard-Detected Fixed Ip (Static) Account Setup

    PCs after configuring the firewall for these settings to take effect. Click on Apply to save the settings. Click on the Test button to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 8, Troubleshooting.

  • Page 37: Manually Configuring Your Internet Connection

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Manually Configuring Your Internet Connection You can manually configure your firewall using the menu below, or you can allow the Setup Wizard to determine your configuration as described in the previous section.
  • Page 38 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Select whether your Internet connection requires a login. Select Broadband with Login if you normally must launch a login program such as Enternet or WinPOET in order to access the Internet.
  • Page 39 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Click Apply to save your settings. Click on the Test button to test your Internet connection. If the NETGEAR website does not appear within one minute, refer to Chapter 8, Troubleshooting.

  • Page 40: Configuring Wireless Connectivity

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Configuring Wireless Connectivity Use the procedure below to configure an Internet connection via the serial port of your firewall. Procedure 2-8: Serial Port Internet Connection Configuration There are three steps to configuring the serial port of your firewall for an Internet connection:...
  • Page 41 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Configure the Serial Port of the Firewall. Note: To connect to the firewall, your computer needs to be configured to obtain an IP address automatically via DHCP. If you need instructions on how to do this, please refer to Appendix C, "Preparing Your...
  • Page 42 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Choose the type of Serial Port Usage: • Auto-rollover with a wait time in minutes • Primary Internet connection Fill in the ISP Internet configuration parameters as appropriate: •...
  • Page 43 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall • Select the Modem Type Figure 2-15: Modem Properties menu • If you are using the “Generic Modem” selection and configuring your own modem stings, fill in the Modem Properties settings.

  • Page 44: Testing Your Internet Connection

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Testing Your Internet Connection After completing the Internet connection configuration, your can test your Internet connection. Log in to the firewall, then, from the Setup Basic Settings link, click on the Test button. If the...
  • Page 45 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall 2-22 Connecting the Firewall to the Internet...

  • Page 46: Protecting Your Network

    Chapter 3 Protecting Your Network This chapter describes how to use the basic firewall features of the FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall to protect your network. Protecting Access to Your FVM318 firewall For security reasons, the firewall has its own user name and password. Also, after a period of inactivity for a set length of time, the administrator login will automatically disconnect.

  • Page 47: Procedure 3-1: Changing The Built-In Password

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 3-1: Changing the Built-In Password Log in to the firewall at its default LAN address of http://192.168.0.1 with its default User Name of , default password of...

  • Page 48: Configuring Basic Firewall Services

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 3-1: Changing the Administrator Login Timeout firewall For security, the administrator's login to the configuration will timeout after a period of inactivity. To change the login timeout period: In the Set Password menu, type a number in ‘Administrator login times out’...

  • Page 49: Procedure 3-2: Block Functions, Keywords, And Sites

    The section below explains how to configure your Procedure 3-2: Block Functions, Keywords, and Sites The FVM318 firewall allows you to restrict access to Internet content based on functions such as Java or Cookies, Web addresses and Web address keywords.

  • Page 50: Block Services

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall To block ActiveX, Java, Cookies, or Web Proxy functions for all Internet sites, click the check box next to the function and then click Apply. To enable keyword blocking, check “Turn keyword blocking on”, enter a keyword or domain in the Keyword box, click Add Keyword, then click Apply.

  • Page 51: Procedure 3-3: Block Services

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 3-3: Block Services Log in to the firewall at its default LAN address of http://192.168.0.1 with its default User Name of , default password of , or using whatever User Name, Password and...

  • Page 52: Setting Times And Scheduling Firewall Services

    Setting Times and Scheduling Firewall Services The FVM318 firewall uses the Network Time Protocol (NTP) to obtain the current time and date from one of several Network Time Servers on the Internet. In order to localize the time for your log entries, you must select your Time Zone from the list.
  • Page 53 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Log in to the firewall at its default LAN address of http://192.168.0.1 with its default User Name of , default password of , or using whatever User Name, Password and...

  • Page 54: Procedure 3-5: Scheduling Firewall Services

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 3-5: Scheduling Firewall Services If you enabled services blocking in the Block Services menu or Port forwarding in the Ports menu, you can set up a schedule for when blocking occurs or when access isn't restricted.
  • Page 55 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall 3-10 Protecting Your Network...

  • Page 56: Virtual Private Networking

    Chapter 4 Virtual Private Networking This chapter describes how to use the virtual private networking (VPN) features of the FVM318 firewall. VPN communications paths are called tunnels. VPN tunnels provide secure, encrypted communications between your local network and a remote network or computer.

  • Page 57: Planning A Vpn

    Will the remote end be a network or a single PC? Note: To connect remote networks, the LAN IP address ranges of each connected network must be different. The connection will not work if both ends are using the NETGEAR default address range of 192.168.0.x.

  • Page 58: Sample Network To Network Vpn Tunnel Configuration Worksheet

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall • At least one side must have a fixed IP address. If one side has a dynamic IP address, the side with a dynamic IP address must always be the initiator of the connection.

  • Page 59: Procedure 4-1: Configuring A Network To Network Vpn Tunnel

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 4-1: Configuring a Network to Network VPN Tunnel Follow this procedure to configure a VPN tunnel between two LANs via a FVS318 at each end. FVS318 FVS318...

  • Page 60: Reserved Ip Addresses

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Click the LAN IP Setup link from the Advanced section of the main menu to display the menu shown in Figure 4-4. Figure 4-4: Configuring the Local LAN (A) via the LAN IP Setup Menu Change the settings as follows: •...
  • Page 61 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Click Apply. Because you changed the firewall’s IP address, you are now disconnected. Reboot all PCs on network A. The network configuration should now look like this: 192.168.0.1 192.168.3.1...
  • Page 62 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Click the button next to an unused tunnel profile in the table and click Edit. The VPN Settings - Main Mode window opens as shown in Figure 4-7...
  • Page 63 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall • Enter the Remote Gateway IP Address which is the WAN IP Address for the second FVS318 (B). In this example, use 10.0.0.1 for the Gateway IP Address.
  • Page 64 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Configure the VPN Settings of the FVS318 firewall (B) on the remote LAN. To configure the second FVS318 (B), refer to the configuration worksheet and do the following: Log in to the FVS318 router (B) at its default LAN address of http://192.168.0.1 with its...
  • Page 65 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall • Enter the Remote IP Address and the Remote IP Subnet Mask. In this example, 192.168.3.1 is the Remote network address, which is the LAN network address of the first FVS318 (A), and 255.255.255.0 is the Subnet Mask.

  • Page 66: Using The Vpn Connection

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Procedure 4-2: Check the VPN Connection To check the VPN Connection, you can initiate a request from one network to the other. If one FVS318 has a dynamically assigned WAN IP address, you must initiate the request from that FVS318’s network.

  • Page 67: Configuring A Remote Pc To Network Vpn

    DSL modem, or other means, and we will assume it has a dynamically assigned IP address. The PC must have a VPN client program that supports IPSec. NETGEAR recommends and supports the SafeNet SoftRemote (or Soft-PK) Secure VPN Client for Windows, Version 5 or later.

  • Page 68: Procedure 4-3: Configuring A Remote Pc To Network Vpn

    Note: If your situation is different, for example, if your remote PC is connected through a simple cable/DSL router, or if you wish to use different VPN client software, please refer to NETGEAR's web site for additional VPN applications information.
  • Page 69 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Click the button next to an unused profile in the table and click Edit. The VPN Settings - IKE window opens as shown in Figure 4-12 below: Figure 4-12: VPN Edit menu for connecting with a VPN client Choose Main Mode for IKE automated method for establishing a shared security policy and authenticated keys.
  • Page 70 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Since the remote network is a single PC, enter 255.255.255.255 for the Subnet Mask. Since the remote PC has a dynamically assigned IP address, enter 0.0.0.0 as the Remote Gateway IP Address.
  • Page 71 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Configure the SafeNet software via its Security Policy Editor Run the SafeNet Security Policy Editor program and, using the “Sample PC to Network IKE VPN Tunnel Settings Configuration Worksheet” on page 4-12, create a VPN Connection.
  • Page 72 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall • Enter the public (WAN) IP Address of the FVS318 in the field directly below the ID Type menu. In this example, would be used. 24.0.0.1 Configure the Security Policy in the SafeNet VPN Client Software.
  • Page 73 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall From the Options menu at the top of the Security Policy Editor window, select Global Policy Settings. Figure 4-15: Security Policy Editor Global Policy Options Increase the Retransmit Interval period to 45 seconds.
  • Page 74 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall In the Network Security Policy list on the left side of the Security Policy Editor window, click on My Identity. Figure 4-16: Security Policy Editor My Identity In the Select Certificate menu, choose None.
  • Page 75 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Configure VPN Client Authentication Proposal. These settings do not depend on your network information. In the Network Security Policy list on the left side of the Security Policy Editor window, expand the Security Policy heading by double clicking its name or clicking on the “+”...

  • Page 76: Check The Vpn Connection

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Check the VPN Connection To check the VPN Connection, you can initiate a request from the remote PC to the FVS318’s network. Since the remote PC has a dynamically assigned WAN IP address, it must initiate the request.

  • Page 77: Monitoring The Pc To Network Vpn Connection Using Safenet Tools

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall This will cause a continuous ping to be sent to the first FVS318. After between several seconds and two minutes, the ping response should change from “timed out” to “reply.”...

  • Page 78: Deleting A Security Association

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall The Connection Monitor screen for this connection is shown below: Figure 4-20: Connection Monitor screen In this example: • The FVS318 has a public IP WAN address of 134.177.100.11 •...

  • Page 79: Manual Keying

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Manual Keying As an alternative to IKE, you may use Manual Keying, in which you must specify each phase of the connection. Follow the steps to configure Manual Keying.
  • Page 80 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall The SPI should be a string of hexadecimal [0-9,A-F] characters, and should not be used in any other Security Association. Tip: For simplicity or troubleshooting, the Incoming and Outgoing SPI can be identical.

  • Page 81: Blank Vpn Tunnel Configuration Worksheets

    Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Blank VPN Tunnel Configuration Worksheets The blank configuration worksheets below are provided to aid you in collecting and recording the parameters used in the VPN configuration procedure. Table 4-3:...
  • Page 82 Reference Manual for the Model FVM318 Cable/DSL ProSafe Wireless VPN Security Firewall Table 4-4: PC to Network IKE VPN Tunnel Settings Configuration Worksheet IKE Tunnel Security Association Settings Connection Name: PreShared Key Secure Association -- Main Mode or Aggressive Mode:...
