Summary of Contents for Q-See QSD2014

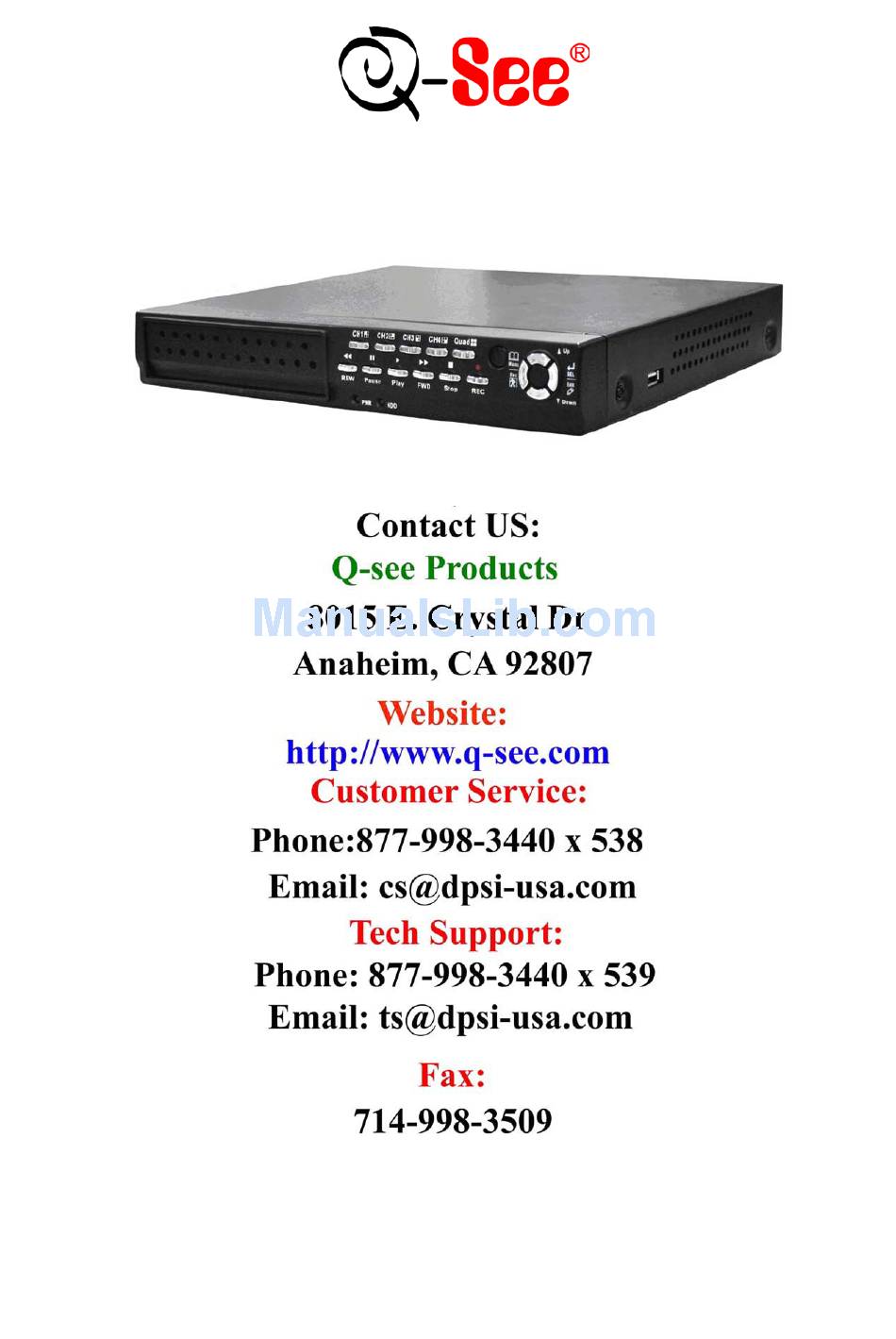

- Page 1 User’s Manual QSD2014 Rev031309...
-
Page 2: Table Of Contents
4.1 Firmware version ... 5 4.2 Detecting Installed Hard Drive ... 5 4.3 Format Hard Drive ... 5 Chapter 5： DVR Menu System ... 6 5.1 Browsing the Main Menu ... 6 5.2 Menu Directory ... 6 5.3 Camera Setup ... 6 5.4 Record Setup ... - Page 3 8.3 Program Running ... 16 8.3.1 HDD Play Mode ... 16 8.3.2 FILE Play Mode ... 17 Chapter 9： Specification ... 18 Chapter 10：Appendix ... 19 10.1 System Connection Layout ... 19 10.2 Accessories ... Error! Bookmark not defined. Q-See Product Warranty ... 20...
-
Page 4: Chapter 1： Dvr Features
Supports Event List and Search/Playback by specified time; Supports Hidden Channel and Playback display; Missing Video signal Alarm Function; Password Protection Function； Supports IR Remote Control； Supports SATA hard drive up to 500GB； Chapter 1： DVR Features QSD2014 User’s Manual... -
Page 5: Chapter 2：Layout
SEL/Edit #13 Up #14 Down #15 PWR #16 HDD #17 4 BNC video inputs Power Supply Input QSD2014 User’s Manual IR Receiver Stop recording / playing Record Enter / exit setup menu Select / modify item Move up Move down... -
Page 6: Remote Control
QSD2014 User’s Manual 2.3 Remote Control Channel Select and numbers 1-9 Number Display all Channels Menu Enter or Exit Menu Move Up ▲ ▼ Move Down Select /Modify Item Rewind/Move Left Fast Forward Move Left Play Recording/Move Right ● Record Pause ■... -
Page 7: Chapter 3： Dvr Installation
(3) Replace the top cover; 3.2 Connecting Camera and Monitor Attach the Camera cable to the DVR’s BNC video inputs, and DVR’s video output signal to Monitor’s video input jack respectively (refer to Chapter-2.2 Rear Panel shown) 3.3 Connecting Power Supply Please only use the power adapter supplied with the DVR. -
Page 8: Chapter 4：Starting The Dvr
CHECKING HDD…… MASTER [MAXTOR STM3250310A] FORMAT HDD CONFIRM (SELECT) FORMAT / (MENU) CANCEL? After turning on the unit, DVR will boot-up and display the current version and release date of the DVR firmware. During start up, DVR will automatically detect the installed hard drive and show the hard drive information. -
Page 9: Chapter 5： Dvr Menu System
Miscellaneous Setup Reset Menu Note: When the DVR is not setup to use a function, the option will not appear in the Menu. e.g. If a camera channel is set to off, the item-“Audio Setup” will not be in the Menu. -
Page 10: Record Setup
Note：If a channel is disabled in Channel Setup, DVR will not record or set frame rate. 5.4 Record Setup 1 ON Record Setup 3 ON 4 ON ) MOVE (SEL) SELECT (MENU) ESC 5.5 Record Framerate 1 3 FPS 2 5FPS... -
Page 11: Record Schedule
NORMAL RECORD [ RED]:DVR will record continuously during this period. SENSOR RECORD [ S ]:DVR will record when sensor or motion is triggered Note: In order to activate the record schedule, please press [ REC] button to start Record schedule, otherwise, DVR will not start recording. -
Page 12: Hard Drive Setup
HDD USED：indicates the space used in the hard disk drive for recording and the percent used. HDD FORMAT：will erase all video and data on the installed hard drive and make it readable by the DVR. Note: You will be prompted for the password when formatting a hard drive and the default password is “111111”. -
Page 13: Miscellaneous Setup - Set Time
[ OFF] [ ON ] [ 30 ] [ ON ] CON：Contrast BRI：Brightness HUE：Hue (color) SAT：Saturation (color) Press [▲] or[▼] buttons to select the item, and press [ ] or [ QSD2014 User’s Manual ] buttons to adjust the setting. -
Page 14: Miscellaneous Setup - Password Enable
1sec, 5sec, 10sec, 15sec, 30sec, or 60sec This function allows you to enable or disable buzzer sound when pressing [SEL] button to select [OFF] ON or OFF. [ CH1 ] [ OFF] [ ON ] [ 30 ] [ ON ] QSD2014 User’s Manual... -
Page 15: Reset Menu
5.19 RESET MENU System allows you to reset all your settings to the DVR factory default. You need to enter your password to reset the menu. 5.20 NTSC/PAL Output Select 6.1 Starting Recording Press [●REC] button to start the record according to the record schedule you have set. There will be a [●] red icon shown in the top left of the screen when recording. -
Page 16: Audio Recording
Estimated record time based on 160GB HDD Standard Quality Highest High NTSC Normal Standard Quality Highest High Normal 60fps 48fps 32fps 50fps 36fps 24fps QSD2014 User’s Manual 16fps 1fps 3720 5280 6420 7200 12fps 1fps 3200 4500 5500 6150 Unit： Hour... -
Page 17: Chapter 7：Playback
The latest record will be on top of the 15:05:48 list. Press the ［▲UP］or [▼DOWN］ buttons 15:07:40 to select an event and then press [►] to play the 14:07:40 13:07:40 event. 12:07:40 11:07:40 10:07:40 09:07:40 QSD2014 User’s Manual... -
Page 18: Chapter 8： Usb Program
8.1 Software Installation 8.2 Program Interface Button functions： NOTE: Since this DVR does not support PTZ cameras the functions marked as 1 and 2 will not work. 1. PTZ Control 3. HDD Play Mode 4. FILE Play Mode 5. NET Play Mode 6. -
Page 19: Program Running
8.3 Program Running 8.3.1 HDD Play Mode System will detect HDD automatically when you connect DVR to your PC with USB cable. An icon “ ” will appear in the system tray (right bottom corner of the screen). After seeing this icon, double-click the “... -
Page 20: File Play Mode
QSD2014 User’s Manual Press the “ ” button to play video. 8.3.2 FILE Play Mode (Only when you have saved files to your PC.) Press the “ ” button to open a folder, select the file which you want to... -
Page 21: Chapter 9： Specification
NTSC：720X240@60fps (Total) Resolution PAL：720X288@50fps (Total) Features Variable Frame Rate Quality 4 Level (Highest, High, Normal, Low) MPEG4 Compression Settable Detection Area and Sensitivity 32-bit RISC Processor Supports SATA HDD up to 500GB USB2.0 Supports IR Remote Control QSD2014 User’s Manual... -
Page 22: Chapter 10：Appendix
QSD2014 User’s Manual Chapter 10：Appendix 10.1 System Connection Layout 10.2 Accessories... -
Page 23: Q-See Product Warranty
Mailing Address: DPS Inc. 8015 E. Crystal Dr Anaheim, CA 92807 Website: http://www.q-see.com Fax: 714-998-3509 Q-See Product Warranty Contact Us: Customer Service: Phone: 877-998-3440 x 538 Email: cs@dpsi-usa.com Tech Support: Phone: 877-998-3440 x 539 Email: ts@dpsi-usa.com QSD2014 User’s Manual www.q-see.com website... -
Page 24: User Manual
Customer Information Card User’s Name Mr./Mrs. Company Name Postal Address Postal code Phone Number E-mail Model Number of Product Serial Number of Product Purchase Date Distributor The material in this document is the intellectual property of our company. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our company’s prior written permission.
