Page 1: Quick Installation Guide

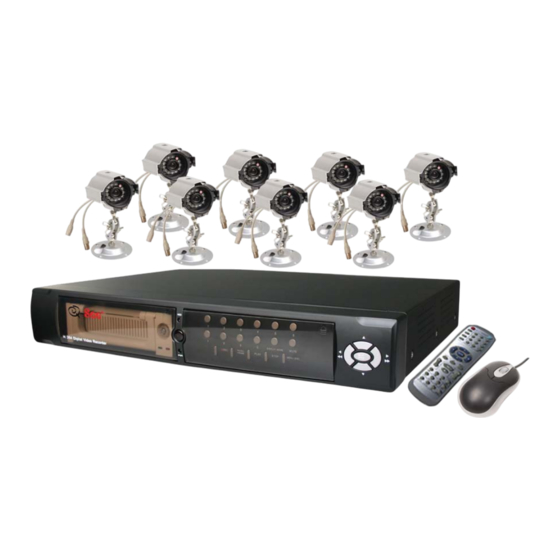

Quick Installation Guide 16 Channel H.264 Compression DVR with (CIF) Real-Time Recording and 8 Color CCD Camera Kits... -
Page 2: Part 1 - Package Contents
Q-SEE QUICK INSTALLATION GUIDE PART 1 - PACKAGE CONTENTS: 8 Cameras with Stands Pre-Installed QSDR16RTC/B User’s (4) QD28414 Cameras (6mm Lens) Hard Drive (4) QD28414W Cameras (3.6mm Lens) Manual Power Supply & BNC (M) – RCA (F) Power Supply 8 -Way Splitter... - Page 3 Q-SEE QUICK INSTALLATION GUIDE PART 2 - DVR CAMERA AND POWER CONNECTIONS (Figure 1) 1. Connect one end of the 60 Ft. extension cables to the cables that are connected to the cameras (not shown). 2. Connect the other end of the 60 Ft. extension cable to the DVR as illustrated in Figure 1.
- Page 4 Q-SEE QUICK INSTALLATION GUIDE PART 3 - CONNECTING THE DVR TO YOUR TV 1. Plug the BNC to RCA adapter in to Video Out port then connect the RCA cable (not included) to the DVR. 2. Connect the other end of the RCA (not included) cable to the Video Input on the TV if you are using a television screen.
-
Page 5: Part 7 - To Start Recording
Q-SEE QUICK INSTALLATION GUIDE PART 5 - ACCESSING THE DVR MENUS Choose MENU by right clicking on the mouse or by pushing the MENU button on the DVR front panel or remote control. The Main Menu offers the following Setup Features: CAMERA: Setup name display, position, image view, and record quality of each channel (cameras). - Page 6 Q-SEE QUICK INSTALLATION GUIDE Grid Explanation: Red = Alarm (motion detection) recording Green = General (time schedule) recording Transparent = No recording Blue = The channel and date selected. Manual Recording: From the Record Setup screen set the Rec Mode to “ALWAYS”. Your DVR will continuously record and separate files will be created with the Pack Time intervals you selected.
- Page 7 Q-SEE QUICK INSTALLATION GUIDE The Motion detection Menu has three sections, including Channel Status, Sensitivity and Motion area. STATUS: This option allows you enable motion detection on any channel. SENSITIVITY: This option allows you to set sensitivity level of motion detection from 1 to 4, with 4 being the highest.
- Page 8 Q-SEE QUICK INSTALLATION GUIDE PART 9 - BACKING UP THE VIDEO ON THE DVR Attach a USB flash drive or USB hard drive to the USB backup port and follow the instructions in Part 8 to go to the File List in the Search menu.
- Page 9 Q-SEE QUICK INSTALLATION GUIDE Questions or Comments? Contact Us: Mailing Address: Customer Service: DPS, Inc. Phone: 877-998-3440 x 538 8015 E. Crystal Dr. Email: cs@dpsi-usa.com Anaheim, CA 92807 Live Chat from our Website Website: Tech Support: http://www.q-see.com Phone: 877-998-3440 x 539 Fax: Email: ts@dpsi-usa.com...
