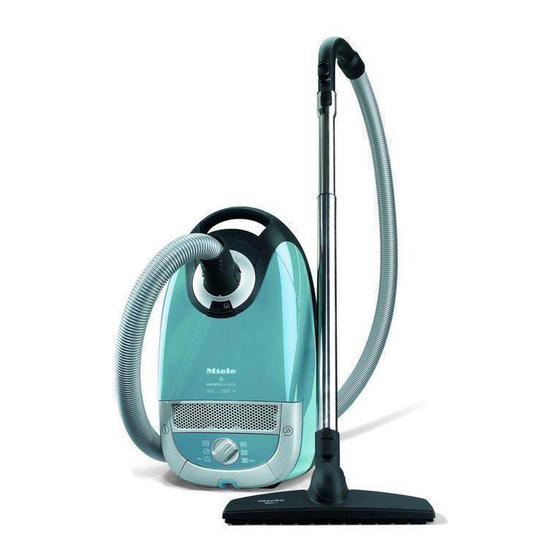

Miele HS11 Operating Instructions Manual

Hide thumbs Also See for HS11:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Instructions Manual

Operating Instructions

Canister Vacuum Cleaner
en-US
HS11
M.-Nr. 10 847 180

Advertisement

Table of Contents
loading

Related Manuals for Miele HS11

Summary of Contents for Miele HS11

  • Page 1: Operating Instructions

    Operating Instructions Canister Vacuum Cleaner en-US HS11 M.-Nr. 10 847 180...
  • Page 2 The "Original Miele" Logo will appear on the packaging or directly on the FilterBag. Purchasing new FilterBags and filters Original Miele FilterBags and filters can be purchased from an authorized Miele vacuum dealer or by visiting the Miele store at www.mieleusa.com.

  • Page 3: Table Of Contents

    Contents IMPORTANT SAFETY INSTRUCTIONS .............. 4 Appliance description ...................  8 Caring for the environment ................ 10 Preparing for use .................... 11 Use........................ 15 Parking, transport and storage ................ 17 Maintenance ...................... 18 Purchasing new FilterBags and filters ..............18 Ordering the correct FilterBags and filters ............18 When to change the FilterBag................

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This vacuum cleaner complies with current safety requirements. Inappropriate use can, however, lead to personal injury and dam- age to property. To avoid the risk of accidents and damage to the vacuum cleaner, please read the operating instructions carefully before using it for the first time.
  • Page 5 Do not use the vacuum cleaner if the power cord is damaged. If the power cord is damaged it must be replaced together with the cord reel. For safety reasons this must only be done by Miele Techni- cal Service or a Miele authorized service technician.

  • Page 6: Proper Use

    Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the electrical supply.  Repairs should only be carried out by a Miele-authorized service technician. Repairs and other work by unqualified persons can cause considerable danger to users.

  • Page 7: Save These Instructions

    Accessories  To avoid the risk of injury when vacuuming with a Miele turbo- brush, do not touch the rotating roller brush.  It is not advisable to vacuum directly with the handle, i.e., without an accessory attached, as the rim could get damaged and you could hurt yourself on sharp edges.

  • Page 8: Appliance Description

    Appliance description The illustration shows the maximum number of features available...
  • Page 9 Original Miele filter bag j Floorhead k Carrying handle l Park system for storage (on both sides of the vacuum cleaner) m Original Miele exhaust filter * n Foot switch for automatic cord rewind o Power cord p Rotary selector q Park system for pauses during vacuuming r On/off ...

  • Page 10: Caring For The Environment

    Caring for the environment Disposal of the packing mate- Disposing of your old appli- rial ance The cardboard box and packing materi- Before disposing of your old appliance als protect the appliance during ship- remove the FilterBag and filters and dis- ping.

  • Page 11: Preparing For Use

    Connect the suction hose to the han- Preparing for use Attaching the suction hose  Fit the connector at the other end of  Insert the hose connector into the the suction hose into the handle until suction socket on the vacuum it clicks into position.
  • Page 12 Adjusting the floorhead This vacuum cleaner can be used for daily cleaning of carpets, rugs, and ro- bust hard flooring. Miele offers a range of other floorheads, brushes, and accessories for other types of flooring and special applica- tions (see "Optional accessories").
  • Page 13 Clean hard flooring which is not sus- ceptible to scratching, and flooring with gaps or deep crevices in it with the brush protruding:  Press the foot switch  . If the suction power of the floorhead seems too high, reduce the suction until the head is easier to maneuver (see "Use - Regulating the suction power").

  • Page 14: Using The Accessories Supplied

     Crevice nozzle  Dusting brush  Upholstery nozzle After approx. 10–15 seconds a thin red line will appear in the left-hand side of Opening the accessories compart- the display. ment  Close the dust compartment lid se- curely, making sure it clicks into posi- tion.

  • Page 15: Use

     Insert the plug into the socket. Convertible floorhead  If vacuuming for longer than 30 minutes, the cord must be pulled out all the way. Danger of overheating and damage. Rewinding the power cord For general use and also for vacuuming the stairs.
  • Page 16  Press the On/Off foot control .  Turn the suction power selector man- ually to the suction power setting you Regulating the suction power require. The suction power can be regulated to Opening the air inlet valve suit the type of flooring being cleaned. Reducing the suction power reduces the amount of effort required to maneu- ver the floor brush.

  • Page 17: Parking, Transport And Storage

     Slot the floorhead into the parking at-  When vacuuming, in particular tachment on the vacuum cleaner. fine dust, e.g. dust, sand, plaster, flour, etc., electrostatic charges build If your vacuum cleaner is on a slop- up naturally. Under certain conditions ing surface such as a ramp, fully re- these charges will be released.

  • Page 18: Maintenance

    Only use original Miele GN FilterBags  Always switch off the vacuum with a blue collar and original Miele fil- cleaner for maintenance work and ters. These are identified by the "ORIGI- remove the plug from the outlet. NAL Miele" logo on the packaging.

  • Page 19: When To Change The Filterbag

    You can The FilterBag change indicator is set for also order all accessories via the Miele normal household dust. This generally web store. contains a mixture of dust, hair, When to change the FilterBag threads, carpet lint, grit, etc.

  • Page 20: How To Replace The Filterbag

    How to replace the FilterBag  Pull the FilterBag out by the grip on the collar.  Press the release catches at the side of the hose connector, and remove the hose from the socket.  Fit the new FilterBag into the holder as far as it will go.

  • Page 21: When To Change The Motor Protection Filter

     Fit the filter bag into the holder as far new packet of filter bags. as it will go. Every packet of original Miele filter bags  Close the dust compartment lid se- contains a motor protection filter. Multi- curely, making sure it clicks into posi- packs contain four motor protection fil- tion.

  • Page 22: How To Replace The Airclean Exhaust Filter

    Replace this filter every time you start a new packet of filter bags. Every packet How to replace the AirClean exhaust of original Miele filter bags contains one filter AirClean exhaust filter. Multipacks con- Do not use more than one exhaust fil- tain four AirClean filters.

  • Page 23: Haust Filters

     Replace it with a new AirClean ex-  Lift the exhaust filter and remove it. haust filter. If you wish to fit the AirClean Plus 50, Active AirClean 50, or HEPA AirClean 50 exhaust filter, see "Replacing one type of exhaust filter with another". ...

  • Page 24: Replacing One Type Of Exhaust Filter With Another

     If you are using exhaust filter c or d, Do not use more than one exhaust fil- press the TimeStrip® exhaust filter ter at a time. change indicator. When changing the filter please note After approx. 10–15 seconds, a thin red line will appear in the left hand side of the display for both exhaust filters.

  • Page 25: When To Change The Thread Catchers

     Remove any threads and hair, replace the roller and refit the bearing, locking How to replace the thread lifters it back into position. Replacement parts are available from your Miele dealer or through Miele Technical Service. Cleaning and care  Always disconnect the vacuum cleaner from the electrical supply be- fore cleaning it.
  • Page 26  Do not let the vacuum cleaner get wet. If moisture gets into the ap- pliance, there is a risk of electric shock.

  • Page 27: Frequently Asked Questions

    Frequently Asked Questions With the help of the following guide minor faults in the performance of the ma- chine, some of which may result from incorrect operation, can be remedied with- out contacting the Service Department. Time and money will be saved because a service call will not be needed.

  • Page 28: Technical Service

    With natural bristles for quickly vacu- uming smooth hard floors and small These and many other products can be gaps. ordered from the Miele web store, Miele Technical Service or from your Miele Other accessories dealer. MicroSet accessory case (SMC 20)
  • Page 29 Radiator brush (SHB 30) Active AirClean 50 exhaust filter (SF-AA 50) For dusting radiators, narrow shelves and crevices. For a significant reduction of unpleasant odors. Ideal for households with pets or Mattress tool (SMD 10) smokers. For vacuuming upholstery, mattresses, HEPA AirClean 50 exhaust filter cushions, curtains, covers, etc.

  • Page 30: Limited Warranty - Vacuum Cleaners Usa

    US address listed on the back of this booklet, or visit us at www.mieleusa.com. Authorized Miele Dealers For service under this Limited Warranty, or to find an Authorized Miele Dealer in your area, please visit us at www. mieleusa.com.
  • Page 32 Technical Service. U.S.A. Canada Miele, Inc. Importer Miele Limited National Headquarters 9 Independence Way Headquarters and Miele Centre Princeton, NJ 08540 161 Four Valley Drive Phone: 800-843-7231 Vaughan, ON L4K 4V8 609-419-4298 Fax: www.miele.ca www.mieleusa.com...
