ProForm PFTL54806.0 User Manual page 8

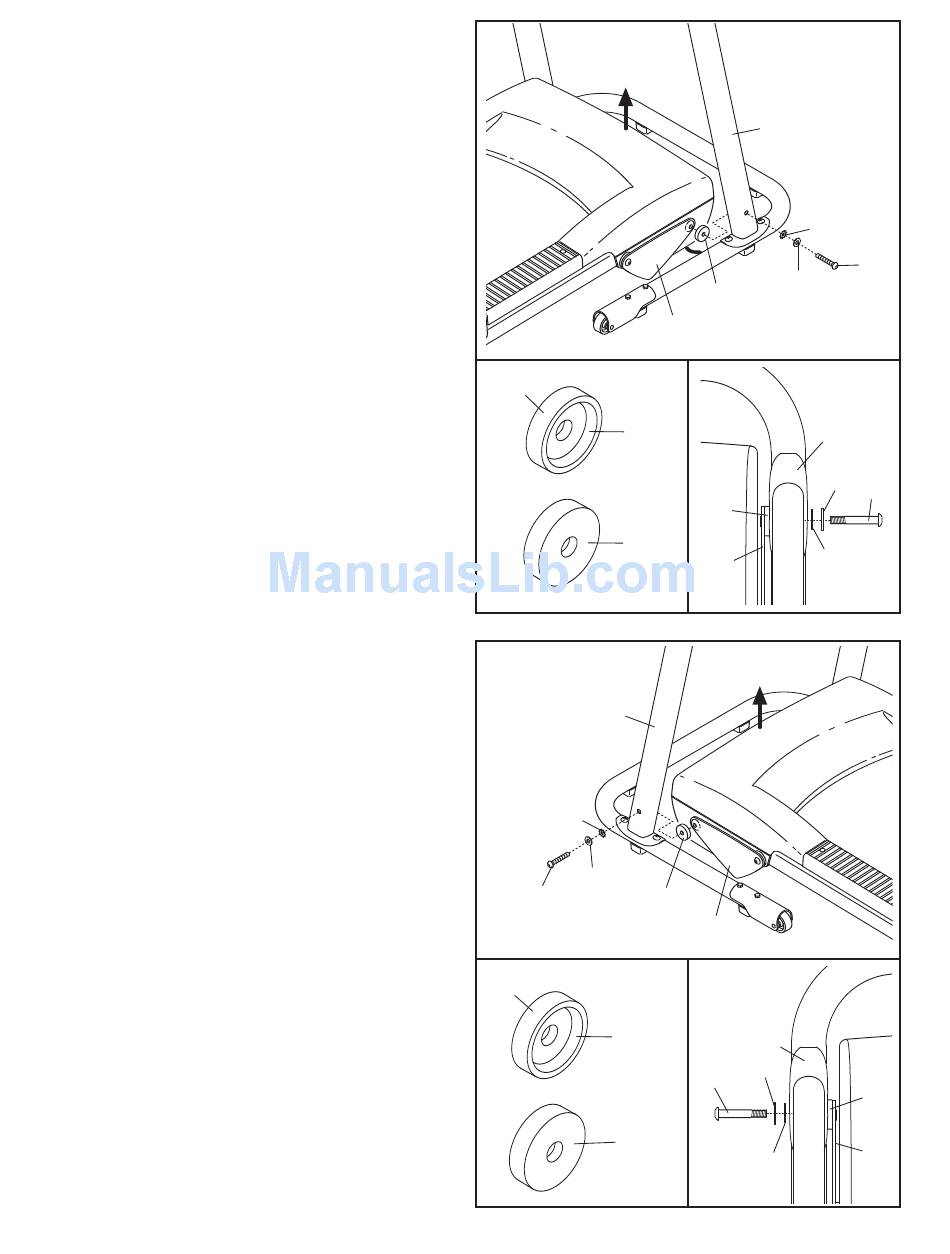

5. See the left inset drawing. Identify the two Frame
Spacers (11). Open the included packet of
grease, and apply grease to both sides of both
Frame Spacers. Then, identify the outer side of
each Frame Spacer.
Hold a Frame Spacer (11) between the Right
Upright (54) and the Lift Frame (23), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a Colored Patch Frame Bolt (1),
an Upright Washer (14), and an Upright Star
Washer (9); do not tighten the Colored Patch
Frame Bolt yet.
6. See the left inset drawing. Identify the outer side
of the remaining Frame Spacer (11).
Hold the Frame Spacer (11) between the Left
Upright (53) and the Lift Frame (23), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a Colored Patch Frame Bolt (1), an
Upright Washer (14), and an Upright Star
Washer (9); do not tighten the Colored Patch
Frame Bolt yet.
