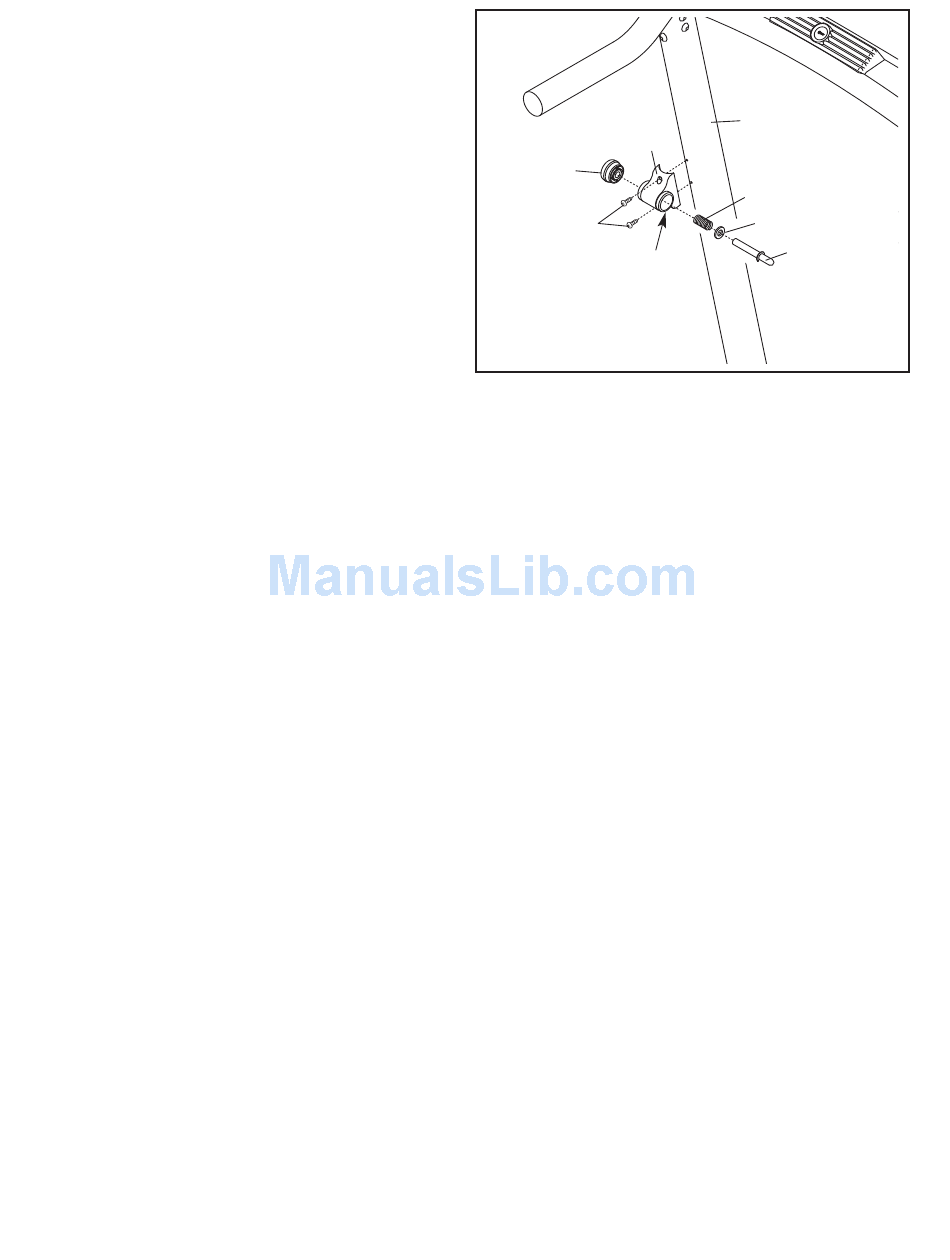

13. Attach the Latch Housing (48) to the Left
Upright (53) with two Latch Screws (10); start
both Latch Screws and then tighten them.
Make sure that the large hole in the Latch
Housing is on the indicated side.
Remove the knob from the pin. Make sure that
the collar and the spring are on the pin. (Note: If
there are two collars, place one on each side of
the spring.) Insert the pin into the Latch Housing
(48). Then, tighten the knob onto the pin.
14. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place. The hex key is used to adjust the walking belt (see page 21). To protect the floor or carpet,
place a mat under the treadmill.
13
48
Knob
10
Large Hole
11 11
53
Spring
Collar
Pin
