ProForm PFTL54806.0 User Manual page 7

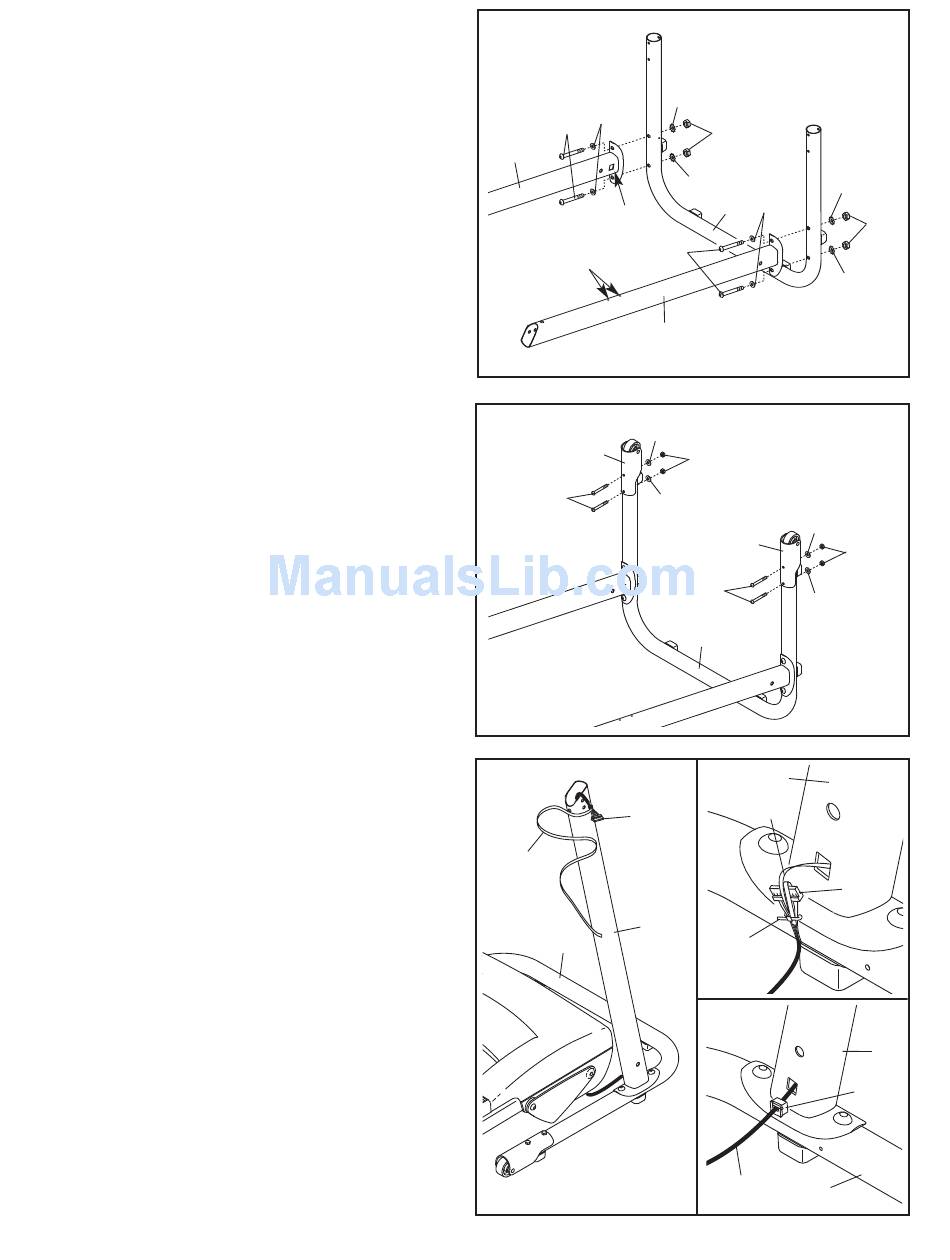

2. Have a second person hold the Base (52) in the
position shown.
Identify the Left Upright (53) (the Right Upright [54]
has a large hole near the lower end).
Hold the Left Upright (53) so that the two small
holes are on top as shown. Insert two Upright
Bolts (2) with two Upright Washers (14) into
the base of the Left Upright. Attach the Left
Upright to the Base (52) with the Upright Bolts,
two Upright Star Washers (9), and two Nuts (16).
Do not tighten the Nuts yet.
Attach the Right Upright (54) to the Base (52) in
the same way.
3. Slide the two Wheel Housings (45) onto the Base
(52). Attach each Wheel Housing with two Wheel
Housing Bolts (13), two Wheel Housing Washers
(32), and two Wheel Housing Nuts (43).
4. Position the Base (52) as close to the front of the
treadmill as possible, as shown.
See drawing 4a. Locate the strap in the lower
end of the Right Upright (54). Wrap the strap
around the Wire Harness (39) and secure the
strap using the included plastic tie. Then, insert
the connector into the square hole in the Right
Upright. Pull the opposite end of the strap until
the end of the Wire Harness is pulled through the
Right Upright.
See drawing 4b. Press the indicated Grommet
(49) into the Right Upright (54).
2
14
2
54
Large
Hole
Small Holes
3
32
45
13
4
39
Strap
54
52
7
9
16
9
52 14
2
53
43
32
32
45
13
32
52
4a
54
Strap
Tie
4b
39
52
9
16
9
43
39
54
49
