ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included hex keys, assembly requires a Phillips screwdriver
wrench
, and a rubber mallet

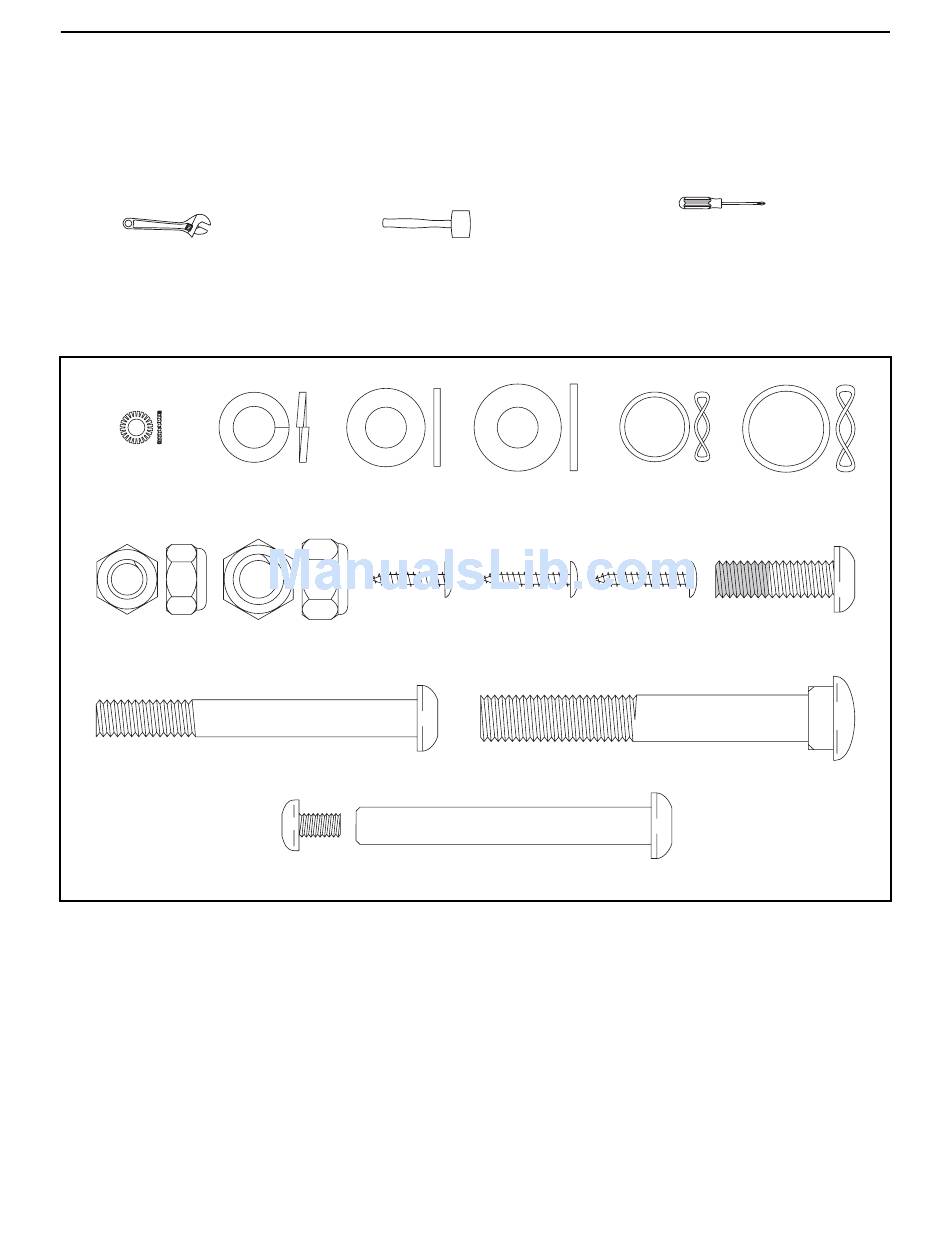

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled.
If a part is not found in the hardware kit, check to see if it has been preassembled.
Star Washer
M8 Split
(85)–6
Washer (93)–2
M8 Nylon
Locknut (87)–2
Locknut (84)–4
M8 x 69mm Button Bolt (91)–2
M8 Washer
(64)–4
M10 Nylon
M4 x 16mm
Screw (60)–4
M8 x 63mm Bolt Set (67)–2
.
M8 Large
Wave Washer
Washer (81)–2
(27)–2
M4 x 19mm
M4 x 22mm
Screw (68)–6
Screw (66)–2
M10 x 77mm Carriage Bolt (58)–4
5
, an adjustable
Large Wave
Washer (20)–2
M8 x 25mm Patch
Screw (70)–6
