1.
To make assembly easier, read the information
on page 5 before you begin assembling the
elliptical exerciser.

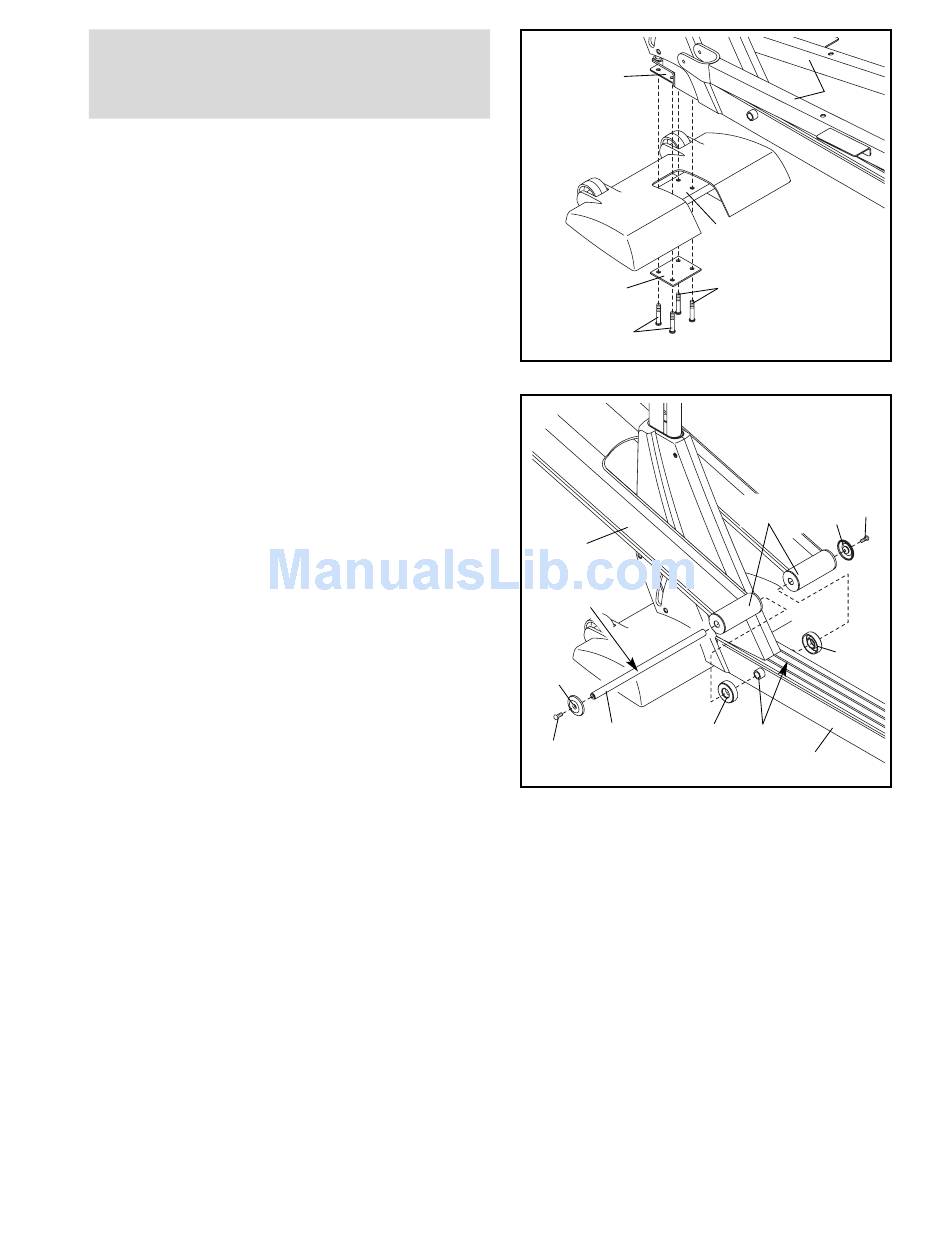

Identify the Front Stabilizer (8). While another person
lifts the front of the Frame (1) and holds the Pedal
Legs (4, 5) in the position shown, attach the Front
Stabilizer to the Frame with four M8 x 44mm Button
Screws (84) and a Support Plate (104).
While another person lifts the rear of the Frame
(1), attach the Rear Stabilizer (not shown) to the
Frame in the same way.
2. Identify the Pivot Axle (14), which is the longer of the
two axles. Slide a Ramp Cover (48) onto an M6 x
16mm Patch Screw (76) as shown. Tighten the Patch
Screw into one end of the Pivot Axle. Apply a small
amount of the included grease to the Pivot Axle.
Have a second person hold the two Ramp Spacers
(99) against the sides of the Frame (1) so they cover
the indicated tubes on the Frame. Lift the Pedal Legs
(not shown) out of the way and align the round tubes
on the Ramp (3) with the Ramp Spacers. Make sure
that the Ramp is turned as shown in drawing 3
below. Insert the Pivot Axle (14) into the Ramp, the
Ramp Spacers, and the Frame. If necessary, tap the
Pivot Axle with a rubber mallet to insert it.
Slide the other Ramp Cover (48) onto an M6 x 16mm
Patch Screw (76) as shown. Tighten the Patch Screw
into the other end of the Pivot Axle (14).
1
1
104
84
2
3
Grease
48
14
76
6
4, 5
8
84
76
Tubes
48
99
Tubes
99
1
