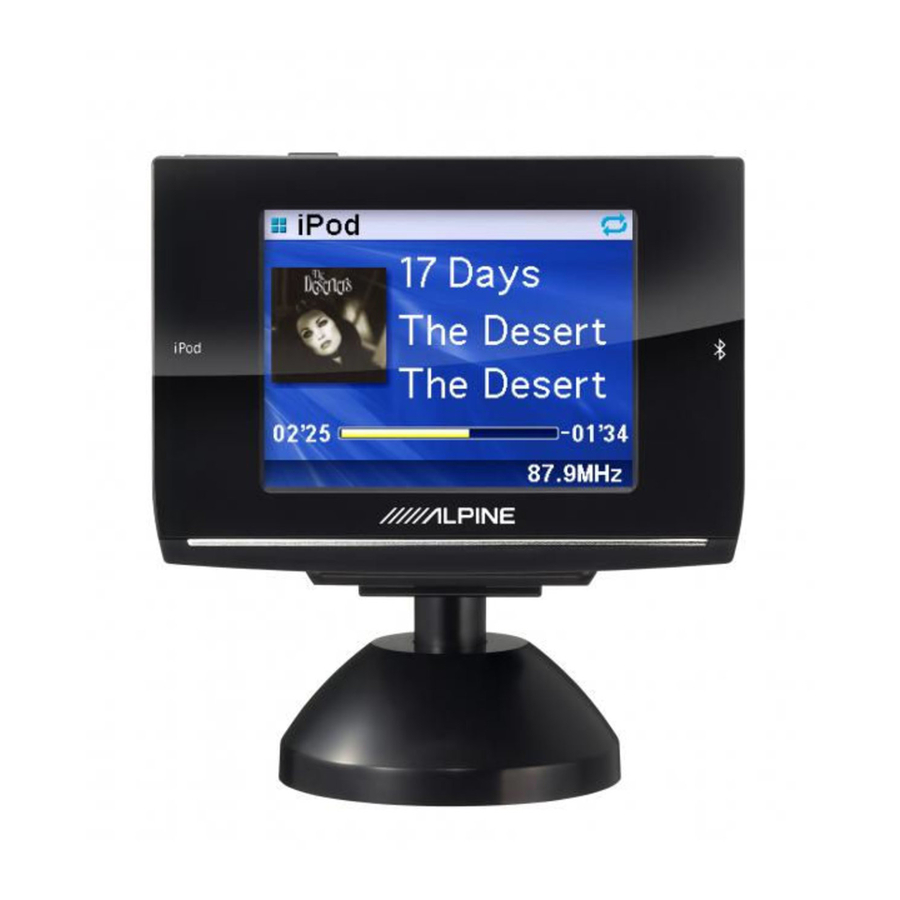

Alpine eX-10 User Manual

Advanced ipod controller with bluetooth
Hide thumbs Also See for eX-10:

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Installation Manual
English
Start Here.
Here's how to use the eX-10
®
with your iPod
and Bluetooth phone.

Advertisement

loading

Related Manuals for Alpine eX-10

Summary of Contents for Alpine eX-10

  • Page 1 English Start Here. Here’s how to use the eX-10 ® with your iPod and Bluetooth phone.
  • Page 2 Ready, set, go. eX-10 in-car setup is quick and easy. First, place the display on the dashboard in your fi eld of vision. Then plug the power supply unit into the cigarette lighter. Finally use the supplied Full Speed cable to con- ®...
  • Page 3 Set a frequency. The eX-10 broadcasts audio to your car stereo just like an FM radio station.Tune to an FM frequency on your radio where there is no radio station reception. Set the same frequency on the eX-10 from ‘Transmitter’ in thesetup menu. Then, set the type of audio output required.
  • Page 4 Choose your language. Access the main menu via the SETUP switch on the remote control and select ‘General’ and then ‘Language’. Select the language you want to use for your song information.
  • Page 5 ® Listen to your iPod music. Use the SEARCH button on your remote control to access your search options. You can search by songs, artists, albums, playlists, podcasts, audiobooks, composers and genres. When you fi nd the song you want, press ENTER and the song will start to play through your car speakers.
  • Page 6 See what’s playing. You can select three display modes by pushing the VIEW button on your remote. The fi rst is the standard view, which shows the song, artist and album, and a small picture of the album artwork. The sec- ond shows the song name and an enlarged view of the artwork.
  • Page 7 Get the best sound. You can pick one of ten equalizer presets for great sound with any type of music. First select ‘Audio’ from the setup menu, then use the LIST switch to select the desired EQ setting.
  • Page 8 Place the microphone. Secure the microphone in a convenient location in front of you so it will pick up the sound of your voice. For example, on a pillar or on the dashboard. Do not install the microphone in any position that could interfere with the functionality of airbags in your vehicle.
  • Page 9 Mode’ in the ‘Bluetooth’ menu, then search for the connection device from your Bluetooth phone and enter the PIN code displayed on the eX-10. When pairing is complete, ‘Paired’ will be displayed on the eX-10. Next, complete the connection settings from your Bluetooth phone.
  • Page 10 Turn auto connection on. To make the eX-10 automatically connect your phone when you enter your car, turn on the automatic connection function. To do that, go to the ‘Bluetooth’ menu and set ‘Auto Connect’ to ‘On’.
  • Page 11 Making a call from your phonebook. Press the CALL icon button and use the LIST switch to select ‘Phonebook’ by pressing the ENTER button; then use the LIST switch to fi nd the phone number you want. Press the CALL icon button to dial the number.
  • Page 12 Other ways of making a call. First, press the CALL button and use the LIST switch to select lists of dialed calls, received calls and missed calls. You can select numbers from those lists and press the CALL icon button to dial them.
  • Page 13 Answering a call. When a call comes in, the ring tone will sound and the phone number will be displayed. Press the CALL icon button and the call will start. Alternatively, you can set ‘Auto Answer’ to have the phone answer calls automatically.
  • Page 14 Listen to songs from your phone. Press the SOURCE button to select ‘Bluetooth Audio’ mode. Use the LIST switch to change tracks. To pause playback, press the PLAY/PAUSE button.
  • Page 15 Match your dashboard. In the ‘Display’ menu, choose ‘BGV Select’ to select from among three BGV Select to match the color of your dashboard.
  • Page 16 How to learn more and get support. If you want more detailed information on operating the eX-10, you can download the owner’s manual and get additional help at http://www.alpine-usa.com/support If you would like to speak to Alpine customer support concerning eX-10 operation, 1-800-ALPINE-1.

  • Page 17: Federal Communications Commission Interference Statement

    FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
