Page 1: Installation Instructions

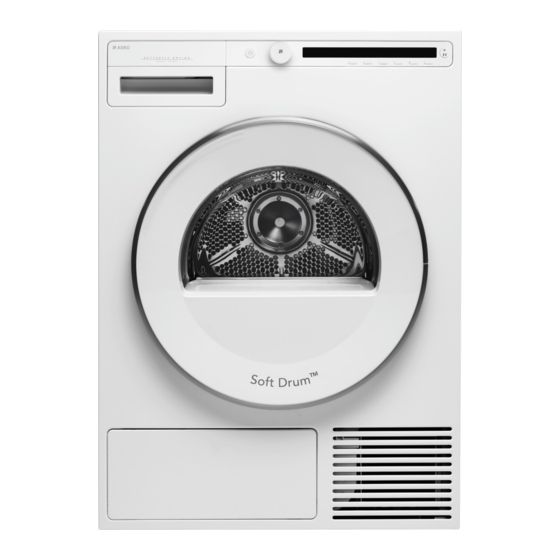

INSTALLATION INSTRUCTIONS Vented tumble dryer DOMESTIC TD75 Carefully read the instructions for use before using the dryer. -
Page 2: Dear Customer
See also the general Safety Instructions in the Use & Care Guide. Cosmetic damage must be reported to the ASKO dealer within fi ve days from the date of purchase. As soon as you unpack the machine, thoroughly check it for cosmetic damage. - Page 3 To Tipping guard part B is designed to fi t on ASKO prevent the dryer from sliding around, use a non-slip washing machines and it may be hard or impossible support or pad.
- Page 4 How to stack a dryer onto the washing machine (ASKO): There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard. The tipping guard consists of two metal parts (A + Use two screws to attach the A part to the back of the dryer.
-
Page 5: Changing The Door Opening Direction
CHANGING THE DOOR OPENING DIRECTION To change the direction of door opening, proceed as follows. Open the door fully. Undo the screws and remove the door. Use the screwdriver to remove the door lock cover and undo the screw on the door lock. Push the door lock upwards and remove it. - Page 6 Undo the door hinge assembly (left) and the door latch assembly (right), switch their positions, and replace the screws (door hinge assembly to the right- hand side, door latch assembly to the left-hand side). Use the screwdriver to remove the plastic part more easily.
-
Page 7: Install In A Closet
BUILT-IN Install in a closet ASKO's front panel controls make it possible to install the washers and dryers in a closet. Make sure there is a ½” (12mm) minimum clearance between units and cabinet or wall. To ensure proper ventilation, we recommend louvered doors. -
Page 8: Air Exhaust
5. With the duct attached, insert the stub pipe into the hole. It should snap into place. Asko dryers have a "T-style" exhaust 6. After you push the dryer into place, check for vent that allows you to connect the duct kinks in the duct. - Page 9 To reduce the risk of fi re, this appliance must To connect the exhaust duct to a ventilation be exhausted OUTDOORS or the equivalent. Never outlet, follow the steps below: cover the end of the dryer stub or exhaust duct with 1.
-
Page 10: Electrical Installation
4-wire installations. machine or an equivalent. These Electrical Connection instructions provide for ASKO washers rated 208–240 V have two internal installing the dryer in the following situations: fuses of 15 A each. 3-wire connection where local codes permit The machine should only be connected to a grounding through the neutral. - Page 11 3. Use the strain relief attached below the terminal 2. Remove terminal block cover. block opening. 3. Use the strain relief attached below the terminal 4. Loosen or remove center terminal block screw. block opening. 4. Remove center terminal block screw. 5.
- Page 12 We reserve the right to modifi cations. TD75 SPO DOM US/CA en (09-17)
