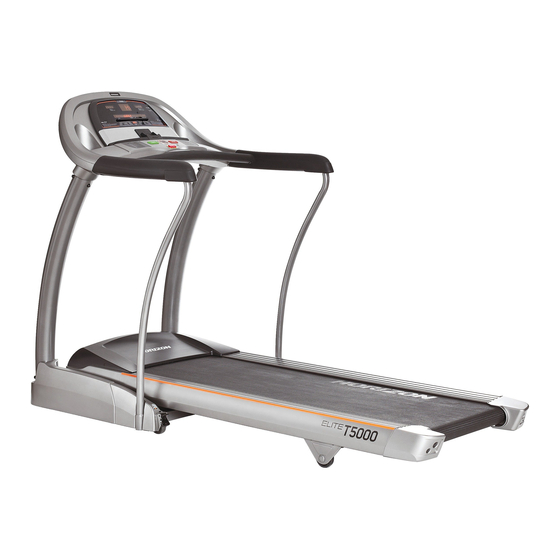

- Page 1 Elite T5000 TREADMILL OWNER’S MANUAL Read the TREADMILL gUIDE before using this OWNER’S MANUAL.
- Page 2 ASSEMBLY WARNING There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises.
-
Page 3: Tools Included
PRE ASSEMBLY TooLS INCLUDED: F 8 mm T-Wrench SPEAKERS F 5 mm T-Wrench UNPACKING USB PORT AND AUDIO IN JACK F 5 mm L-Wrench Place the treadmill carton on a level flat surface. It is recommended that you place a WATER BOTTLE HOLDER Elite Elite F Screwdriver... -
Page 4: Assembly Step
ASSEMBLY STEP 1 ASSEMBLY STEP 2 Open hardware for step 1. Open hardware for step 2. HARDWARE foR STEP 1 : HARDWARE foR STEP 2 : Attach console mast cover to main frame Pull lead wire through right console mast. Elite Elite BOLT (A) SPRING WASHER (B) ARC WASHER (C) using 3 screws each side. - Page 5 ASSEMBLY STEP 3 ASSEMBLY STEP 4 Open hardware for step 3. Open hardware for step 4. HARDWARE foR STEP 3 : HARDWARE foR STEP 4 : connect handlebar cables, and slide With the console upside down, attach the Elite Elite BOLT (E) SPRING WASHER (F) ARC WASHER (G) handlebars into center bar.
-
Page 6: Hardware Bag
ASSEMBLY STEP 5 ASSEMBLY STEP 6 Open hardware for step 5. Attach console cables from handlebars HARDWARE BAG 5: HARDWARE foR STEP 6 : to console cables from console. gently gently place the console on top of the tuck excess cable into console before sliding the Elite Elite BOLT (J) SPRING WASHER (B) - Page 7 4 screw(1). SCREW (1) BOLTS (K) Elite T5000 Max. User Weight: 180 kg / 400 lbs Product Weight: 130 kg / 286 lbs Overall Dimension: 171.5 x 85 x 136.5 cm / 67” x 33.5” x 58”...
-
Page 8: Treadmill Operation
TREADMILL OPERATION T5000 This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the Elite Zeit Entfernung Steigung Geschwindigkeit Energy Saver Energiesparmodus TREADMILL gUIDE has instructions for the following: T5000 • LoCATIoN of THE TREADMILL Pace Calories Hear t Rate Tempo Kalorien... -
Page 9: Console Operation
CoNSoLE oPERATIoN DISPLAY WINDoWS QUick adJUst keYpad (k) Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed • TIME: Shown as minutes : seconds. View the time before use. remaining or the time elapsed in your workout. A) LED DISPLAY WINDoWS: time, incline, distance, speed, date and clock. -
Page 10: Program Information
GETTING STARTED DATE AND CLoCK SETUP PRoGRAM INfoRMATIoN NOTE: If speed or incline are changed during your workout, the remaining segments will be affected accordingly. 1) Check to make sure no objects are placed on the belt that 1) Enter Setup mode: Press and hold the 1 will hinder the movement of the treadmill. - Page 11 PRoGRAM INfoRMATIoN Segment Warm Up Cool Down Time 4:00 Each segment is 30 seconds 4:00 4) STAMINA BUILDER: Promotes weight loss by increasing and decreasing the incline, while keeping you in your fat burning zone. 5) WEIGHT LoSS: Promotes weight Incline Level 1 Speed Segments are repeated until selected time is reached.
-
Page 12: Heart Rate Training
