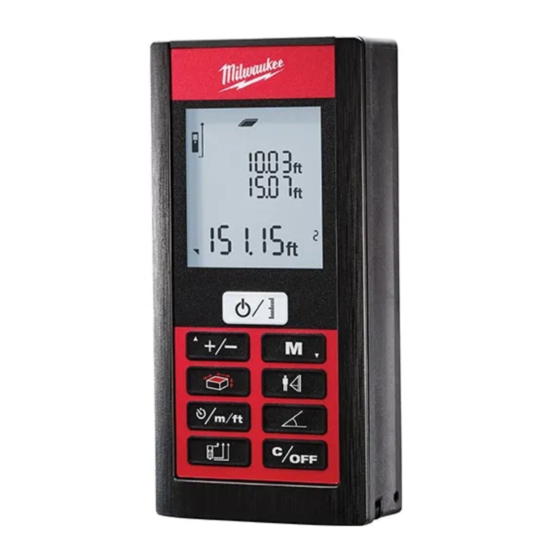

Milwaukee 2282-20 Operator's Manual

Laser distance level
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Table of Contents

- - - - - - - - - - - - - - - - - - - - - - - 3
Introduction- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Insert batteries - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Labeling - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Switching ON/OFF - - - - - - - - - - - - - - - - - - - - - - - - - 6
Clear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Message Codes - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Beep ON/OFF- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Illumination ON/OFF - - - - - - - - - - - - - - - - - - - - - - - - 6
Multifunctional endpiece- - - - - - - - - - - - - - - - - - - - - - 7
Distance unit setting - - - - - - - - - - - - - - - - - - - - - - - - 8
Tilt unit setting- - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Timer (automatic release) - - - - - - - - - - - - - - - - - - - - 8
Measuring single distance - - - - - - - - - - - - - - - - - - - - 9
Add / Subtract - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
Area- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
Volume- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Pythagoras (2-point) - - - - - - - - - - - - - - - - - - - - - - - 12
Pythagoras (3-point) - - - - - - - - - - - - - - - - - - - - - - - 12
Pythagoras (partial height) - - - - - - - - - - - - - - - - - - - 13
Stake out - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
Smart Horizontal Mode - - - - - - - - - - - - - - - - - - - - - 15
Height tracking - - - - - - - - - - - - - - - - - - - - - - - - - - - 15
- - - - - - - - - - - - - 2
- - - - - - - - - - - - - - - - - - - 9
Milwaukee 2282-20
Memory (20 last displays) - - - - - - - - - - - - - - - - - - - -16
Delete Memory - - - - - - - - - - - - - - - - - - - - - - - - - - -16
- - - - - - - - - - - - - - - - - - - - - - - - - - - - -16
- - - - - - - - - - - - - - - - - - - - - - - - -18
- - - - - - - - - - - - - - - - - - - - - - - -18
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -19
EN
- - - - - - - - - - - - - - - - -19
1

Advertisement

Table of Contents
loading

Related Manuals for Milwaukee 2282-20

Summary of Contents for Milwaukee 2282-20

  • Page 1: Table Of Contents

    Smart Horizontal Mode - - - - - - - - - - - - - - - - - - - - - 15 Height tracking - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Milwaukee 2282-20...

  • Page 2: Genaral Safety Instructions

    (e.g. surveying site when measuring unreadable or missing, contact a • Do not mix rechargeable and non- on roads, construction sites, etc.) MILWAUKEE service facility for a free rechargeable batteries. replacement. • Install batteries according to polarity WARNING •...

  • Page 3: Instrument Set-Up

    Important paragraphs which must be adhered to in practice Add / Subtract Memory as they enable the product to be used in a technically correct and efficient manner. Area / Volume Pythagoras / Stake out Inclination Timer / Units functions Measuring Clear / Off reference Milwaukee 2282-20...

  • Page 4: Display

    Stake out Change batter- ies when battery Measuring symbol is flash- Memory reference ing. Circumfer- ence Pythagoras Angle Battery Wall area Slope Min/Max distance Measuring Ceiling area Indirect height Addition / Units Subtraction Main line 2nd result Milwaukee 2282-20...

  • Page 5: Labeling

    Laser class 2 acc. IEC 60825-1:2007 Maximum radiant power: <1mW Emitted wavelength: 620-690nm Beam divergence: 0.16 x 0.6 mrad Impulse duration: 0.2 x 10 s - 0.8 x 10 Subject to change (drawings, descriptions and technical data) without prior notice. Milwaukee 2282-20...

  • Page 6: Operations

    180 Leave actual sec, the device Device is Undo last action. function, go to de- switches off au- turned OFF. fault operation tomatically. mode. Beep ON/OFF Illumination ON/OFF 2 sec 2 sec simultane- simultane- ously ously Milwaukee 2282-20...

  • Page 7: Adjusting Measuring Reference / Tripod

    Distance is measured from the rear of the device (standard setting). Multifunctional endpiece The orientation of the endpiece is automatically detected and the zero point is accordingly ad- justed. Milwaukee 2282-20...

  • Page 8: Distance Unit Setting

    The de- layed release is recommended for precise aiming e.g. at long distanc- Adjust delay of au- es. It avoids shaking of the device tomatic release when pressing the measurement (max. 60 sec, key. standard setting 5 sec) Milwaukee 2282-20...

  • Page 9: Measuring Functions

    The same process can be The next meas- The next meas- used for adding or subtracting 5.515 urement is added urement is sub- areas or volumes. 7.332 to the previous 12.847 tracted from the one. previous one. Milwaukee 2282-20...

  • Page 10: Area

    Measuring Functions Area The result is shown in the main line and the measured value above. Aim laser at first Aim laser at sec- 24.352 target point. ond target point. 2 sec 19.823 Circumference 24.35 2 Area Milwaukee 2282-20...

  • Page 11: Volume

    The result is shown in the main line and 80.208 80.208 Circumference the measured 2 sec 208.70 3 value above. Wall areas 208.70 3 24.224 Ceiling/floor area 78.69 4 78.694 78.69 4 Volume Milwaukee 2282-20...

  • Page 12: Pythagoras (2-Point)

    Pythagoras (3-point) Aim laser at up- Aim laser at rec- Aim laser at lower point. per point. tangular point. Notice additional Pythagoras measurement in- formation at the bottom of the next page. 8.294 Milwaukee 2282-20...

  • Page 13: Pythagoras (Partial Height)

    Pythagoras (partial height) Aim laser at rec- Aim laser at upper Aim laser at 2nd tangular point. point. point. 2.602 Pythagoras • Pressing the measuring key for 2 sec in the function activates automatically measurements: Minimum or Maximum measurement. Milwaukee 2282-20...

  • Page 14: Stake Out

    The distance to beep. the next stake The function can be stopped 1.012 out point is dis- by pressing the CLEAR/OFF 0.240 m is missing played. 0.24 0 button. up to next 1.012 m distance. Milwaukee 2282-20...

  • Page 15: Smart Horizontal Mode

    The tracked height "y" is in 90° to the 1st 40.8 ° aimed point 6.932 "x". 30.2 ° = Tracking angle 9.82 7 Stops Height tracking and = Tracking displays last measurement. height Milwaukee 2282-20...

  • Page 16: Memory (20 Last Displays)

    Memory (20 last displays) Delete Memory 2 sec 2 sec The value from 20 last displays simultaneously Navigates trough the main line can are displayed. 20 last displays. 8.294 8.294 be used for fur- Memory is completely de- ther calculations. leted. Milwaukee 2282-20...

  • Page 17: Calibration

    After 2 sec the device 180° goes back to the nor- mal mode. Turn the device horizontally by 180° and place it again on absolutely flat surface. Milwaukee 2282-20...

  • Page 18: Technical Data

    - Storage -25 to 70 °C outside of meas- -13 to 158 °F Memory 20 displays uring range - Operation -10 to 50 °C Beep 14 to 122 °F Laser beam inter- Repeat measurement. Illuminated display rupted Multifunctional endpiece Milwaukee 2282-20...

  • Page 19: Care

    Care Care Service - United States • Clean the device with a damp, soft cloth. MILWAUKEE prides itself in producing a Contact our Corporate After Sales premium quality product that is Nothing Service Technical Support about ... • Never immerse the device in water.
