3) Attach the 4" dia. flex liner to the vent terminal
ensuring that the flex overlaps the collar of the
vent terminal by a minimum of 1-3/8"(35mm).
Use Mill-Pac to seal and secure with 3 of the
#8 x 1/2" screws (stainless steel).
4) Attach the adjustable pipe section to the vent
terminal using Mill-Pac and attach with 3 of the
#8 x 1/2" screws (stainless steel).
NOTE: For best results and optimum perfor-
mance with each approved venting sys-
tem, it is highly recommended to apply
"Mill-Pac" sealant (supplied) to every
inner pipe connection. Failure to do so
may result in drafting or performance
issues not covered under warranty.
Note: The pipe seam should be facing down.
Note: To make the
i n s t a l l a t i o n
more aestheti-
cally pleasing, we recommend fram-
ing out a square that the cap can be
mounted on.
Note: If installing termination on a siding
covered wall, a vinyl
siding standoff or
furring strips must be
used to ensure that
the termination is not
recessed into the sid-
ing. For vinyl siding
standoff installation
refer to the Dura-Vent
Termination instructions.
5) Slide the partially connected pipe and vent
terminal assembly through the wall thimbles
(from the exterior into the interior) and secure
the cap to the exterior wall with 4 of the supplied
screws (#8 x 1-1/2" drill point, stainless steel).
Note: pilot holes will need to be drilled through
the wall thimble on all 4 corners.
Note: The four screws provided for the vent
cap should be replaced with appropriate
fasteners for stucco, brick, concrete, or
other types of sidings.
6) A bead of non-hardening mastic should be run
around both the termination and vinyl siding
standoff to prevent water from entering and
to make a tight seal between the cap and the
standoff.
7) Stretch the 4" dia. flex liner out fully and get a
trial fit of the liner onto the 4" dia. starter collar.
8) Cut the 4" dia. flex liner to the desired size. Hint:
leave an extra 12" to 16" of length, this will make
the final assembly easier to work with.
9) Secure the 4" dia. flex liner to the 4" adapter with
Mill-Pac and 3 of the #8 x 1/2" screws (stainless
steel).
10) Slide the decorative Thimble Cover over the
pipe sections and secure with 4 screws (#8 x
1-1/2" drill point, black) to the wall.
11) Slide the 90
elbow and the 4 ft. pipe section (crimp end up)
over the 4" dia. flex liner.
12) Install the spring spacers onto the pipe sections.
13) Secure the 4" dia. flex liner with adapter onto
the stove collar. Put a bead of Mill-Pac around
the appliance adapter and secure with 3 screws
(#8 x 1/2, stainless steel).
14) Attach the 45
sealing with Mill-Pac securing with 3 of the #8
x 1/2" (black) screws.
15) Attach the pipe section to the 45
sealing with Mill-Pac securing with 3 of the #8
x 1/2" screws (black). Pipe seams should be
facing the wall.
16) Attach the 90
sealing with Mill-Pac securing with 3 of the #8
x 1/2" screws (black).
17) Slide the adjustable pipe section onto the 90
elbow. Slide the trim collar over the adjustable
pipe sections to cover the joint of the telescopic
a l l
i d e W
Furstrp.eps
section. The flex may have to be compressed
O u t s
back in order for the adjustable pipe to properly
mate to the elbow. Seal with Mill-Pac secure
see also c34020a.eps
with 3 of the #8 x 1/2" screws (black). Pipe
Furring
seams facing down.
Strips
18) Install the trim collar over the starter collar and
secure with a #8 x 1/2" screw (black).
If the pipe needs to be touched up, use only Stove
Brite High Temperature Metallic Black Stove Paint.
r i e u r
e x t é
M u r
furstrpf.eps
french
Fourrures en bois

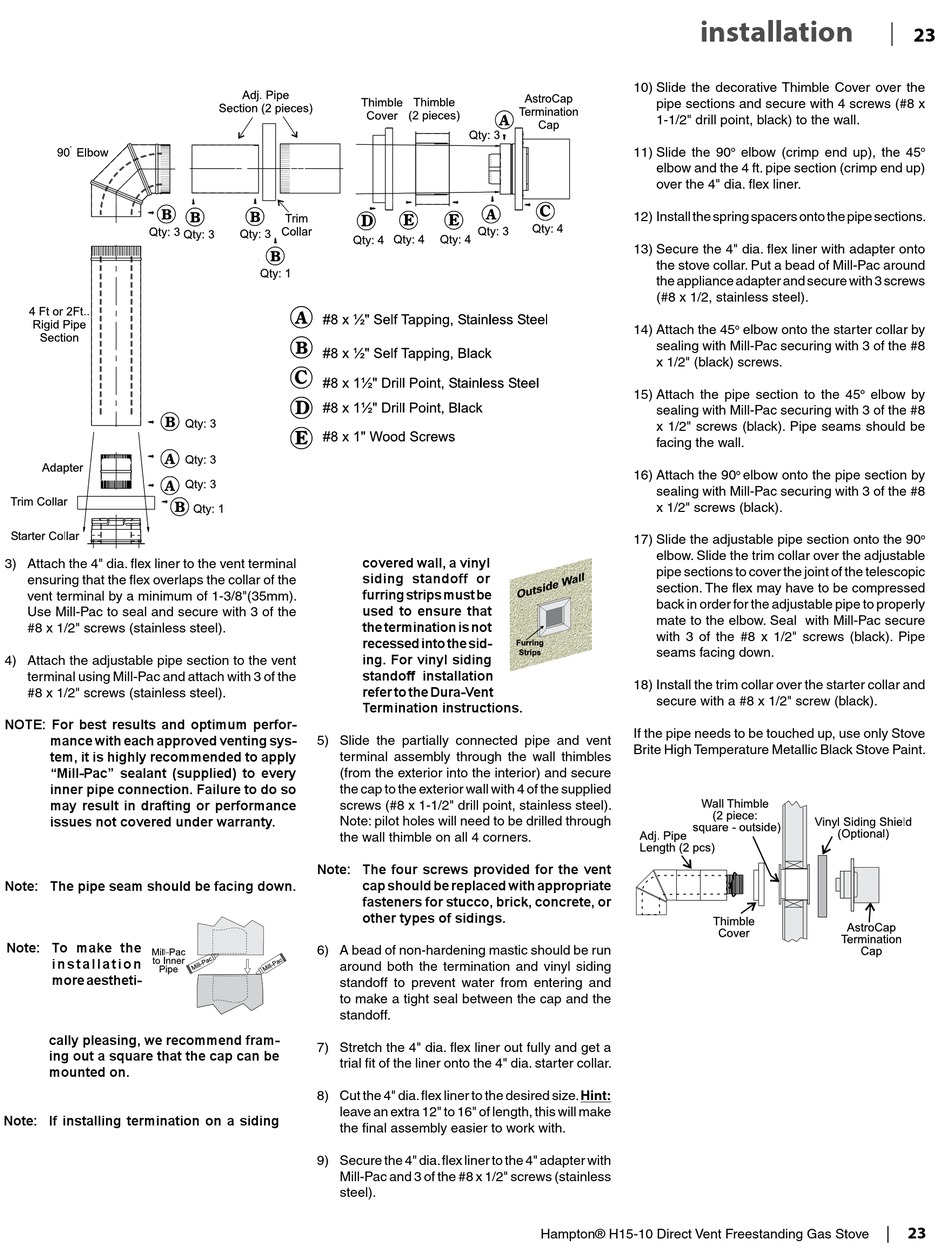

Hampton® H15-10 Direct Vent Freestanding Gas Stove
installation
elbow (crimp end up), the 45
o
o
elbow onto the starter collar by
elbow by
o
elbow onto the pipe section by
o
|
23
o
o
|
23
