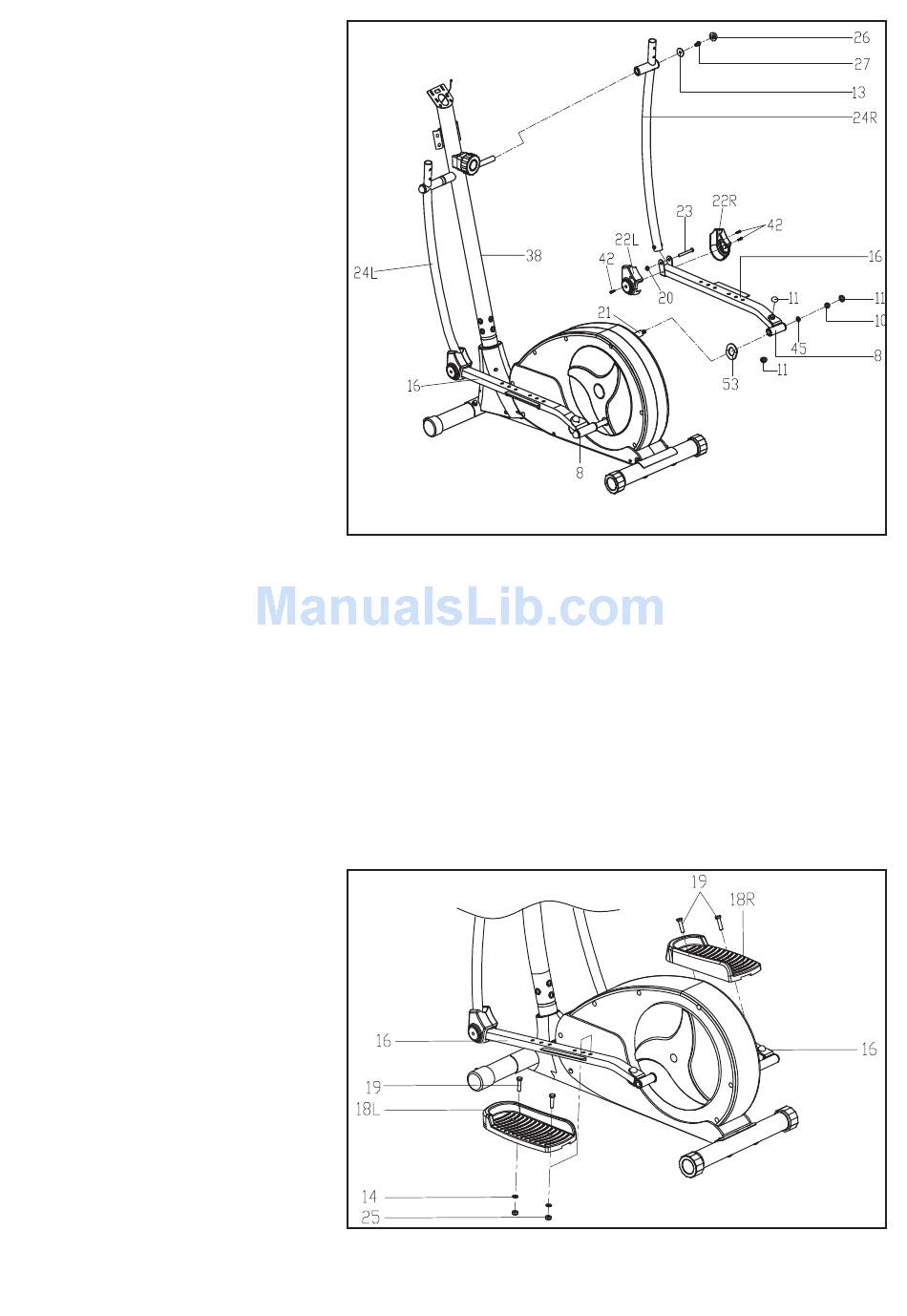

STEP 3

1. Attach the Swing tube (24R) to the

vertical tube shaft of the vertical tube

(38) with Allen bolt (27), big washer (13).

Note: Don't lock in order to attach the

pedal tube to crank easier.

2. Attach the pedal tube link (8) to the

crank (21) with Flat washer (45), Wave

washer (53) and Nylon nut (10). Do

not tighten them first.

3. Connect the Swing tube (24R) with

the Pedal support tube (16R) with Hex

bolt (23), Nylon nut (20).

Then tighten the Allen bolt (27),

Nylon nut (10) and Hex bolt (23). The

same way attach the left Swing tube

(24L) and left Pedal support tube link (8)

to the shaft of the Vertical tube (38) and

the crank (21). Finally, cover the Cap

S17 (11) to the Nylon nut (10) and cover

the Cap S14(26) to the Allen bolt (27).

4. Attach the Protective guard (22L/R) to the connecting of Swing tube (24L/R) and Pedal support tube (16).

with Cross tapping screw (42).

STEP 4

Attach the pedal (18L, 18R) to the

Pedal support tube (16) with Allen bolt

(19), flat washer (14) and nylon nut

(25).

Note: Pedal support tube (16) could

adjust the height (to and fro) of the

L/R pedal(42).You could adjust to the

proper height you want
