- Page 1 VIPA HMI TP | 62K-JIDR | Manual HB160 | TP | 62K-JIDR | en | 17-11 Touch Panel - TP 610C RFID www.vipa.com/en/service-support/manual...
- Page 2 VIPA GmbH Ohmstr. 4 91074 Herzogenaurach Telephone: +49 9132 744-0 Fax: +49 9132 744-1864 Email: info@vipa.com Internet: www.vipa.com 62K-JIDR_000_TP610C_RFID,3,EN - © 2017...
-
Page 3: Table Of Contents
4.1 Basic rules for the EMC-equitable assembly of installations......42 4.2 EMC-equitable assembly................45 4.3 EMC-equitable cabling................... 46 4.4 Special precautions providing high noise immunity........49 4.5 Checklist for the EMC-compliant installation of controllers......50 HB160 | TP | 62K-JIDR | en | 17-11... -
Page 4: General
Contact your local VIPA Customer Service Organization representative if you wish to port report errors or questions regarding the contents of this document. If you are unable to locate a customer service centre, contact VIPA as follows: HB160 | TP | 62K-JIDR | en | 17-11... -
Page 5: About This Manual
Tel.: +49 9132 744-1150 (Hotline) EMail: support@vipa.de 1.2 About this manual Objective and contents This manual describes the Touch Panel 62K-JIDR-... from VIPA. It contains a description of the structure, project engineering and deployment. Product Order number as of state: TP 610C RFID 62K-JIDR-... -
Page 6: Safety Information
Installation and hardware modifications only by properly trained per- sonnel. – The national rules and regulations of the respective country must be satisfied (installation, safety, EMC ...) Disposal National rules and regulations apply to the disposal of the unit! HB160 | TP | 62K-JIDR | en | 17-11... -
Page 7: Hardware Description
Instruments must be grounded. Modifying electrostatic sensitive modules you should only use soldering irons with grounded tips. CAUTION! Personnel and instruments should be grounded when working on electro- static sensitive modules. HB160 | TP | 62K-JIDR | en | 17-11... -
Page 8: Properties

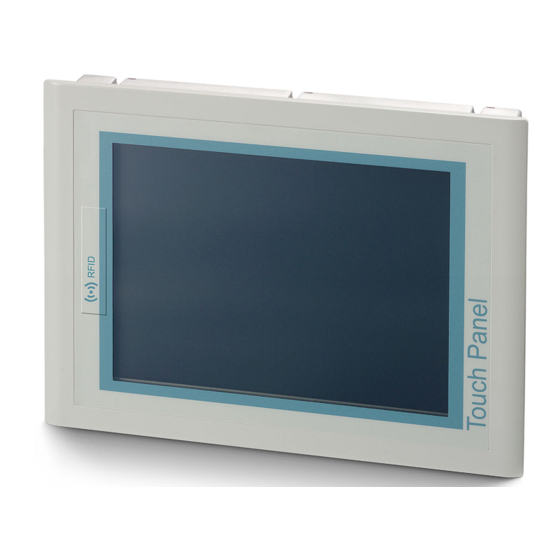

CE. Besides the extensive Windows CE functions the Touch Panel offers varied communication possibilities. Here the Touch Panel can simply be configured, controlled and remoted. The Touch Panel 62K-JIDR-... has an inte- grated RFID reader for access control and activation of machine controls. Ò... -
Page 9: Structure
2.3.1 Overview Front view Slot for storage medium (CF, SD/MMC) RFID reader Connection for interfaces and power supply Display with touch sensitive area (touch screen) Side view Compact Flash MMC / SD HB160 | TP | 62K-JIDR | en | 17-11... -
Page 10: Interfaces
RJ45 jack for Ethernet communication Slot for DC 24V voltage supply Slot for CF/SD/MMC storage medium Please make sure that the Touch Panel always has to be supplied with external voltage! 2.3.2 Interfaces HB160 | TP | 62K-JIDR | en | 17-11... - Page 11 Interface is compatible to the COM interface of a PC Logical signals as voltage levels Point-to-point links with serial full-duplex transfer in two-wire technology up to 15m distance Data transfer rate up to 115.2kbit/s HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 12: Memory Management
Please consider that also registry entries are stored in the work memory that are set back to default settings after the next re-boot. You can save them permanently by means of the KuK Tools (within consignment). HB160 | TP | 62K-JIDR | en | 17-11... -
Page 13: Rfid Reader
Tag and an RFID reader. The Touch Panel 62K-JIDR-... has an integrated a RFID reader at the front side on the left. The position of the RFID readers is indicated by the RFID symbol. The RFID module reads the UID of the transponder card without contact up to a distance of 4 Ä... -
Page 14: Dimensions
Installation cutting (W x H) 287 x 217mm Front panel (W x H) 304 x 233mm Rear panel (W x H x D) 285 x 215 x 45mm Installation depth 45mm HB160 | TP | 62K-JIDR | en | 17-11... - Page 15 The deviation from the plane for the panel cut-out is condition must be fulfilled for the mounted HMI device. £ 120µm (fric- – Permissible surface roughness in the area of the seal: tion coefficient 120) HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 16: General Data
EN 61131-2 Degree of pollution 2 Mechanical Oscillation EN 60068-2-6 1g, 9Hz ... 150Hz Shock EN 60068-2-27 15g, 11ms Mounting conditions Mounting place In the control cabinet Mounting position Horizontal and vertical HB160 | TP | 62K-JIDR | en | 17-11... -
Page 17: Technical Data
System properties Processor Xscale 1.1 GHz Operating system Windows CE 6.0 Prof. User software Work memory 256 MB User memory 512 MB Available memory (user data) 380 MB SD/MMC Slot ü HB160 | TP | 62K-JIDR | en | 17-11... - Page 18 Video connectors Audio connections Technical data power supply Power supply (rated value) DC 24 V Power supply (permitted range) DC 20.4...28.8 V Reverse polarity protection ü Current consumption (no-load operation) 0.51 A HB160 | TP | 62K-JIDR | en | 17-11...
- Page 19 Maximum front panel thickness 6 mm Net weight 3251 g Environmental conditions Operating temperature 0 °C to 50 °C Storage temperature -20 °C to 60 °C Certifications UL certification in preparation KC certification HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 20: Deployment Touch Panel
Now bolt the lever [5] clockwise with the screwdriver [4] until it rotates to the out- side. Further screwing bolts the lever to the front panel until it holds this to the control cabinet front. HB160 | TP | 62K-JIDR | en | 17-11... - Page 21 Insert the insulation-stripped wire into the round opening. You can use wires with a cross-section from 0.08mm to 2.5mm By removing the screwdriver the wire is connected safely with the plug connector via a spring. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 22: Commissioning
A delay time of 5 seconds is default. In the selection menu under "Autostart" you can adjust this time. Selection menu There are following buttons in the selection menu: Settings Info/Update Autostart Backup HB160 | TP | 62K-JIDR | en | 17-11... - Page 23 To permanently retain the settings, you have to store them under‘Start è Programs è KuK_Tools è KuK Tools’ [Store]. Autostart With [Autostart] you define which runtime and which project will be started automatically together with the panel startup. HB160 | TP | 62K-JIDR | en | 17-11...
- Page 24 Via "Rotation" the orientation of the panel can be changed. Via "Program start" with [+] you can add programmes, which have to start automatically. Select "start" and assign a name for the program. Upload your program with [...]. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 25: Deployment Rfid Reader
Position the transponder card at a distance of 4 cm from the RFID symbol. ð The RFID module reads the UID of the transponder card without contact and outputs this as plain text in an editor (e.g. Wordpad) or any text field. HB160 | TP | 62K-JIDR | en | 17-11... - Page 26 After changing the properties, click [Start] to start the application again und then click [Hide] to minimize the window. ð Now the RFID symbol appears in the task bar . Click this to open the proper- ties window again. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 27: Connection To A Plc System
The functions like multi- tasking and multi-threading are supported by this operating system. Ò Ò Windows Embedded CE Windows Embedded CE 6.0 supports some file viewer and an Internet browser. HB160 | TP | 62K-JIDR | en | 17-11... - Page 28 . Before a reboot you should always save your data res. close all run- ning applications to avoid data loss. Please note that changes made are set back after PowerOFF-PowerON and are only stored via ‘Start è Programs è KuK_Tools è KuK Tools’ [Store]. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 29: Structure
Keyboard layout If you’ve connected a keyboard you can choose the requested language layout via this button. Time This area shows the time that you can change via double click. HB160 | TP | 62K-JIDR | en | 17-11... - Page 30 At the moment the following standard keyboards are implemented: Keyboard At pushed Shift key: At pushed [a´ü] key: Please note that äöü can exclusively be entered via the software key- board "Keyboard". HB160 | TP | 62K-JIDR | en | 17-11...
- Page 31 The software keyboard allows you to enter key entries without connecting an external keyboard. As soon as an entry is required the software keyboard is automatically shown. Hide Input Panel hides the keyboard again. HB160 | TP | 62K-JIDR | en | 17-11...
- Page 32 Enter here the transfer velocity of your MPI net. The baud rate has to be identical for every MPI participant within the network. According to the Baud Rate the network parameters are set. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 33: Communication Via Activesync
Start the installation with [Next]. Choose an installation directory and click on [Next]. ð ActiveSync is installed. Establish connection After the installation the dialog window "establish connection" is opened. Start the search run with [Next]: HB160 | TP | 62K-JIDR | en | 17-11... - Page 34 ð The USB device (Touch Panel) is recognized and the dialog window "new part- nership" opens. Choose "yes" for fixing a partnership and push [Next]. In the opening window de-activate all synchronization settings and click on [Next]. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 35: Integrated Server
Data transfer Client ® Server Upload 3.7.2 ftp server By means of a ftp server data between client and server can be exchanged. Here you can copy, delete or create files and directories. HB160 | TP | 62K-JIDR | en | 17-11... -
Page 36: Http Server
IP address of the Touch Panel with attached "Admin" type. Using the websites you may e.g. publish online documentations for a connected PC or go online with applications on the PC. HB160 | TP | 62K-JIDR | en | 17-11... -
Page 37: Telnet Server
After establishment of a Telnet connection the Panel PC provides you with commands. A list of possible commands with a short description is available via the command help. By beginning with "help" before a command you receive help to this command. HB160 | TP | 62K-JIDR | en | 17-11... -
Page 38: Vnc Server
Touch Panel via a Telnet connection by entering the command winvnc in the command console with an active Telnet connection. Now start the VNC client vncviewer.exe on your PC. HB160 | TP | 62K-JIDR | en | 17-11... -
Page 39: Access To The Network Resources
The access to the network resource is performed with the commands Net view and Net use. List released resources Shared resources of a network PC can be listed by the command: \> net view PC- Name HB160 | TP | 62K-JIDR | en | 17-11... - Page 40 For example you can print the content of the current directory using \> dir > network \printer. List network connections The listing command for all network connections of your Touch Panel is \> net use HB160 | TP | 62K-JIDR | en | 17-11...
- Page 41 Example: \> net use data /d deletes the network connection to the drive "archive" of "test server". To save the settings also after power on, you have to store them to the registry with ‘START è Programs è KuK_Tools è KuK Tools’ [Store]. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 42: Installation Guidelines
Pulsed devices (Net influence from occurs, when two current circuits have transducers and foreign net a common line. devices) Starting motors Different potential of component cubicles with common current supply Static discharges HB160 | TP | 62K-JIDR | en | 17-11... - Page 43 Always lay your high voltage lines and signal respectively data lines in separate channels or bundles. – Route the signal and data lines as near as possible beside ground areas (e.g. suspension bars, metal rails, tin cabinet). HB160 | TP | 62K-JIDR | en | 17-11...
- Page 44 Connect installation parts and cabinets with your PLC in star topology with the isolation/protected earth conductor system. So you avoid ground loops. – If there are potential differences between installation parts and cabinets, lay suffi- ciently dimensioned potential compensation lines. HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 45: Emc-Equitable Assembly
Moveable grounding parts (e.g. cubicle doors) have to be connected via flexible ground strips. The ground strips should be short and have a large surface, because the surface is decisive for the diversion of high frequency interferences. HB160 | TP | 62K-JIDR | en | 17-11... -
Page 46: Emc-Equitable Cabling
Wherever possible, exterior cabling should be installed on metallic cable trays. A galvanic buildings connection must be provided for joints between cable trays. You must abide by the appli- cable lightning protection and grounding regulations when installing exterior cables. HB160 | TP | 62K-JIDR | en | 17-11... - Page 47 You should only use cables that are provided with a braided screen. The degree of screening should be more than 80%. HB160 | TP | 62K-JIDR | en | 17-11...
- Page 48 Attach the screens to the screening rail directly at the point where the cables enter the enclosure. The screening conductor must be continued to the module without interruption, however, it must not be connected to the module! HB160 | TP | 62K-JIDR | en | 17-11...
-
Page 49: Special Precautions Providing High Noise Immunity
Suppression of fluores- cent lamps in cubicles Fluorescent lamp Screen above the lamp Screened cable Switch with metallic cover Line filter or screened power cable HB160 | TP | 62K-JIDR | en | 17-11... -
Page 50: Checklist For The Emc-Compliant Installation Of Controllers
Have the screens been connected by means of large-surface and low-impedance cable clamps? Cable screens grounded both-sided where possible? Inductors Have the coils of contactors controlled by means of contacts been connected to snubber networks? HB160 | TP | 62K-JIDR | en | 17-11...
