Chapter 3
Communication Ports
2
1

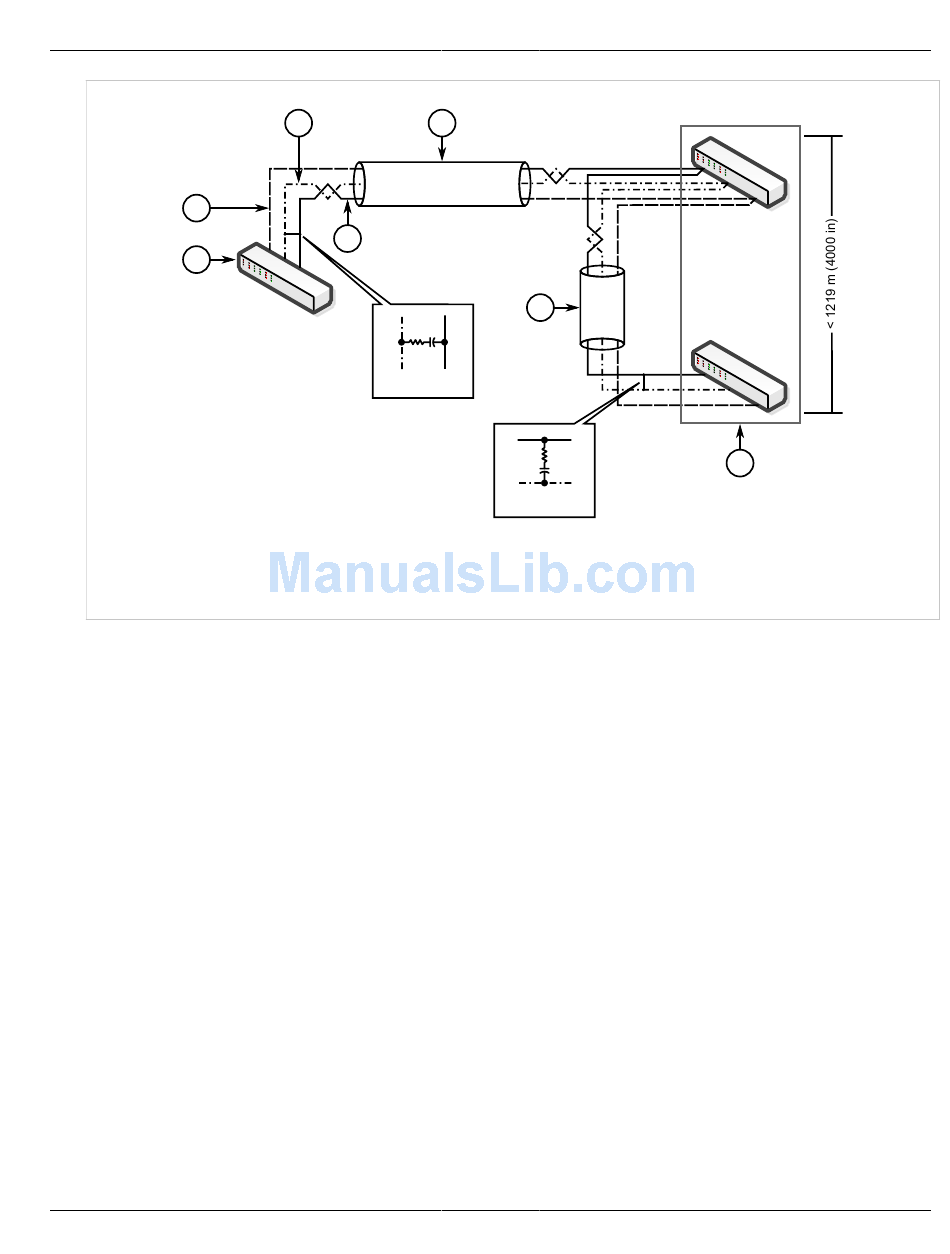

Figure 29: Recommended RS485 Wiring
1. RX5000 Device
2. Common (Isolated Ground)
6. RS485 Devices (32 Total)
28
3
5
4
120Ω 10nF
3. Negative
5
120Ω 10nF
4. Positive
5. Shield to Earth (Connected At a Single Point)
RUGGEDCOM RX5000
Installation Guide
6
Connecting Multiple RS485 Devices
