Summary of Contents for Siemens RUGGEDCOM RX5000
- Page 1 Preface Introduction Installing the Device RUGGEDCOM RX5000 Modules Technical Specifications Dimension Drawings Installation Guide Certification 06/2017 RC1058-EN-06...
-
Page 2: Security Information
Warranty Siemens warrants this product for a period of five (5) years from the date of purchase, conditional upon the return to factory for maintenance during the warranty term. This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. - Page 3 RUGGEDCOM RX5000 Installation Guide Industry Sector Tel: +1 905 856 5288 300 Applewood Crescent Fax: +1 905 856 1995 www.siemens.com/ruggedcom Concord, Ontario Canada, L4K 5C7...
- Page 4 RUGGEDCOM RX5000 Installation Guide...
-
Page 5: Table Of Contents
RUGGEDCOM RX5000 Installation Guide Table of Contents Table of Contents Preface ......................Alerts ..............................vii Related Documents ..........................viii Accessing Documentation ........................viii Training ............................viii Customer Support ..........................viii Chapter 1 Introduction ..................... 1.1 Feature Highlights ........................1 1.2 Description ........................... 2 Chapter 2 Installing the Device .................. - Page 6 RUGGEDCOM RX5000 Table of Contents Installation Guide 3.3 Installing/Removing Power Supply Modules ................... 24 Chapter 4 Technical Specifications .................. 4.1 Failsafe Relay Specifications ......................27 4.2 Operating Environment ....................... 27 4.3 Mechanical Specifications ......................28 Chapter 5 Dimension Drawings ..................Chapter 6 Certification ....................
-
Page 7: Preface
Installation Guide Preface Preface This guide describes the RUGGEDCOM RUGGEDCOM RX5000. It describes the major features of the device, installation, commissioning and important technical specifications. It is intended for use by network technical support personnel who are responsible for the installation, commissioning and maintenance of the device. -
Page 8: Related Documents
Mobile App Install the Industry Online Support app by Siemens AG on any Android, Apple iOS or Windows mobile device and be able to: • Access Siemens' extensive library of support documentation, including FAQs and manuals • Submit SRs or check on the status of an existing SR •... -
Page 9: Introduction

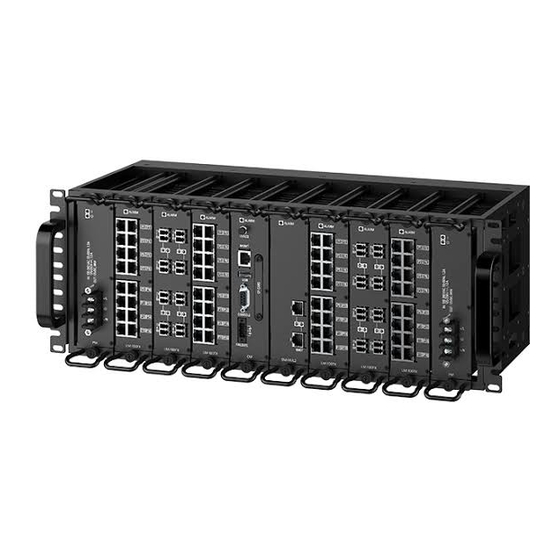

Ethernet networks for mission critical, real-time, control applications. The RUGGEDCOM RX5000 is a scalable, modular platform providing the ability to change the configuration as the network grows and needs change. -
Page 10: Description
Button 6. Management Ethernet Port 7. Utility USB Port 8. RS232 Serial Console Port (DB9) 9. Failsafe Alarm Relay 10. Compact Flash Card Port 11. Power Supply Module Indicator LEDs 12. Power Supply Terminal Block When the RUGGEDCOM RX5000 is configured for rack front mounting, these ports, controls and LEDs are located on the front panel. - Page 11 Use the USB port to upgrade the ROX II software or install files, such as configuration files and feature key files. For more information, refer to the RUGGEDCOM ROX II User Guide for the RUGGEDCOM RX5000. Compact Flash Card Port Houses the compact flash card, which contains active and backup installations of ROX II, along with the configuration database and other system data.
- Page 12 Chapter 1 RUGGEDCOM RX5000 Introduction Installation Guide Description...
-
Page 13: Installing The Device
This product contains no user-serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. Changes or modifications not expressly approved by Siemens Canada Ltd could invalidate specifications, test results, and agency approvals, and void the user's authority to operate the equipment. -
Page 14: General Procedure
Review the relevant certification information for any regulatory requirements. For more information, refer to Section 6.1, “Approvals”. Review the RUGGEDCOM RX5000 Modules Catalog for special installation or regulatory requirements related to the modules installed in the device. Mount the device. Connect the failsafe alarm relay. -
Page 15: Protection On Twisted-Pair Data Ports
Siemens also does not recommend using copper Ethernet ports to interface with devices in the field across distances that could produce high levels of ground potential rise (i.e. greater than 2500 V), during line-to-ground fault conditions. -
Page 16: Mounting The Device
Section 2.4.1 Mounting the Device to a Rack For installations, the RUGGEDCOM RX5000 can be equipped with adapters pre-installed at the front or rear of the chassis. Additional adapters are provided to further secure the device in high-vibration or seismically active locations. -
Page 17: Mounting The Device To A Panel
Section 2.4.2 Mounting the Device to a Panel For panel installations, the RUGGEDCOM RX5000 can be equipped with adapters pre-installed on each side of the chassis. The adapters allow the device to be attached to a panel using screws. To mount the device to a panel, do the following:... -
Page 18: Installing The Chassis Ground Connection
Chapter 2 RUGGEDCOM RX5000 Installing the Device Installation Guide Place the device against the panel and align the adapters with the mounting holes. Figure 4: Panel Mounting 1. Screw 2. Adapter Install the supplied screws to secure the adapters to the panel. Make sure the screws are torqued to 2 ± 0.1 N·m (18 ±... -
Page 19: Grounding The Device
If the ground terminal on the power supply module(s) is connected to safety Earth, a connection from the chassis ground terminal is not required. The RUGGEDCOM RX5000 chassis ground terminal uses a #8-32 screw. It is recommended to terminate the ground connection with a #8 ring lug and torque it to 3.4 N·m (30 lbf·in). -
Page 20: Connecting The Failsafe Alarm Relay
1. Normally Open 2. Common (Ground) 3. Normally Closed Section 2.8 Connecting Power The RUGGEDCOM RX5000 supports dual redundant AC and/or DC power modules that can be installed in any combination. The RUGGEDCOM RX5000 is equipped with a screw-type terminal block, which provides power to both power modules. -
Page 21: Connecting Ac Power
RUGGEDCOM RX5000 Chapter 2 Installation Guide Installing the Device connections or crimped terminal lugs. Use #6 size ring lugs for secure, reliable connections under severe shock or vibration. For information about installing or removing a power module, refer to Section 3.3, “Installing/Removing Power Supply Modules”. -
Page 22: Connecting Dc Power
Chapter 2 RUGGEDCOM RX5000 Installing the Device Installation Guide Figure 8: AC Terminal Block Wiring 1. Live Terminal 2. Ground Terminal 3. Neutral Terminal Connect the negative wire from the power source to the neutral terminal on the terminal block. IMPORTANT! If the ground terminals are not connected to safety Earth, the chassis ground connection must be connected. -
Page 23: Connecting To The Device
RUGGEDCOM RX5000 Chapter 2 Installation Guide Installing the Device Figure 9: DC Terminal Block Wiring 1. Live Terminal 2. Ground Terminal 3. Neutral Terminal Connect the negative wire from the power source to the neutral terminal on the terminal block. IMPORTANT! If the ground terminals are not connected to safety Earth, the chassis ground connection must be connected. -
Page 24: Configuring The Device
Chapter 2 RUGGEDCOM RX5000 Installing the Device Installation Guide Name Description Data Carrier Detect Receive Data Transmit Data Data Terminal Ready Signal Ground Data Set Ready Request to Send Figure 10: Serial DB9 Console Port Clear To Send Reserved (Do Not Connect) The management port is a 10/100Base-TX copper Ethernet port with an RJ45 connector. -
Page 25: Modules
Modules Modules The RUGGEDCOM RX5000 features slots for up to two power modules and eight line modules, which can be used to expand and customize the capabilities of the device to suit specific applications. A variety of modules are available, each featuring a specific type of communication port: copper Ethernet, fiber optic Ethernet, SFP or serial. -
Page 26: Available Modules
RUGGEDCOM RX5000 Modules Installation Guide Section 3.1 Available Modules The following is a list of all power and line modules available for use in the RUGGEDCOM RX5000. For RUGGEDCOM RX5000 Modules Catalog more information about individual modules, refer to the [https:// support.industry.siemens.com/cs/ca/en/view/109748479]. - Page 27 RUGGEDCOM RX5000 Chapter 3 Installation Guide Modules RUGGEDCOM RX5000PN LM 8FX50 Specifications Article Numbers Speed: 100Base-FX 6GK6050-0AL20-0CU0 (Standard) SFP Sockets: 8 6GK6050-0AL20-0CU1 (Conformal Coated) RUGGEDCOM RX5000PN LM 4FG50 Specifications Article Numbers Speed: 1000Base-LX 6GK6050-0AL20-0JB0 (Standard) SFP Sockets: 4 6GK6050-0AL20-0JB1 (Conformal Coated)
-
Page 28: Switch Modules
Chapter 3 RUGGEDCOM RX5000 Modules Installation Guide RUGGEDCOM RX5000PN CM01 L3SEL2HW Specifications Article Numbers Layer 3 Standard Edition, Layer 2 6GK6050-0AL30-0DA0 Hardware 6GK6050-0AL30-0DA1 RUGGEDCOM RX5000PN CM01 L3SECL2HW Specifications Article Numbers Layer 3 Security Edition, Layer 2 6GK6050-0AL30-0EA0 Hardware 6GK6050-0AL30-0EA1 Switch Modules... -
Page 29: Installing/Removing Line Modules
RUGGEDCOM RX5000 Chapter 3 Installation Guide Modules RUGGEDCOM RX5000PN SM61 Specifications Article Numbers Layer 3/88 Gigabit Throughput, 6GK6050-0AL40-0VA0 no uplink ports (Standard) 6GK6050-0AL40-0VA1 (Conformal Coated) RUGGEDCOM RX5000PN SM69 Specifications Article Numbers Layer 3/88 Gigabit Throughput, 6GK6050-0AL40-0WA0 2x 10G SFP + Slots Blank... - Page 30 Chapter 3 RUGGEDCOM RX5000 Modules Installation Guide Figure 13: Line Modules 1. Ethernet Module Slot (LM1) 2. Ethernet Module Slot (LM2) 3. Ethernet Module Slot (LM3) 4. Control Module (CM) 5. Switch Module (SM) 6. Ethernet Module Slot (LM4) 7. Ethernet Module Slot (LM5) 8. Ethernet Module Slot (LM6) CAUTION! Contamination hazard –...
- Page 31 RUGGEDCOM RX5000 Chapter 3 Installation Guide Modules Figure 14: Removing a Module 1. Chassis 2. Module 3. Screw Install a new module or a blank module (to prevent the ingress of dust and dirt). [Optional] If necessary, install the device in the rack. Connect power to the device.
-
Page 32: Installing/Removing Power Supply Modules
[Optional] If necessary, install the device in the rack. Connect power to the device. Section 3.3 Installing/Removing Power Supply Modules The RUGGEDCOM RX5000 supports dual redundant AC and/or DC power supplies that can be installed in any combination. Figure 16: Power Supply Modules 1. Power Supply Module (PS1) 2. Power Supply Module (PS2) -
Page 33: Installing A Power Supply Module
RUGGEDCOM RX5000 Chapter 3 Installation Guide Modules CAUTION! Contamination hazard – risk of equipment damage. Prevent the ingress of water, dirts and other debris that may lead to premature equipment failure. Always make sure slots are not left empty. NOTE Power modules are hot swappable. - Page 34 Chapter 3 RUGGEDCOM RX5000 Modules Installation Guide If applicable, connect the supplied terminal block to the module or connect the terminal block from the previous module. Confirm or connect the wiring from the power supply to the module. For more information, refer to Section 2.8, “Connecting...
-
Page 35: Technical Specifications
RUGGEDCOM RX5000 Chapter 4 Installation Guide Technical Specifications Technical Specifications This section provides important technical specifications related to the device and available modules. CONTENTS • Section 4.1, “Failsafe Relay Specifications” • Section 4.2, “Operating Environment” • Section 4.3, “Mechanical Specifications” Section 4.1 Failsafe Relay Specifications... -
Page 36: Mechanical Specifications
Chapter 4 RUGGEDCOM RX5000 Technical Specifications Installation Guide Section 4.3 Mechanical Specifications Dimensions Refer to Chapter 5, Dimension Drawings. Weight 14-16 kg (30-35 lbs) Ingress Protection IP40 Chassis Material Aluminum Mechanical Specifications... -
Page 37: Dimension Drawings
RUGGEDCOM RX5000 Chapter 5 Installation Guide Dimension Drawings Dimension Drawings NOTE All dimensions are in millimeters, unless otherwise stated. 133.4 117.6 101.6 12.7 16.0 25.4 221.5 311.9 16.0 31.8 Figure 19: Overall Dimensions... - Page 38 Chapter 5 RUGGEDCOM RX5000 Dimension Drawings Installation Guide...
-
Page 39: Certification
RUGGEDCOM RX5000 Chapter 6 Installation Guide Certification Certification The RUGGEDCOM RX5000 device has been thoroughly tested to guarantee its conformance with recognized standards and has received approval from recognized regulatory agencies. CONTENTS • Section 6.1, “Approvals” • Section 6.2, “EMC and Environmental Type Tests”... -
Page 40: European Commission (Ec)
Hazardous Substances The device is marked with a CE marking and can be used throughout the European community. A copy of the CE Declaration of Conformity is available from Siemens Canada Ltd. For contact information, refer to “Contacting Siemens”. -
Page 41: Ised
Chapter 6 Installation Guide Certification Section 6.1.5 ISED This device is declared by Siemens Canada Ltd to meet the requirements of the following ISED (Innovation Science and Economic Development Canada) standard: • CAN ICES-3 (A)/NMB-3 (A) Section 6.1.6 ACMA This device meets the requirements of the following Australian Communications and Media Authority (ACMA) standards under certificate ABN 98 004 347 880: •... -
Page 42: Other Approvals
• IEC 61000-6-2 Electromagnetic Compatibility (EMC) – Part 6-2: Generic Standards – Immunity for Industrial Environments Section 6.2 EMC and Environmental Type Tests The RUGGEDCOM RX5000 has passed the following EMC and environmental tests. IEC 61850-3 EMC Type Tests Severity Test... - Page 43 AC Power ports 5 kV Siemens-specified severity levels IEEE 1613 EMC Type Tests NOTE The RUGGEDCOM RX5000 meets Class 2 requirements for an all-fiber configuration and Class 1 requirements for copper ports. Description Test Levels Enclosure Contact +/-2 kV, +/-4 kV, +/- 8 kV...
-
Page 44: Environmental Type Tests
Chapter 6 RUGGEDCOM RX5000 Certification Installation Guide Description Test Levels AC Power ports +/- 4 kV Earth ground ports +/- 4 kV Oscillatory Signal ports 2.5 kV common mode @1 MHz DC Power ports 2.5 kV common, 1 kV differential mode @ 1 MHz AC Power ports 2.5 kV common, 1 kV differential mode @ 1 MHz...
