THE PERFECT FIT

Handlebar Adjustments

Use the RIDER SELECT feature to adjust handlebar position. See page
34. Use the following steps to adjust handlebar angle at the handlebar
block.

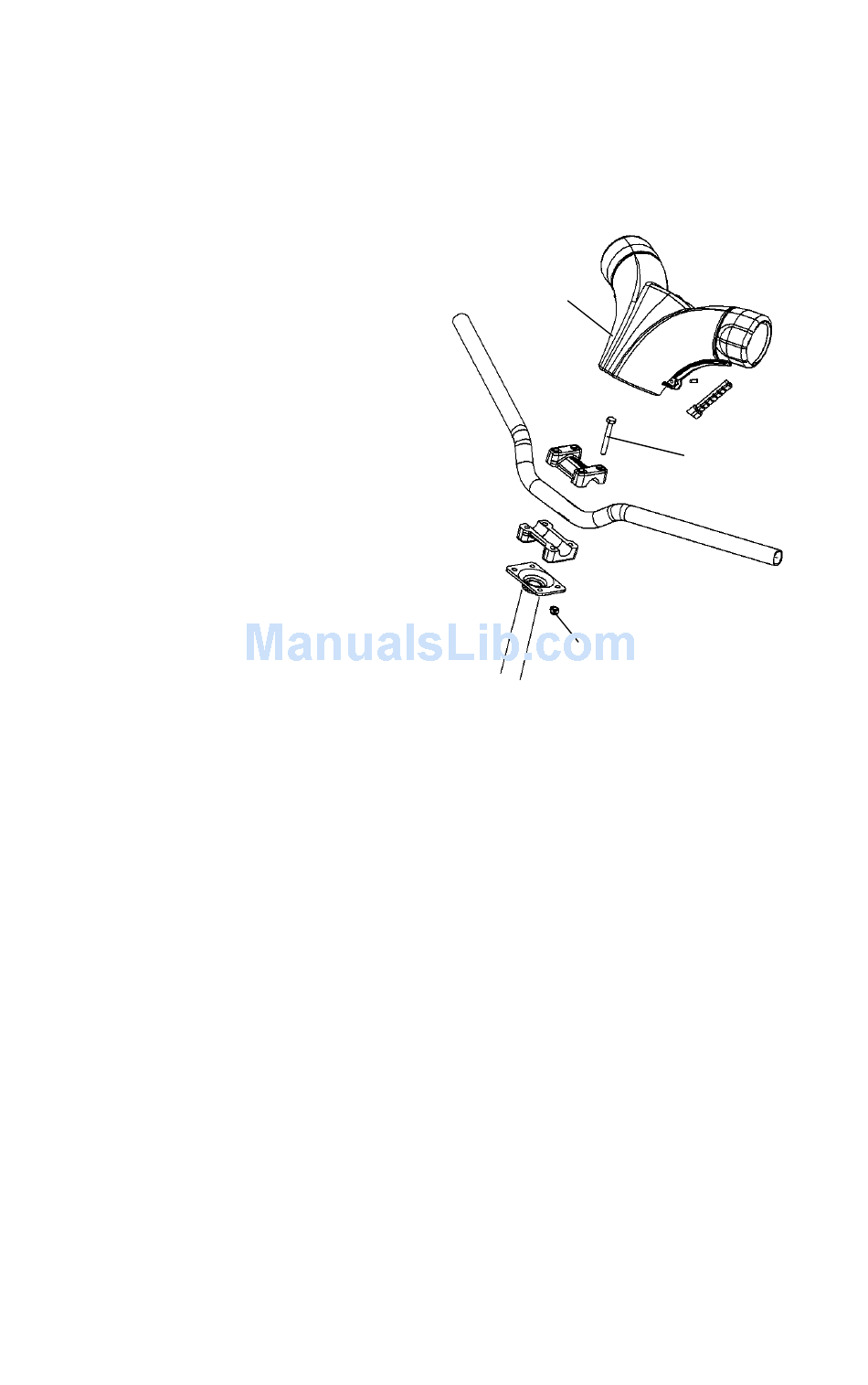

1. Remove the handlebar cover
to expose the handlebar and
the four adjuster block bolts.
2. Using a 7/16" wrench, loosen
the four nuts on the bottom of
the adjuster block (turn han-
dlebar to left or right for
access to back nuts).
NOTE:
If necessary, pry the blocks
apart with a screwdriver.
3. Adjust the handlebar to the
desired height. Be sure han-
dlebars, brake lever and
throttle lever operate
smoothly and do not hit the
gas tank, windshield or any
other part of the machine
when turned fully to the left
or right.
4. Torque the front bolts first, then torque the rear bolts. Torque the
bolts to 15-17 ft. lbs. (20-23 Nm).
5. Reinstall the handlebar cover.
70
Handlebar
Cover
Nuts
Adjuster
Block
Bolts
