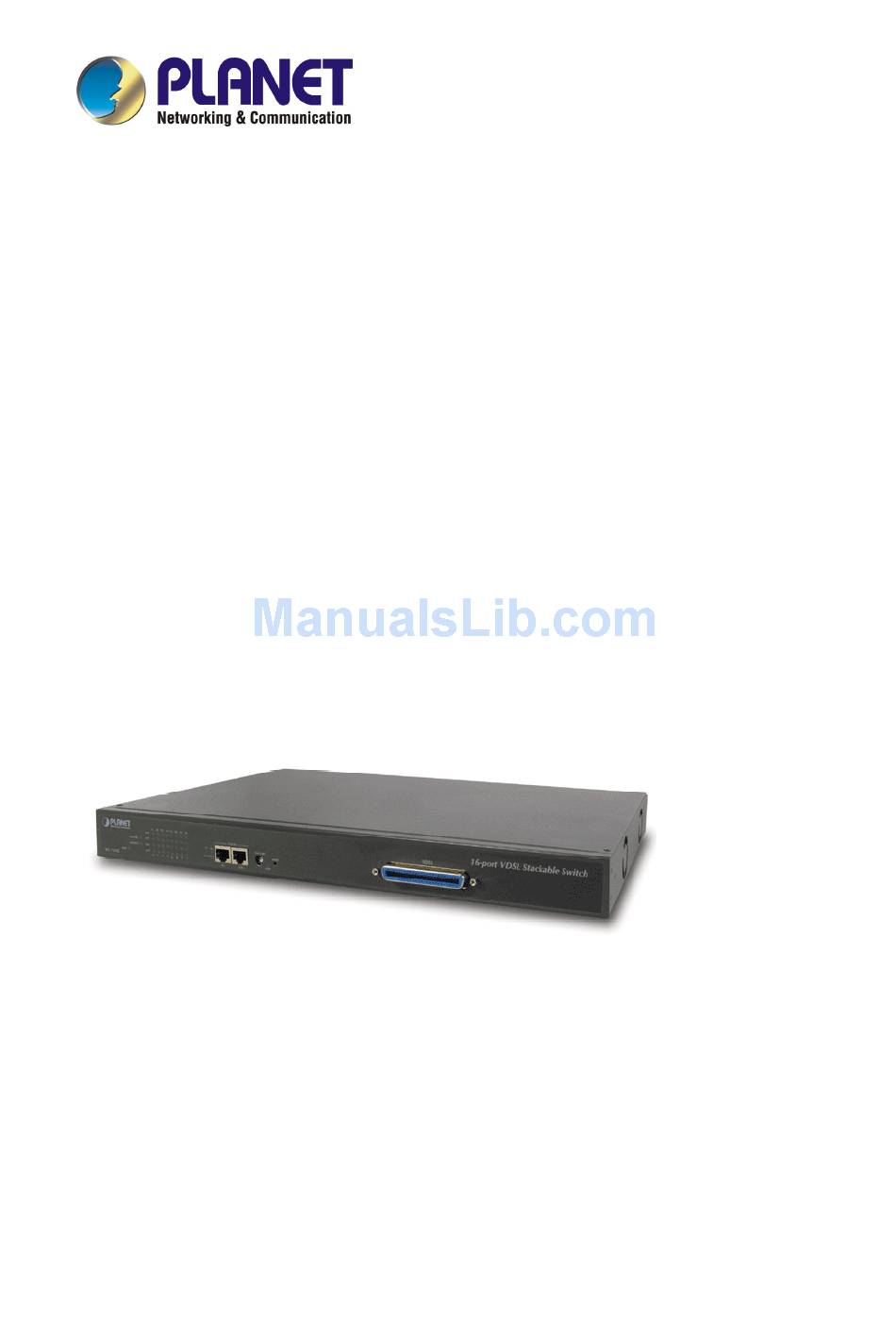

  • Page 1 16-port + 2 Gigabit-slots VDSL Stackable Switch VC-1602 User’s Manual...
  • Page 2 Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ... 1 1.1 C ... 1 HECKLIST 1.2 A ... 1 BOUT THE WITCH 1.3 F ... 2 EATURES 1.4 S ... 2 PECIFICATIONS CHAPTER 2 HARDWARE INSTALLATION... 4 2.1 F ... 4 RONT ANEL 2.2 R ...

  • Page 4: Chapter 1 Introduction

    1.2 About the Switch The VC-1602 is an Ethernet over VDSL switch with sixteen VDSL ports (on 1 RJ-21 connector) and two Gigabit slide-in slots on the rear panel for optional fiber/copper Gigabit modules.

  • Page 5: Features

    1000Base-SX/LX, IEEE 802.3ab 1000Base-T, IEEE 802.3x flow control, IEEE 802.1Q VLAN and 802.1p priority queuing w 5 selectable transmission modes using the management interface of the VC-1602 w QAM ( Quadrature Amplitude Modulation) line code w Designed based on Frequency Division Duplexing...
  • Page 6 EMC/EMI FCC, CE Management Interface Web, Console, Telnet and SNMP Protocols and Standards IEEE 802.3 (Ethernet) IEEE 802.3u (Fast Ethernet) IEEE 802.3z/802.3ab (Gigabit Ethernet) IEEE 802.3x (flow control) IEEE 802.1Q VLAN tag IEEE 802.1p QoS RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 826 ARP...

  • Page 7: Chapter 2 Hardware Installation

    This section describes the hardware features and installation of these Switches. For easier management and control of the switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators. Before connecting any network device to the switch, read this chapter carefully.
  • Page 8 IN port should connect to the other switch’s OUT port and the OUT port should connect to other switch’s IN out. You can just use normal Cat 5 or better cable with RJ-45 connector to stack. Only straight-through UTP/STP cable can be used. There is no Duplex Mode issue and the maximum distance between first and last switch is 800m.
  • Page 9 Wiring for VDSL ports The VDSL port of VC-1602 uses one RJ-21 (Telco 50) connector to connect up to 16 VDSL converters (VC-102S, VC-101S or Cisco LRE modem) through structured or unstructured wiring, such as existing telephone lines. The link between the VDSL switch port and each converter can reach speeds of up to 15/17 Mbps over distances of up to 5000 feet (1500 meters).

  • Page 10: Rear Panel

    2.2 Rear Panel The rear panel of the switch indicates an AC inlet power socket, which accepts input power from 100 to 240VAC, 50-60Hz, one RS-232 console port for setting up the switch via a connection to a terminal or PC using a terminal emulation program, and two slide-in slots for installing additional modules.

  • Page 11: Hardware Installation

    2.3 Hardware Installation This switch can be placed directly on your desktop, or mounted in a rack. If you install the device in a normal-standalone standard, the switch is an managed Switch, and users can immediately use most of the features simply by attaching the cables and turning the power on.
  • Page 12 The Gigabit ports provide the fat pipe to the server or backbone connectivity for boosting the total system performance. Refer to the wiring statement of the previous section; connect each station to the switch with correct type of cables.

  • Page 13: Stack Installation

    Plug one end of the cable in the “IN” port and the other end to the ”OUT” port of next device. Repeat the step for every device in the stack cluster, then ending at last switch. Before management stacking, be sure of every device uses a unique ë...

  • Page 14: Chapter 3 Console And Telnet Management

    If you are using Windows 95/NT/98/2000/XP, launch “HyperTerminal”, create a new connection, and adjust settings as below: Please then power on the switch; launch the new terminal program you just set up. Press “Enter” key, then login screen appears. Please check chapter 3.3 for detail on console management.

  • Page 15: Main Menu

    “guest”: guest can view the whole switch information only, moreover, access to Web management interface is not allowed. The default password is “guest”. Main menu appears after successfully login VC-1602. To enter any of the submenus, simply type the number after the command prompt. When select further options, you may be asked for the device ID which you want to configure.
  • Page 16 Modify system contact, device name and device location of each switch on the stack. Configure each switch’s IP address, subnet mask and default gateway. Display the console port configuration, like baudrate, databits, parity, etc.
  • Page 17 Only root account has the right to enter this menu. Restart the switch. available: cold start and warm start. Reset the switch back to factory default settings. Configure the telnet timeout interval. Update the firmware through TFTP server.

  • Page 18: Chapter 4. Web Management

    4.1 Start A Web Browser Session The Web Interface of VC-1602 is coded by Java Applet and running on the JavaTM Virtual Machine (JVM) version 1.3.1 platform. You should configure the management station with an IP address and subnet mask compatible with VC-1602 for accessing it.

  • Page 19: Stack Main Page

    4.2 Stack Main Page The stack main page contains two options: Topology This screen displays one or more switches of the management stack. Basic properties can be read by the screen, including Hardware characteristic, Device Name, Up time, Master and Slave relationship. Also, by mouse clicking listed items can enter for further operation.

  • Page 20: Switch Main Page

    4.3 Switch Main Page Switch Main Page appears after you click one of the switch(es) on the topology page. There are 8 function button listed on top: Home, Save, Default, Reboot, Ping, Telnet, Contact, and Upgrade. <Home> Shortcut to back to stack home page <Save>...
  • Page 21 Warm Boot Reboot the switch in a short time. Cold Boot Boot the switch and with fully Power On Self Test (POST). The system is completely checked but spends much time. <Ping> The Ping is a commonly used tool to detect the remote host or IP address exists or not.
  • Page 22 WEB Upload Select Device ID and “WEB Upload” radio button then click OK. Specify the file path by clicking Browse button and click Start. TFTP Download Select Device ID and “TFTP Download” radio button then click Enter the TFTP server’s IP address in Server IP field. Enter file name in File Name field.

  • Page 23: Device Configuration

    Device The shortcut to go to another member switch in the management stack. 4.4 Device Configuration Panel Display MASTER LED SWITCH ID STATUS LED Network Configuration IP Address: Subnet Mask: Gateway IP: Device Information Name: Contact: Location: ë The Network Configuration and Device Information of Master Device in the Note management stack will become system parameters automatically.

  • Page 24: Topology Info

    4.5 Topology Info This page displays information about the switch(es), such as Device ID, Hardware version, Boot-Up version, POST version, Runtime version (Firmware version), JAVA Applet version (Web User Interface version), Device Name and Device Location. When management stack persist, by the Device ID, all the members are transparently listed.
  • Page 25 Configuration Port attributes can be setup in this page. Setup Port Attributes - VDSL port Click the “Name” column of the port. Enter a name for identification, like ‘Richard’; and press Enter. Leave the “Admin” column ‘Enable’ value to make the port to be in operation or ’Disable’...
  • Page 26 Duplicate Port Attributes Click “Duplicate” button, the dialogue screen appears. Select Source Port (for example Port 1). Select Target Port, click Select the port attributes you want to duplicate. Click to submit values. Click Apply button to apply settings. As the following result, port 1 is duplicated to port 2, 3, 4, 5 accompany with specified attributes.
  • Page 27 Also accomplished by simply mouse right-click the port on the ‘Panel ë Note Display’ then select ‘Copy Setting’ to duplicate port properties and select ’Past Setting’ when point at destination port. Statistic The statistics function provides the following 3 pages for various traffic information of each port.
  • Page 28 OAM tool to discover abnormal nodes or segments. The OAM-Like is a simplified-OAM, which features the switch to run looping tests while remote administer by simply mouse clicking. The VDSL switch also negotiates with CPE (VDSL Converter) to know the link status and recognize hardware version, software version and Ethernet port link status of CPE device.

  • Page 29: Security

    Simple Network Management Protocol (SNMP) is a communication protocol for managing devices on a network. It is commonly used for network administrators to communicate with multiple devices (hub, switch, router ……) for configuring and monitoring while convenient for troubleshooting but no miscellaneous platform consideration.
  • Page 30 To Modify a Community Select one community you want to modify in the “Current” column The “New” column lists the corresponding values; please modify it Click Modify button to update the entry Trap Manager Trap Manager specifies the Network Management Stations (NMS) that will receive trap messages from the SNMP agent and can up to 5 entries.

  • Page 31: Vlan

    VLAN Static List This screen is used to Add / Remove / Modify VLAN and up to 255 groups is supported on this switch. The VLAN groups that have been created are all listed here. To create a new VLAN group Specify the name for the new VLAN group (VLAN name is only used for identification).
  • Page 32 To remove a VLAN group Select a VLAN group you want to remove from the “Current” list. Click Remove>> button to remove it. Attention: If a removed port is no longer belonged to any other group, it is temporarily disabled because no one can communicate with it. If one port’s PVID is equal to this VLAN ID, removing this VLAN group will not allow until you change it.
  • Page 33 MAC addresses or related ports by voluntary learning relationship of MAC addresses and its related ports. - All Together Click All Together button then all the ports of the switch will be added to VLAN group 1. - All Independent belong to the VLAN Y, the Ingress Filter discards the packet.

  • Page 34: Address Table

    Fill in configuration value (VLAN ID, MAC address), then click “<<Add” button (Note that ports on the switch are all default to VLAN 1). To remove a static address Click the static address in the MAC address table of the port.

  • Page 35: Mirror

    8 Service Rules in the Priority Map. When one packet carries with priority-tag, which has specified a CoS (Class of Service) comes into the switch, the specified CoS tag will determine what priority (Low/High) will it get according to the Priority Map in the switch.
  • Page 36 2：1 Send 2 high priority packets, then 1 low priority packet 3：1 Send 3 high priority packets, then 1 low priority packet 4：1 Send 4 high priority packets, then 1 low priority packet 5：1 Send 5 high priority packets, then 1 low priority packet 6：1 Send 6 high priority packets, then 1 low priority packet 7：1...

  • Page 37: Chapter 5. Troubeshooting

    This chapter contains information to help you solve problems. If VC-1602 is not functioning properly, make sure the Switch was set up according to instructions in this manual. The port is connected but the port LED is not lit Solution: Check the following items: 1.

  • Page 38: Switch ' Srj-45 Pin Assignments

    A.1 Switch‘s RJ-45 Pin Assignments 1000Mbps, 1000Base T Contact BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.

  • Page 39: Cable Pin Assignment

    A.3 RJ-45 cable pin assignment A.4 RJ-21 Connector pin out The above picture is the RJ-21 connector on VC-1602. connector pinouts. Port / Function No Connect No Connect No Connect No Connect No Connect No Connect No Connect No Connect...
  • Page 40 Port 3, Tip Port 2, Tip Port 1, Tip No Connect - 37 - Port 3, Ring Port 2, Ring Port 1, Ring No Connect...
