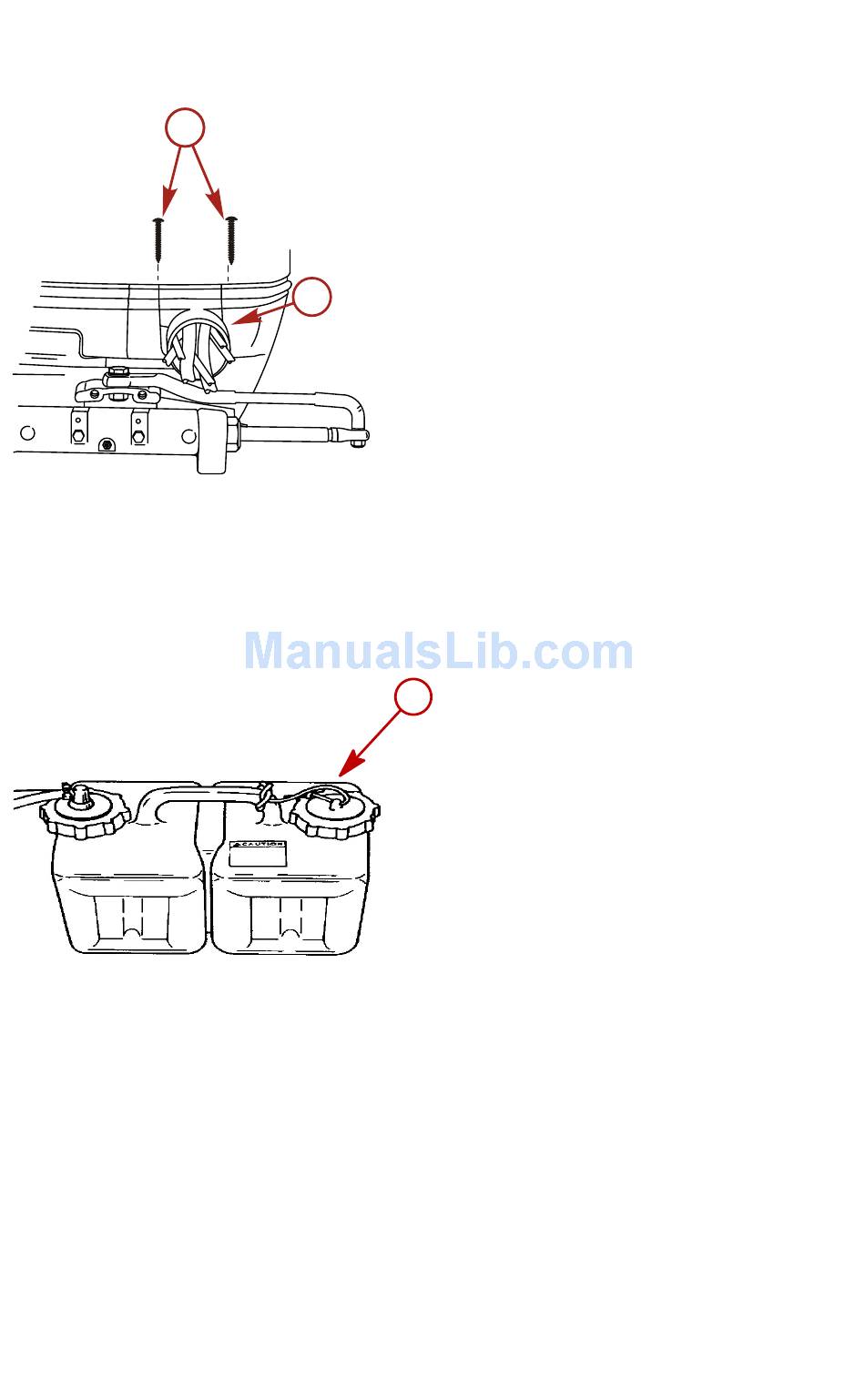

2. Fasten the clamp together with two screws.
Oil Injection Set‑Up
FILLING THE OIL TANKS
1. Remove the fill cap from the remote oil tank and fill the tank with the
recommended oil. Install the fill cap and tighten securely.
IMPORTANT: Do not remove the vent cap from the engine‑mounted oil
reservoir tank when filling the tank. Removal of the vent cap may damage the
threads in the oil reservoir tank. Damaged threads may result in future oil
leakage.
2. Check the oil level in the engine‑mounted oil reservoir tank. The tank
must contain at least 118 ml (4 oz) of oil prior to starting the engine.
OUTBOARD INSTALLATION
a a
b
a -
b -
7644
a
a - Fill cap
2683
100
Screw (2)
Front clamp
