DIRECTV Genie™ (Adv Whole-Home) (HR44, HR34 and above)
Your equipment may not look exactly like the model illustrated. This image has enlarged features for ease the purposes of illustration.
NETWORK SWM ONLY – Connect a cable from a Single Wire Multi-Switch (SWM) to this port. This is your SAT-IN connection.
1.
2. A/V OUT – A combined 10-pin output that supports both audio and video. Your Genie Client comes with an A/V Out cable for
Component Video and RCA audio. An A/V Out cable for Composite Video and RCA audio can be purchased separately.
HDMI – Use this combination digital video and audio connector for the best picture quality. This is the recommended
3.
connector for HD TV.
4. USB – For future use. USB 2.0 Host (FRONT/REAR EACH 5V = 500mA)
5. DIGITAL AUDIO OUT COAXIAL – Use this digital audio connection for sound.
POWER – Your receiver must be plugged in at all times to function properly.
6.
WARNING: Use only the power supply (power cord) that came with your DIRECTV receiver. Failure to use the authorized power
supply (power cord) may cause electric shock, fire, bodily injury and/or property damage. If the power supply (power cord) becomes
damaged or needs to be replaced, please contact DIRECTV Customer Service to obtain an authorized replacement.
1 2

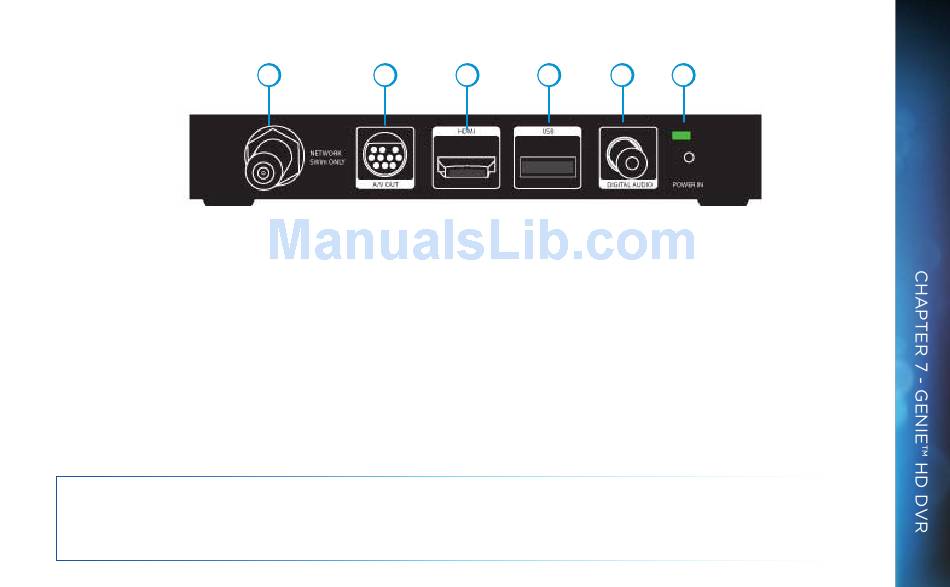

BACK PANEL EXAMPLE

3 4 5 6
99
