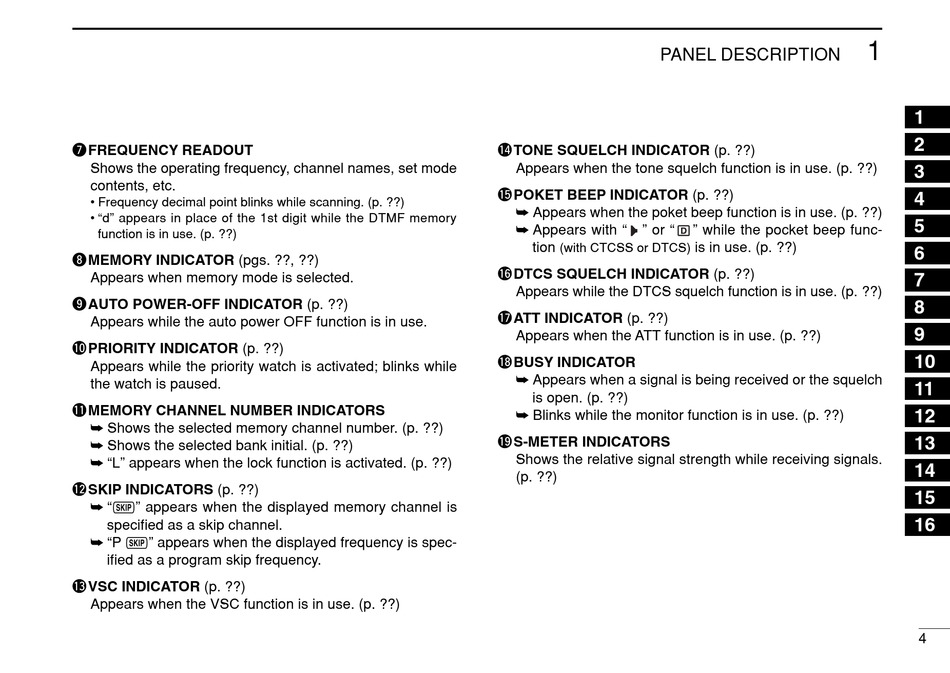

u FREQUENCY READOUT
Shows the operating frequency, channel names, set mode
contents, etc.
• Frequency decimal point blinks while scanning. (p. ??)
• "d" appears in place of the 1st digit while the DTMF memory
function is in use. (p. ??)
i MEMORY INDICATOR (pgs. ??, ??)
Appears when memory mode is selected.
o AUTO POWER-OFF INDICATOR (p. ??)
Appears while the auto power OFF function is in use.
!0 PRIORITY INDICATOR (p. ??)
Appears while the priority watch is activated; blinks while
the watch is paused.
!1 MEMORY CHANNEL NUMBER INDICATORS
➥ Shows the selected memory channel number. (p. ??)
➥ Shows the selected bank initial. (p. ??)
➥ "L" appears when the lock function is activated. (p. ??)
!2 SKIP INDICATORS (p. ??)
➥ "~" appears when the displayed memory channel is
specified as a skip channel.
➥ "P ~" appears when the displayed frequency is spec-
ified as a program skip frequency.
!3 VSC INDICATOR (p. ??)
Appears when the VSC function is in use. (p. ??)
PANEL DESCRIPTION
!4 TONE SQUELCH INDICATOR (p. ??)
Appears when the tone squelch function is in use. (p. ??)
!5 POKET BEEP INDICATOR (p. ??)
➥ Appears when the poket beep function is in use. (p. ??)
➥ Appears with "
" or "
tion
(with CTCSS or DTCS)
!6 DTCS SQUELCH INDICATOR (p. ??)
Appears while the DTCS squelch function is in use. (p. ??)
!7 ATT INDICATOR (p. ??)
Appears when the ATT function is in use. (p. ??)
!8 BUSY INDICATOR
➥ Appears when a signal is being received or the squelch
is open. (p. ??)
➥ Blinks while the monitor function is in use. (p. ??)
!9 S-METER INDICATORS
Shows the relative signal strength while receiving signals.
(p. ??)
1
" while the pocket beep func-
is in use. (p. ??)
