1
PANEL DESCRIPTION

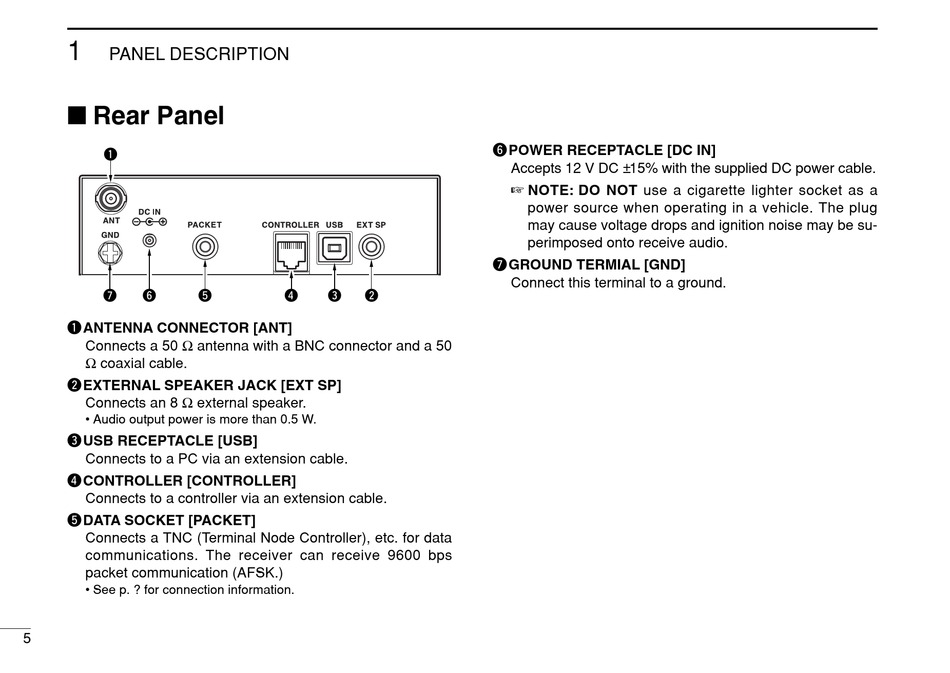

I Rear Panel
q
u
y
t
q ANTENNA CONNECTOR [ANT]
Connects a 50 Ω antenna with a BNC connector and a 50
Ω coaxial cable.
w EXTERNAL SPEAKER JACK [EXT SP]
Connects an 8 Ω external speaker.
• Audio output power is more than 0.5 W.
e USB RECEPTACLE [USB]
Connects to a PC via an extension cable.
r CONTROLLER [CONTROLLER]
Connects to a controller via an extension cable.
t DATA SOCKET [PACKET]
Connects a TNC (Terminal Node Controller), etc. for data
communications. The receiver can receive 9600 bps
packet communication (AFSK.)
• See p. ? for connection information.
5
r
e
w
y POWER RECEPTACLE [DC IN]
Accepts 12 V DC ±15% with the supplied DC power cable.
NOTE: DO NOT use a cigarette lighter socket as a
power source when operating in a vehicle. The plug
may cause voltage drops and ignition noise may be su-
perimposed onto receive audio.
u GROUND TERMIAL [GND]
Connect this terminal to a ground.
