7
BATTERY CHARGING

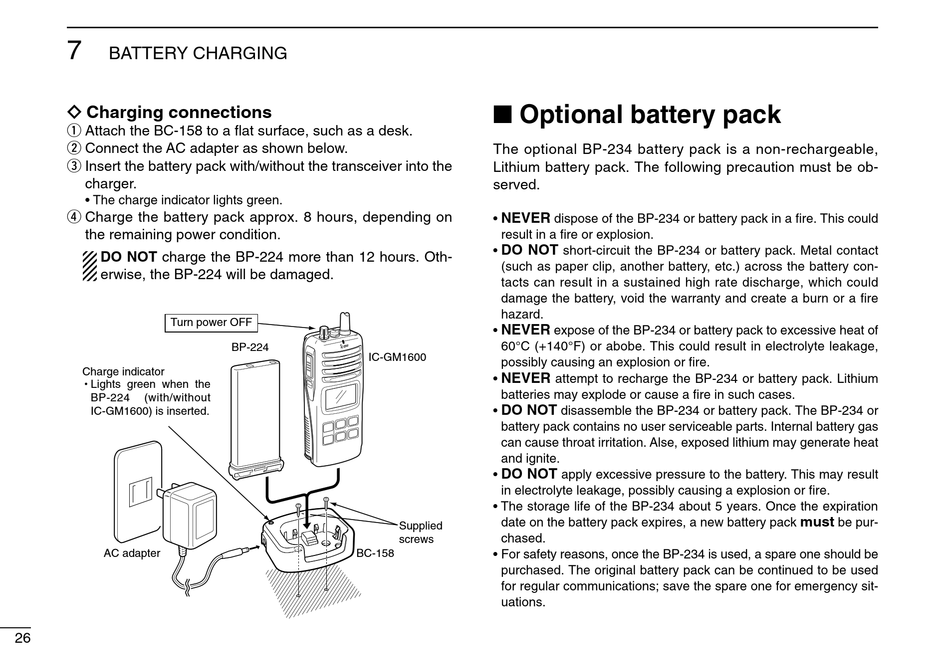

ï Charging connections
q Attach the BC-158 to a flat surface, such as a desk.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
r Charge the battery pack approx. 8 hours, depending on
the remaining power condition.
DO NOT charge the BP-224 more than 12 hours. Oth-
erwise, the BP-224 will be damaged.
Turn power OFF
Charge indicator
Lights green when the
BP-224 (with/without
IC-GM1600) is inserted.
AC adapter
26
BP-224
IC-GM1600
Supplied
screws
BC-158
I Optional battery pack
The optional BP-234 battery pack is a non-rechargeable,
Lithium battery pack. The following precaution must be ob-
served.
NEVER
• dispose of the BP-234 or battery pack in a fire. This could
result in a fire or explosion.
DO NOT
• short-circuit the BP-234 or battery pack. Metal contact
(such as paper clip, another battery, etc.) across the battery con-
tacts can result in a sustained high rate discharge, which could
damage the battery, void the warranty and create a burn or a fire
hazard.
NEVER
• expose of the BP-234 or battery pack to excessive heat of
60°C (+140°F) or abobe. This could result in electrolyte leakage,
possibly causing an explosion or fire.
NEVER
• attempt to recharge the BP-234 or battery pack. Lithium
batteries may explode or cause a fire in such cases.
DO NOT
• disassemble the BP-234 or battery pack. The BP-234 or
battery pack contains no user serviceable parts. Internal battery gas
can cause throat irritation. Alse, exposed lithium may generate heat
and ignite.
DO NOT
• apply excessive pressure to the battery. This may result
in electrolyte leakage, possibly causing a explosion or fire.
• The storage life of the BP-234 about 5 years. Once the expiration
date on the battery pack expires, a new battery pack
chased.
• For safety reasons, once the BP-234 is used, a spare one should be
purchased. The original battery pack can be continued to be used
for regular communications; save the spare one for emergency sit-
uations.
must
be pur-
