INSTALLATION

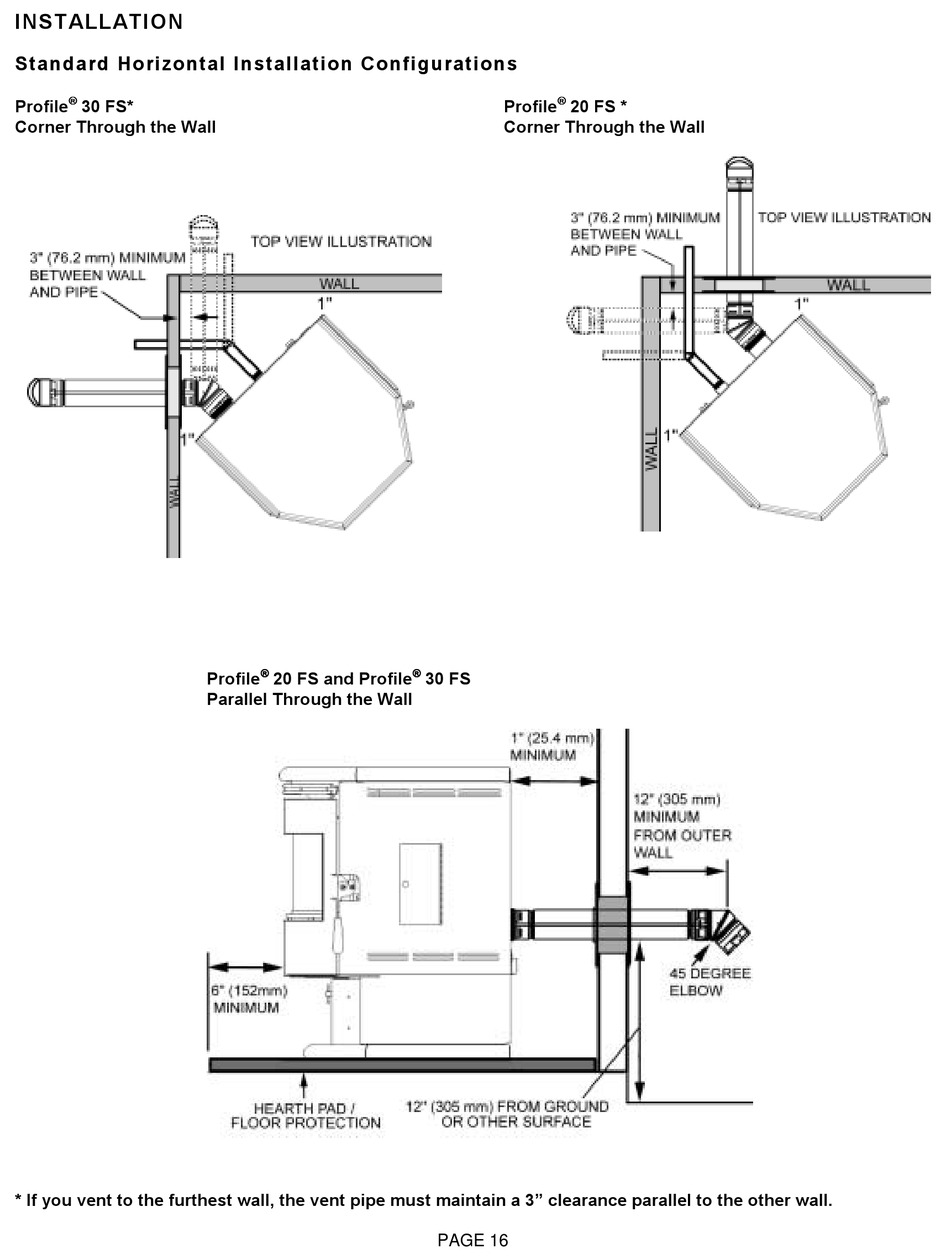

Standard Horizontal Installation Configurations
Profile
30 FS*
Corner Through the Wall
* If you vent to the furthest wall, the vent pipe must maintain a 3" clearance parallel to the other wall.
Profile
20 FS and Profile
Parallel Through the Wall
Profile
20 FS *
Corner Through the Wall
30 FS
PAGE 16
