The horn support (mounting bracket) supplied with your Screen system

provides a simple way to mount and install the mid/high horn on top of the

low frequency section.

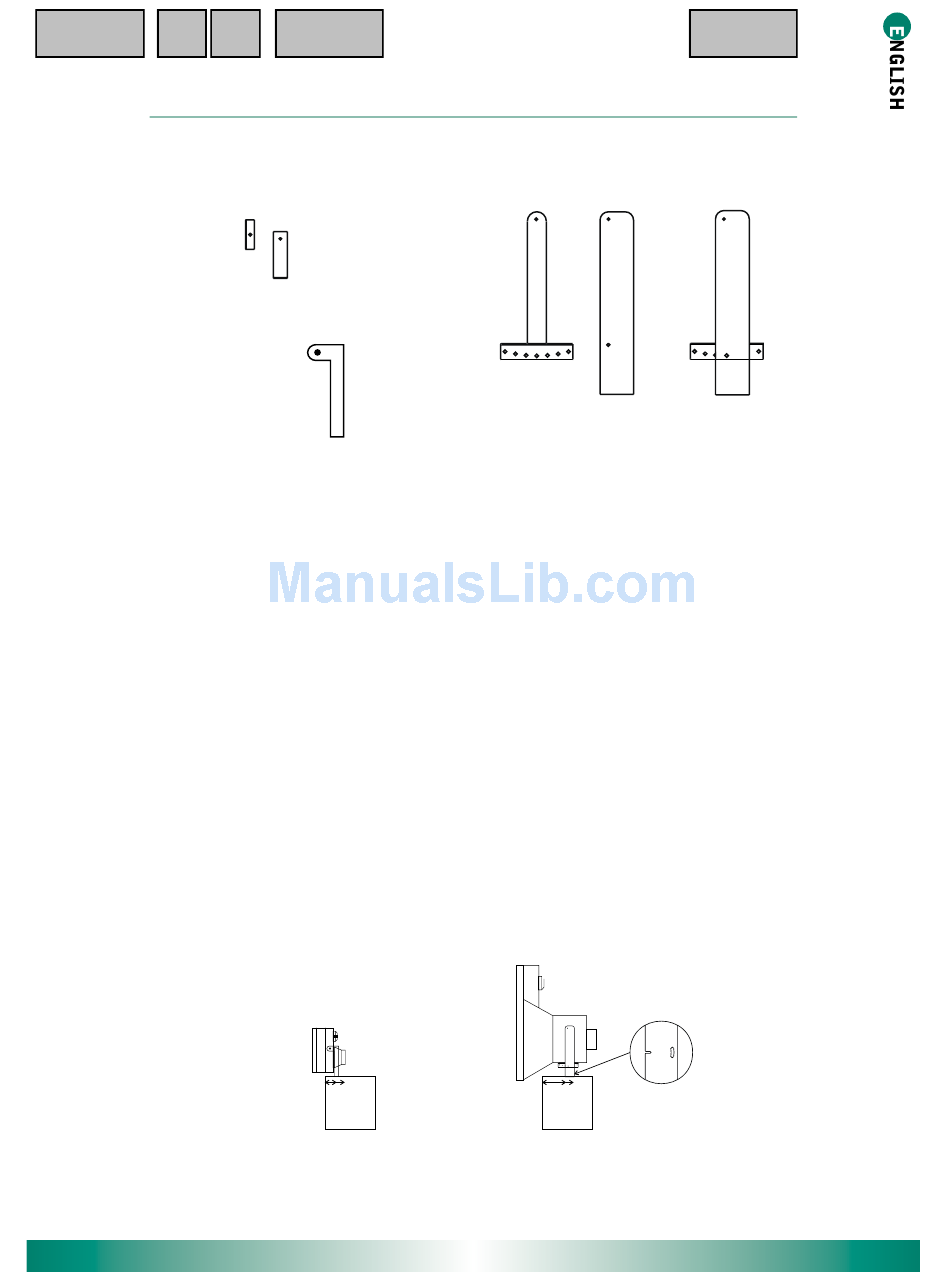

Fig1. Screen 2 horn support

Fig 2. Screen 4 horn support

The Screen 2 support (fig 1) is a two piece support, which combines a

driver plate and a U shaped support as shown. You will need to fit the

driver plate between the horn and the compression driver using the two

compression driver M6 stud fittings.

Then simply attach the plate to the U shaped support via the 2 x M6 fixings

and then using the M8 thumbwheel/bolt attach the completed assembly to

the bass cabinet.

The Screen 4 support (fig 2) is a one piece U shaped support that

connects to the horn section with 2 x M6 fasteners and then locates on to

the bass section with a single M8 thumbwheel. This arrangement provides

simple adjustment of both vertical and horizontal aiming angles. The horn

can also be moved backwards and forwards. In position A, the horn is

close to the screen. In position B, the horn mouth is flush with the front of

the bass enclosure.

The Screen 5 support (fig 3) is a two piece support, which combines a

saddle support and U shaped support as shown. This combination

connects to the horn section with 2 x M6 fasteners and then to the bass

section (see inset, fig 4. on next page) using two thumbwheels at C and D.

The kidney shape at D offers +/- 10

the saddle section provides adjustment of the vertical aiming angle of the

horn in 5
