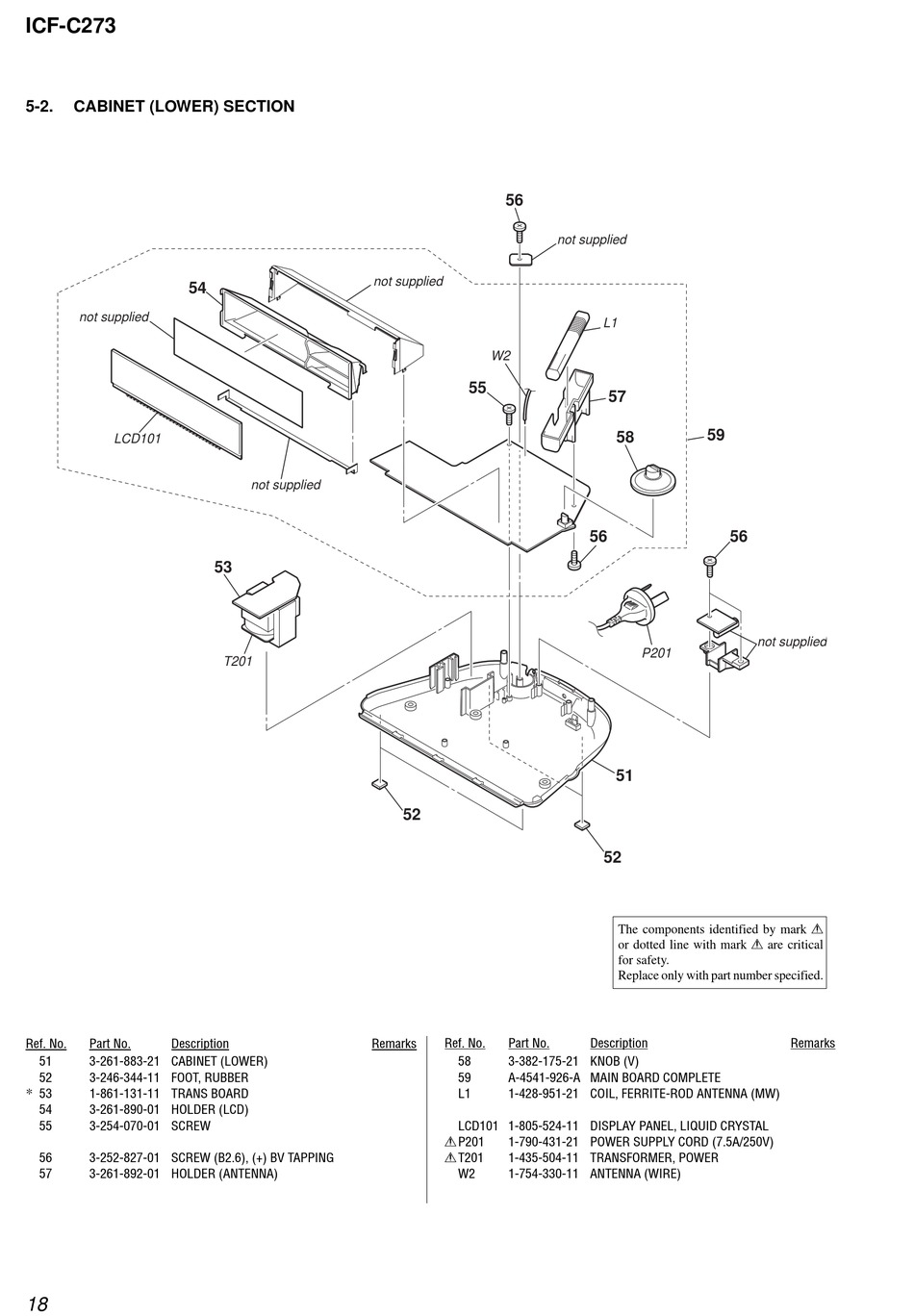

5-2. CABINET (LOWER) SECTION
54
not supplied
LCD101
Ref. No. Part No. Description
51 3-261-883-21 CABINET (LOWER)
52 3-246-344-11 FOOT, RUBBER
* 53 1-861-131-11 TRANS BOARD
54 3-261-890-01 HOLDER (LCD)
55 3-254-070-01 SCREW
56 3-252-827-01 SCREW (B2.6), (+) BV TAPPING
57 3-261-892-01 HOLDER (ANTENNA)
18
not supplied
not supplied
53
T201
Remarks
56
not supplied
W2
55
52
Ref. No. Part No.
58 3-382-175-21 KNOB (V)
59 A-4541-926-A MAIN BOARD COMPLETE
L1 1-428-951-21 COIL, FERRITE-ROD ANTENNA (MW)
LCD101 1-805-524-11 DISPLAY PANEL, LIQUID CRYSTAL
0 P201 1-790-431-21 POWER SUPPLY CORD (7.5A/250V)
0 T201
1-435-504-11 TRANSFORMER, POWER
W2 1-754-330-11 ANTENNA (WIRE)
L1
57
59
58
56 56
not supplied
P201
51
52
The components identified by mark 0
or dotted line with mark 0 are critical
for safety.
Replace only with part number specified.
Description Remarks
