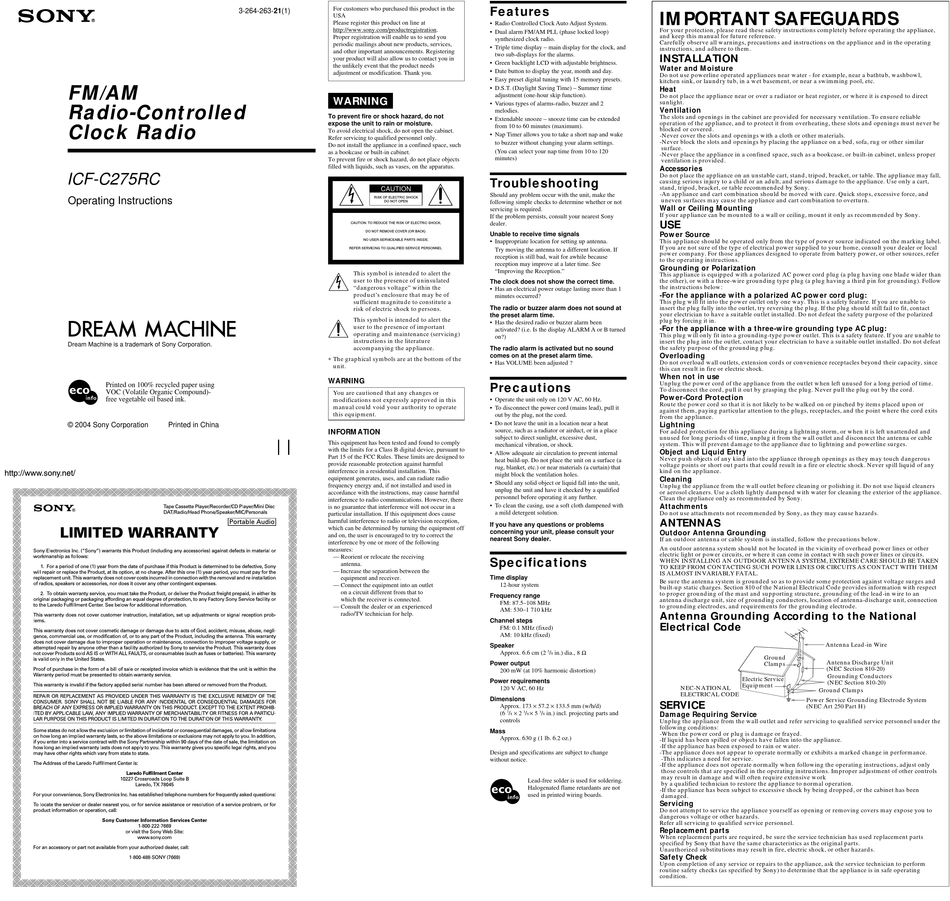

Sony DREAM MACHINE ICF-C275RC Operating Instructions

3-264-263-21(1)
FM/AM
Radio-Controlled

Clock Radio

ICF-C275RC
Operating Instructions
Dream Machine is a trademark of Sony Corporation.
Printed on 100% recycled paper using
VOC (Volatile Organic Compound)-
free vegetable oil based ink.
© 2004 Sony Corporation Printed in China
For customers who purchased this product in the Features
USA
Please register this product on line at
• Radio Controlled Clock Auto Adjust System.
http://www.sony.com/productregistration.
• Dual alarm FM/AM PLL (phase locked loop)
Proper registration will enable us to send you
synthesized clock radio.
periodic mailings about new products, services,
• Triple time display – main display for the clock, and
and other important announcements. Registering
two sub-displays for the alarms.
your product will also allow us to contact you in
• Green backlight LCD with adjustable brightness.
the unlikely event that the product needs
• Date button to display the year, month and day.
adjustment or modification. Thank you.
• Easy preset digital tuning with 15 memory presets.
• D.S.T. (Daylight Saving Time) – Summer time
adjustment (one-hour skip function).
WARNING
• Various types of alarms-radio, buzzer and 2
melodies.
To prevent fire or shock hazard, do not
• Extendable snooze – snooze time can be extended
expose the unit to rain or moisture.
from 10 to 60 minutes (maximum).
To avoid electrical shock, do not open the cabinet.
• Nap Timer allows you to take a short nap and wake
Refer servicing to qualified personnel only.
to buzzer without changing your alarm settings.
Do not install the appliance in a confined space, such
(You can select your nap time from 10 to 120
as a bookcase or built-in cabinet.
minutes)
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.

Troubleshooting

Should any problem occur with the unit, make the
following simple checks to determine whether or not
servicing is required.
If the problem persists, consult your nearest Sony
dealer.
Unable to receive time signals
• Inappropriate location for setting up antenna.
Try moving the antenna to a different location. If
reception is still bad, wait for awhile because
reception may improve at a later time. See
"Improving the Reception."
This symbol is intended to alert the
user to the presence of uninsulated
The clock does not show the correct time.
"dangerous voltage" within the
• Has an electrical power outage lasting more than 1
product's enclosure that may be of
minutes occurred?
sufficient magnitude to constitute a
The radio or buzzer alarm does not sound at
risk of electric shock to persons.
the preset alarm time.
This symbol is intended to alert the
• Has the desired radio or buzzer alarm been
user to the presence of important
activated? (i.e. Is the display ALARM A or B turned
operating and maintenance (servicing)
on?)
instructions in the literature
accompanying the appliance. The radio alarm is activated but no sound
comes on at the preset alarm time.
The graphical symbols are at the bottom of the
• Has VOLUME been adjusted ?
unit.
WARNING
Precautions
You are cautioned that any changes or
• Operate the unit only on 120 V AC, 60 Hz.
modifications not expressly approved in this
manual could void your authority to operate
• To disconnect the power cord (mains lead), pull it
this equipment.
out by the plug, not the cord.
• Do not leave the unit in a location near a heat
source, such as a radiator or airduct, or in a place
INFORMATION
subject to direct sunlight, excessive dust,
This equipment has been tested and found to comply
mechanical vibration, or shock.
with the limits for a Class B digital device, pursuant to
• Allow adequate air circulation to prevent internal
Part 15 of the FCC Rules. These limits are designed to
heat build-up. Do not place the unit on a surface (a
provide reasonable protection against harmful
rug, blanket, etc.) or near materials (a curtain) that
interference in a residential installation. This
might block the ventilation holes.
equipment generates, uses, and can radiate radio
• Should any solid object or liquid fall into the unit,
frequency energy and, if not installed and used in
unplug the unit and have it checked by a qualified
accordance with the instructions, may cause harmful
personnel before operating it any further.
interference to radio communications. However, there
• To clean the casing, use a soft cloth dampened with
is no guarantee that interference will not occur in a
a mild detergent solution.
particular installation. If this equipment does cause
harmful interference to radio or television reception,
If you have any questions or problems
which can be determined by turning the equipment off
concerning your unit, please consult your
and on, the user is encouraged to try to correct the
nearest Sony dealer.
interference by one or more of the following
measures:
— Reorient or relocate the receiving

Specifications

antenna.
— Increase the separation between the
Time display
equipment and receiver.
— Connect the equipment into an outlet 12-hour system
on a circuit different from that to
Frequency range
which the receiver is connected.
FM: 87.5–108 MHz
— Consult the dealer or an experienced
AM: 530–1 710 kHz
radio/TV technician for help.
Channel steps
FM: 0.1 MHz (fixed)
AM: 10 kHz (fixed)
Speaker
Approx. 6.6 cm (2
Power output
200 mW (at 10% harmonic distortion)
Power requirements
120 V AC, 60 Hz
Dimensions
Approx. 173
7
(6
controls
Mass
Approx. 630 g (1 lb. 6.2 oz.)
Design and specifications are subject to change
without notice.

IMPORTANT SAFEGUARDS

For your protection, please read these safety instructions completely before operating the appliance,
and keep this manual for future reference.
Carefully observe all warnings, precautions and instructions on the appliance and in the operating
instructions, and adhere to them.
INSTALLATION
Water and Moisture
Do not use powerline operated appliances near water - for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.
Heat
Do not place the appliance near or over a radiator or heat register, or where it is exposed to direct
sunlight.
Ventilation
The slots and openings in the cabinet are provided for necessary ventilation. To ensure reliable
operation of the appliance, and to protect it from overheating, these slots and openings must never be
blocked or covered.
-Never cover the slots and openings with a cloth or other materials.
-Never block the slots and openings by placing the appliance on a bed, sofa, rug or other similar
surface.
-Never place the appliance in a confined space, such as a bookcase, or built-in cabinet, unless proper
ventilation is provided.
Accessories
Do not place the appliance on an unstable cart, stand, tripod, bracket, or table. The appliance may fall,
causing serious injury to a child or an adult, and serious damage to the appliance. Use only a cart,
stand, tripod, bracket, or table recommended by Sony.
-An appliance and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart combination to overturn.
Wall or Ceiling Mounting
If your appliance can be mounted to a wall or ceiling, mount it only as recommended by Sony.
USE
Power Source
This appliance should be operated only from the type of power source indicated on the marking label.
If you are not sure of the type of electrical power supplied to your home, consult your dealer or local
power company. For those appliances designed to operate from battery power, or other sources, refer
to the operating instructions.
Grounding or Polarization
This appliance is equipped with a polarized AC power cord plug (a plug having one blade wider than
the other), or with a three-wire grounding type plug (a plug having a third pin for grounding). Follow
the instructions below:
-For the appliance with a polarized AC power cord plug:
This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact
your electrician to have a suitable outlet installed. Do not defeat the safety purpose of the polarized
plug by forcing it in.
-For the appliance with a three-wire grounding type AC plug:
This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact your electrician to have a suitable outlet installed. Do not defeat
the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since
this can result in fire or electric shock.
When not in use
Unplug the power cord of the appliance from the outlet when left unused for a long period of time.
To disconnect the cord, pull it out by grasping the plug. Never pull the plug out by the cord.
Power-Cord Protection
Route the power cord so that it is not likely to be walked on or pinched by items placed upon or
against them, paying particular attention to the plugs, receptacles, and the point where the cord exits
from the appliance.
Lightning
For added protection for this appliance during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the appliance due to lightning and powerline surges.
Object and Liquid Entry
Never push objects of any kind into the appliance through openings as they may touch dangerous
voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any
kind on the appliance.
Cleaning
Unplug the appliance from the wall outlet before cleaning or polishing it. Do not use liquid cleaners
or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the appliance.
Clean the appliance only as recommended by Sony.
Attachments
Do not use attachments not recommended by Sony, as they may cause hazards.
ANTENNAS
Outdoor Antenna Grounding
If an outdoor antenna or cable system is installed, follow the precautions below.
An outdoor antenna system should not be located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN
TO KEEP FROM CONTACTING SUCH POWER LINES OR CIRCUITS AS CONTACT WITH THEM
IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some protection against voltage surges and
built-up static charges. Section 810 of the National Electrical Code provides information with respect
to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection
to grounding electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the National
Electrical Code
5 / in.) dia., 8
8
NEC-NATIONAL
ELECTRICAL CODE
SERVICE
57.2 133.5 mm (w/h/d)
3 3
/ 2 / 5 / in.) incl. projecting parts and Damage Requiring Service
8 8 8
Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
-When the power cord or plug is damage or frayed.
-If liquid has been spilled or objects have fallen into the appliance.
-If the appliance has been exposed to rain or water.
-The appliance does not appear to operate normally or exhibits a marked change in performance.
-This indicates a need for service.
-If the appliance does not operate normally when following the operating instructions, adjust only
those controls that are specified in the operating instructions. Improper adjustment of other controls
may result in damage and will often require extensive work
Lead-free solder is used for soldering.
by a qualified technician to restore the appliance to normal operation.
Halogenated flame retardants are not
-If the appliance has been subject to excessive shock by being dropped, or the cabinet has been
used in printed wiring boards.
damaged.
Servicing
Do not attempt to service the appliance yourself as opening or removing covers may expose you to
dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
Replacement parts
When replacement parts are required, be sure the service technician has used replacement parts
specified by Sony that have the same characteristics as the original parts.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
Safety Check
Upon completion of any service or repairs to the appliance, ask the service technician to perform
routine safety checks (as specified by Sony) to determine that the appliance is in safe operating
condition.
Antenna Lead-in Wire
Ground
Antenna Discharge Unit
Clamps
(NEC Section 810-20)
Grounding Conductors
Electric Service
(NEC Section 810-20)
Equipment
Ground Clamps
Power Service Grounding Electrode System
(NEC Art 250 Part H)
